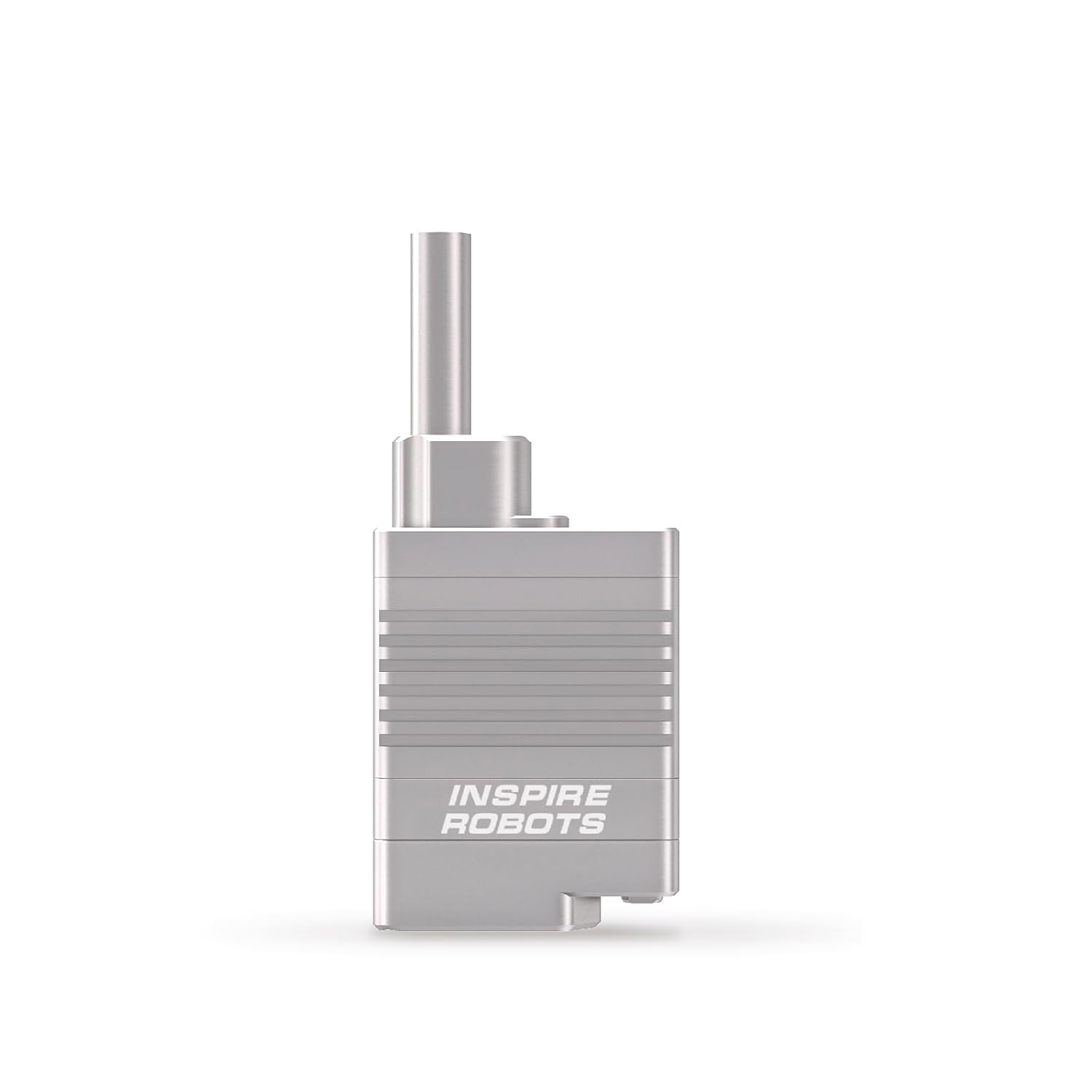

Inspire Robots LAS16 Micro Linear Servo Actuator, 16mm Stroke, 105N Force, ±0.03mm Precision, Lightweight 27g

Overview

The Inspire Robots LAS16 Series Micro Linear Servo Actuator is a high-precision, lightweight, and compact actuator designed for applications requiring fine linear motion control. Compared to the LA Series, the LAS Series achieves a smaller and lighter design by placing the motor and screw in parallel. With a 16 mm stroke, ±0.03 mm positioning accuracy, and a maximum force of 105 N, this actuator offers exceptional power density in a body weighing just 27 g. Its integrated drive and control system simplifies installation and operation, making it ideal for precision robotics and automation systems.

---

Key Features

• High Precision: ±0.03 mm positioning repeatability for demanding tasks.

• Compact & Lightweight: Only 56.5 mm in length and 27 g in weight, perfect for space-constrained applications.

• High Power Density: Delivers up to 105 N maximum force with a locked-rotor force of 150 N.

• Integrated Drive and Control: Built-in servo driver and bus control for simplified system integration.

• Multiple Interfaces: Supports LVTTL serial port (D) and PWM serial port (P) communication.

• Versatile Mounting Options: Available with standard or octagonal mechanical interfaces, and M3 threaded rod for easy joint connections.

• Reliable Operation: IP40 protection rating and an operating temperature range from -10 °C to +60 °C.

---

Specifications

Speed Levels and Performance

---

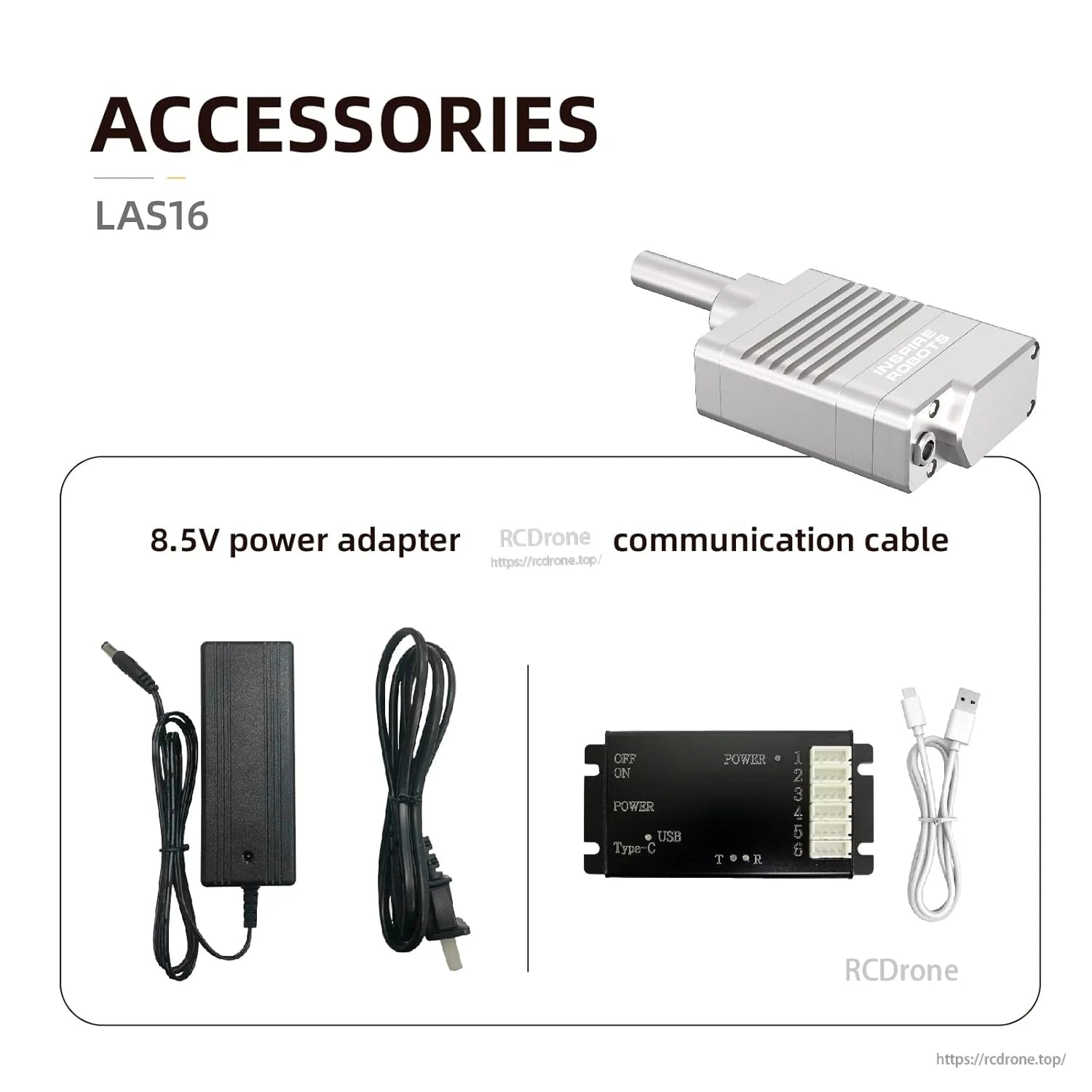

Accessories

• 8.5 V Power Adapter

• Communication Cable and Bus Controller (USB Type-C interface)

---

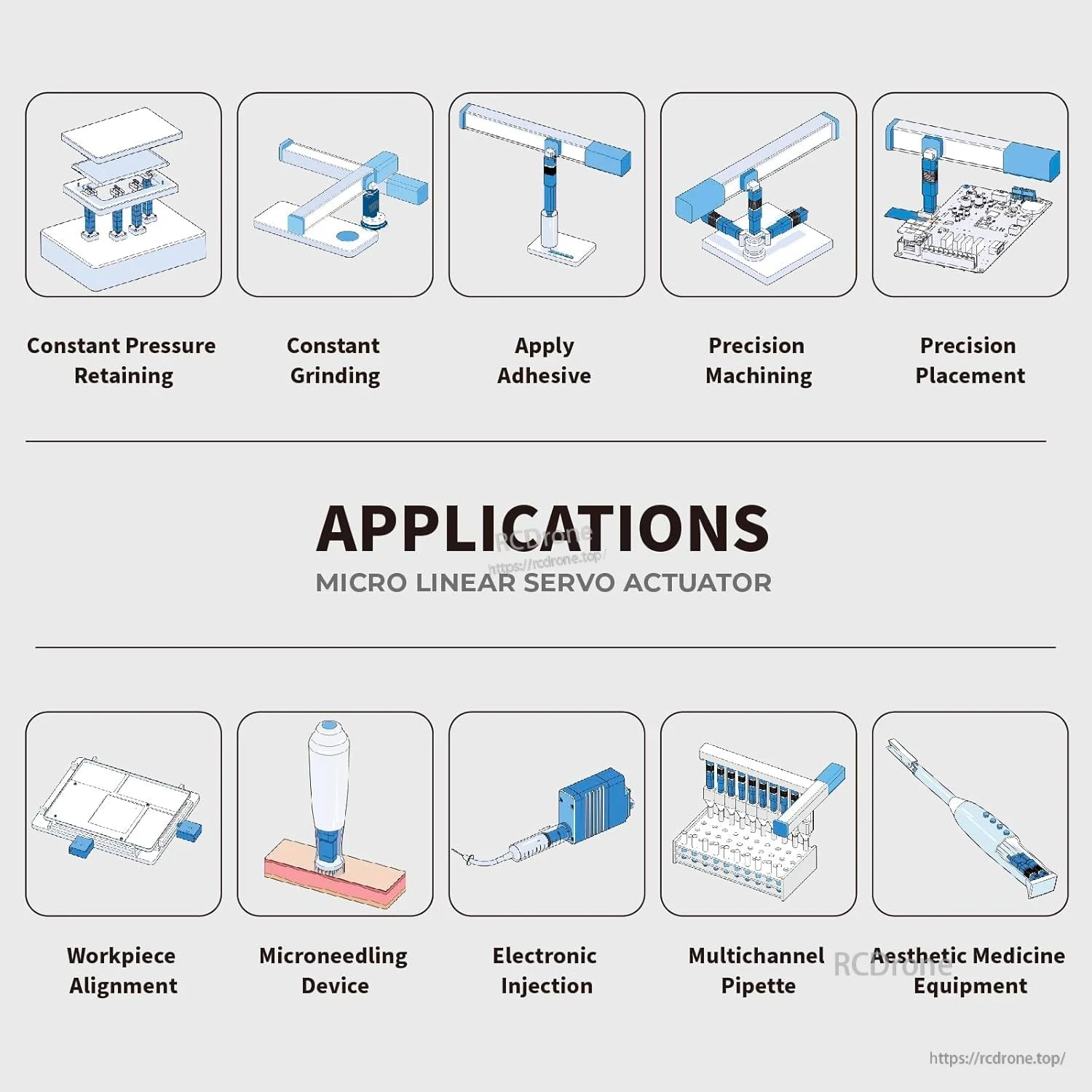

Applications

The LAS16 is ideal for robotics, automation, and precision equipment, including:

• Constant pressure retaining

• Constant grinding

• Adhesive dispensing

• Precision machining

• Precision placement of components

• Workpiece alignment

• Microneedling devices

• Electronic injection systems

• Multichannel pipettes

• Aesthetic and medical equipment

---

Advantages Over LA Series

• Parallel motor and screw design reduces size and weight.

• Simplified integration while maintaining high power and accuracy.

• Ideal for modern compact automation and robotic platforms.

Details

Inspire Robots LAS16 micro servo offers 16mm stroke, 27g weight, 8V±10% operation, ±0.03mm repeatability, -10°C to +60°C range, IP40 rating. Speed levels 02-10 provide varied force, speed, current. Options: standard/octagonal interface, LVTT/PWM.

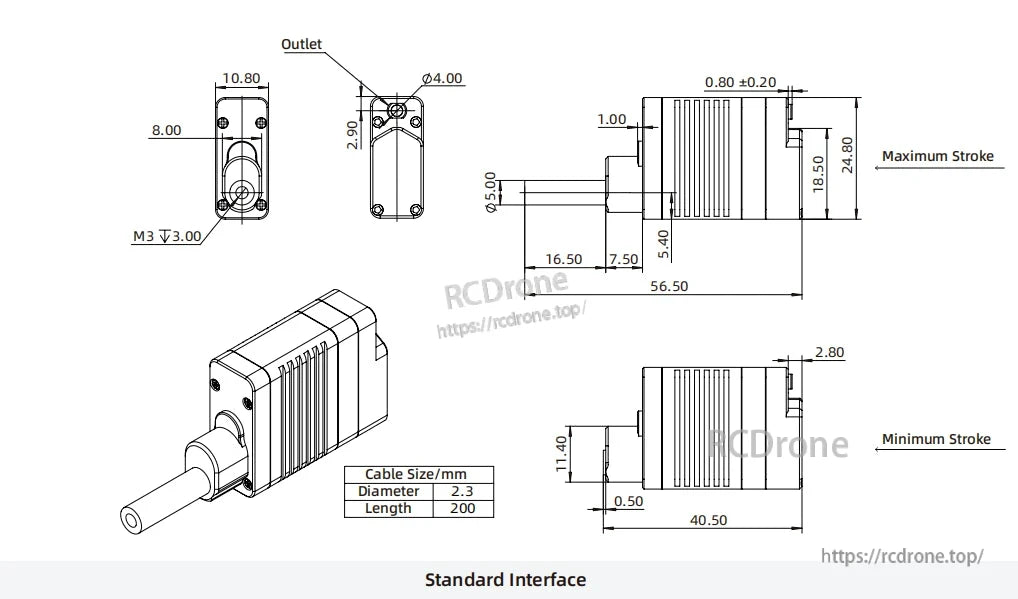

Micro Servo dimensions, cable specs, interface details, stroke range, and mounting features.

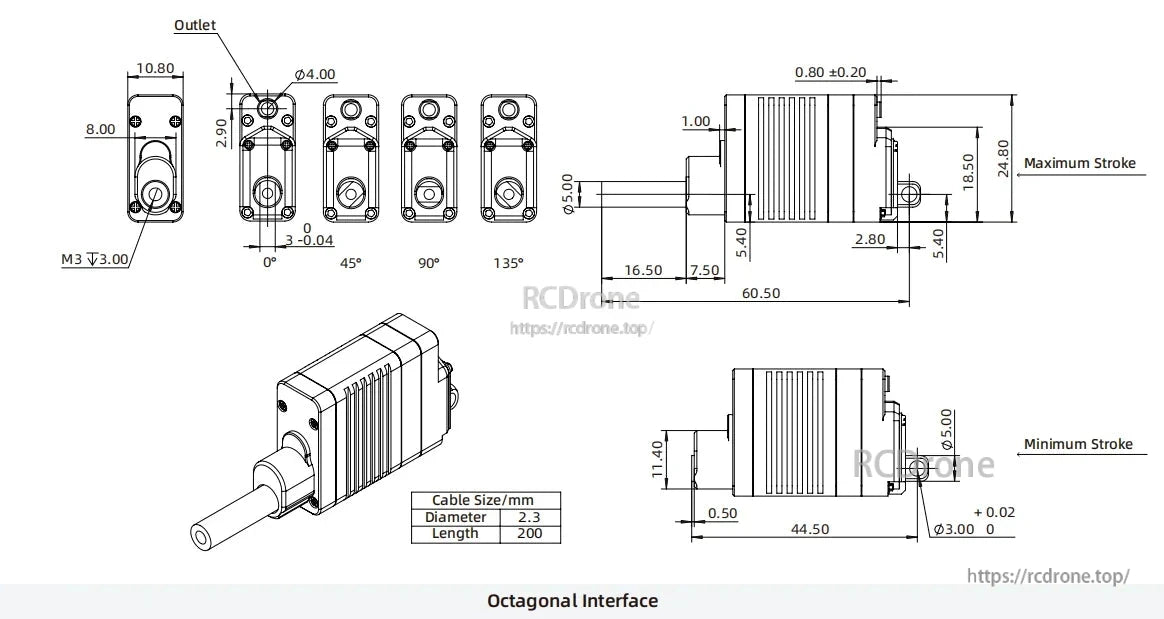

Inspire LAS16 Micro Servo technical drawing with dimensions, octagonal interface, cable specs (2.3mm diameter, 200mm length), and stroke measurements for maximum and minimum positions.

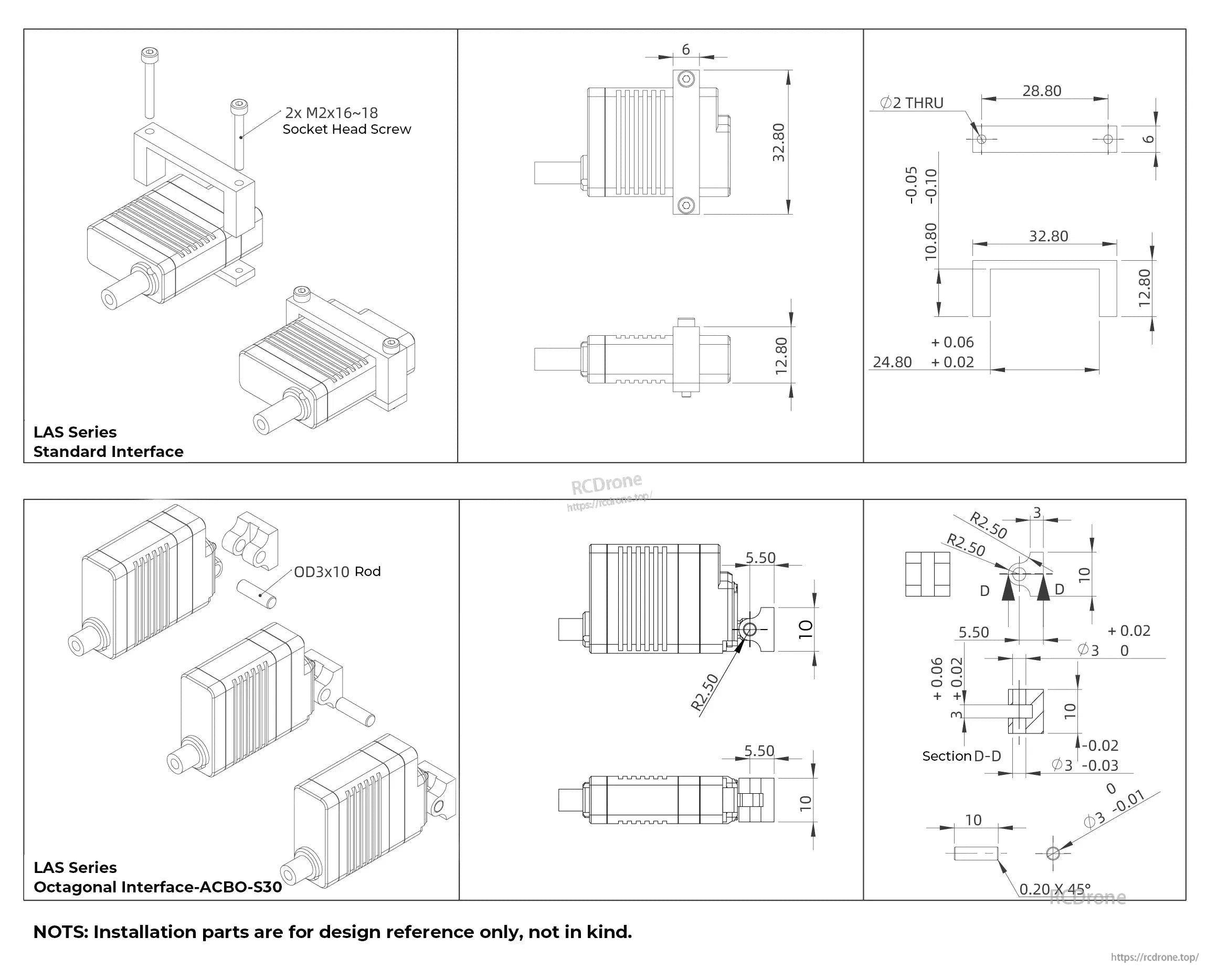

Micro servo with standard and octagonal interfaces. Includes dimensions, mounting details, and installation references. Features M2x16-18 screws, OD3x10 rod, and precise tolerances for design use.

LAS 16 Micro Linear Servo Actuator, 16mm Stroke, Compact and Lightweight Design

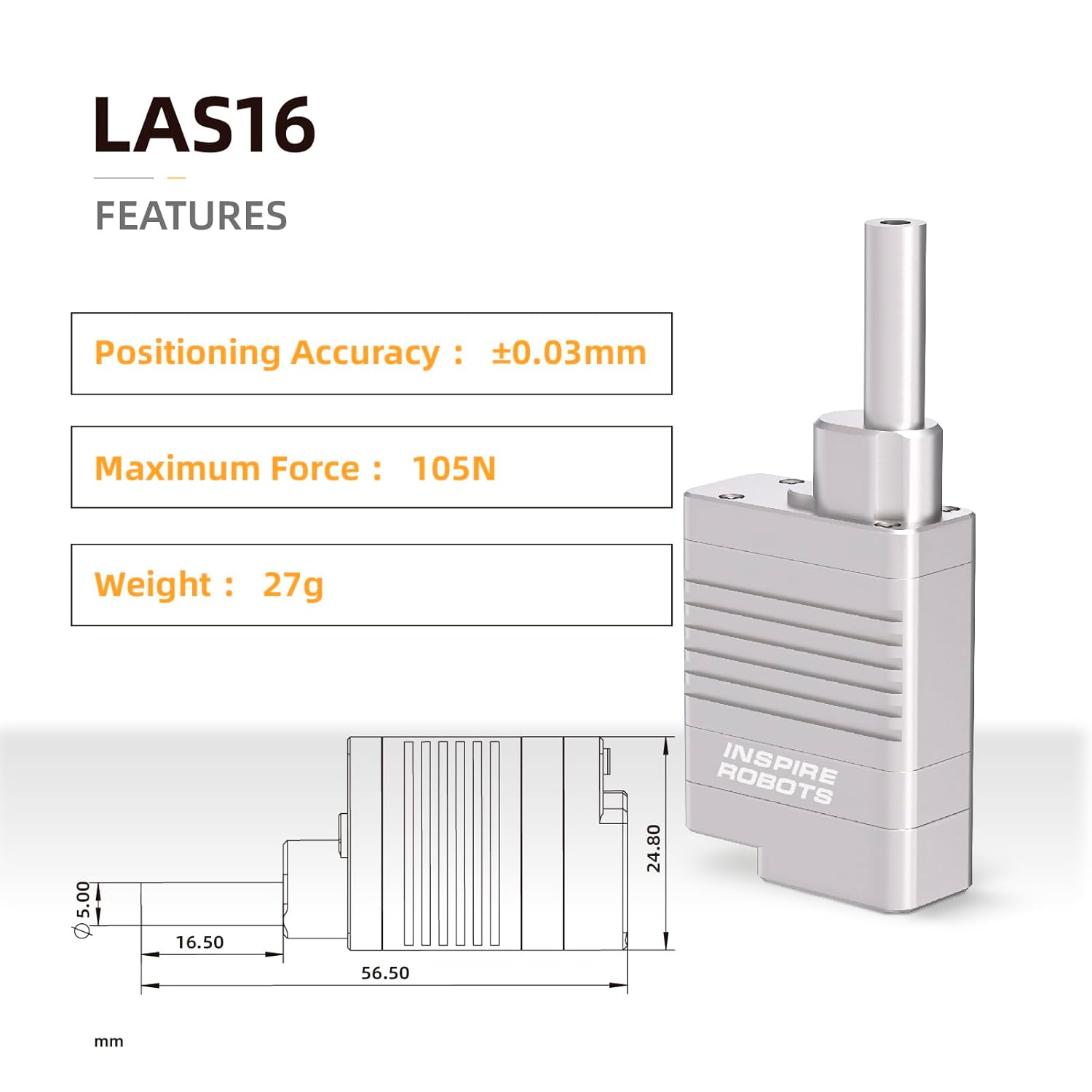

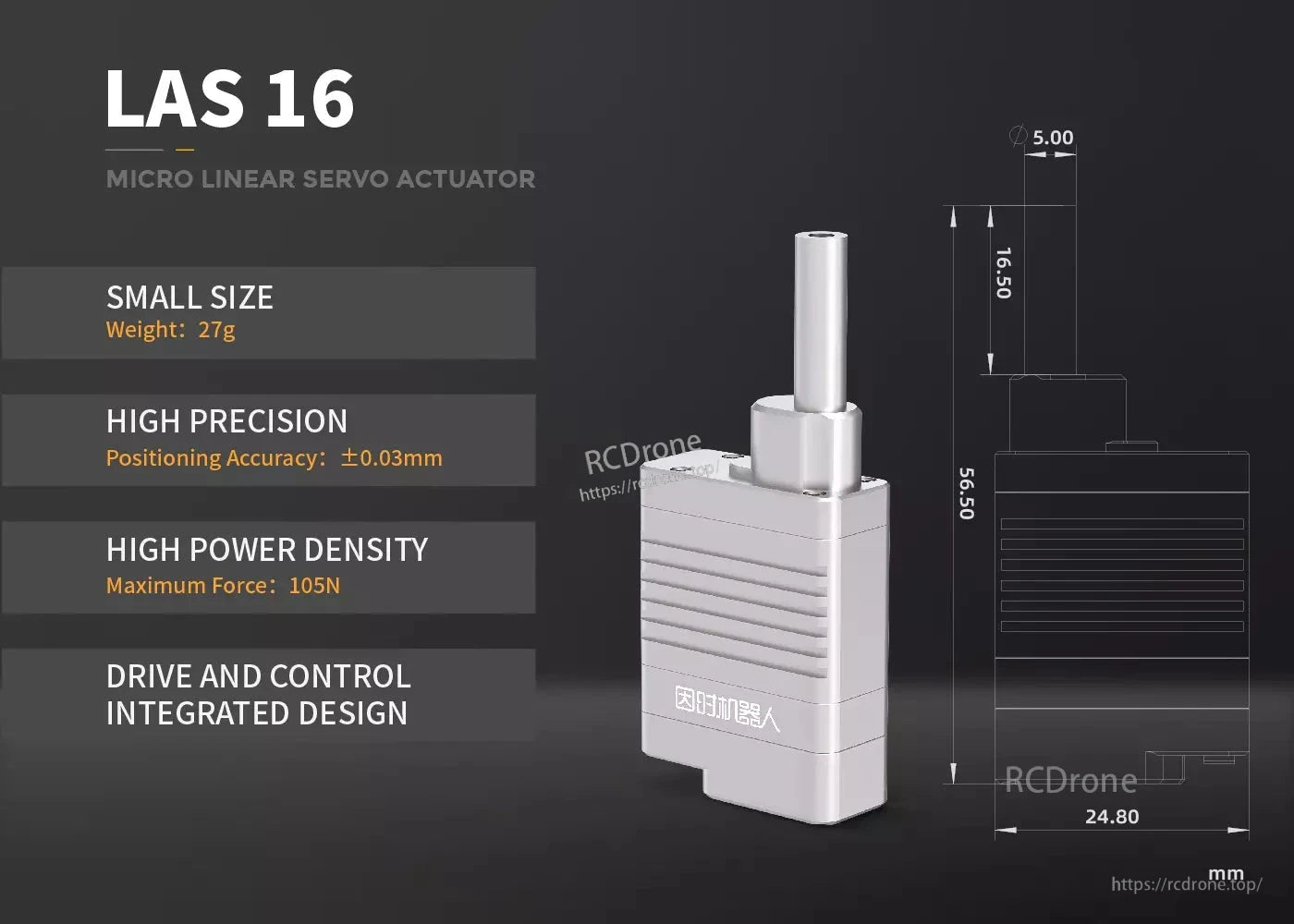

LAS 16 micro linear servo actuator: small size (27g), high precision (±0.03mm), high power density (105N), integrated drive and control design, dimensions 24.80×56.50×16.50 mm.

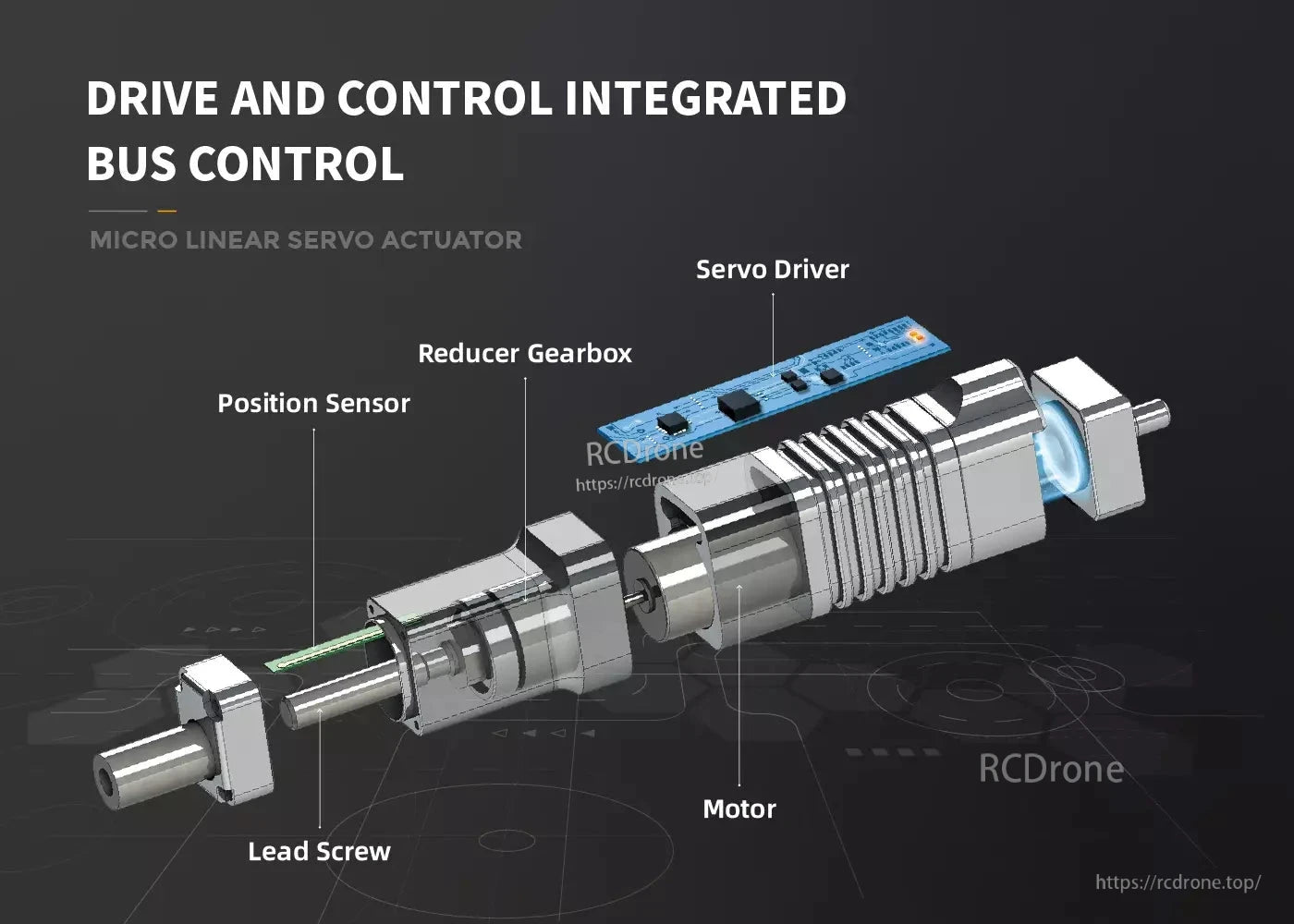

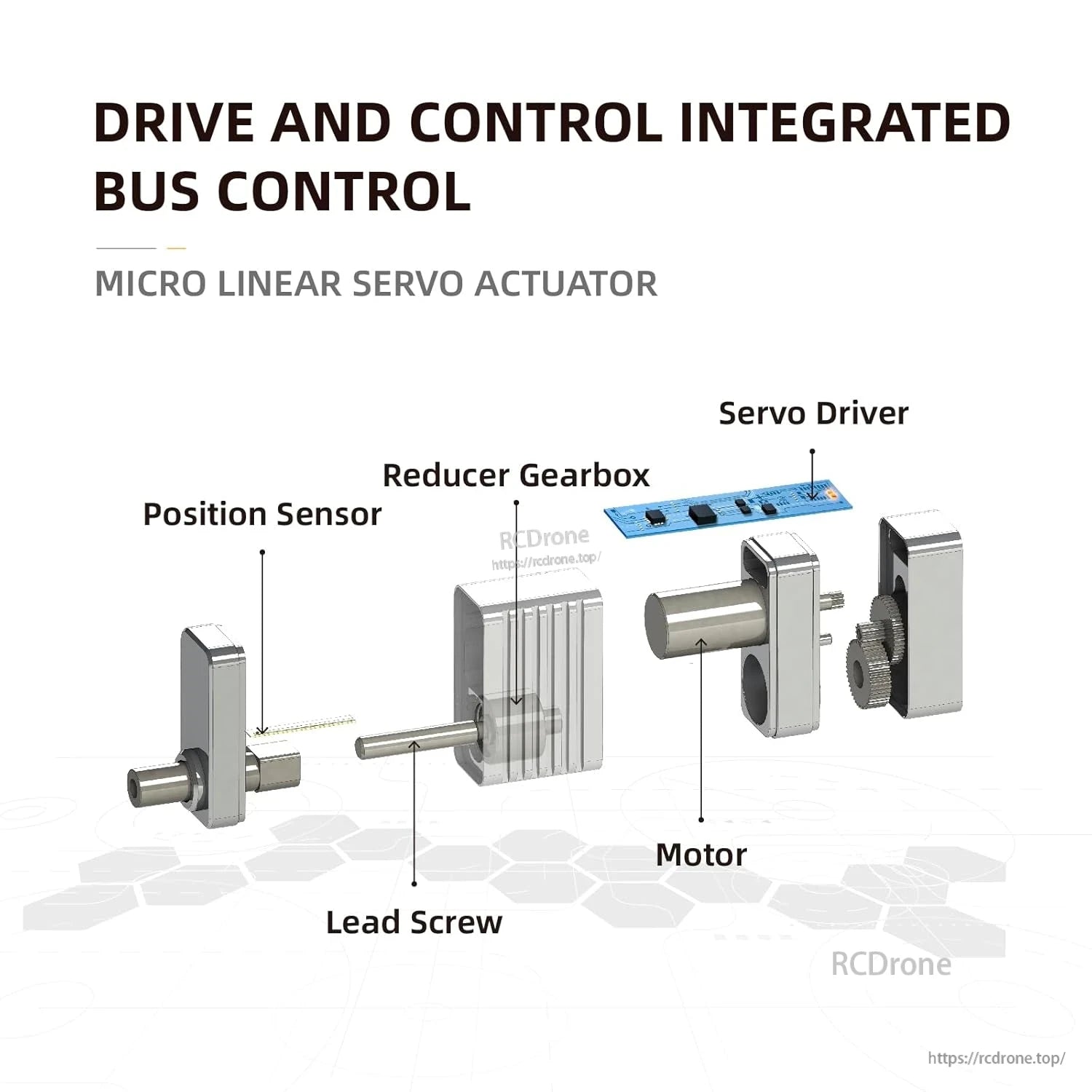

Micro linear servo actuator with integrated drive, control, and bus system.

16mm stroke micro linear servo actuator with M3 threaded and two mechanical interfaces.
