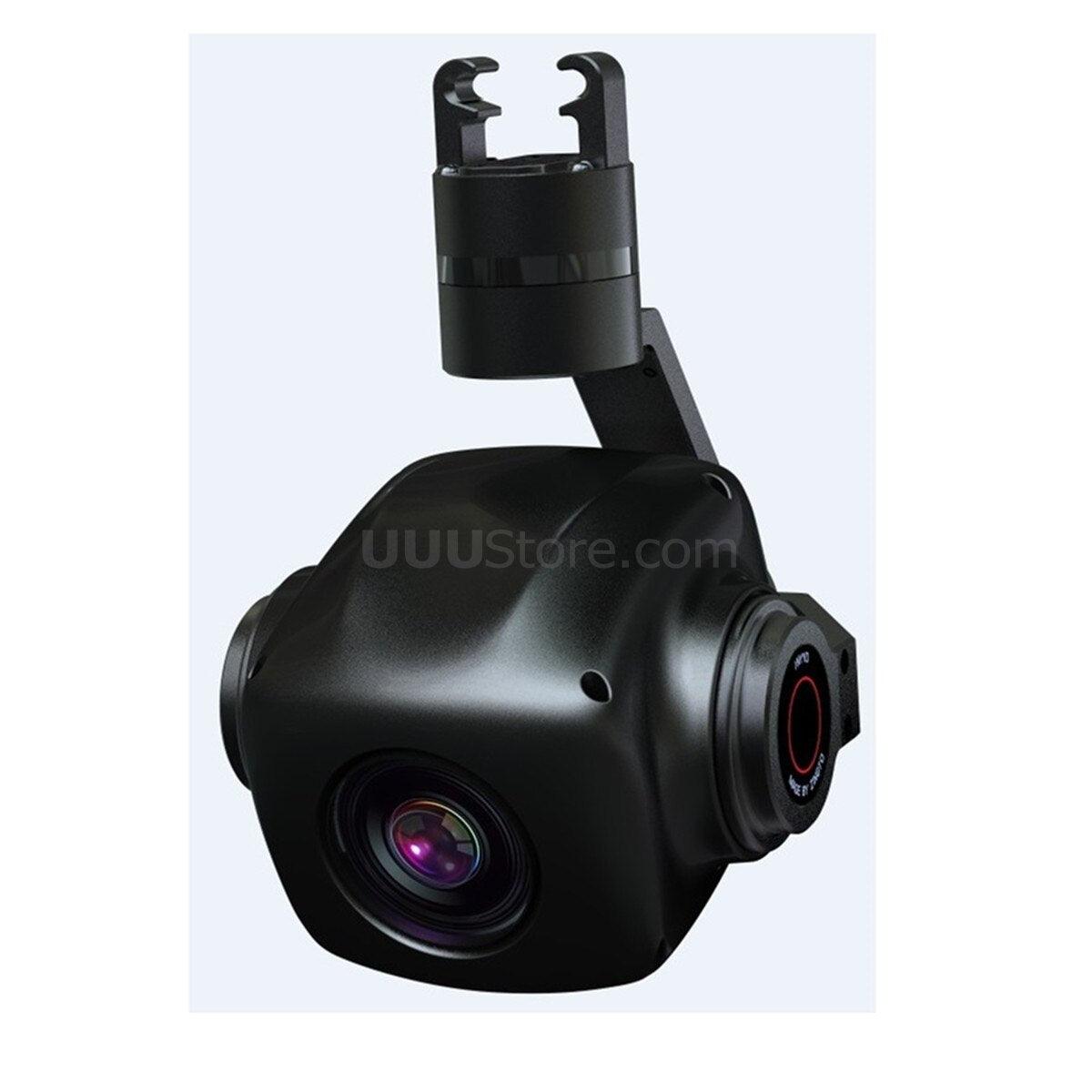

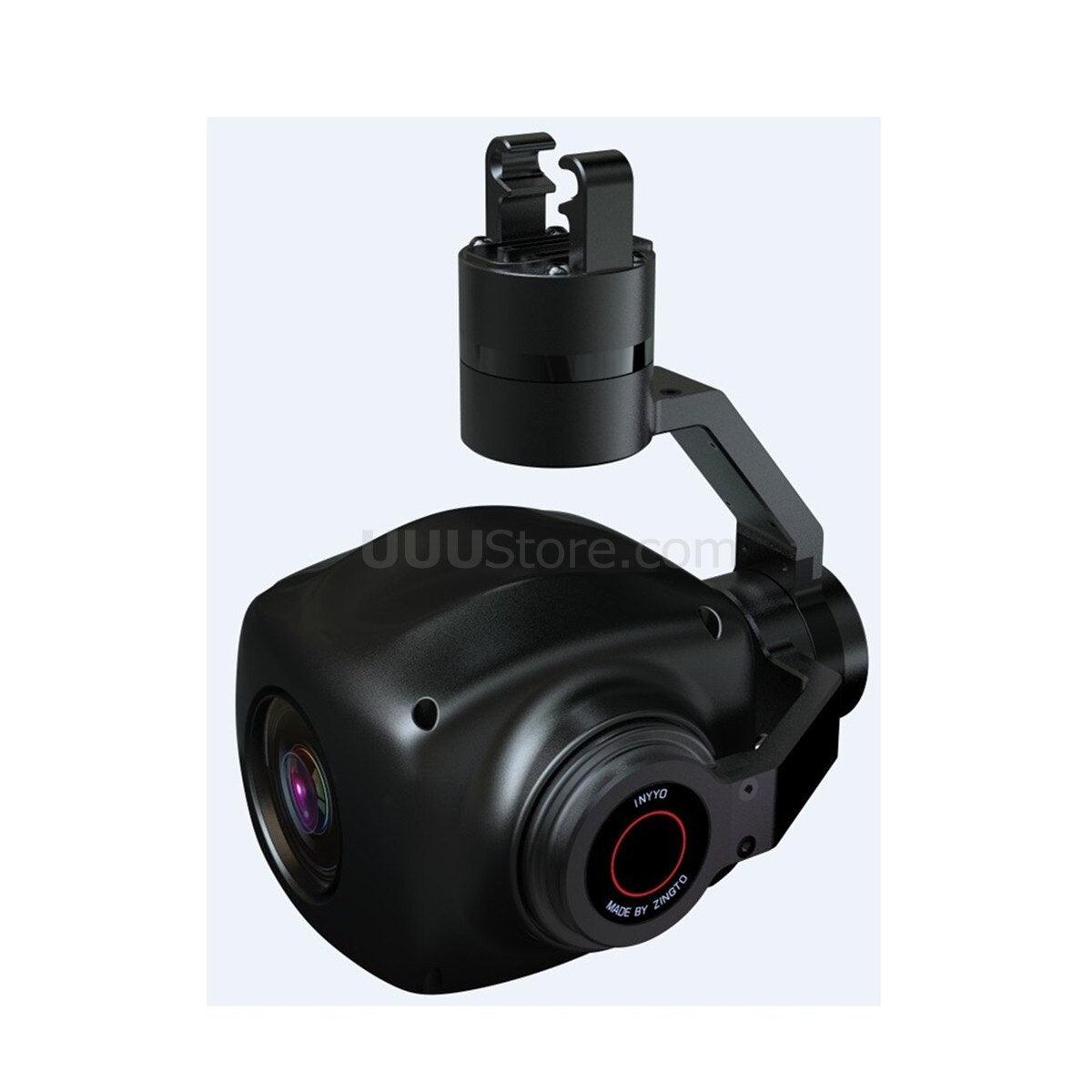

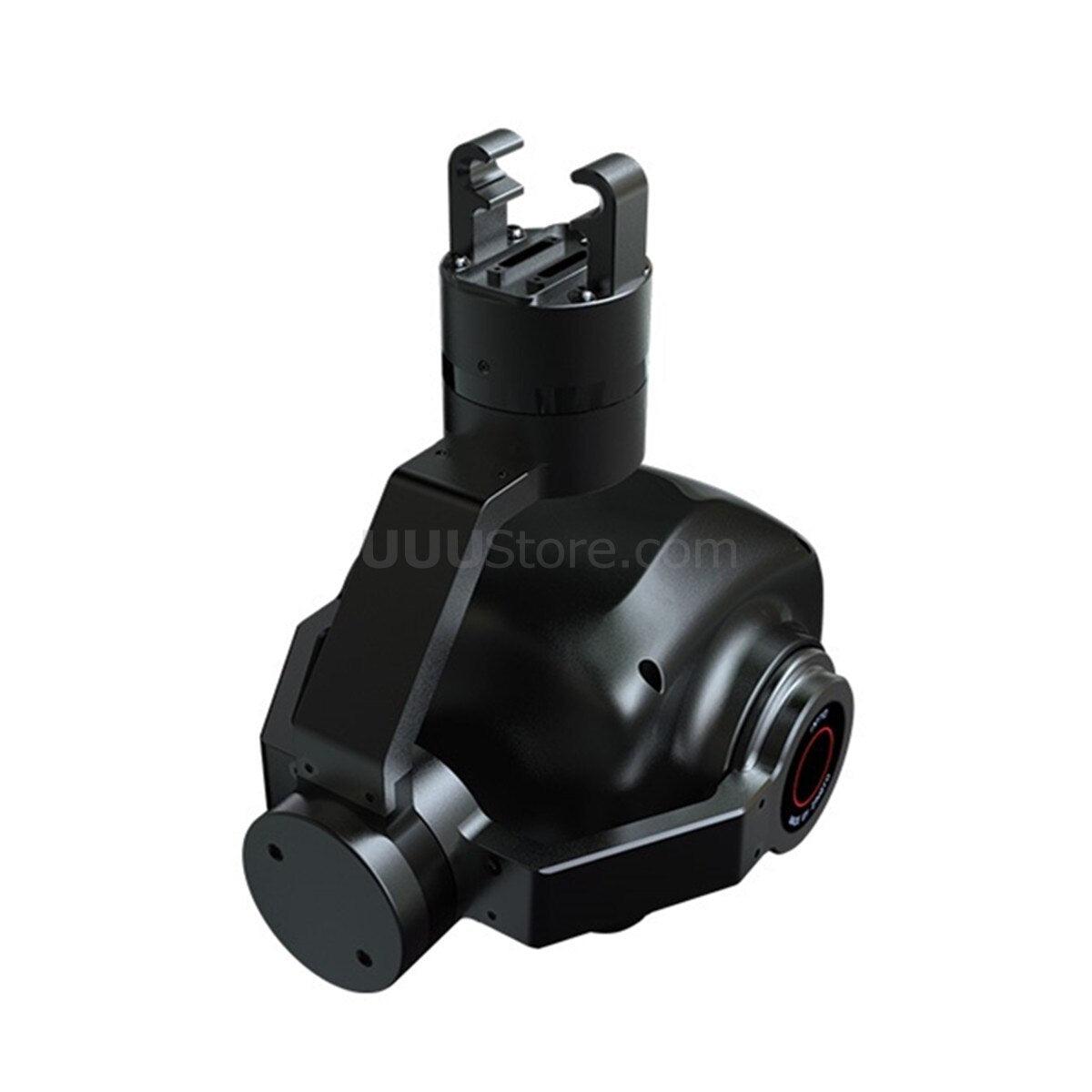

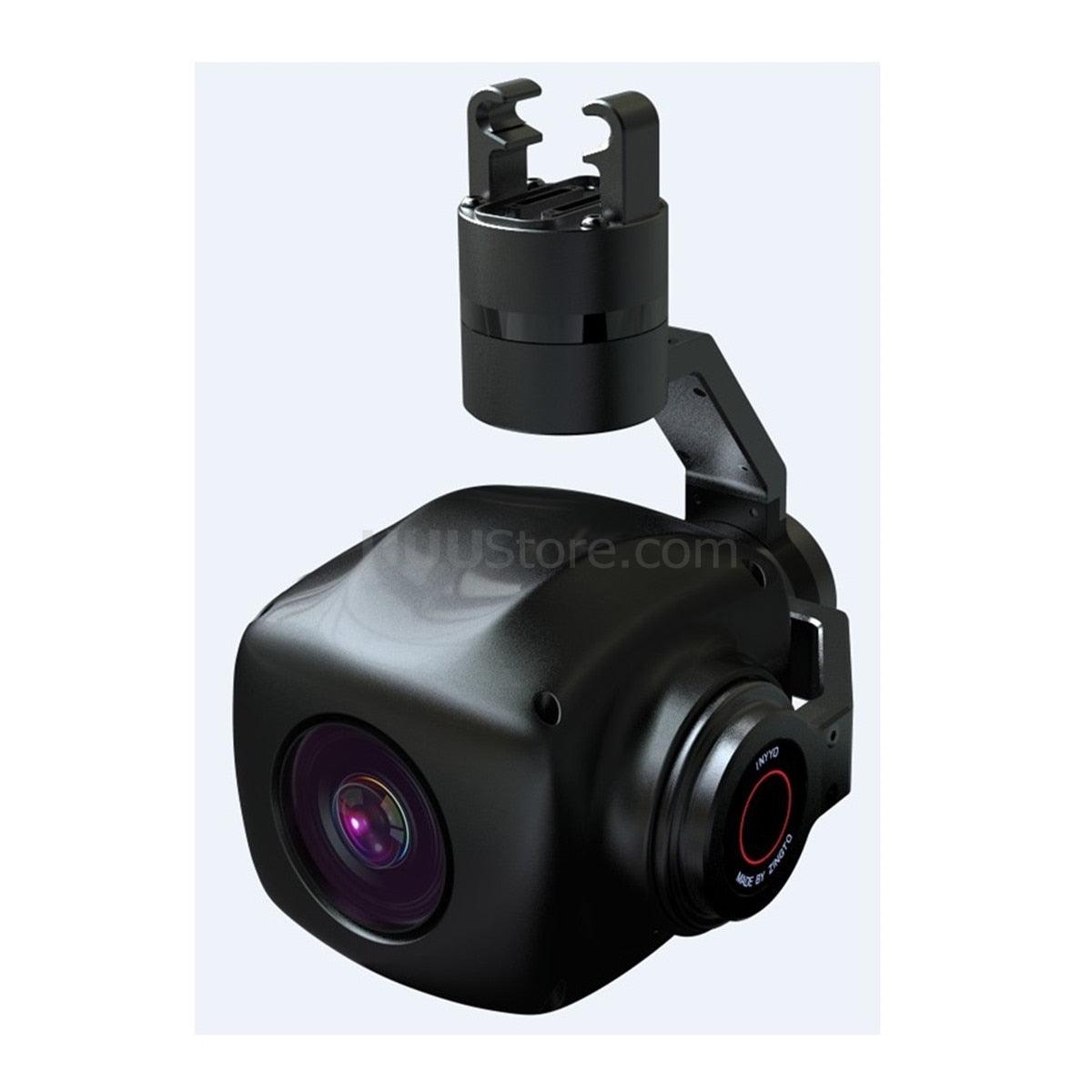

INYYO QR 20W 20X 360 Degree OPTICAL ZOOM CAMERA 1080p 60fps 1/3" 2.0 Megapixel CMOS Camera WITH 3-AXIS GIMBAL

Note:INYYO-QR-20WPRO has a real-time tracking function, INYYO-QR-20W does not include

The INYYO QR 20W is a new 20x optical zoom camera with 3-axis gimbal. It supports 360 degree rotation for professional use.

INYYO 20W can be mounted on VTOL planes and other UAVs for the applications in the fields like military reconnaissance, police investigation, surveillance and power line inspection, disaster prevention & mitigation, emergency monitoring and rescue search etc.

It features excellent stability, accuracy and sensitivity that comes with advanced 3-axis stabilizability, able to keep the camera steady under any states, even under the circumstance of high speed flying and intense shaking status.

The gimbal supports 360 degree rotation. The 3-axis gimbal  has the Intelligent Gimbal Speed Regulation function: FAST speed and LOW speed modes. Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. LOW speed mode is used for large zooming range, it enables you to target the object more accurately. This 3-axis gimbal also has the function of one-key return to center.

Specifications:

Model Number: INYYO-QR-20W
Material: Aircraft grade aluminum alloy & nylon
Dimensions: 146mm x 118mm x 184mm
Weight: 645 grams
Working temperature: -20~+80°C (Recommend to use in the range of-5°C~ 45°C)
Working Voltage: 24V
Pitch: -120°to +30°
Roll: -30°to +30°
Yaw: 360°
Pitch & Roll & Yaw: ±0.01°
Control Signal: Sbus, Serial Port
Work Modes: Direction Lock, Heading Follow, One Key Down

INYYO QR 20W supports 20x optical zooming. It adopts 1/3” 2.0 Megapixel CMOS sensor with an effective pixels of 2.0 Megapixel. The 20x optical zoom camera supports HDMI output and Ethernet output, the video output resolution is 1080p 60fps (HDMI) and 1080P 25fps (Ethernet).

Camera:

Sensor: 1/3” 2.0 Megapixel CMOS Starlight level, low illumination, visible at night
Focal Length: 5.4～108mm
Optical Zoom: 20X
Focus Speed: ＜3S
Image Resolution: 2.0MP
Video Output Port: HDMI/ Ethernet output
Video Output Resolution: 1080P/60fps, 1080P/25fps
Video Storage: 1080P/25fps
Storage: TF card (Max 128GB) (forbid hot-swappable), Class10 or UHS-1

Your Purchase Includes:

1x INYYO-20W 20X 360 Optical Zoom Camera with 3-Axis Gimbal

Before Use:

- Please ensure that there is no obstruction within the working area of gimabl, or it might rusult in bad performance or even dagame.
- INYYO-QR-20W gimbal is a precision equipment. Do not add hoods, additional weight and other items, or it might result in bad performance or even damage.
- Please keep the lens clean and wipe it with a clean glasses cloth. Dirty lenses would cause the focus to slow down or even fail to focus.
- Operate the interface when the device is powered off so as to prevent damage.
- Do not pull out the TF card while recording the photo or video, otherwise the image obtained might be lost.
- Do not disassemble or repair the gimbal by yourself, otherwise you will not be covered by the manufacturer warranty.

clockwise IRotating speed is linearly related to the RC_CH1 middle->down IRoll Control: image anticlockwise switch position middle Roll Control: pause, stand by middle_>up Pitch Control: turn left Rotate speed is . linearly RC CH4 middle->up Yaw Control : turn right related . to the switch middle Yaw_ kevlin: Tracking mode down Gimbals lock mode middle->up Taking photo RC-CH
