• ISDT Booster B80 smart LiPo balance charger with carry handle, display panel, and 3000W/40A rating
  • ISDT B80 smart LiPo balance charger with rugged case and phone app screen showing LiPo 12S charge settings
  • Exploded view of ISDT BOOSTER B80 smart charger housing with control panel, fan, and end grilles
1 3

ISDT B80 LiPo Balance Charger (Smart Charger) AC 100-240V, 3000W 40A 20-80V Charge/200W Discharge

ISDT B80 LiPo Balance Charger (Smart Charger) AC 100-240V, 3000W 40A 20-80V Charge/200W Discharge

ISDT

$899.00 USD
$899.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The ISDT B80 is a single-channel LiPo balance charger (smart charger) designed for large battery packs, combining up to 3000W output power (@220V AC), high-voltage DC 20~80V output, and up to 40A charging current. It supports 8~22S LiFe batteries and up to 18S LiPo/LiHv/ULiHv battery packs, with wireless APP connectivity for parameter setup and OTA upgrades.

Key Features

  • Single-channel 80V system with up to 40A charge current (model-dependent)
  • Up to 3000W maximum charging power (@220V AC); supports 110V/100V inputs with specified power limits
  • Charge and discharge functions (up to 200W discharge power)
  • 22S balance port on B80 (supports LiFe up to 22S per specification)
  • Wireless connection to mobile app for charging parameter settings and OTA upgrade
  • Aluminum alloy body with built-in fan for heat dissipation
  • Safety alerts: abnormal voltage alarm and incorrect cell count setting alarm (Support)
  • BattAir: Support

For product selection and setup assistance, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Model B80 B60
Input voltage range AC 100~240V AC 110~240V
Output voltage range DC 20~80V DC 20~58V
Maximum input current AC 16A AC 16A
Maximum charging power 3000W (@220V AC)
1500W (@110V AC)
1400W (@100V AC)		 3000W (@220V AC)
1300W (@110V AC)
Maximum discharge power 200W 200W
Supported battery types and cell count LiFe (8~22S), LiPo (6~18S), LiHv (6~18S), ULiHv (6~18S) LiFe (6~16S), LiPo (6~14S), LiHv (6~13S), ULiHv (6~13S)
Charging current 1.0~40.0A (Max) 1.0~52.0A (Max)
Discharging current 0.5~5.0A (Max) 0.5~5.0A (Max)
Balance current 2A/Cell Max 2A/Cell Max
Abnormal voltage alarm Support Support
Incorrect cell count setting alarm Support Support
BattAir Support Support
Working temperature 0~40 C 0~40 C
Storage temperature -20~60 C -20~60 C
Dimension 356 x 136.8 x 164.1 mm 356 x 136.8 x 164.1 mm
Weight About 3973g About 3973g

Details

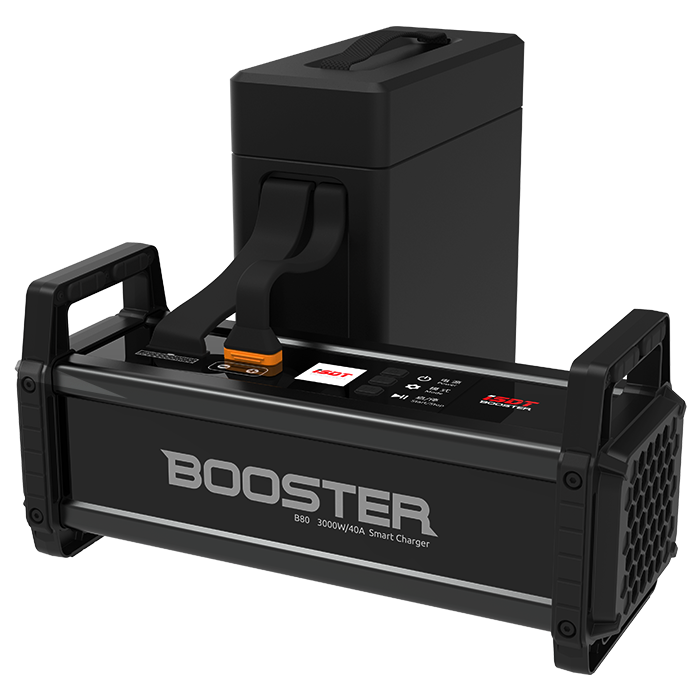

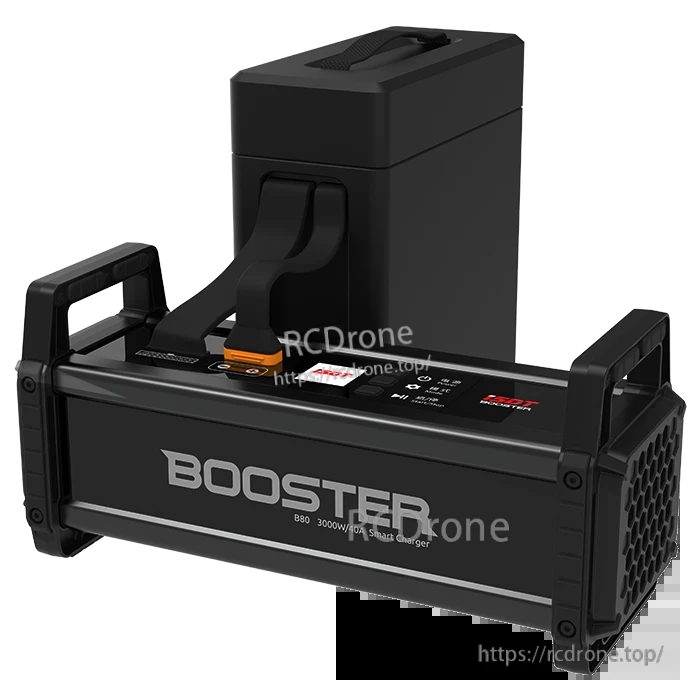

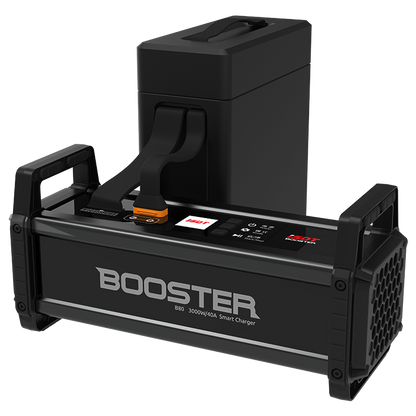

ISDT BOOSTER B80 smart LiPo balance charger with carry handle and 3000W/40A rating on the front

The ISDT BOOSTER B80 smart charger features a rugged carry-handle design with clear top controls for quick setup.

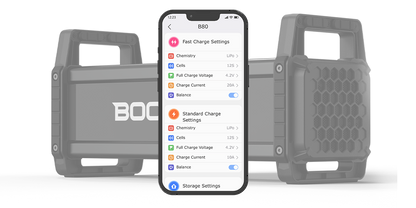

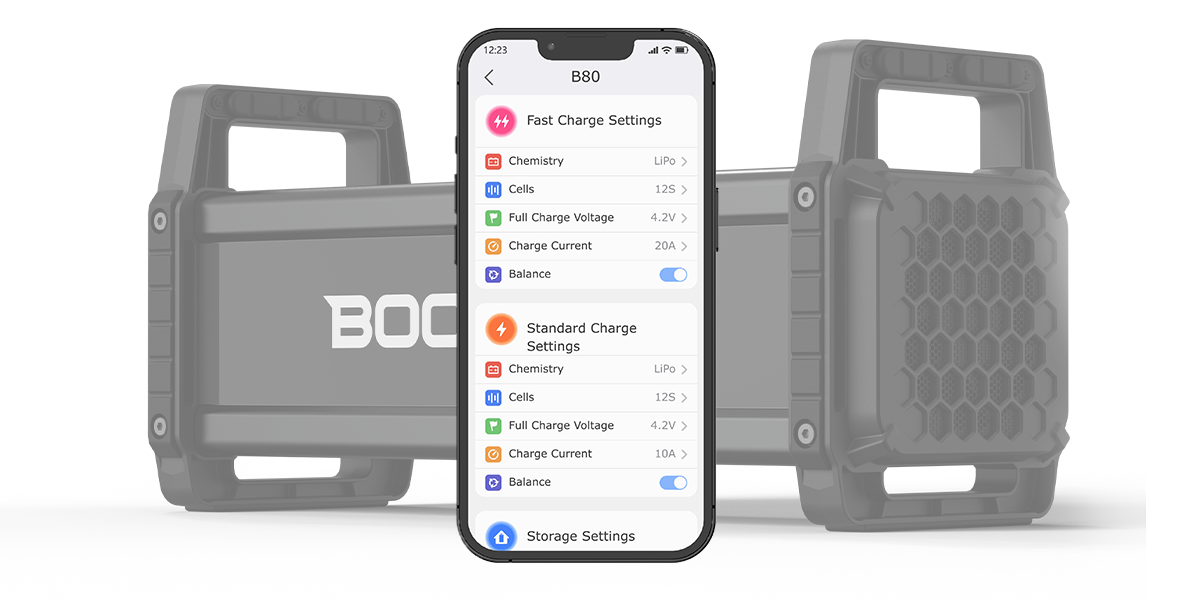

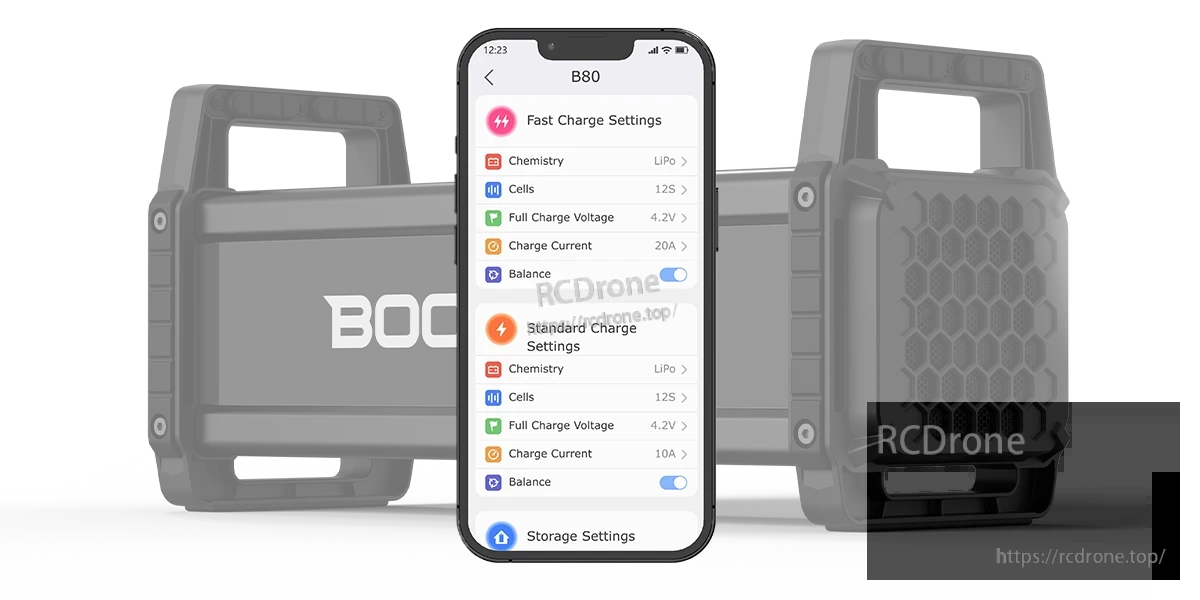

ISDT B80 LiPo balance charger with rugged case and smartphone app screen showing LiPo charge settings

ISDT B80 supports app-based setup for LiPo chemistry, cell count, charge voltage, current, and balance control.

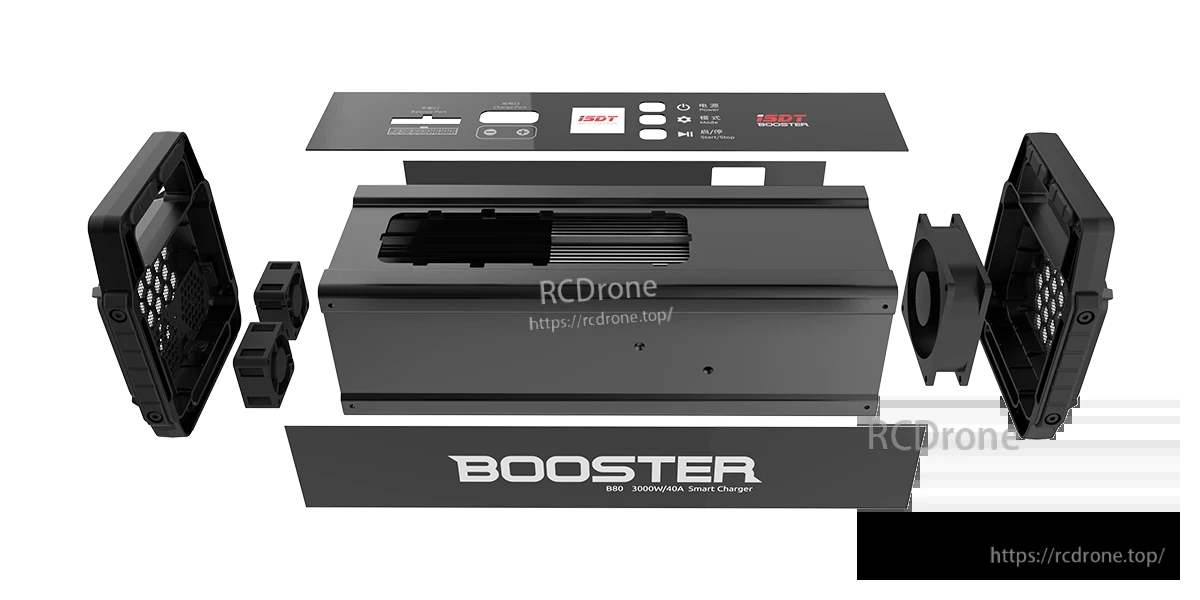

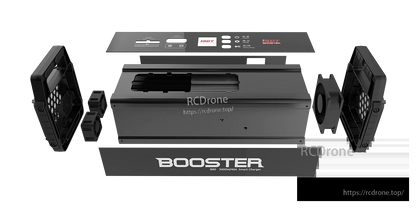

Exploded view of ISDT Booster B80 smart LiPo charger enclosure with dual cooling fans and top control panel

The ISDT Booster B80 smart charger uses a fan-cooled, modular housing to help manage heat during high-power charging.
