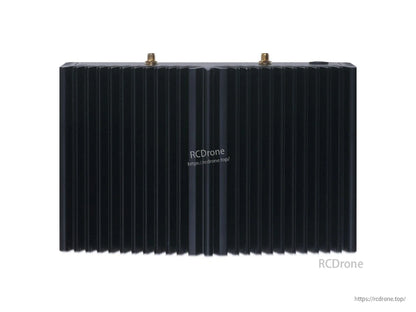

  • Jetson SUB Mini PC features Xavier NX, OLED display, fanless cooling, 256GB SSD, WiFi, dual GbE, and JetPack—compact, powerful, and efficient for AI applications.

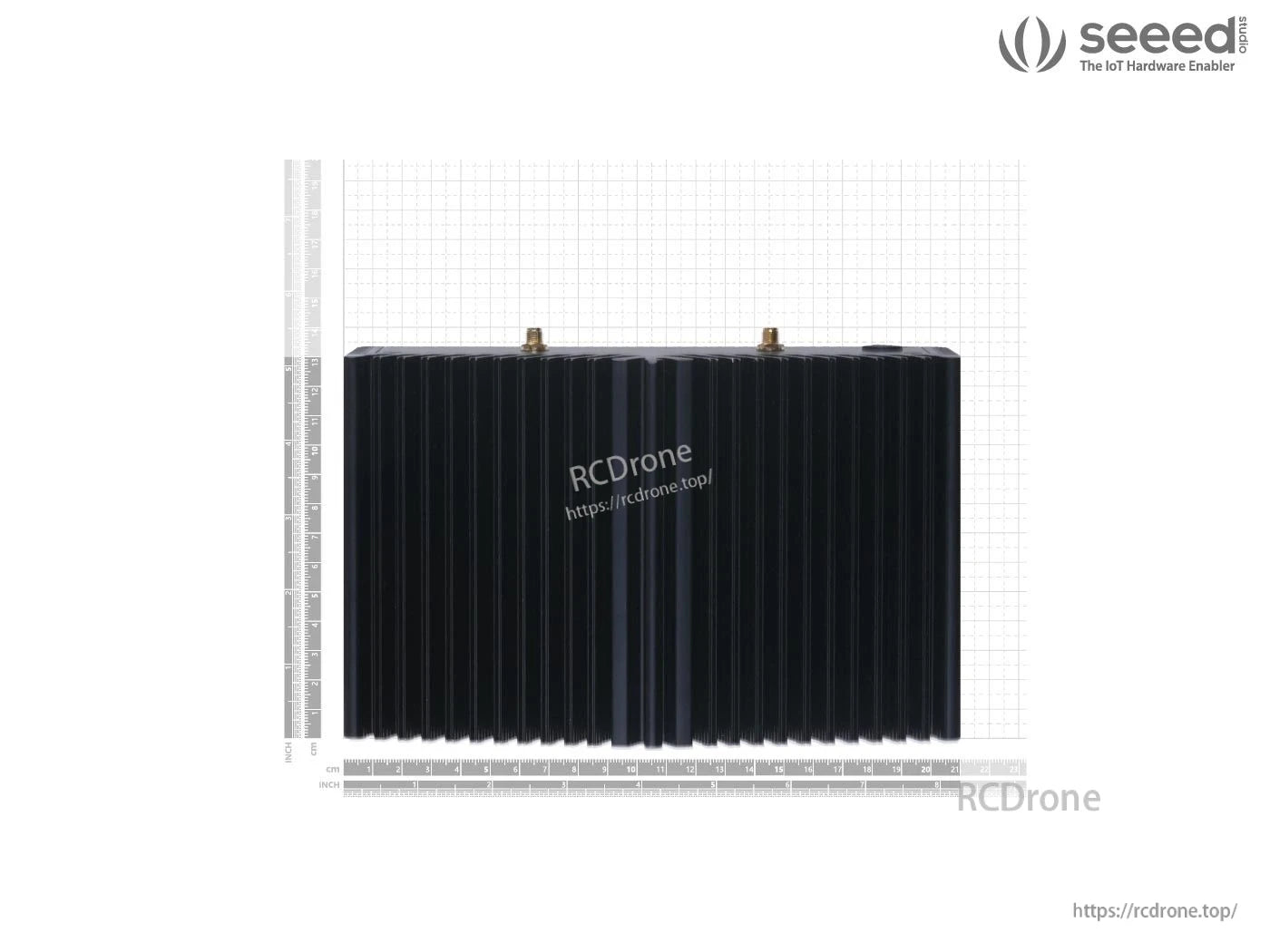

  • Jetson SUB Mini PC with Xavier NX, fanless cooling, 256GB SSD, WiFi, dual GbE, and JetPack support for compact, high-performance computing.

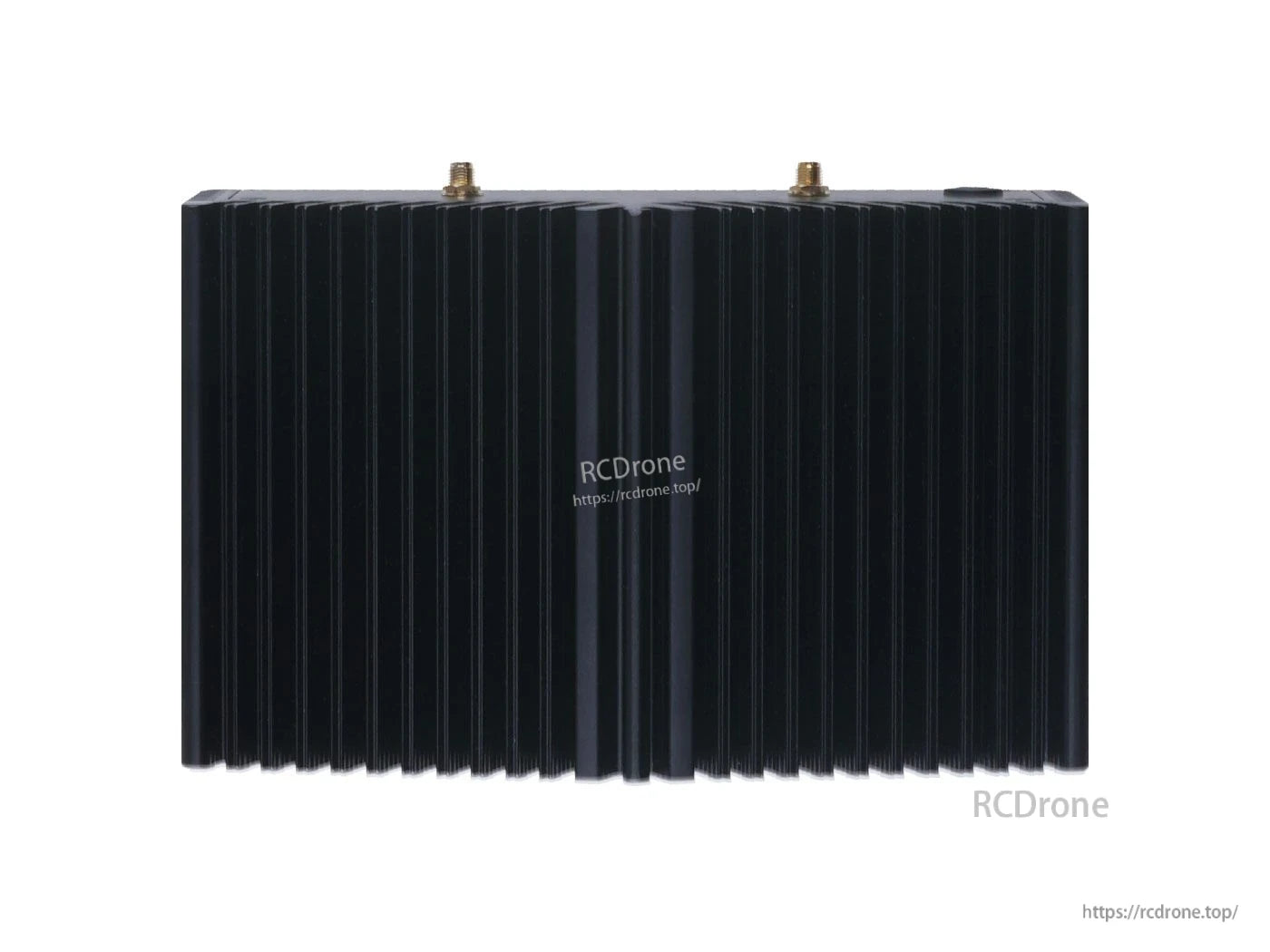

  • Jetson SUB Mini PC features Xavier NX, fanless cooling, 256GB SSD, WiFi, dual GbE, OLED display, and JetPack—compact, powerful, and ready for AI applications.
1 5

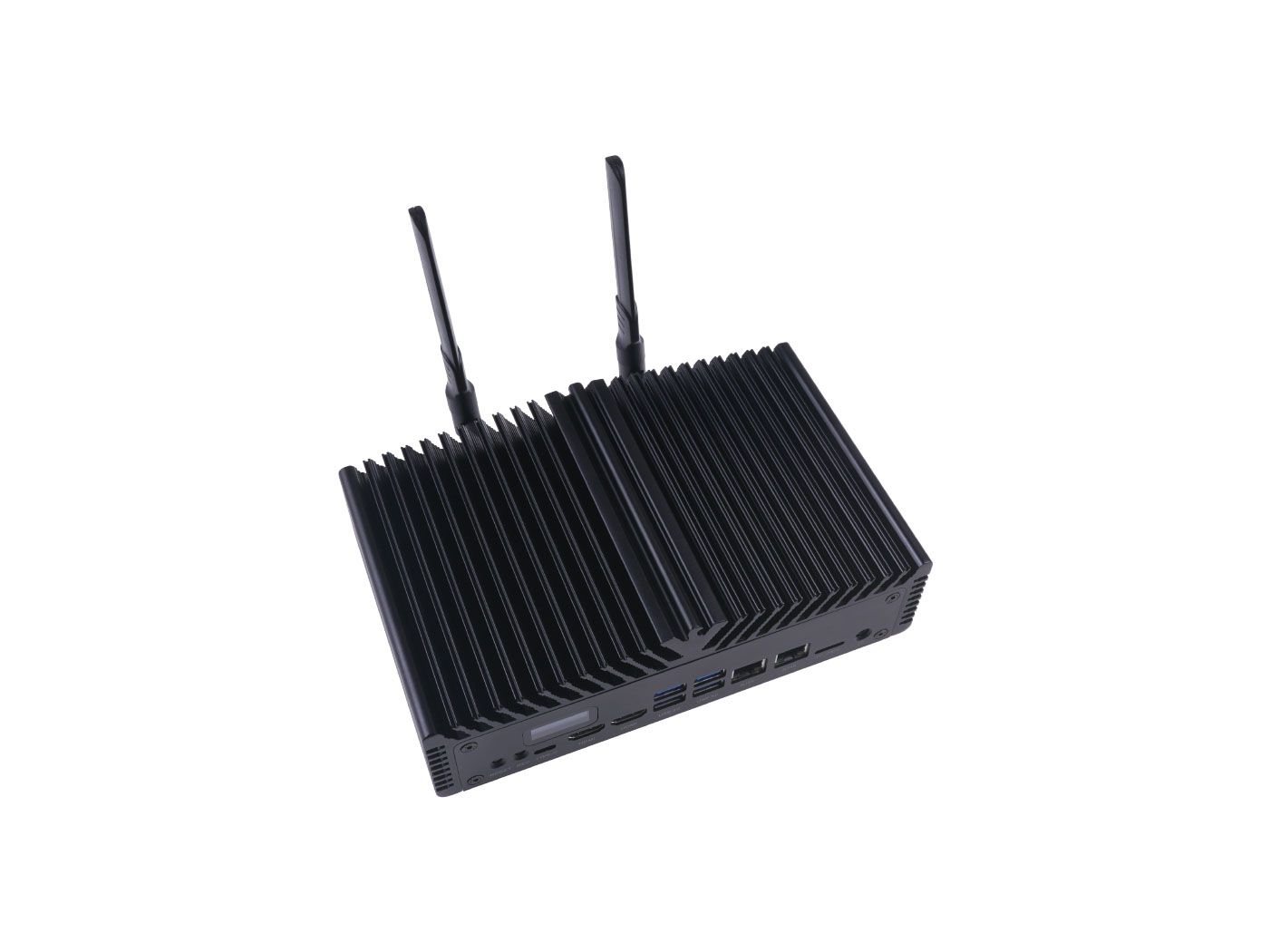

Jetson SUB Mini PC Black, Xavier NX, OLED, fanless passive cooling, 256GB SATA SSD, WiFi, Dual GbE, JetPack

Jetson SUB Mini PC Black, Xavier NX, OLED, fanless passive cooling, 256GB SATA SSD, WiFi, Dual GbE, JetPack

Seeed Studio

$1,099.00 USD
$1,099.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Jetson SUB Mini PC-Black is a Mini PC built on the NVIDIA Jetson Xavier NX module, delivering up to 21 TOPS for edge AI and embedded computing. Its fully enclosed, fanless passive heat dissipation design and front OLED status screen make it suitable for quiet, dust‑sensitive, and harsh environments. The system integrates dual Gigabit Ethernet, four USB 3.0 Type‑A, HDMI, a pre‑installed 256GB 2.5 inch SATA SSD, a USB 2.0 WiFi module with two antennas, and NVIDIA’s official JetPack software (JetPack 4.4 for the Black version) so it is ready to use out of the box. The compact aluminum enclosure measures 205mm x 130mm x 65mm.

Check out more NVIDIA Jetson-powered edge devices comparison!

Key Features

  • Compact Mini PC: 205mm x 130mm x 65mm aluminum enclosure.
  • Powered by NVIDIA Jetson Xavier NX module with up to 21 TOPS (INT8) AI performance.

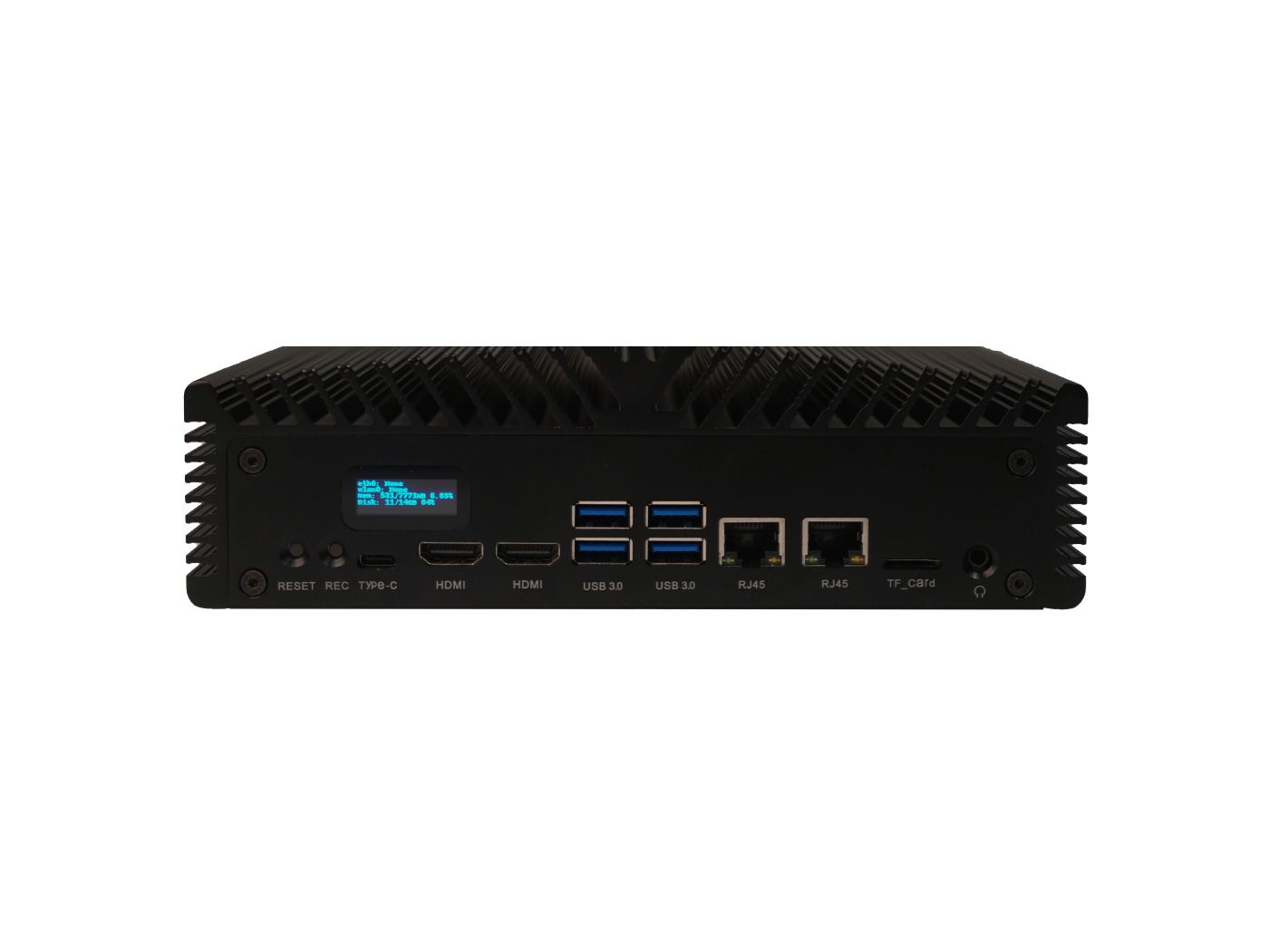

  • Rich I/O: Dual Gigabit Ethernet, 4 x USB 3.0 Type‑A, 1 x HDMI, 1 x USB Type‑C, TF card slot, audio jack.
  • Assembled USB 2.0 WiFi module with two antennas, 256 GB (2.5 inch SATA) SSD, and an OLED status screen.
  • Carrier board with interfaces including 6 x CSI and 5 x SATA (per feature summary).
  • Big passive heat dissipation with fully sealing design; no‑fan operation for quiet and dust‑resistant use.
  • Pre‑installed NVIDIA official JetPack software, ready to use.

Specifications

Jetson SUB Mini PC-Black (product configuration)

Module NVIDIA JETSON XAVIER NX
AI Performance 21 TOPs (INT8)
CPU 6‑core 64‑bit CPU, NVIDIA Carmel ARMv8.2
GPU 384‑core NVIDIA Volta GPU
Memory 8 GB 128‑bit LPDDR4x, 59.7GB/s
Module Storage 16 GB eMMC 5.1
Carrier Board Storage Pre‑installed 256GB 2.5 inch SATA SSD
OS JetPack 4.4 (pre‑installed)
WiFi Pre‑installed USB 2.0 WiFi module; two antennas
Power 19V DC
Display 1 x HDMI / 1 x DP; 1 x OLED screen
USB 4 x USB 3.0 (USB 2.0 integrated), 1 x USB Type‑C
Network 2 x Gigabit LAN
Dimension 205mm x 130mm x 65mm
Enclosure Whole Black Aluminium Frame; big passive dissipation; fully sealing design

Module Technical Specifications (Jetson Xavier NX)

AI Performance 21 TOPS
GPU 384‑core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6‑core NVIDIA Carmel ARM®v8.2 64‑bit CPU， 6MB L2 + 4MB L3
Memory 8 GB 128‑bit LPDDR4x， 59.7GB/s
Storage 16 GB eMMC 5.1
Power Modes 10 W | 15 W | 20W
PCIe 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*
CSI Camera Up to 6 cameras (24 via virtual channels); 12 lanes (3x4 or 6x2) MIPI CSI‑2; D‑PHY 1.2 (up to 30 Gbps)
Video Encode 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265); 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)
Video Decode 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265); 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
Display 2 multi‑mode DP 1.4/eDP 1.4/HDMI 2.0
DL Accelerator 2x NVDLA Engines
Vision Accelerator 7‑Way VLIW Vision Processor
Networking 10/100/1000 BASE‑T Ethernet
Mechanical 69.6 mm x 45 mm; 260‑pin SO‑DIMM connector

Carrier Board Connector Summary

Module Compatibility NVIDIA® Jetson™ Nano/NX/TX2 NX
PCB Size / Overall Size 170mm x 100mm
Display 1 x HDMI | 1 x DP
Ethernet 2 x Gigabit Ethernet (10/100/1000M)
USB 4 x USB 3.0 Type A (Integrated USB 2.0); 1 x USB 2.0 Type C (Support OTG)
SATA Pre‑installed 256GB 2.5 inch SATA SSD
USB WiFi Mode Pre‑installed WiFi module (802.11ac and 2.4/5G ITIR mode with support of 433Mbps PHY rate)
CSI Camera 6 x Camera (MIPI CSI‑2)
TF Card 1 x TF_Card
Audio 1 x Audio Jack, 2 x Microphone, 2 x Speaker (1W)
SPI Bus 1 x SPI Bus (+3.3V Level)
FAN 2 x Fan (12V/5V), 1 x FAN (5V PWM)
CAN 1 x CAN
Misc. 1 x System Control; 1 x Power Control; 2 x I2C Link (+3.3V I/O); 1 x UART (+3.3V Level); 2 x GPIO (+3.3V Level); 2 x SPI Bus (+3.3V Level); 1 x LED State
Power Requirements +13V to +19V DC Input @ 8A
Operating Temperature -25° to +80°

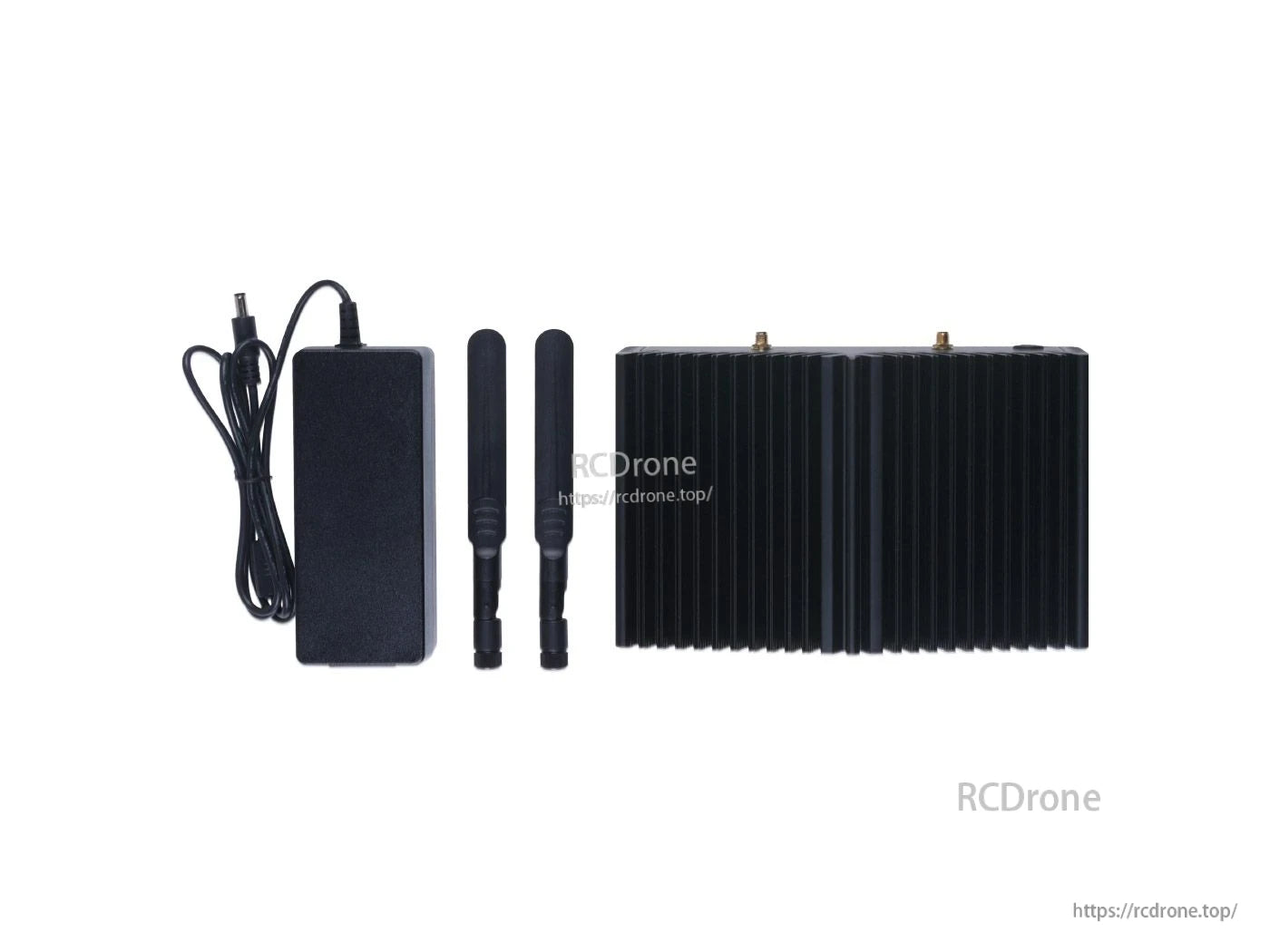

What’s Included

  • 1 x Aluminium Frame Black
  • 1 x Jetson Xavier NX module
  • 1 x Carrier board
  • 1 x 19V/4.74A (MAX 90W) Power Adapter (Power cable not included)
  • 2 x Antennas
  • Power cable not included; choose a suitable cable for your country.
  • RTC battery (CR1220) not included.
  • No fan included; large passive heat dissipation design.
  • JetPack 4.4 system is pre‑installed; login password: ‘nvidia’. For reflashing, enter recovery mode and follow the wiki guide.

Applications

  • AIoT; Industrial IoT; Computer Vision; Smart Logistic
  • Harsh environments (dusty, smoky, etc)
  • Sentiment Analysis

Jetson Xavier NX is suitable for high‑performance AI systems such as commercial robots, medical instruments, smart cameras, high‑resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems. It supports cloud‑native development with pre‑trained AI models from NVIDIA NGC and the TAO Toolkit, enabling containerized deployment and fast updates. With fanless passive dissipation and a fully sealing design, Jetson SUB Mini PC‑Black fits industry, data center, kitchen, smart farm, hospital, and other harsh scenarios.

Documents

Certification

CEEUDOCFCCJetson SUB Mini PC, Compare NVIDIA Jetson-powered edge devicesUKDOC

HSCODE 8471419000
USHSCODE 8517180050
UPC
EUHSCODE 8471707000
COO CHINA

Details

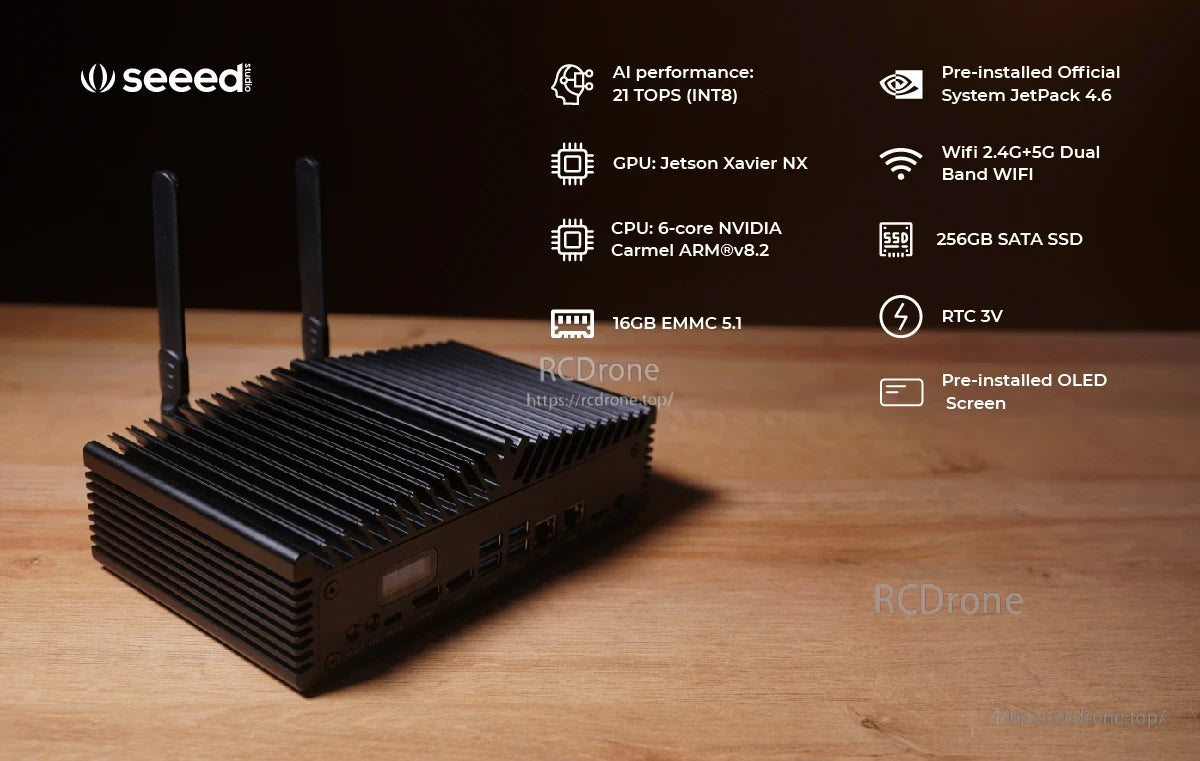

Jetson SUB Mini PC features 21 TOPS AI, Xavier NX GPU, 6-core CPU, 16GB eMMC, 256GB SSD, WiFi, OLED screen, RTC 3V, and comes with JetPack 4.6.

Jetson SUB Mini PC has 21 TOPS AI, Jetson Xavier NX GPU, 6-core CPU, 16GB eMMC, 256GB SSD, dual-band WiFi, OLED screen, RTC 3V, and comes with JetPack 4.6 pre-installed.

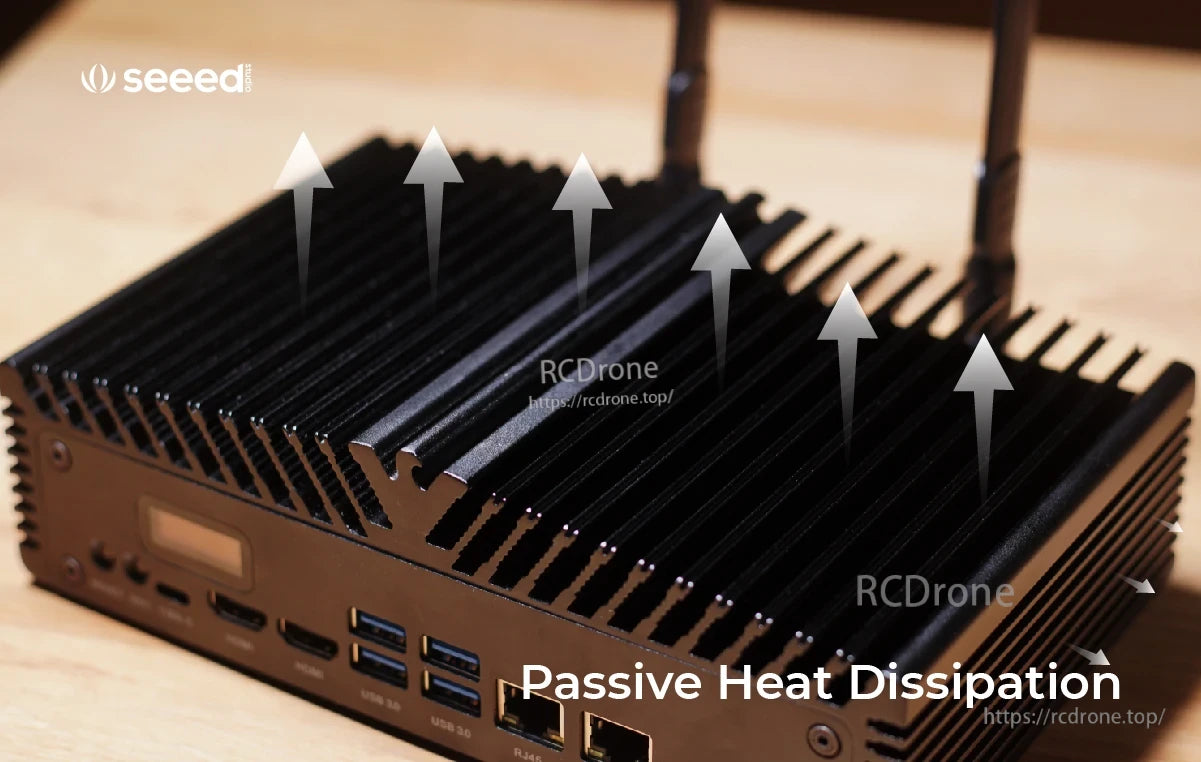

Jetson SUB Mini PC, Device features big passive heat dissipation and fully sealing design for quiet, fanless operation.Jetson SUB Mini PC, Enclosed design with USB, HDMI, Ethernet, and antennas; built for industrial use in harsh environments.

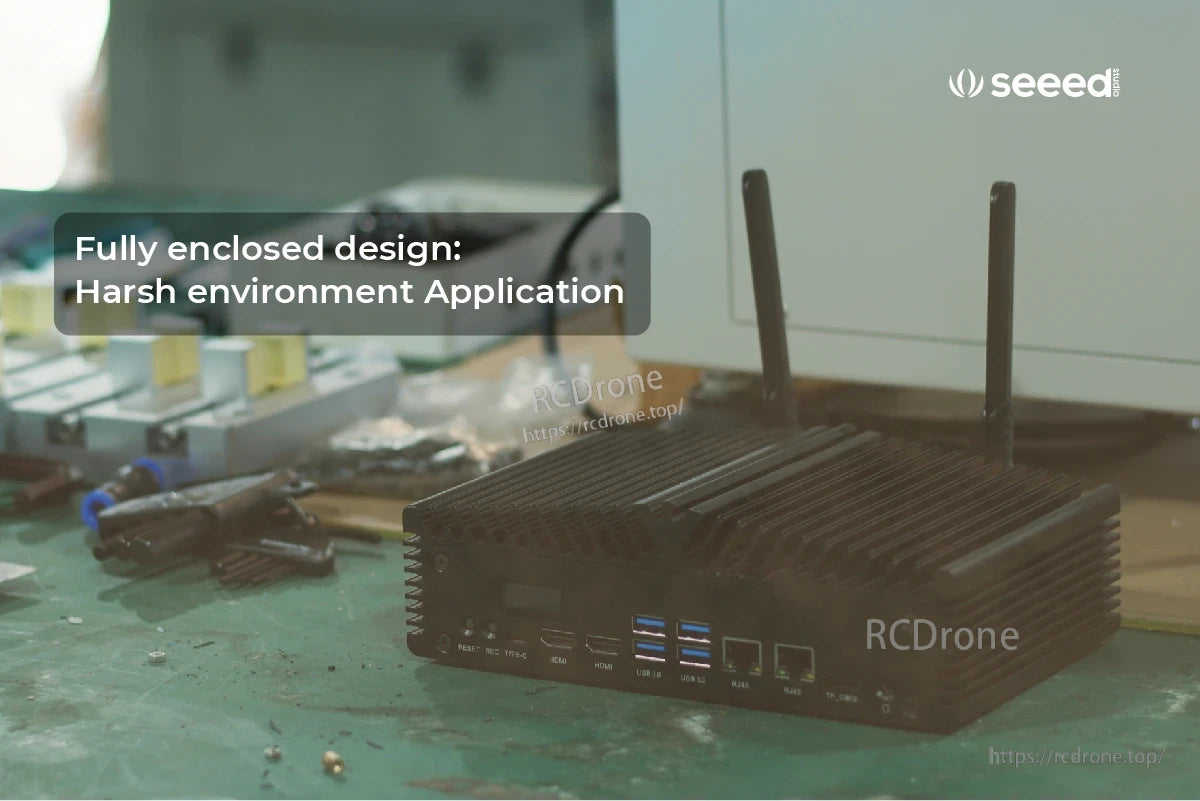

Enclosed design with USB, HDMI, Ethernet, and antennas; built for industrial use in harsh environments. (20 words)

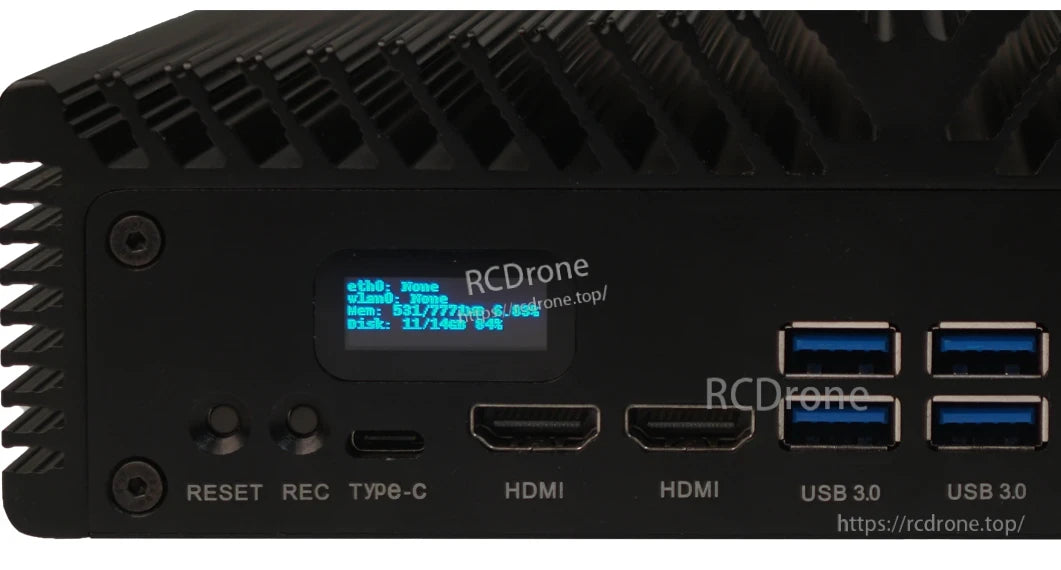

Compact Jetson SUB Mini PC has 5.37GB RAM, 11.48GB storage, and various connectivity options.

ETHD Home Office: 53174710, 6.838 GB Disk: 1,148 MB, RESET Device with Type-C HDMI, HDMI, USB 3.0 and USB 3.0 ports.

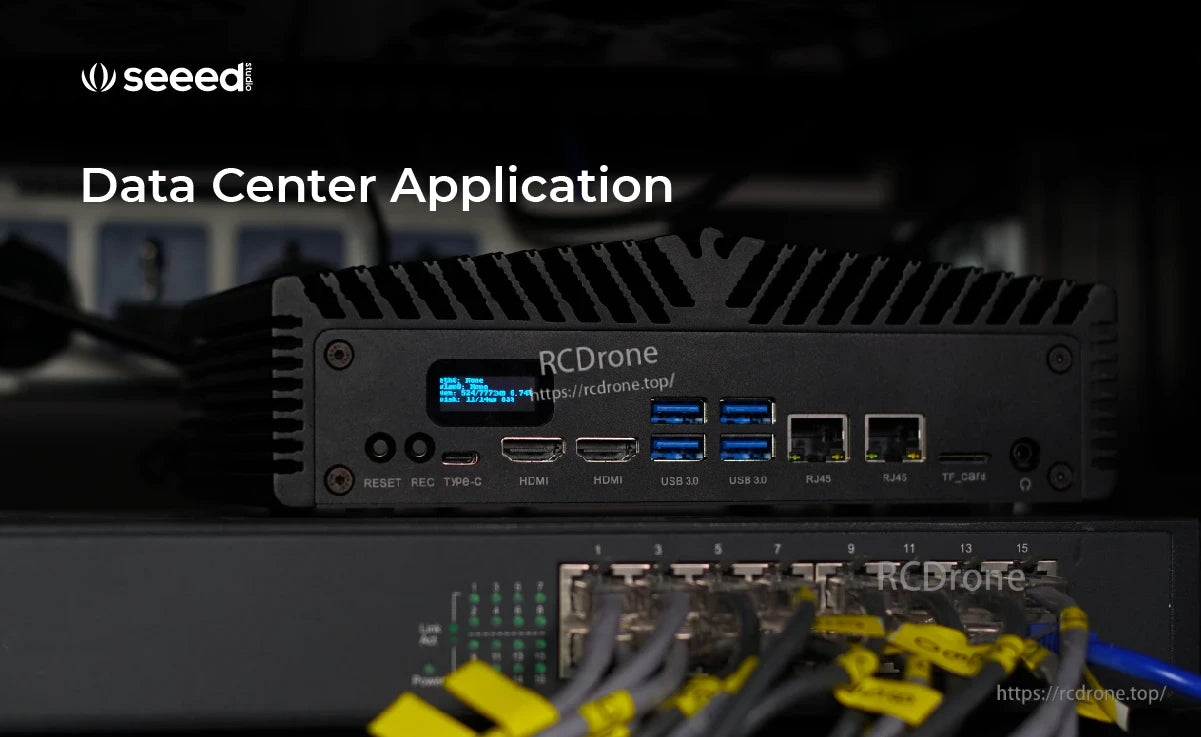

Jetson SUB Mini PC for data center with multiple ports and connectivity options
