JIS HV50 - 50KG Payload 50L Sprayer 80L Spreader Dual Use Agriculture Drone With X13 Motor

JIS HV50 Agriculture Drone Overview:

The JIS HV50 is a robust and versatile agricultural drone designed for large-scale farming operations. It integrates a 50L liquid spraying system and an 80L spreader system, making it suitable for both liquid and granular applications, such as pesticides, seeds, fertilizers, and more. The drone is powered by the advanced X13 motor, providing strong thrust and stability even in challenging conditions.

Its unfolded dimensions of 1905 x 1720 x 815mm give it a commanding presence, while the folded size of 635 x 1340 x 815mm ensures ease of transport and storage. The 18S 30000mAh intelligent battery supports extended flight times, making the drone ideal for large field coverage without frequent recharging. Additionally, the drone's spray flow rate of 12L/min ensures efficient coverage with uniform distribution, reducing time spent on each task. Paired with its dual radar obstacle avoidance system, the drone is capable of safely navigating even the most complex terrains, ensuring that both spraying and spreading operations are completed with maximum precision and safety.

JIS HV50 Key Features:

• H12 Smart Controller: The H12 Smart Controller is designed to make drone operation simple and intuitive, even for those managing large agricultural areas. It offers a large high-brightness screen that provides clear visibility under various lighting conditions, allowing operators to easily monitor flight routes and operational details. This controller can automatically adjust parameters based on the terrain, ensuring that the drone operates efficiently without needing constant manual input. The system can also optimize flight paths and working distances, ensuring that the drone covers the maximum area in the shortest amount of time while maintaining precision for spraying and spreading operations.

• Dual Radar Obstacle Avoidance and Terrain-Following: The JIS HV50 comes equipped with an advanced dual radar system that enhances its obstacle detection and avoidance capabilities. This system not only detects obstacles in real-time but also includes terrain-following radar, which allows the drone to adjust its altitude based on ground conditions. This ensures that the drone maintains consistent spraying or spreading coverage, even across varying terrain heights such as hills, terraces, and uneven fields. By following the ground contours, it ensures complete coverage without any missed areas, making it highly efficient for large-scale and complex agricultural environments.

• High-Efficiency Spraying System: The 50L spraying tank is paired with dual centrifugal nozzles that provide a high flow rate of 12L/min, ensuring uniform coverage over crops. The nozzles are designed to deliver precise, controlled spraying, and the spray width ranges from 6 to 10 meters, depending on the drone’s speed and altitude. The high flow rate, combined with the wide spray width, ensures efficient coverage, reducing the number of passes required to complete a task. The maximum pump pressure of 0.8MPa enables the drone to deliver liquid over long distances, ensuring even tall crops or dense foliage receive adequate treatment.

• 80L Spreader System: The 80L spreading system allows for the even distribution of seeds, fertilizers, and other granular materials across large areas. This large capacity reduces the need for frequent refills, enhancing operational efficiency. The spreader system is designed to distribute material uniformly, ensuring consistent application rates across the entire field. Whether it's distributing seeds in a freshly plowed field or spreading fertilizer to boost crop growth, the JIS HV50’s spreader system ensures that every area is covered without gaps or over-concentration.

• Durable, Foldable Design: The drone’s foldable design makes it highly convenient for transport and storage. Despite its large unfolded size, which enables efficient field coverage, the JIS HV50 can be compactly folded down to 635 x 1340 x 815mm, allowing it to fit easily into vehicles or storage spaces. The frame is constructed from high-strength materials such as carbon fiber and aluminum alloy, which provide excellent durability and resistance to the stresses of repeated use in harsh agricultural environments. This robust construction ensures that the drone can carry heavy loads and withstand the rigors of daily fieldwork.

• Powerful X13 Motor and Intelligent Battery: The X13 motor is a high-performance propulsion system that ensures the drone remains stable and responsive even when fully loaded. The 18S 30000mAh intelligent battery provides extended flight times, supporting up to 18 minutes of flight when the drone is empty and 7 minutes when fully loaded. This battery also supports fast charging, minimizing downtime between operations. The drone’s energy-efficient design ensures that it can cover large fields in a single flight, reducing the time and labor required for each task.

• Waterproof and Dustproof Design: The drone's body is fully sealed, making it both waterproof and dustproof. This ensures that it can operate in all weather conditions, from dry, dusty environments to rainy or humid conditions. The sealed design also protects the drone’s internal components from exposure to chemicals used during spraying, extending the overall lifespan of the equipment. Whether spraying liquid fertilizers, pesticides, or herbicides, the JIS HV50 is built to withstand the environmental stresses of modern farming.

JIS HV50 Specifications:

Package Includes:

1) Standard Combo

1 x HV50 Drone Frame

4 x Hobbywing X13 Power System

1 x 50L Spraying System(50L Water Tank, Impeller Pump, Centrifugal Nozzle)

1 x Flow Meter Weighing Module

1 x Main Flight Control System

1 x Front Obstacle Avoidance Radar

1 x Rear Obstacle Avoidance Radar

1 x Ground Protection Radar

1 x Receiver

1 x Camera

1 x H12 Remote Control

1 x 18S 30000mAh Battery

1 x 18S 7200W Battery Charger

2) Standard Combo

1 x standard combo

1 x RTK Module

Applications:

The JIS HV50 is designed for large-scale agricultural tasks, making it ideal for spraying pesticides, distributing fertilizers, and seeding across large areas. The advanced dual radar system and terrain-following radar make it particularly suitable for complex terrains such as hills, terraces, and fields with uneven ground. Its high-efficiency spraying and spreading systems ensure uniform coverage, minimizing the need for manual labor while significantly increasing productivity.

This drone is especially beneficial for farmers and agricultural service providers who require precision and efficiency in their operations. Its ability to cover large areas quickly, coupled with its intelligent automation and robust construction, makes it an indispensable tool for modern farming.

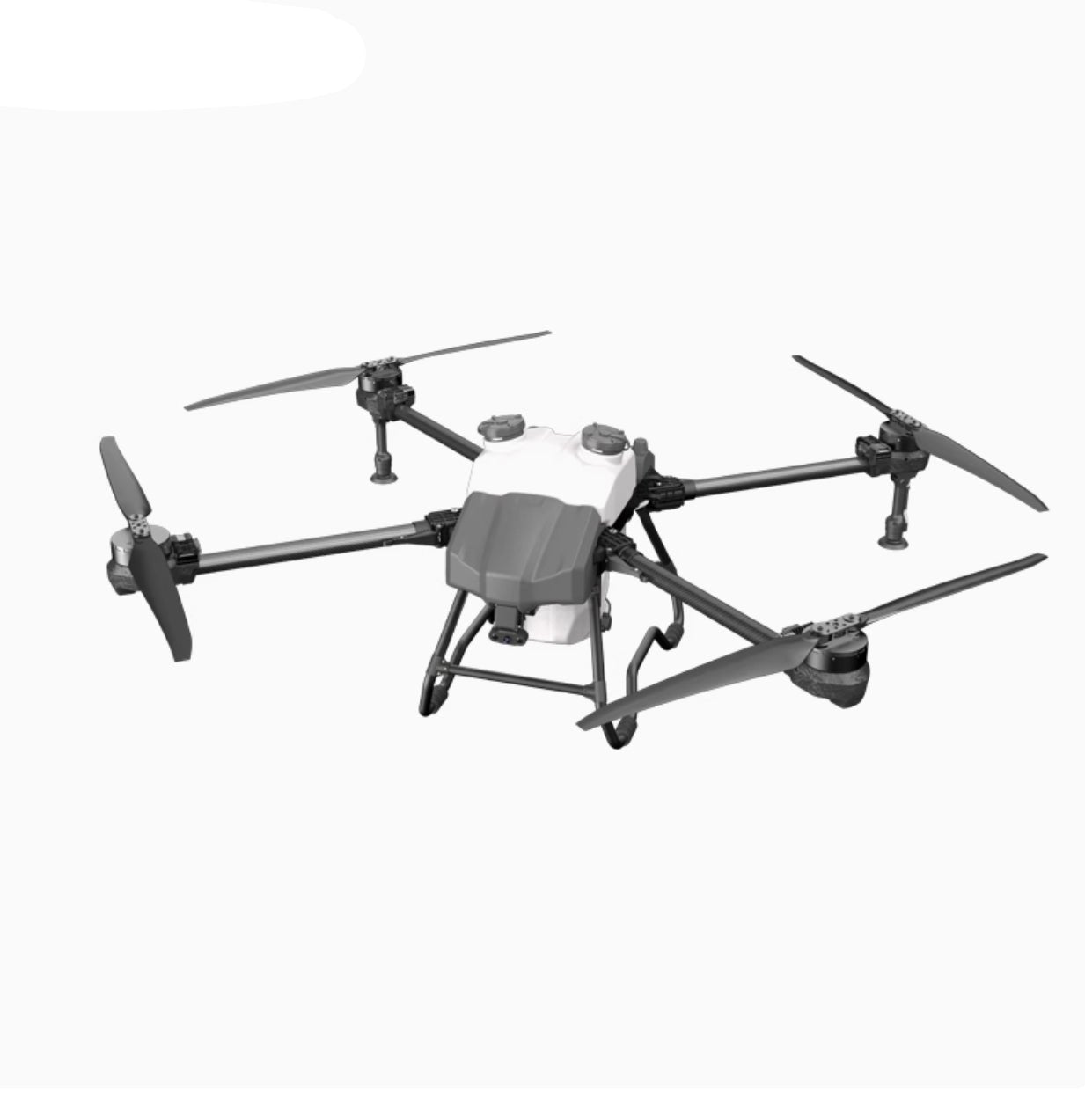

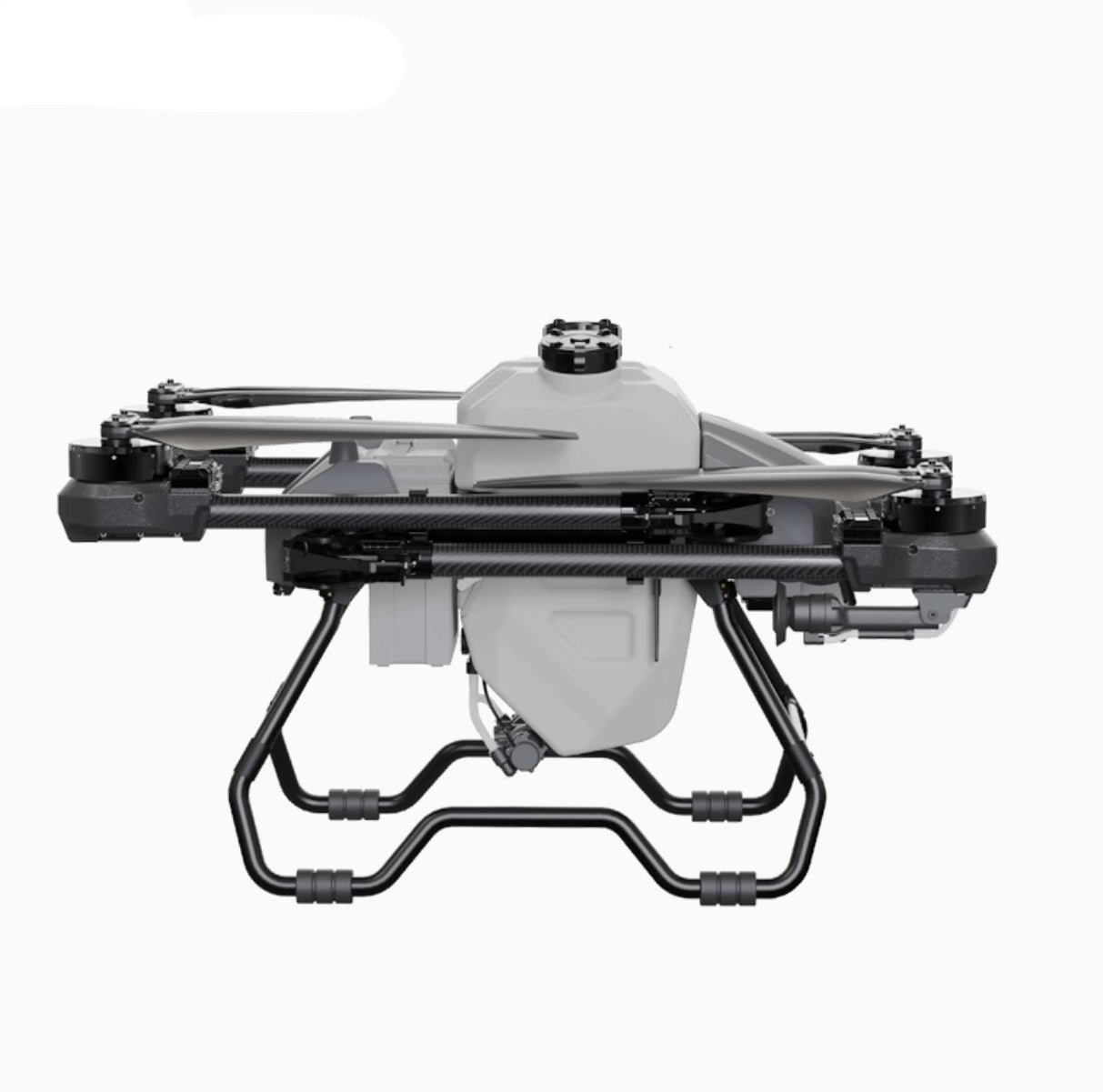

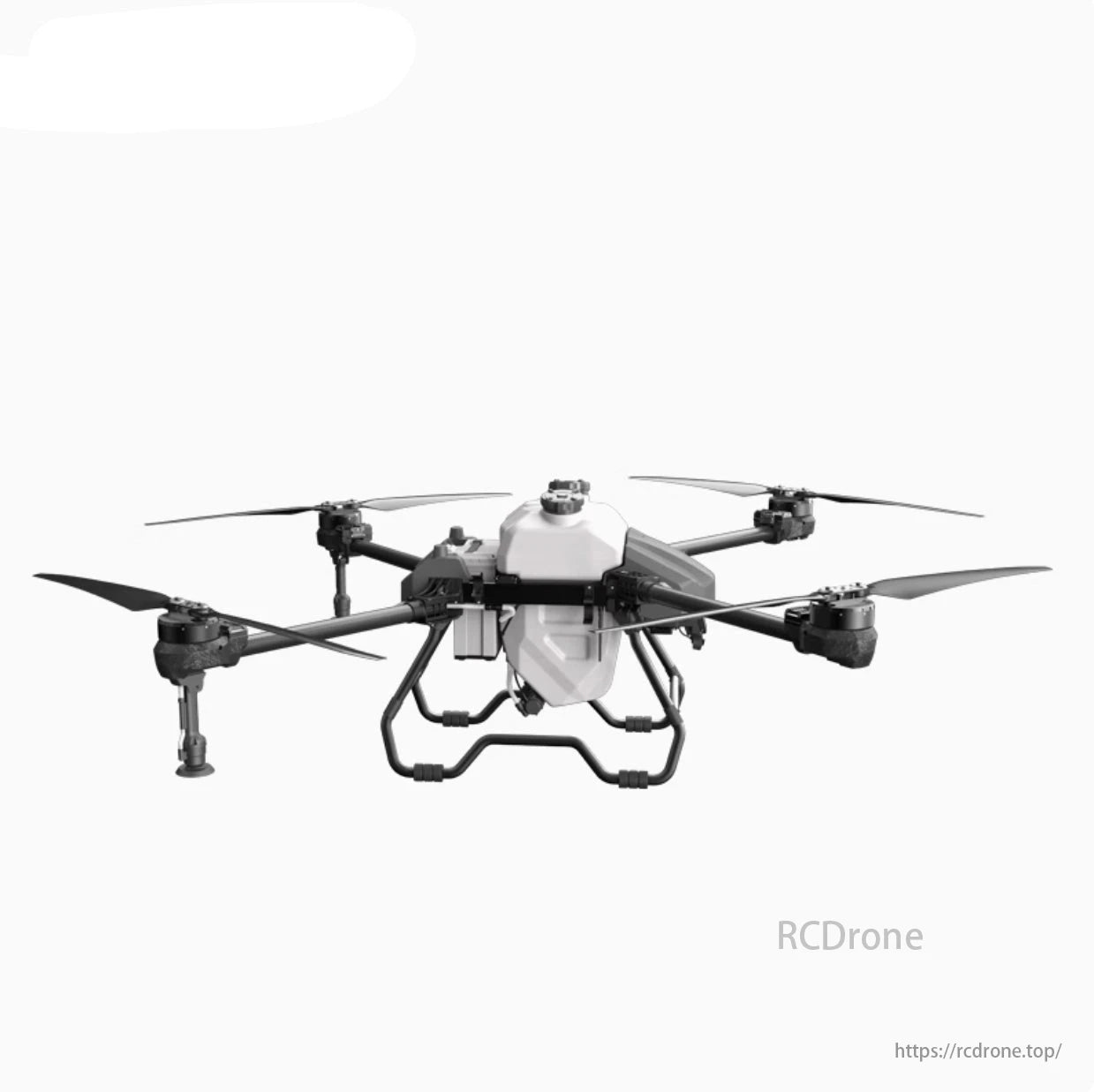

JIS HV50 Details
