JIYI K3A Pro Standard Dual GPS Module SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Recommend Age: 14+y
Quantity: 1 pcs
Origin: Mainland China
Material: Metal
For Vehicle Type: Airplanes
Brand Name: aerops
JIYI K3-A Pro Standard Dual GPS Flight Control System Standard Version For DIY Special Agricultural Drone JMRRC
Specification:
Supported Multi : Quadrotor(+ type, X type) / Six Rotor(+type, X type, IY type, YI type Coaxial double paddle ) / Eight Rotors (+types, X types, V types)
Supported ESC Type : Below 490Hz PWM ESC
Maximum Output Channel : 8 Channels
Recommend remote controller : with SBUS receiver
Supported receiver types : PPM, S-BUS receiver

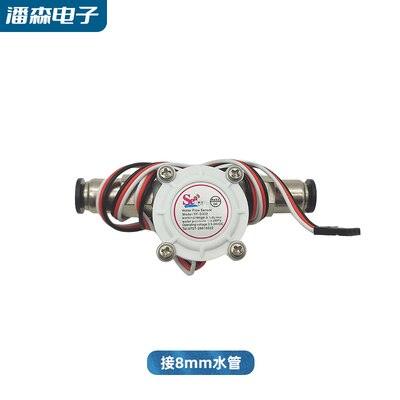

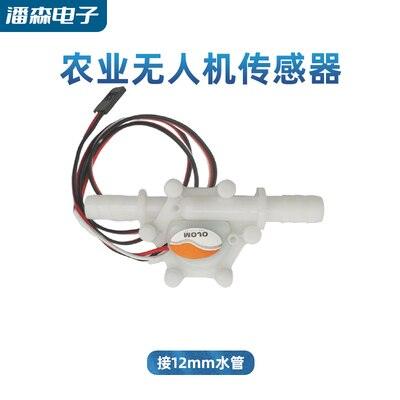

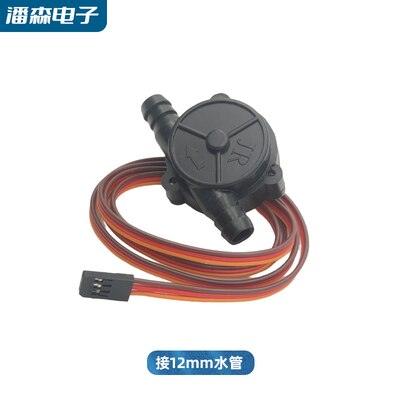

Supported accessories : Radar, RTK, Data link, Flow Sensor Module
Working Voltage : 2-12S
Power Consumption : Less than 2W
Working temperature : 0-60°
Storage temperature : -40-60°
Seismic pressure : <1G< /td>
Hover accuracy : Horizon: ±2M / Vertical: ±0.8M
Maximum tilt angle : 30 °
Maximum yaw speed : 150°/s
Maximum vertical speed : 6 m/s
Wind resistance : Continuous wind: level 3 / Gust: Level 4
Flight mode and function : Attitude - stabilization mode, Attitude - fixed height mode, GPS - speed mode, GPS - angle mode, AB point mode, automatic return mode, out of control return mode, low voltage protection, Breakpoint continuous spray function, one button Traverse function, Water pump control function, Terrain following function, Emergency stop function, GPS speed switching function, support for App ground station, support remote control tuning setting by data link.
Hardware Specification:

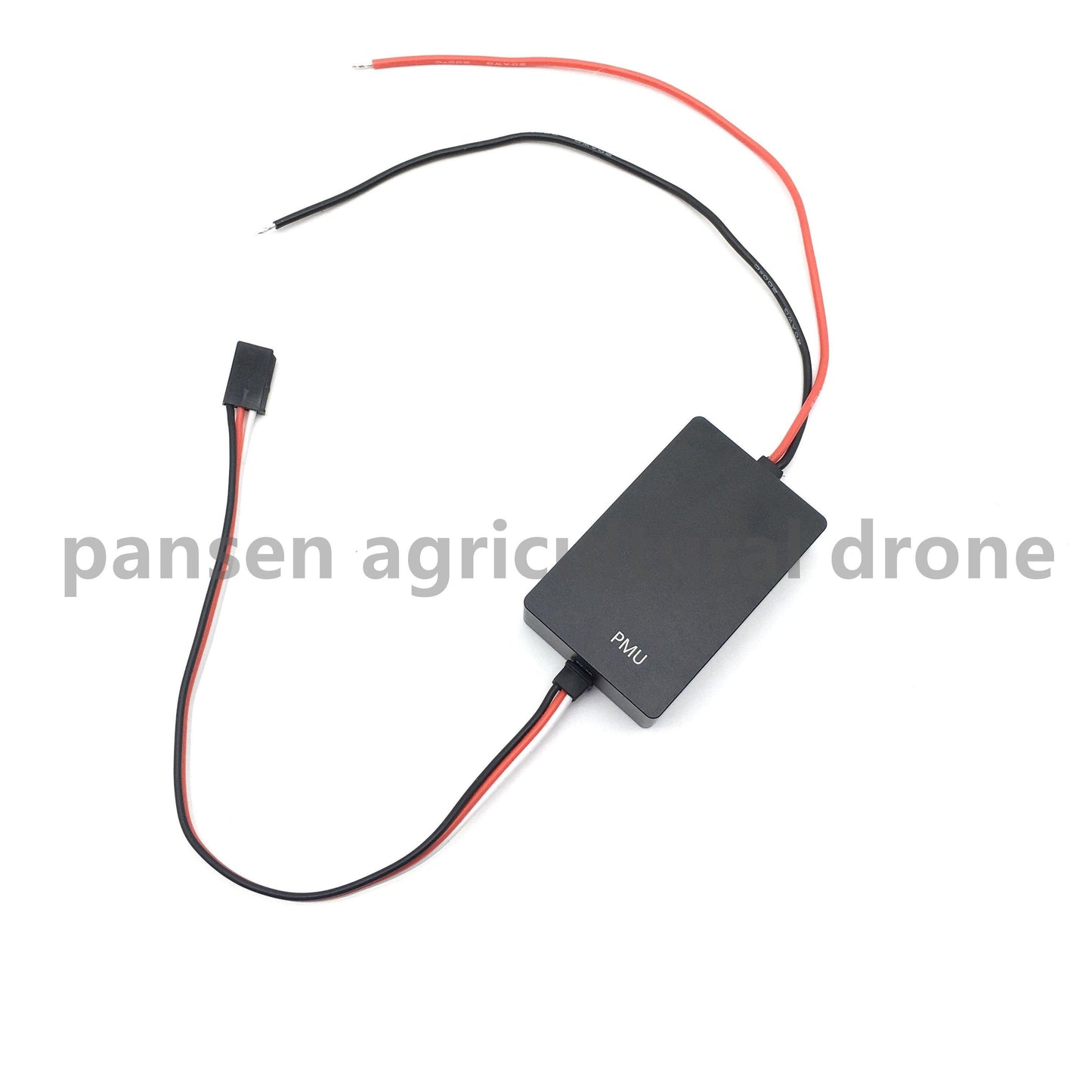

Weight : Flight controller: 56g / GPS: 45g / LED module: 13g / Power module: 39g

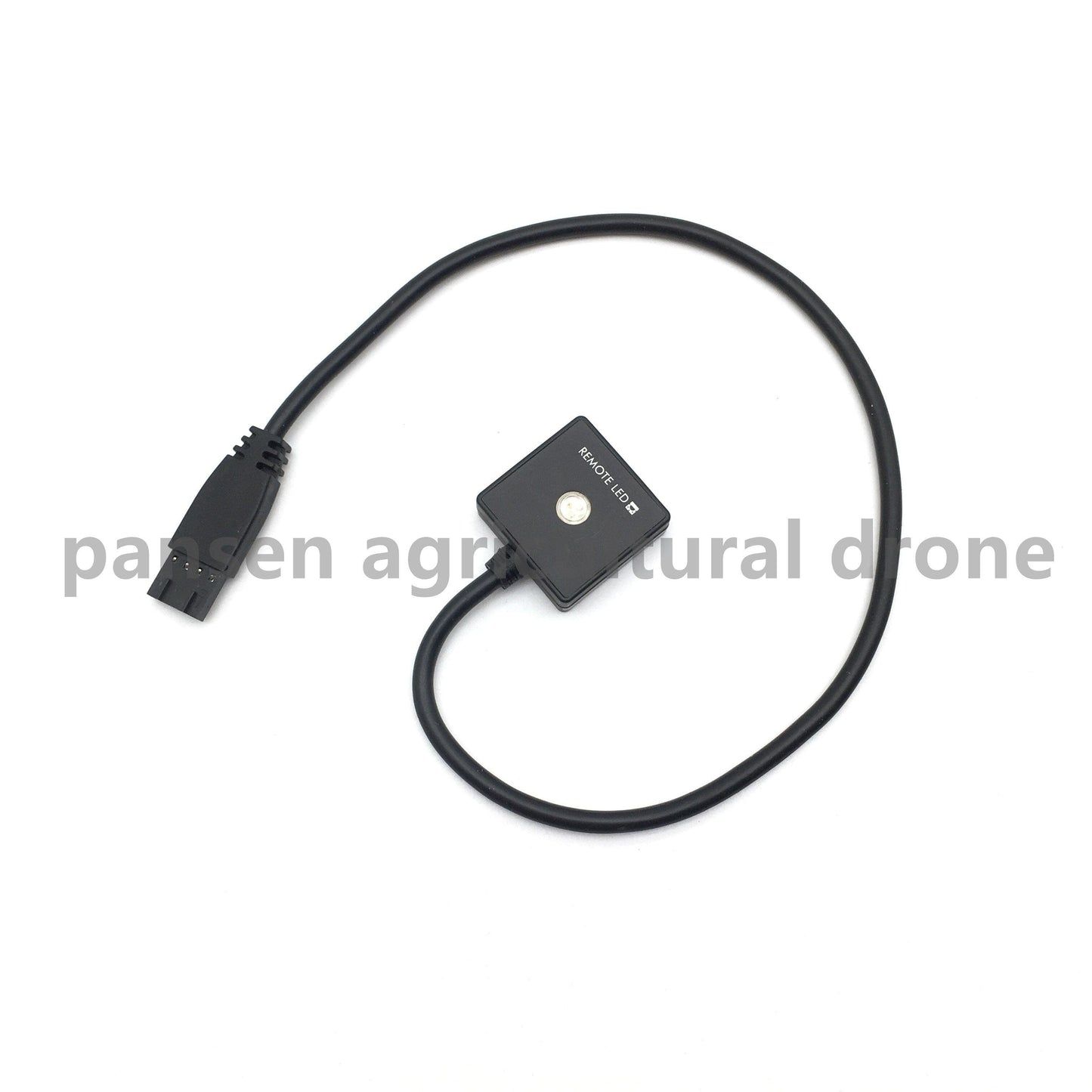

Dimension : Flight controller: 53.5mm×40.0mm×21.0mm / GPS: 63.0mm(diameter)*15.0mm / Led module:24mm / Power module: 53.5mm×34.5mm×14.5mm
The JIYI K3A Pro standard dual GPS module features a smart sprayer system designed specifically for agricultural applications, suitable for both single-drone and multi-drone operations. This system offers manual, semi-autonomous, and autonomous flight modes, allowing for real-time monitoring of spray flow and intelligent adjustment of the spray volume.
The JIYI K3-A Pro features a built-in height mode, as well as GPS speed mode and other operating modes, making it easy to operate and allowing for flexible switching between modes according to different operating environments.
The reliability and stability of JIYI's K3-A Pro dual GPS module have been further enhanced and refined. This product is designed to meet the needs of drone users across Asia, North America, Oceania, and other regions worldwide.
The personalized app is designed specifically for agricultural sprayer drones, allowing users to plan customized routes for uncharted terrains. The app features a route memory function, enabling precise calculations of the spray area.
Set the AB point function on your remote controller or mobile app, allowing for more efficient spraying operations. By setting two-point lines through the remote control, the agricultural sprayer drone will spray along a predetermined route.

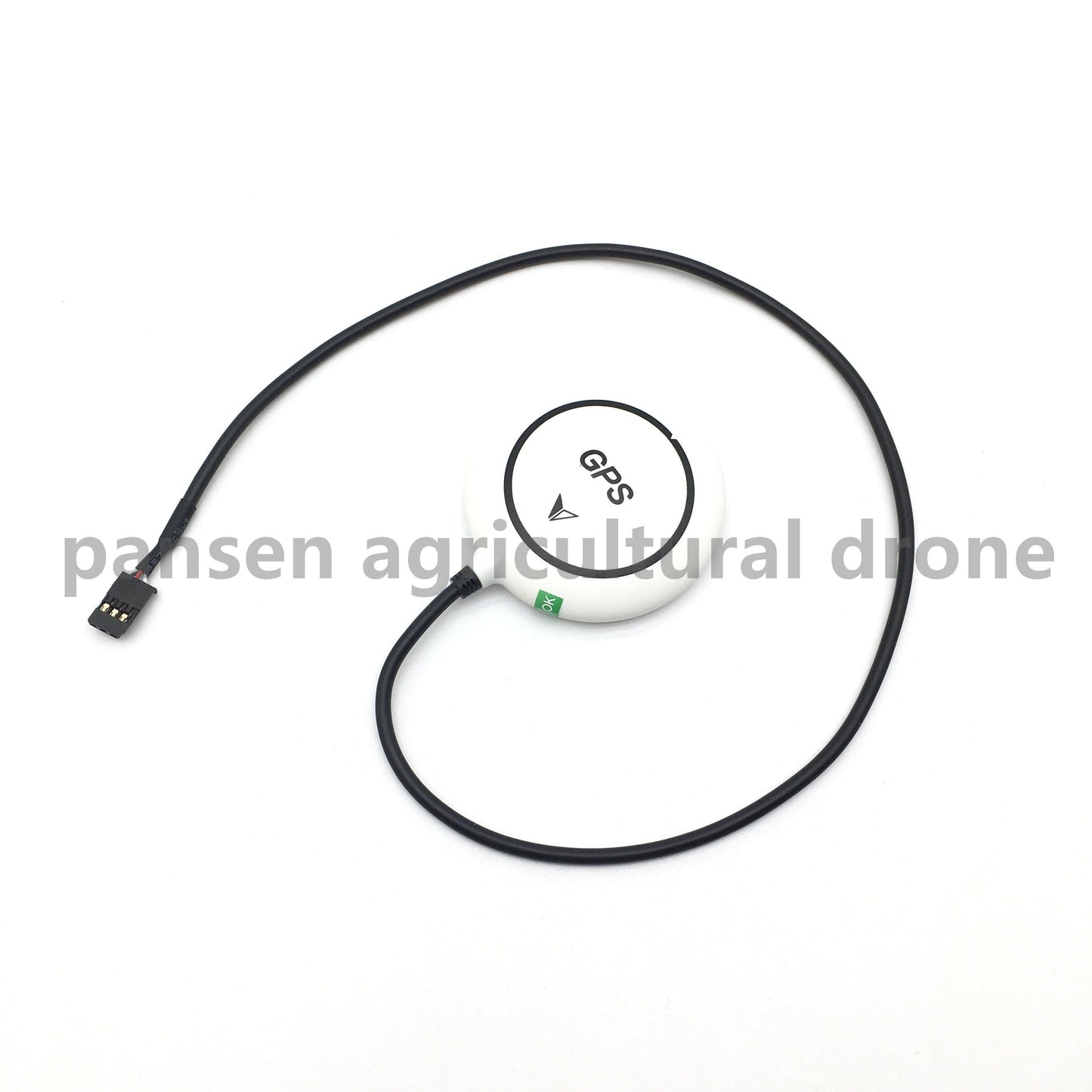

This dual Global Navigation Satellite System (GNSS) module ensures maximum flight safety by achieving precise positioning and control, thereby guaranteeing a stable and safe flight experience through its combination of GPS and compass functions.
The JIYI K3A Pro Standard Dual GPS Module supports multiple quadcopter types, including IY and Y coaxial vertical designs. It features an L0BM double-paddle eight-rotor configuration with ESCs capable of PWM control below 49 Hz. The module has a maximum tilt angle of [insert value], output channels of [insert number], and a maximum yaw speed of 150 degrees per second.
