JRT 1200M 905nm Long Distance TTL Laser Range Finder Module for UAV Drone Pod

Overview

The JRT 1200M 905nm Long Distance TTL Laser Range Finder Module is a compact and efficient laser distance measuring tool designed for commercial manufacturing and UAV applications. With a maximum range of 1200 meters, exceptional accuracy of ±1m, and a lightweight design, this rangefinder is ideal for high-precision measurements in drones, archaeology, and industrial use. Its 905nm wavelength laser ensures reliable performance while maintaining user safety. This module’s compact size and low power consumption make it easy to integrate into a wide variety of platforms.

Key Features

• Long-Range Measurement: Measures distances up to 1200m, suitable for large targets with visibility of ≥15km and a reflection coefficient of 0.3.

• High Accuracy: Delivers precise readings with an accuracy of ±1m.

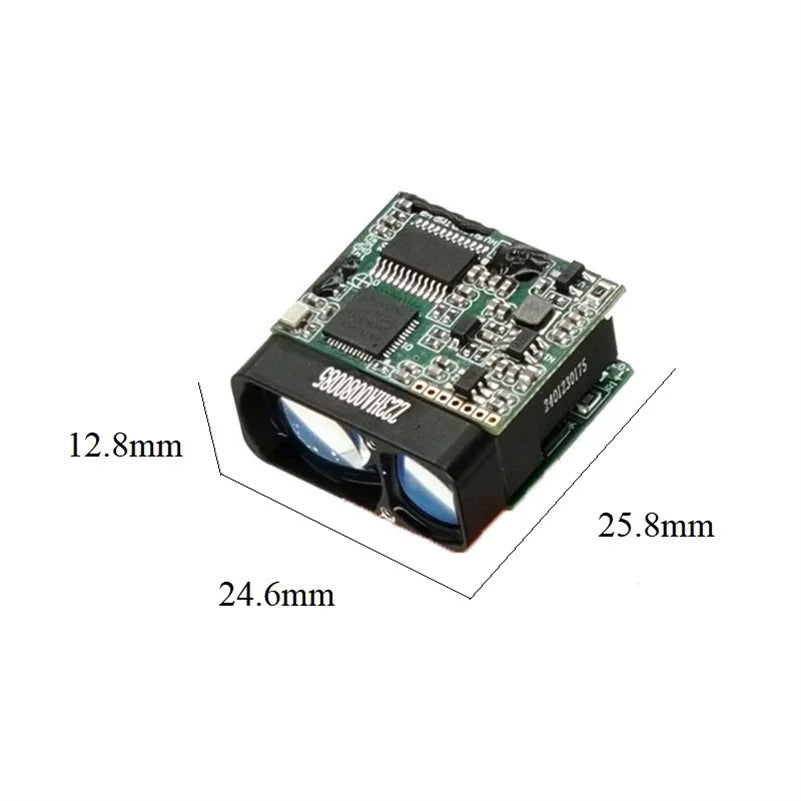

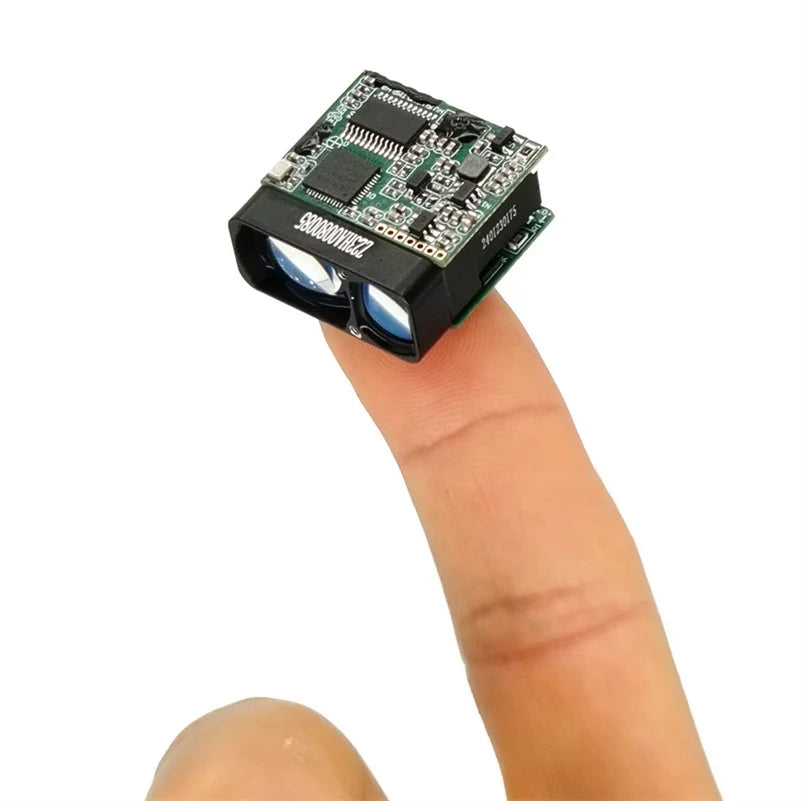

• Compact and Lightweight: Weighs just 10g ±0.5g, with dimensions of 25.8mm × 24.6mm × 12.8mm (L × W × H).

• Safe Laser Wavelength: Operates at 905nm ±5nm, classified as safe for general use.

• Adjustable Frequency: Measuring frequency ranges from 1Hz to 2Hz, enabling flexibility for different applications.

• Low Power Consumption: Operates on 3V to 5V with a power consumption of ≤2W.

• Customizable Design: Supports tailored configurations for specific use cases.

Specifications

Applications

The JRT 1200M TTL Laser Range Finder Module is designed for a variety of professional and industrial applications, including:

• UAVs and Drone Pods: Ideal for aerial distance measurements and obstacle detection.

• Archaeology: Enhances precision in excavation site mapping and surveying.

• Industrial Measurement: Suitable for factory automation and production line inspections.

• Security and Monitoring: Provides accurate perimeter surveillance and object detection.

• Mapping and Surveying: Ensures reliable data collection in diverse environmental conditions.

Environmental Adaptability

• Working Temperature: Operates reliably between -20°C and +60°C.

• Storage Temperature: Safe to store between -30°C and +60°C.

Power and Physical Characteristics

• Power Supply Voltage: Operates on 3V to 5V.

• Power Consumption: Rated at ≤2W, ensuring efficiency.

• Physical Dimensions: Compact design at 25.8mm × 24.6mm × 12.8mm.

• Weight: Lightweight at just 10g ±0.5g.

Why Choose the JRT 1200M Laser Range Finder Module?

The JRT 1200M offers a powerful combination of precision, versatility, and compact design, making it an ideal choice for integration into drones, industrial tools, and archaeological equipment. With its customizable design, energy efficiency, and ability to operate in diverse environments, this module provides unmatched value for high-precision, long-distance measurements.
