JRT D09C Laser Distance Sensor - UART 905NM 1500M / 2000M Ultra Long Laser Range Finder Module for Drone Pod

Overview

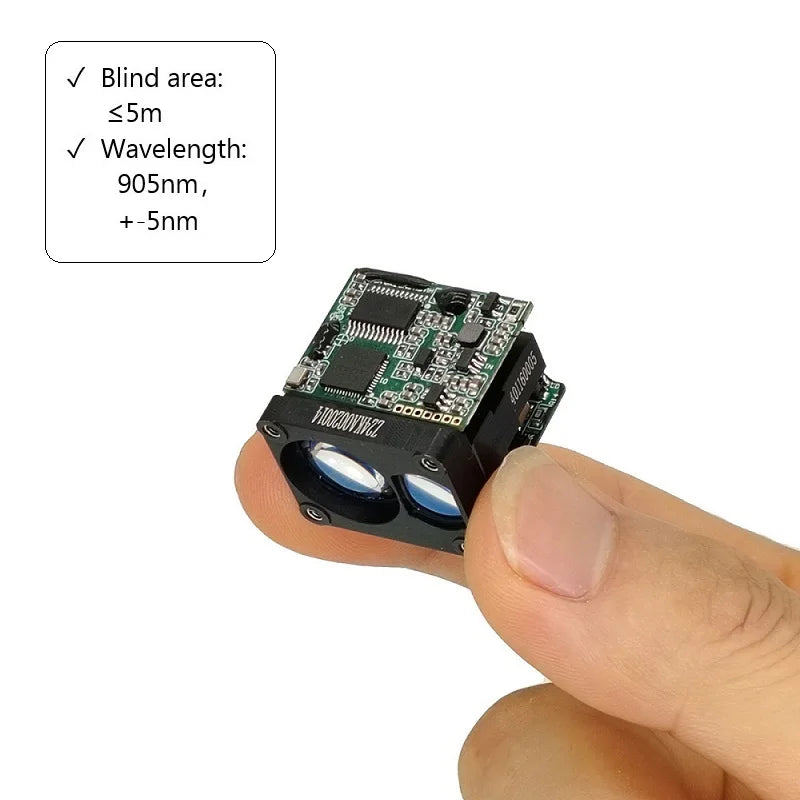

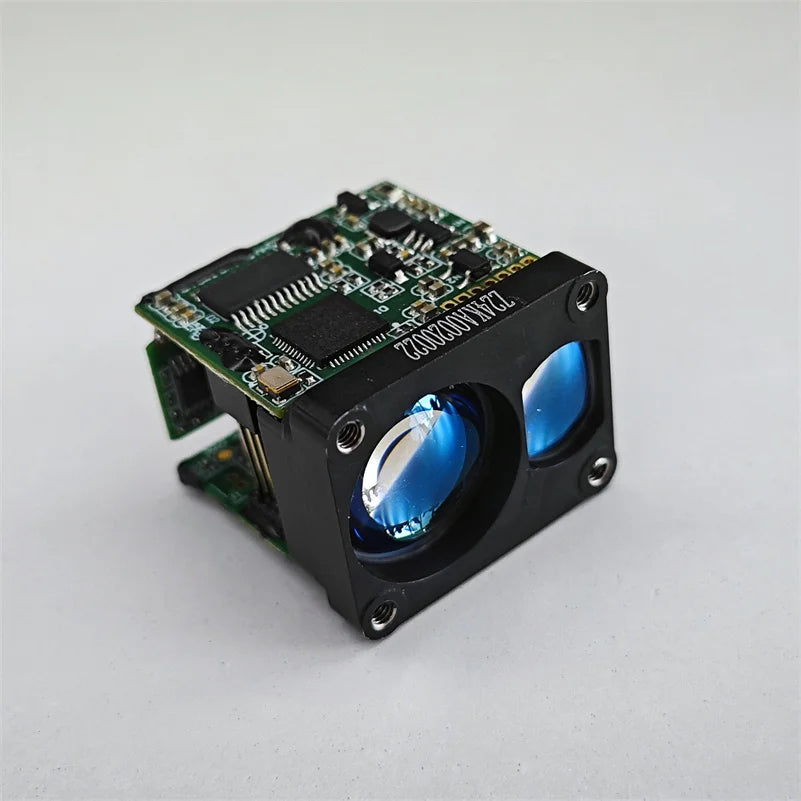

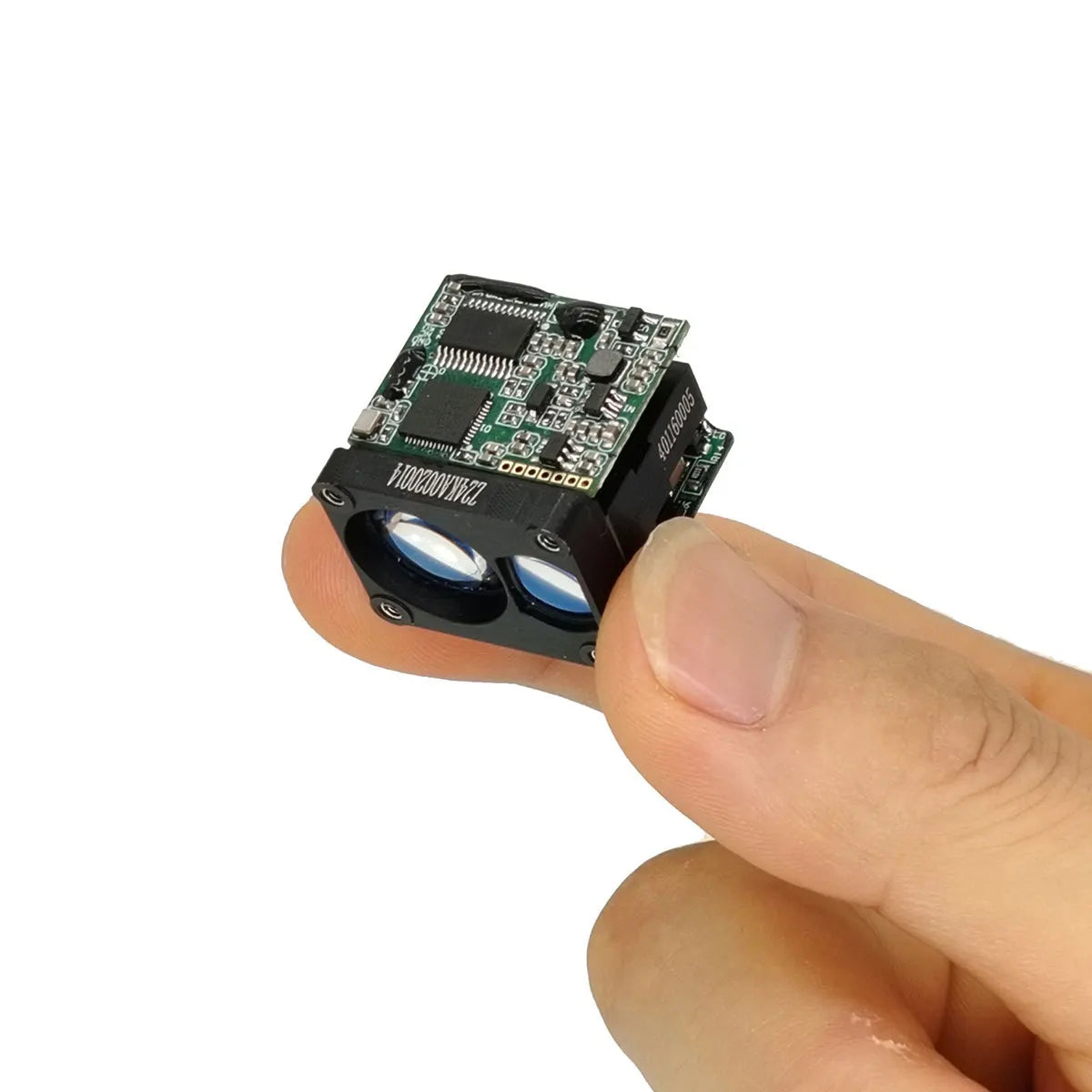

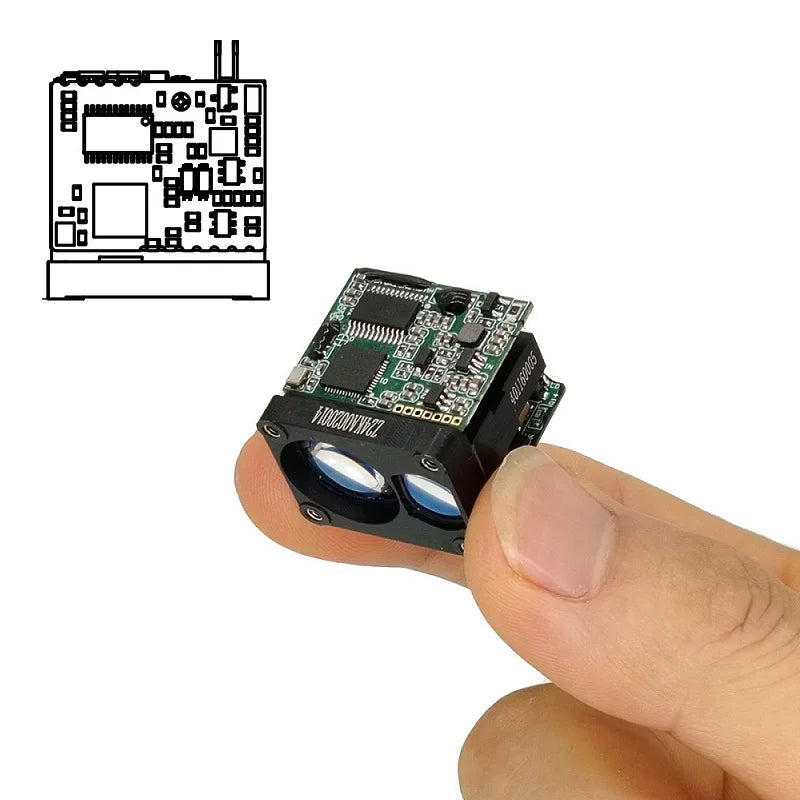

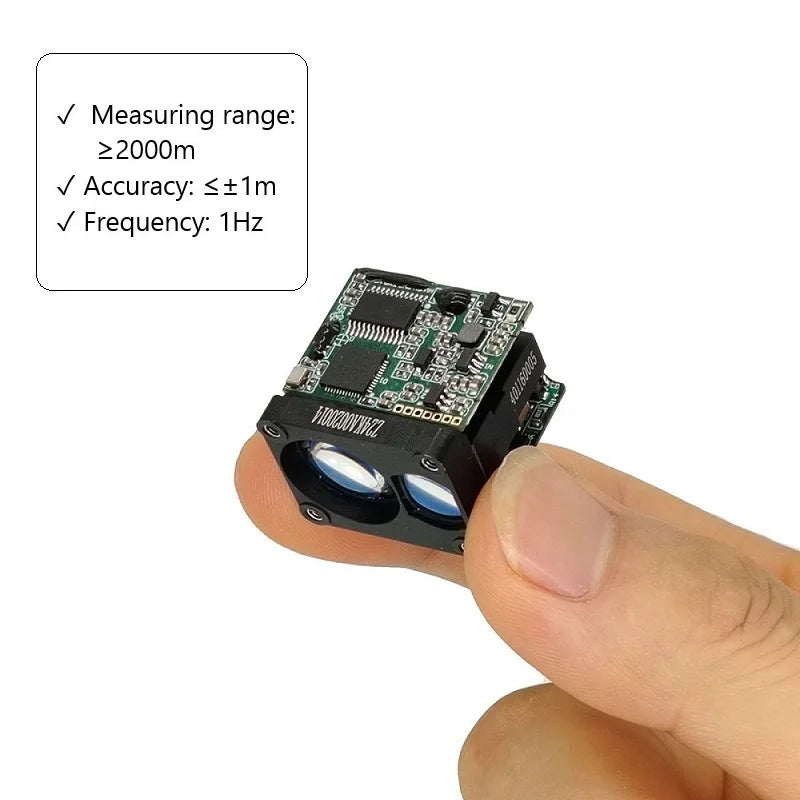

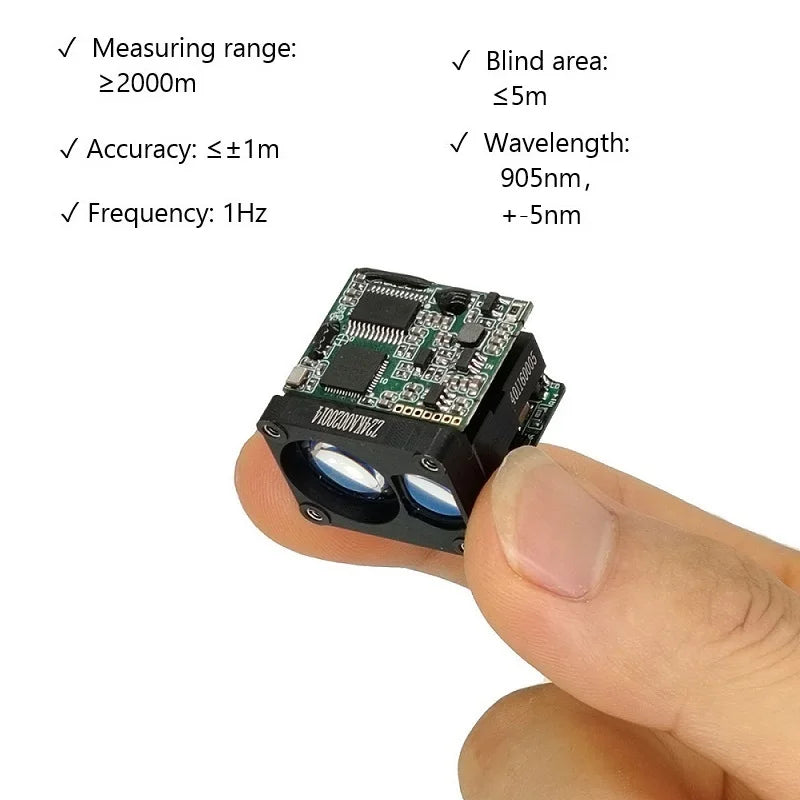

The JRT D09C Laser Distance Sensor is a cutting-edge laser ranging module engineered for precise, long-range distance measurement. With a remarkable range of up to 2000m and high measurement accuracy of ±1m, this sensor is an ideal choice for applications requiring real-time and reliable performance. Designed with a 905nm Class 1 laser, it offers safe operation while maintaining exceptional sensitivity. Its compact size (32mm × 20mm × 25mm) and lightweight build (≤18g) make it suitable for integration into various platforms, including UAVs, thermal imaging devices, and security systems.

Key Features

• Ultra Long-Range Measurement: Measures distances from 5m to 2000m with a resolution of 0.1m.

• High Accuracy: Ensures precise readings with a margin of error of just ±1m.

• Safe Laser Class: Utilizes a 905nm Class 1 laser, ensuring user safety and compliance with international standards.

• Compact and Lightweight: Small dimensions of 32mm × 20mm × 25mm and a weight of only 18g allow easy integration into compact systems.

• Versatile Interface: Equipped with UART-TTL asynchronous communication for seamless data transfer.

• Low Power Consumption: Operates on DC 3-5V with power consumption of ≤2W, suitable for battery-powered devices.

• Wide Operating Temperature: Performs reliably in environments ranging from -20°C to 60°C.

• Industrial Applications: Ideal for drones, thermal imaging systems, security monitoring, surveying, mapping, and more.

Specifications

Applications

The JRT D09C Laser Distance Sensor is designed for diverse industrial and scientific use cases, including:

• UAVs and Drone Pods: Compact and lightweight, perfect for aerial applications requiring long-range measurement.

• Thermal Imaging Systems: Enhances accuracy in combined thermal and optical imaging setups.

• Night Vision Devices: Supports precision ranging in low-light conditions.

• Security Monitoring: Enables advanced perimeter surveillance and object detection.

• Surveying and Mapping: Provides reliable data for geospatial and topographical analysis.

• Photoelectric Pods: Ideal for integration into advanced imaging and targeting systems.

Why Choose the JRT D09C?

The JRT D09C Laser Distance Sensor stands out as a high-performance, versatile solution for ultra-long-range measurement needs. With its low power consumption, robust build, and high precision, it’s the ideal choice for cutting-edge applications in drones, security, and imaging systems. Its ability to integrate seamlessly with various platforms makes it a preferred sensor module for professionals in industries ranging from aerospace to surveillance.

Measuring range: Up to 22 meters, Blinding area: N/A, Accuracy: ±0.2mm, Wavelength: 905nm, Frequency: 10.5MHz.

JRT D09C Laser Distance Sensor detects distance up to 20 meters with high accuracy and quick response. Suitable for various applications including gun sights, drones, positioning, altitude measurement, golf, hunting, security monitoring and more.

Blind area sensor for JRT D09C Laser Distance Sensor. Features include wavelength of 905nm, accuracy within ±4%, measuring range from 15cm to 2000m. Operating frequency is 1Hz to 16+01.20.

Measures distances accurately even in dark environments. Suitable for outdoor applications like fire rescue, golfing, hunting, and security monitoring.
