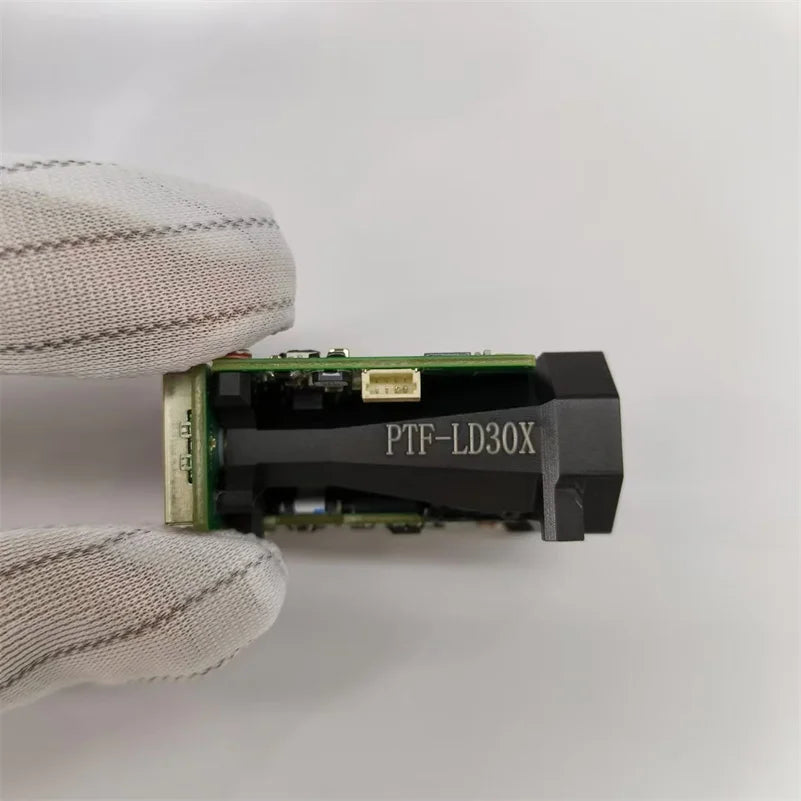

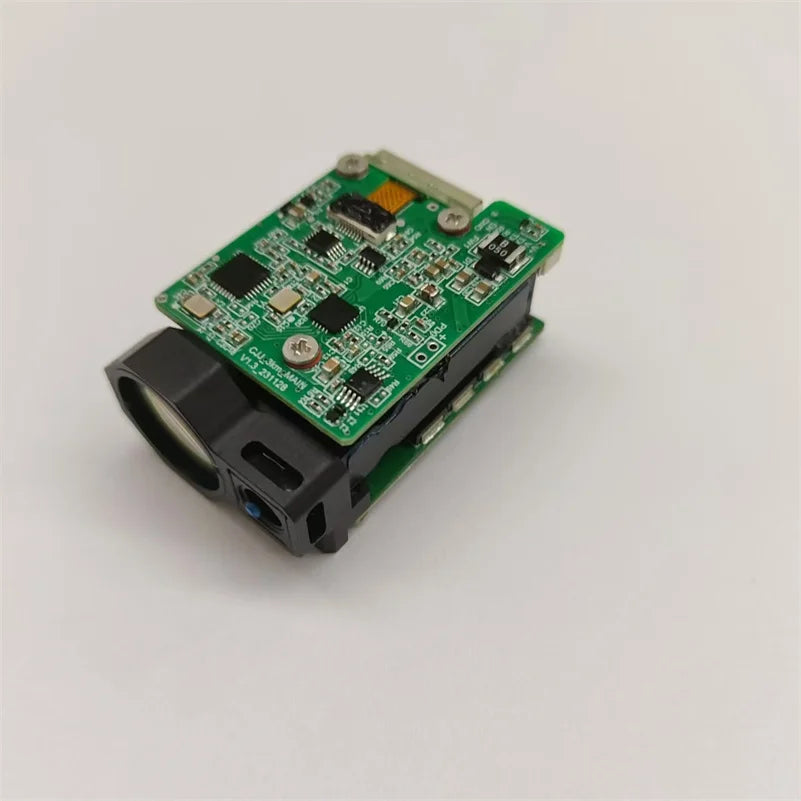

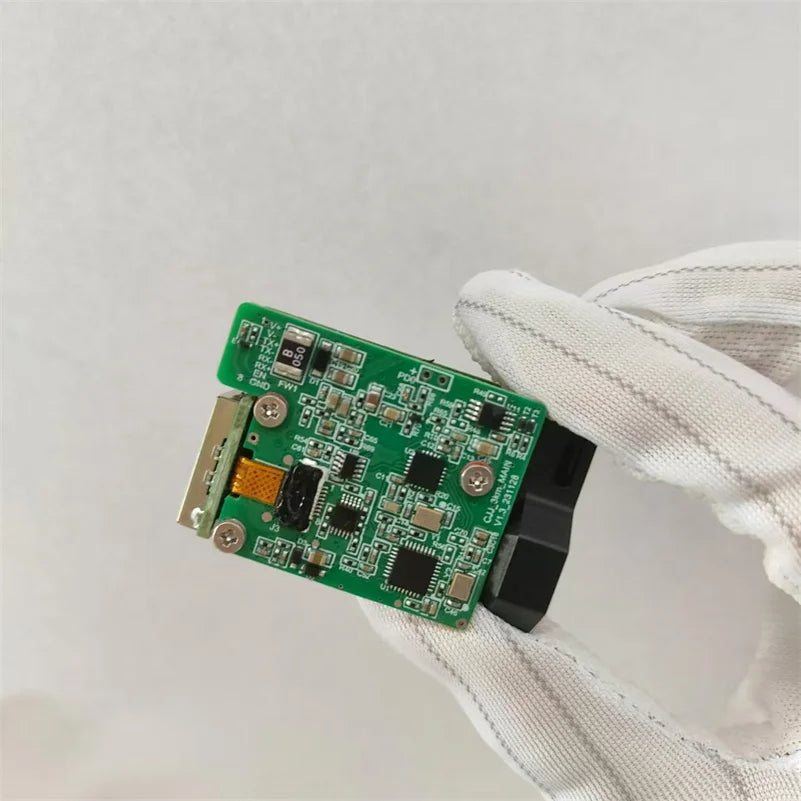

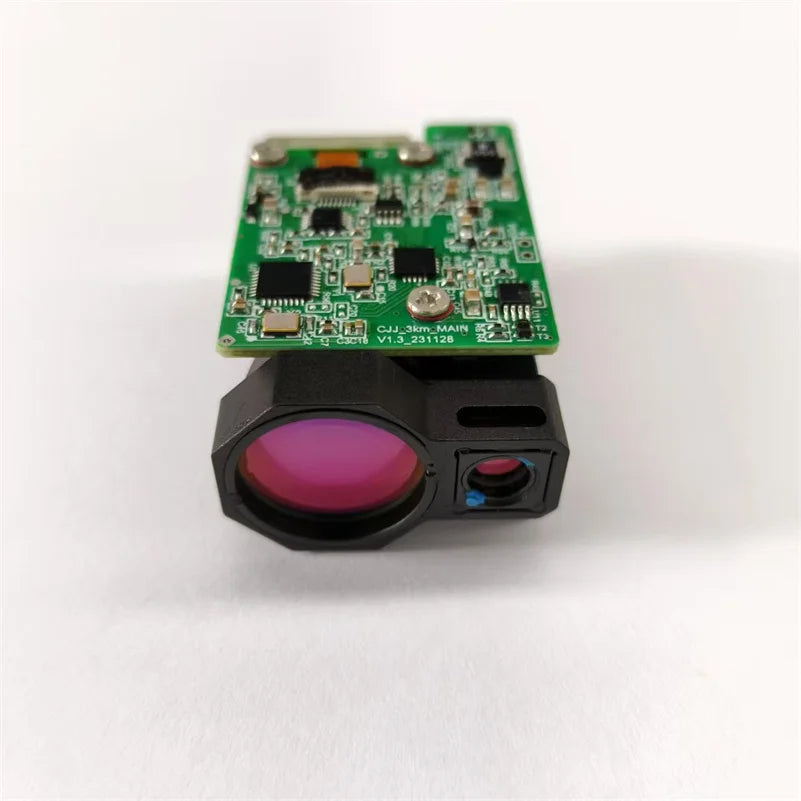

JRT LD30X Laser Distance Sensor - RS422 1535nm 3KM Laser Range Finder Module for Drone Pod

Overview

The JRT LD30X Laser Distance Sensor is a high-precision, long-range laser ranging module, engineered for advanced measurement applications. Featuring a maximum range of 3000m, exceptional accuracy of ±1m, and a 1535nm Class I laser, this sensor is designed to meet the demands of cutting-edge industrial, scientific, and aerial platforms. With robust performance in extreme environments and RS422/TTL data interfaces, the LD30X is a versatile solution for integrating precise measurement capabilities into UAVs, thermal imaging systems, and more.

Key Features

• Ultra-Long Measurement Range: Measures distances from 5m to 3000m, and up to 6000m for specific targets.

• Exceptional Accuracy: Provides reliable precision with an accuracy rate of ±1m and a resolution of ≥98%.

• Human Eye Safety: Utilizes a 1535nm Class I laser, ensuring safety during operation.

• Wide Operating Temperature Range: Performs efficiently in extreme conditions, from -40°C to +65°C.

• Customizable Interfaces: Features RS422 serial port as standard, with an option for TTL customization.

• High Frequency: Operates at 1–10Hz, supporting real-time applications.

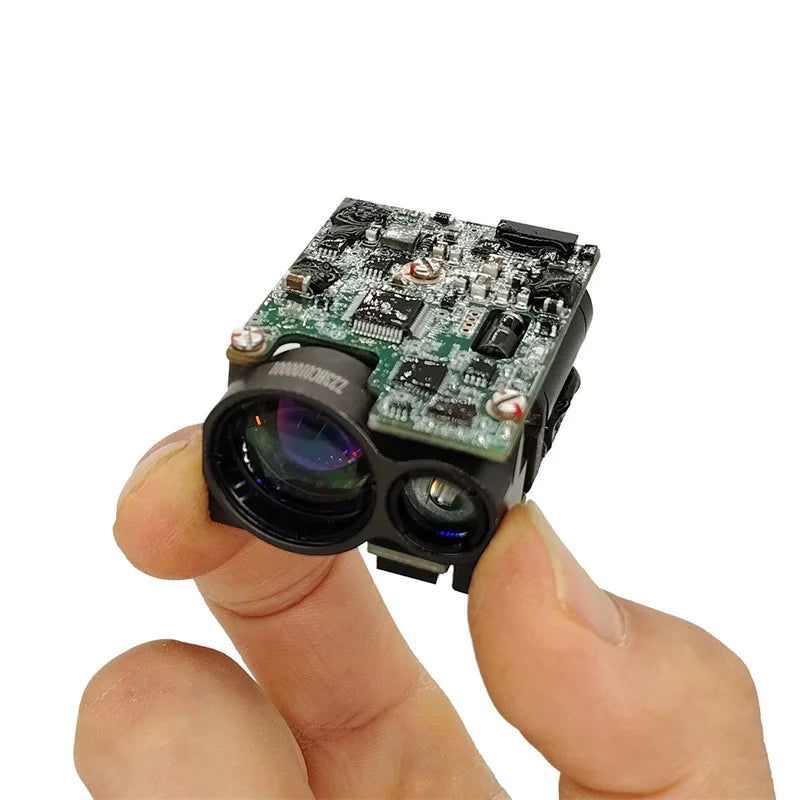

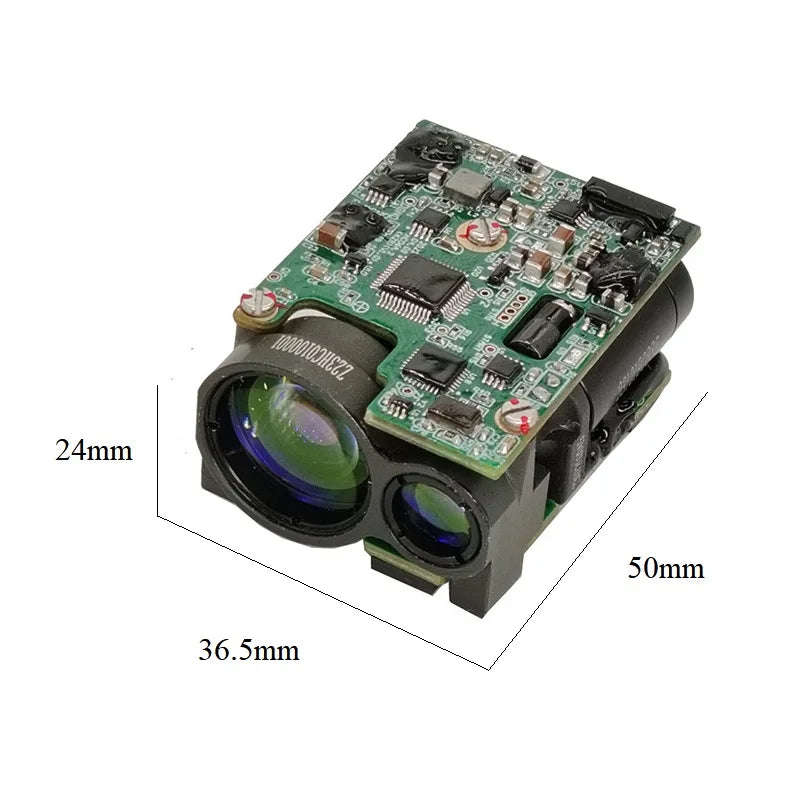

• Compact and Lightweight: Compact dimensions of 48.5mm × 36mm × 26mm and a weight of only 57g, ideal for integration into drones and other portable devices.

Specifications

Applications

The JRT LD30X Laser Distance Sensor is tailored for diverse industrial and scientific applications, including:

• UAV and Drone Pods: Lightweight and compact, perfect for aerial ranging and obstacle detection.

• Thermal Imaging Systems: Supports long-range thermal imaging and ranging tasks.

• Night Vision Devices: Enhances performance in low-light or night-time operations.

• Security Monitoring: Enables precise perimeter surveillance and object detection.

• Surveying and Mapping: Provides accurate geospatial measurements for professional surveying needs.

• Unmanned Ground Vehicles (UGVs): Ensures reliable obstacle detection and navigation in challenging environments.

• Photoelectric Pods: Integrates seamlessly with advanced imaging and targeting systems.

• Handheld Thermal Imagers: Enhances measurement capabilities in infrared thermal imaging equipment.

Additional Performance Details

• Range Performance:

  • 3000m: 2.3×2.3m NATO target, reflectivity 30%, observer visibility 8km.

  • 6000m: Maximum range for large targets.

  • ≥4500m: Large target, reflectivity 60%, observer visibility 12km.

  • ≥2000m: 0.5×1.7m person, reflectivity 10%, observer visibility 8km.

  • ≥1000m: 0.2×0.3m UAV, reflectivity 10%, observer visibility 8km.

• Power Consumption:

  • Standby Power Consumption: ≤1W.

  • Rated Power Consumption: ≤1.6W.

  • Peak Power Consumption: ≤4W.

Why Choose the JRT LD30X?

The JRT LD30X Laser Distance Sensor offers unparalleled performance in ultra-long-range measurements, making it an ideal solution for advanced applications in drones, security systems, and industrial platforms. Its human-safe laser technology, customizable interface, and wide operating temperature range ensure reliability and versatility in the most demanding scenarios. This precision sensor delivers the accuracy and durability you need for high-stakes operations, all in a compact and energy-efficient design.

Measuring range: 3,000 meters. Laser wavelength: 1.535 nm. Hunting accuracy: Better than ±0.1 cm.

Outdoor Night Vision Fire Rescue Golf Hunting Security Monitoring JRT LD30X Laser Distance Sensor measures distances up to 30 meters with high accuracy and reliability.
