Jumper ELRS Aion ELRS RX mini/mini SE/RX NANO SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Receivers
Size: 17.2*8.8*4.3mm
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Receivers
Model Number: Aion Rx Mini
Weight: 1.1g

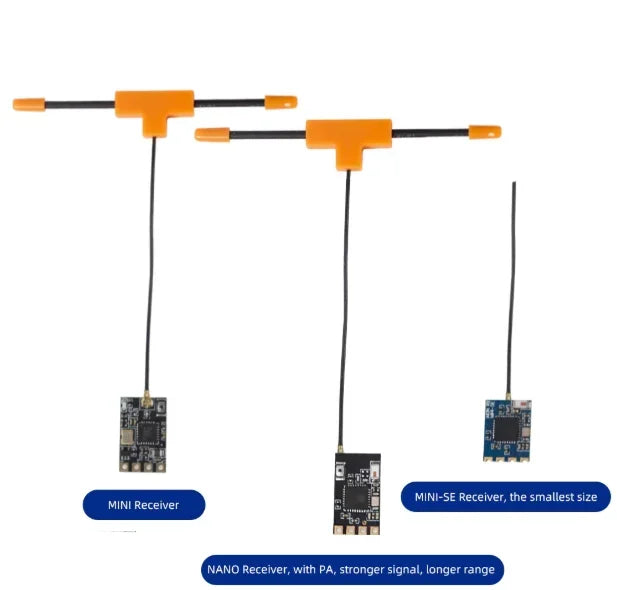

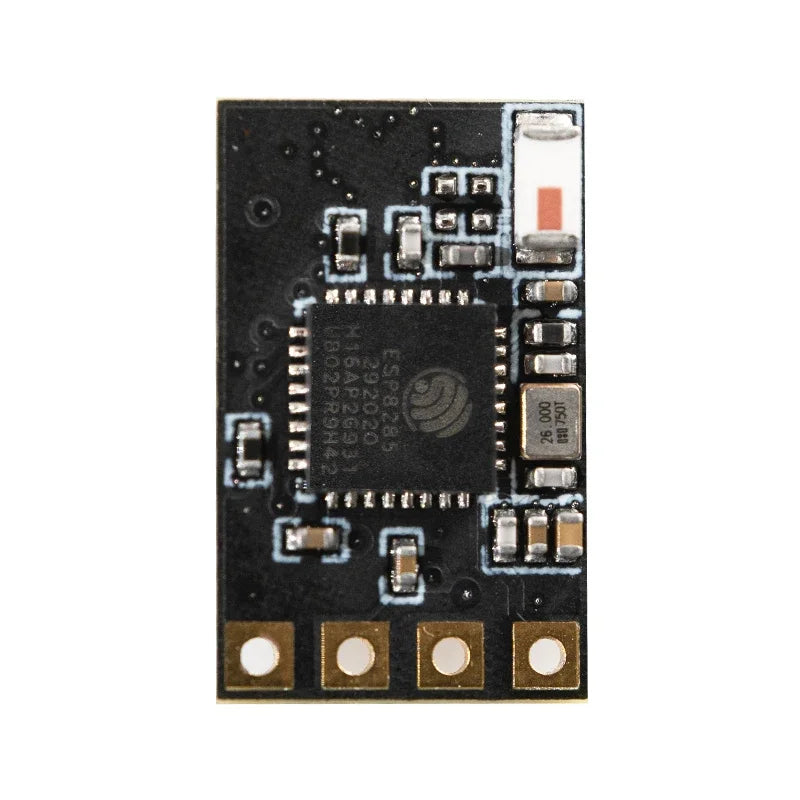

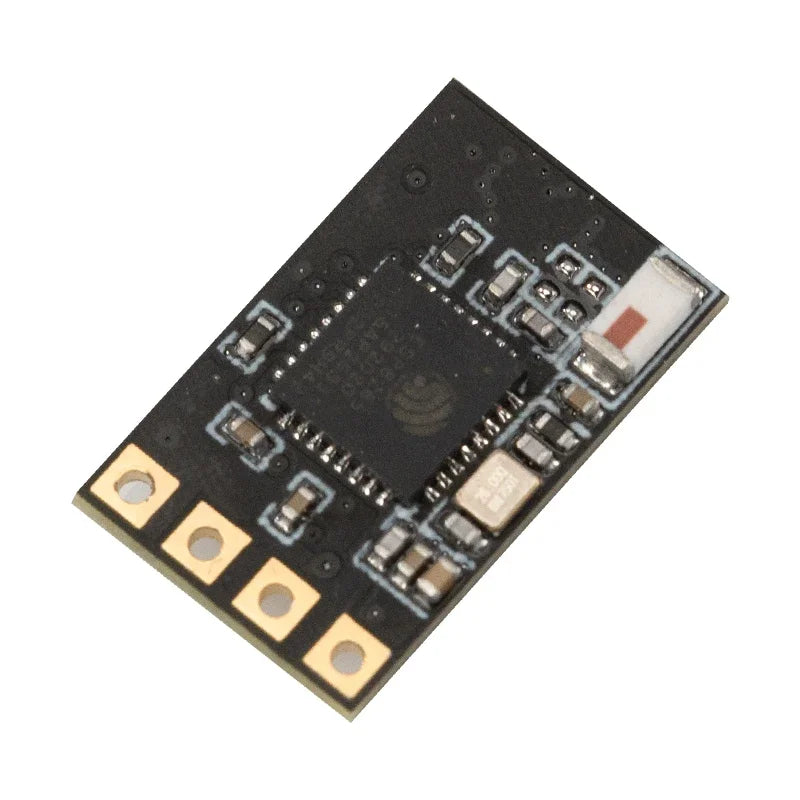

ELRS RX MINI Receiver
GND VCC Dimension: 17.2*8.8*4.3mm (LxWxH) Front TX Weight: 1.1g RX Number of Channels: 16Ch LED Operating Voltage Range: 3.5V6V Operating Current: 6OmA@SV Operating Range: Full range Distance: >SKM Back Compatibility: radios in ELRS 2.4 mode

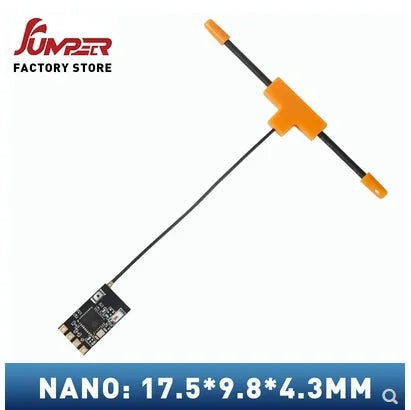

ELRS RX NANO Receiver
jumper 2.4GHz ELRS AION-RX-NANO (with PA) full duplex telemetry receiver . if receiver is not bound in 20 seconds after power-on, the green light will flash at the same time .

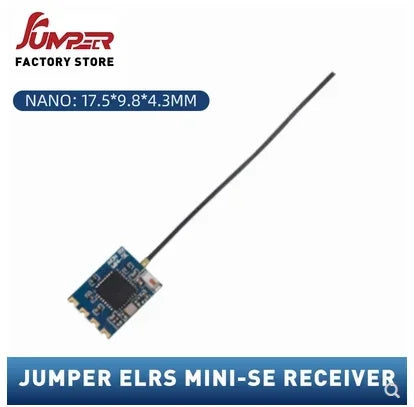

ELRS RX MINI SE Receiver
jumper 2.4GHz ELRS AION-RX-MINI full duplex telemetry receiver . ard set up the device as described below to fully enjoy the benefits .
