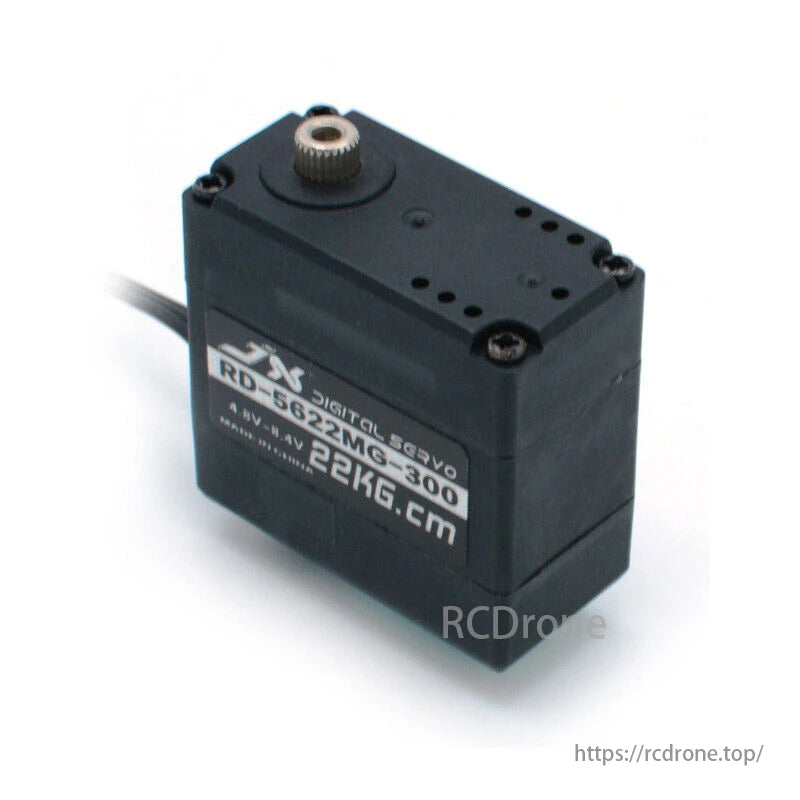

JX Servo RD-5622MG - 22kg.cm 180° / 300° Digital Metal Gear Degree Precision Big Torque Robot Servo

JX Servo RD-5622MG - 22kg.cm 180° / 300° Digital Metal Gear Degree Precision Big Torque Robot Servo

JX

$25.00 USD
$25.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

191 orders in last 90 days

Model
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

JX RD-5622MG 180/ 300 degree Precision Metal Gear Big Torque Robot Servo

Brand:JX Servo

Dead zone: 4 S
Neutral point: 1500 s
Support pulse width: 500 s-2500 s
Max angle: 180 degrees
Frequency: 330hz
Voltage range: 4.8V/6.0V/7.4V
Speed (4.8V/6.0V/7.4V): 0.22/0.20/0.18sec/60 degrees
Torque (4.8V/6.0V/7.4V): 14.8/17.6/22.0 kg.cm
Size: 40.5X20.3X40mm
Weight: 56 G
Line specification: JR 200mm black silicone wire
Output header: 25T


Dead zone: 4 S
Neutral point: 1500 s
Support pulse width: 500 s-2500 s
Max angle: 300 degrees
Frequency: 330hz
Voltage range: 4.8V/6.0V/7.4V
Speed (4.8V/6.0V/7.4V): 0.22/0.20/0.18sec/60 degrees
Torque (4.8V/6.0V/7.4V): 14.8/17.6/22.0 kg.cm
Size: 40.5X20.3X40mm
Weight: 56 G
Line specification: JR 200mm black silicone wire
Output header: 25T

Detailed introduction

FEATURE:

-- High performance, digital robot servo

-- High precision metal gear

-- High quality core motor

-- 300° angle


SPECIFICATIONS:

Dead band: 4μs
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Core
Max angle：300°±2°
Frequence: 330hz
Operating Voltage：4.8V/ 6V/ 7.4V
Operating Speed(4.8V): 0.22sec/60°

Operating Speed(6.0V): 0.20sec/60°

Operating Speed(6.0V): 0.18sec/60°
Stall torque(4.8V): 14.8kg.cm

Stall torque(6.0V): 17.6kg.cm

Stall torque(7.4V): 22.0kg.cm

Demension: 40.5X20.3X40mm
Weight:  56 g
Connector Wire Length: JR  200mm
Spline Count: 25T
