Keel Quadcopter Delivery Drone Specifications

Package included

• Keel Quadcopter Frame * 1
• T5 Motors * 4
• ESC * 4
• Pixhawk Cube Orange+ Standard Set* 1
• F9P RTK sky module * 1
• FPV camera * 1
• 32″ propeller (pair) * 2
• 7S 28000mah Battery * 2
• K4 Battery Charger * 1
• Skydroid H16 remote controller（10 km） * 1
• Carrying case * 1

Optional Components:

GPS Module: Dual GPS, etc.

Radio Controller: Cubepilot Herelink V1.1, Skydrid H16 Pro etc.

Mission Payload: mapping/filming cameras, inspection gimbal cameras, LiDARs, RTK modules, cargo release & drop devices, cargo delivery boxes, megaphones, lights, etc.

Note: If you have any customization requirements for Keel Quadcopter, please contact rcdrone@baichen.co, thank you!

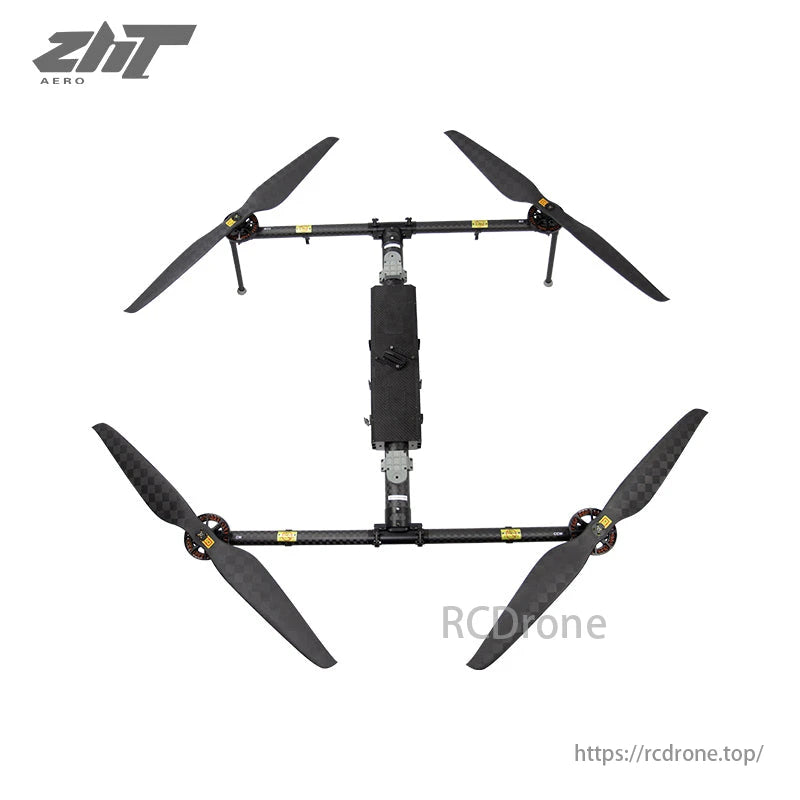

Keel Quadcopter Delivery Drone Features

The ZHT Keel Quadcopter Drone stands out in the UAV market with its innovative modular design and electrical configuration. This versatile quadcopter supports a variety of multitask payloads, featuring a substantial 10 kg load capacity and an impressive maximum flight time of 120 minutes. It is perfectly suited for applications in inspection, mapping, delivery, and payload dropping.

Enhanced Power Distribution and Modular Design: Equipped with an integrated Power Distribution Board (PDB), the ZHT Keel Quadcopter is compatible with various flight controllers and ensures a clean, compact circuitry layout. It includes interfaces for remote controllers and can maintain a 60-minute flight duration even with a 5 kg payload. The drone's arms, batteries, mission payloads, and propellers all feature a quick-assembly design, enabling a single operator to set up the drone in just three minutes.

Exceptional Battery Life and GPS Integration: Dual 7S 28000 mAh batteries empower the Keel Quadcopter with up to 120 minutes of flight time unloaded, and 30 minutes with a full 10 kg payload. The addition of dual GPS enhances flight preparation and positioning accuracy, making it a reliable choice for critical missions.

Versatile Payload Capabilities: The ZHT Keel supports various mission payloads with its quick-mount structure, allowing for efficient switching between tools like gimbal cameras, LiDAR scanners, delivery boxes, and more. This functionality enables it to perform complex tasks such as synchronized inspections and integrated cargo delivery efficiently.

Advanced Features for Optimal Performance: The quadcopter boasts a carbon fiber frame for lightweight durability and includes an advanced control system for fully autonomous and stable flight. Its optimized design minimizes electromagnetic interference, ensuring stable operation in challenging environments. Additional features include strong power for prolonged endurance, support for various task loads, and robust resistance to adverse weather conditions.

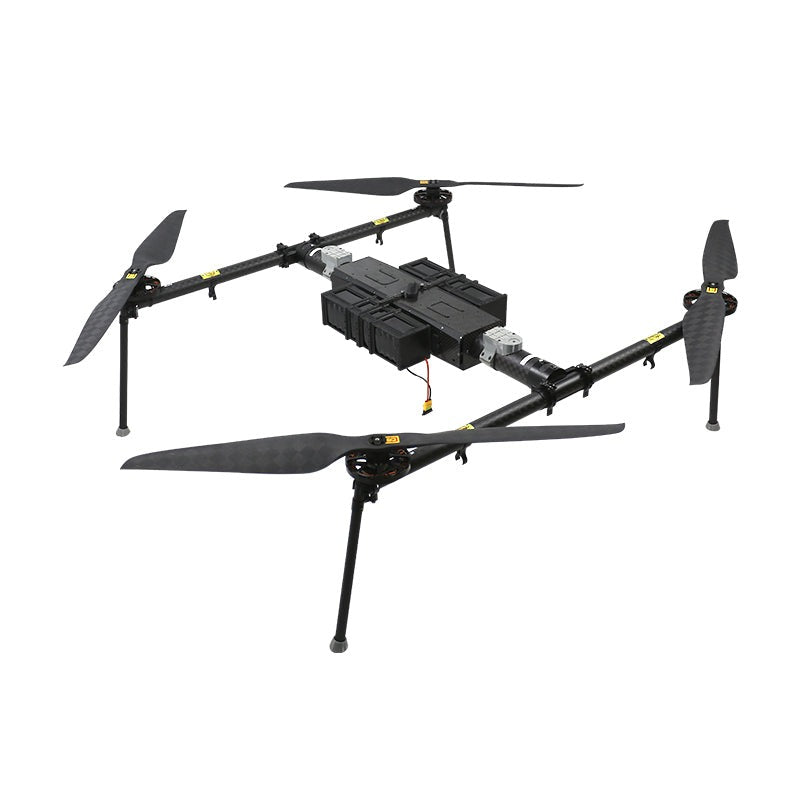

Keel Quadcopter Delivery Drone Details

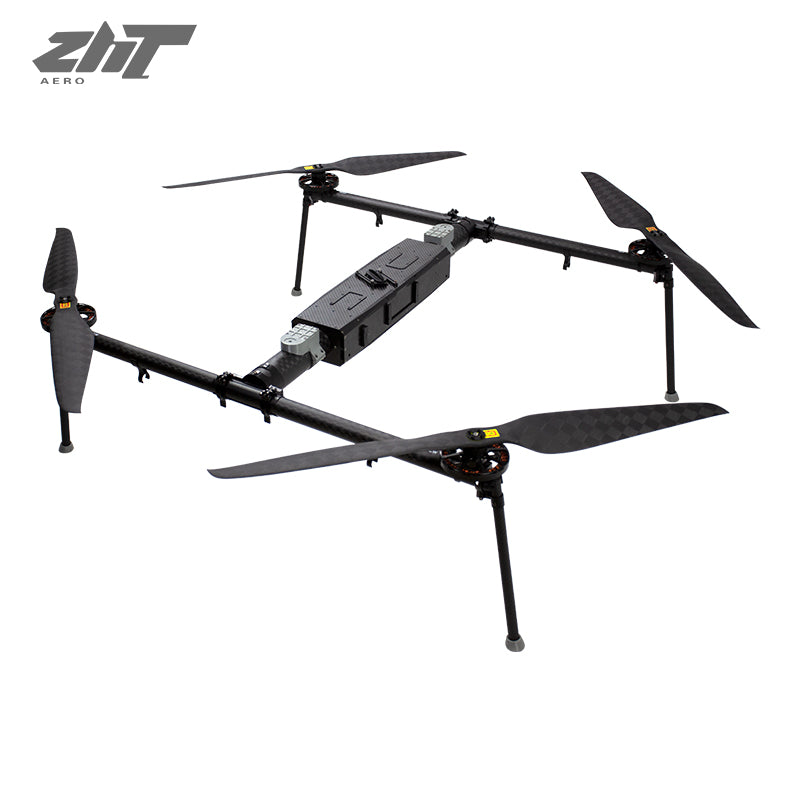

High-quality carbon fiber tubes combined with an innovative design result in robust and durable machine arms. These arms are lightweight yet exceptionally strong and are designed for easy disassembly. Each arm features a unique, interchangeable design, allowing for straightforward replacement if damage occurs. Simply purchase a new arm, swap it out, and your machine is ready to go. This convenient replaceability significantly simplifies maintenance, saving both time and costs.

The Keel Delivery Drone features an efficient and stable quick-release propeller seat, optimized for extended battery life, enhanced efficiency, and improved weight-lifting capabilities. Our design incorporates military-grade quick-release technology, allowing for propeller disassembly in just one second. This rapid mechanism saves time and effort, adding convenience to your operations.

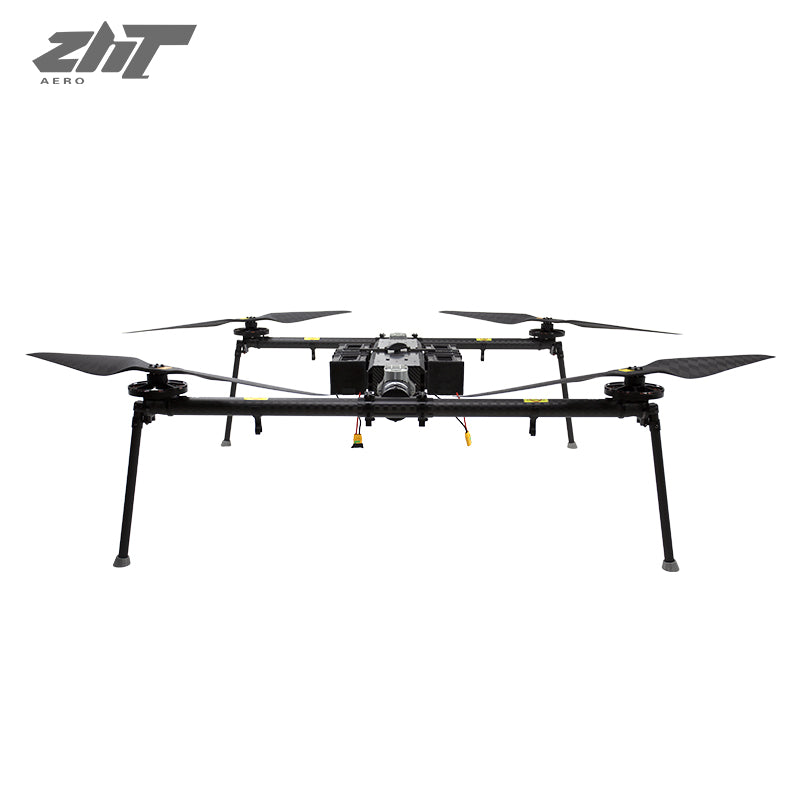

Flight performance is our strength. The new fuselage structure and power system have been meticulously designed to enhance robustness and stability in flight, enabling you to tackle challenges and overcome difficulties with ease.

Performance Highlights:

• 120-minute No-load Endurance: Maximizes operational time in the air without cargo.
• 20 kg Proportional Payload Capacity: Optimized to carry significant weights efficiently.
• 15 m/s High-Speed Flight: Rapidly reaches destinations, saving valuable time.
• Advanced Navigation: Features free control with waypoint navigation and autonomous flight capabilities, ensuring precision and ease in maneuvering.

Dual Battery System Innovations:

• KEEL with Dual 14s 28000mAh Batteries: Doubles the endurance, offering extended flight durations for all your missions.
• Efficient Battery Cooling: Maintains optimal performance and safety.
• Quick Detachable Design: Enhances convenience and reduces downtime during battery swaps.

These features are designed to provide endless flight possibilities, meeting the demands of even the most challenging tasks with a reliable and powerful aerial platform.

Quick Battery Swap for Joyful Flights: Experience the convenience of our quick-release battery design. Simply rotate the switch, and the battery can be released in just one second. This allows for straightforward removal by lifting the battery directly out of the drone. The design ensures quick swaps and minimal downtime, keeping your flights joyful and efficient.

Emergency Backup and Compatibility: In emergency scenarios, KEEL's versatile system permits the use of third-party batteries. For optimal performance, it is recommended to use two or more batteries in series with a discharge rate of 3C or higher. Please note:

• When using third-party batteries, the maximum takeoff weight should not exceed 20KG.
• ZHT provides no assurances regarding flight duration or endurance when third-party batteries are used.

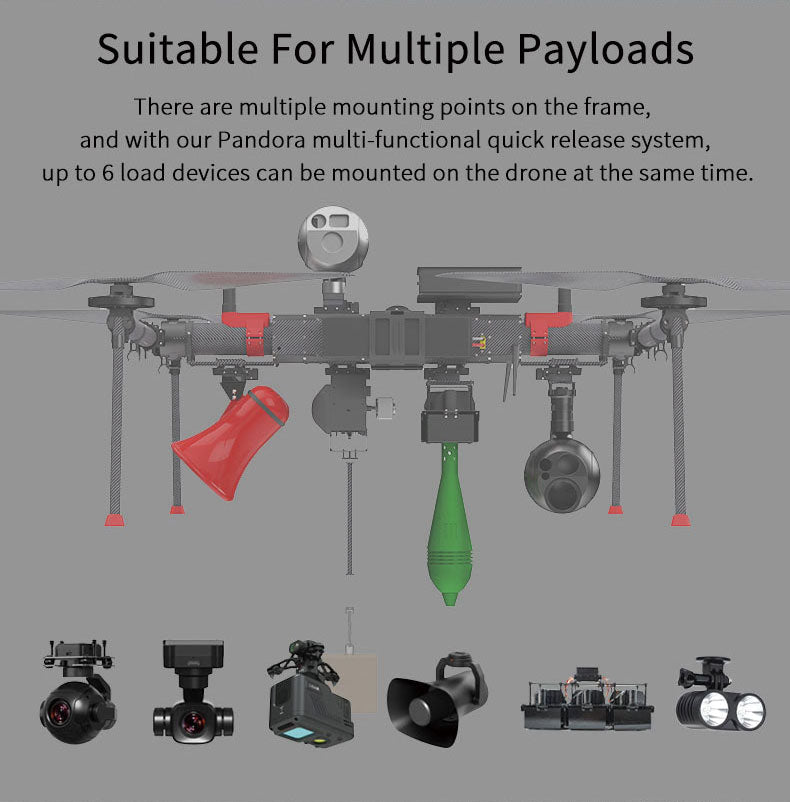

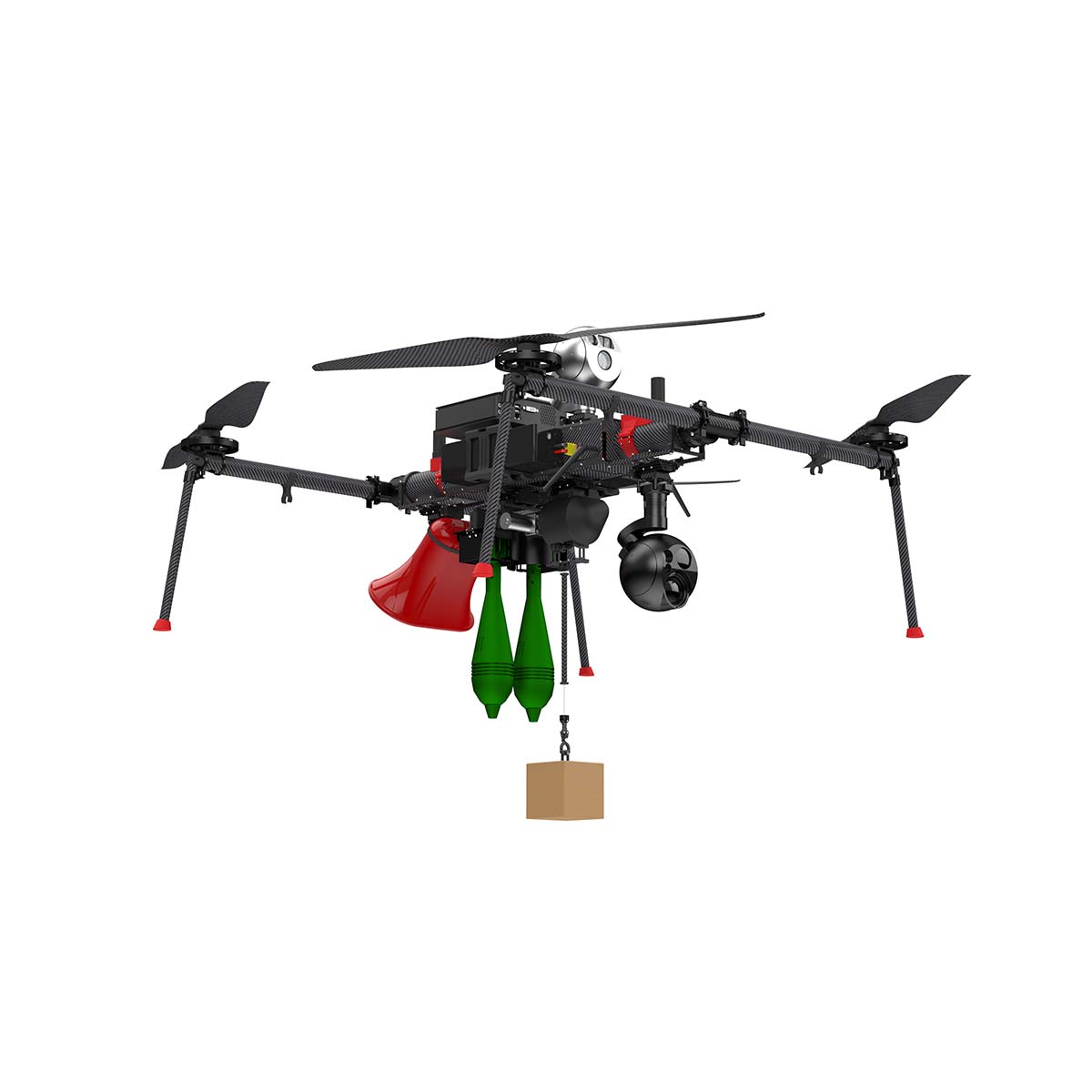

Flexible Multi-Load Platform: KEEL drones are equipped with multiple mounting points for diverse operational needs:

• Six Load Support: Offers four mount points on the bottom and two on the top, along with a Micro USB open interface, supporting up to six payloads simultaneously.
• Maximum Load Flexibility: Can handle a total maximum load of 10 kg, enhancing your load configuration options.
• Versatile Mounting Options: The bottom platform features four mounting points suitable for gimbals, rescue devices, winches, loudspeakers, and more. Slides on both the upper and lower platforms allow for easy adjustment of the payload's position, providing greater convenience and flexible payload placement.

The Pandora Smart Quick Box, crafted from aerospace-grade forged aluminum alloy, supports up to 10KG payloads and ensures durability and performance. This device features a press-fit modular design allowing for quick assembly and disassembly in just 2 seconds, enhancing operational efficiency without the need to dismantle the drone's body.

Key Features:

• Sliding Rail System: Positioned on the lower platform for easy and flexible payload repositioning, catering to diverse operational needs.
• Efficient Internal Design: Boasts an optimized circuit layout for clean wiring and fine craftsmanship. Compatible with most open-source flight controllers and accessories.
• Integrated Power Options: Includes a power distribution board (PDB) that supports various voltages (5V/24V), a GPS for expanded navigation capabilities, an XT90 protective cover for safety, and a DCDC for enhanced power distribution.

The Pandora Smart Quick Release Device is the perfect tool for professionals looking to improve payload management with a reliable, easy-to-use system designed for high-performance and versatility.

The VEX PDB excels in efficiency with its highly integrated design, providing a streamlined solution for drone power management. This board includes an integrated power module with a sensible circuit layout and an optocoupler controller directly connected to the ESC. This setup simplifies connections to surveying and mapping cameras, enabling quick trigger functionality for photography.

Features at a Glance:

• Multi-Voltage Support: Handles 5V/24V power supplies, catering to diverse equipment needs.
• XT90 Protective Cover: Protects against dust and moisture, extending connector lifespan.
• Optional DCDC Expansion: Adds 4 serial ports and 7 SBuses for enhanced voltage control, supporting varied electronic demands with precision.

mainly used for Pandora quick open; DCDC is a distribution board,there are 4 serial ports and 7 SBusesDCDC supports power V control,Different voltage supply can provide different voltages for both sides .

Su Frame Arm Charger Propeller Remote control (optional) Aviation packaging box Charger Battery 2uiD 0 3 115c

Leveraging Drone Technology Across Industries

Energy Detection: Drones quickly reconstruct complex infrastructures such as power transmission lines and oil pipelines, enhancing data collection efficiency and refinement. This technology significantly reduces the workload and ensures the smooth operation of essential facilities.

Engineering Survey: Drone technology facilitates the rapid generation of high-precision points and models, crucial for engineering surveys, design, testing, and maintenance. This capability streamlines measurement processes across various engineering scenarios.

Logistics Transportation: Drones are pivotal in the transport of emergency and medical supplies. They provide a fast, reliable method to deliver critical materials, particularly in urgent situations.

Topographic Mapping: Drones offer precise land topography mapping and environmental monitoring. Accurate data collection via drones supports various industries, including environmental management and planning.

Police and Law Enforcement: In law enforcement, drones provide efficient and real-time on-site control, gathering key information and evidence. This aids in quick decision-making during critical law enforcement operations.

River Inspection: Drones produce 24/7 real-time point clouds for river inspection, aiding in the control and management of the scene, identifying causes of accidents, potential hazards, and supporting rescue operations. This technology ensures comprehensive monitoring and improved safety.

Improve data collection and refinement Engineering survey and design, engineering testing, engineering Reduce people workloadEnsure the normal operation of facilities: maintenance and other measurement scenarios

KEEL INFORMATION Max. Symmetric Wheelbase 1250mm ZISE 1040*1040*270mm (Arms & landing gears Unfolded, Props removed:) Folded and pack in box 1150*420*355mm (excl: battery) Weight (incl. battery 2 Max. Loading Capacity Max. Angular Velocity 1509/s Max. Pitch Angle 250
