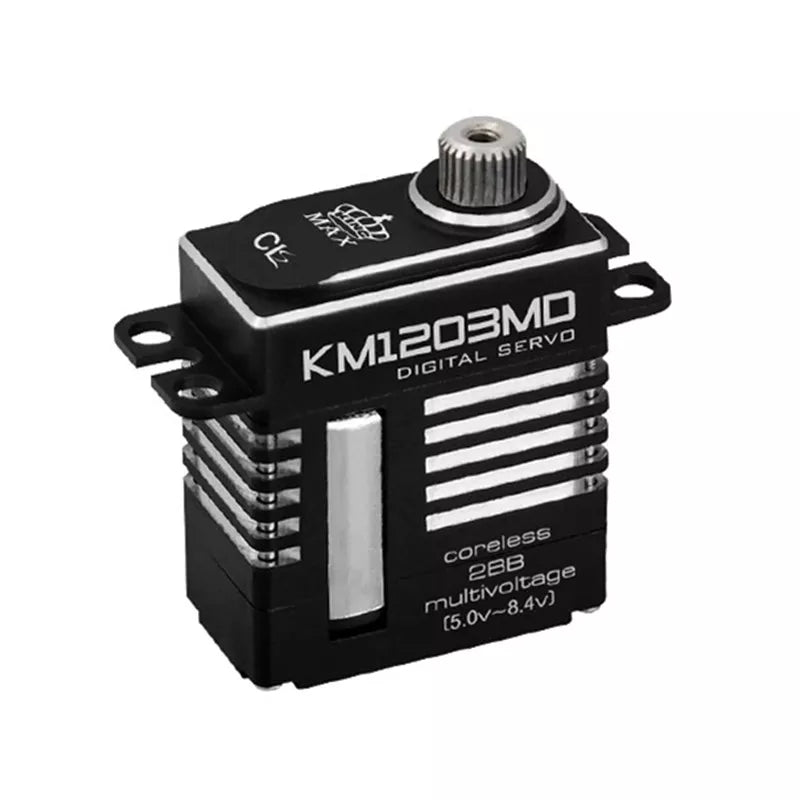

Kingmax KM1203MD-20g 9kg.cm DC 4.8V~8.4V digital metal gears mini servo for 450-480 class helicopter swashplate 30E fixed-wing

-- Programmable high performance matal gears(copper+titanium) mini digital servo

-- High quality coreless motor

-- Full CNC aluminium hulls and structure

-- Dual ball bearings

-- Ideal for 450 class helicopter swashplate

SPECIFICATIONS:

Item：KM1203MD

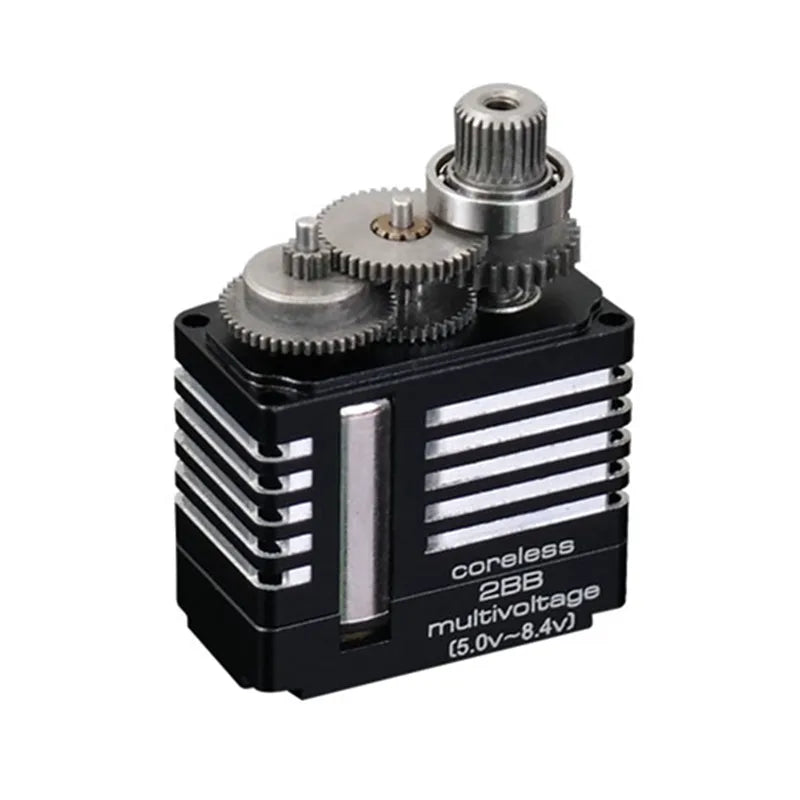

Gear：Full metal

Spline：Exclusive

Motor：Coreless motor

Bearing：2BB

Dead band：2μs default

Waterproof：No

Operating Voltage：DC5.0~8.4V

Working frequence：1520μs/330hz

Operating Speed (5.0V): 0.14sec/60 degrees at no load

Operating Speed (6.0V): 0.11sec/60 degrees at no load

Operating Speed (7.4V): 0.08sec/60 degrees at no load

Operating Speed (8.4V): 0.07sec/60 degrees at no load

Stall Torque (5.0V): 6.0 kg.cm (102.78 oz/in)

Stall Torque (6.0V): 7.4 kg.cm (102.78 oz/in)

Stall Torque (7.4V): 9.5 kg.cm (131.95 oz/in)

Stall Torque (8.4V): 10.5 kg.cm (131.95 oz/in)

Potentiometer Drive: Direct Drive

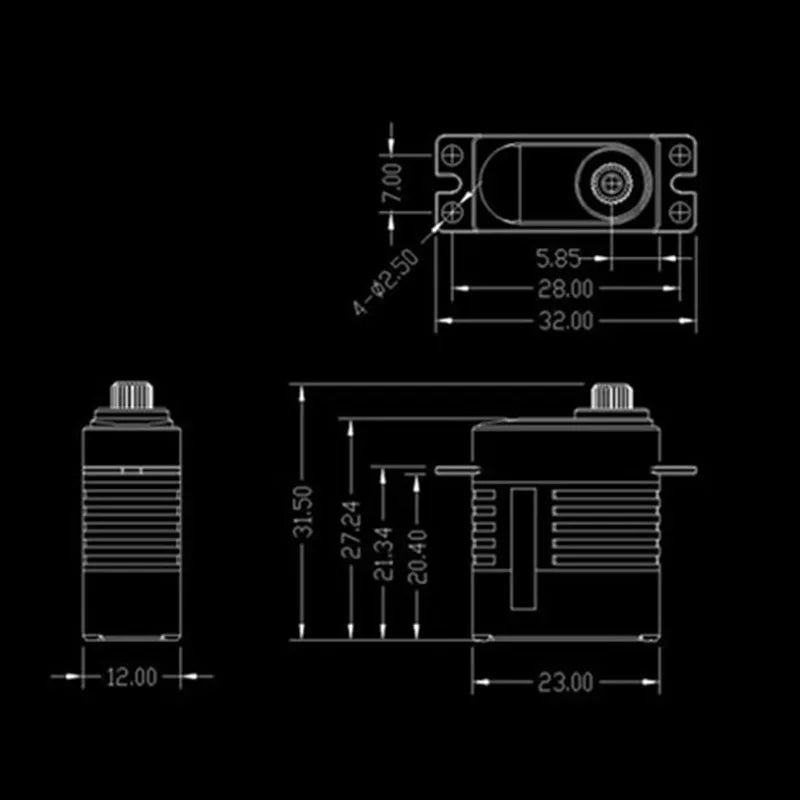

Dimensions: 23X12X27.5 mm /0.91 X0.47X1.07 in

Weight: 20.3 g (0.72oz)

Connector Wire Length: JR320 mm (12.48in)
