QAV-R 220mm 220 Carbon Fiber Racing Drone - F4 V3S Plus Flight Control RS2205 2300KV LittleBee 30A-S ESC BLHeli I6 Quadcopter

QAV-R 220mm 220 Carbon Fiber Racing Drone - F4 V3S Plus Flight Control RS2205 2300KV LittleBee 30A-S ESC BLHeli I6 Quadcopter

RCDrone

$138.13 USD
$193.38 USD $138.13 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

13 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 6

Size: 220mm

Remote Control Peripherals/Devices: Battery

Recommend Age: 14+y

Recommend Age: 12+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: QAV-R 220mm Carbon Fiber Racing Drone

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Readytosky

QAV-R 220mm 220 Carbon Fiber Racing Drone, readytosky is a professional FPV RC Module accessories company . we will

readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

QAV-R 220mm 220 Carbon Fiber Racing Drone, Dual Lock CW / CCW Locknuts Omnibus F4 V3S Plus
Features
Full 3K Carbon Fiber airframe featuring 4mm removable arms
Custom aluminum hardware to enable one tool, quick swapping of arms in race pit settings
Black Oxide steel screws
Easy grip anodized spacers
Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).
"Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.
Easy Lipo Access (suggested Lipo is a 1300mah 3 or 4s)
Support for 32mm board cams as well as 26mm cams.
Support to carry HD camera (such as the GoPro 4, Mobius, or GoPro Session) with optional camera vibration mount (not included)
Wheelbase: 220MM
brushless motor:1806~2206 (KV2000~2300)
brushless esc:10~15a
flight controller:mini CC3D/ NAZA32/ F3
battery cells:3S  1500~2200mah
Propellers:5045,5030 (5 inch)
Image transmission:5.8G 200~600wm 32CH
Antenna:5.8G

LittleBee 30A-S OPTO ESCBLHeli_S 2-6S
Description:
Item name: FVT LittleBee 30A-S ESC
Input Voltage: 2-6S Lipo
BEC Output: No
Continue Current: 30A, Burst Current: 35A up to 10S
Size: 35*17mm
Weight: 9g(include Power and signal wire)
Support Damped mode, Oneshot125, Oneshot42 and Multshot
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader & Firmware

Brands:Ready to sky

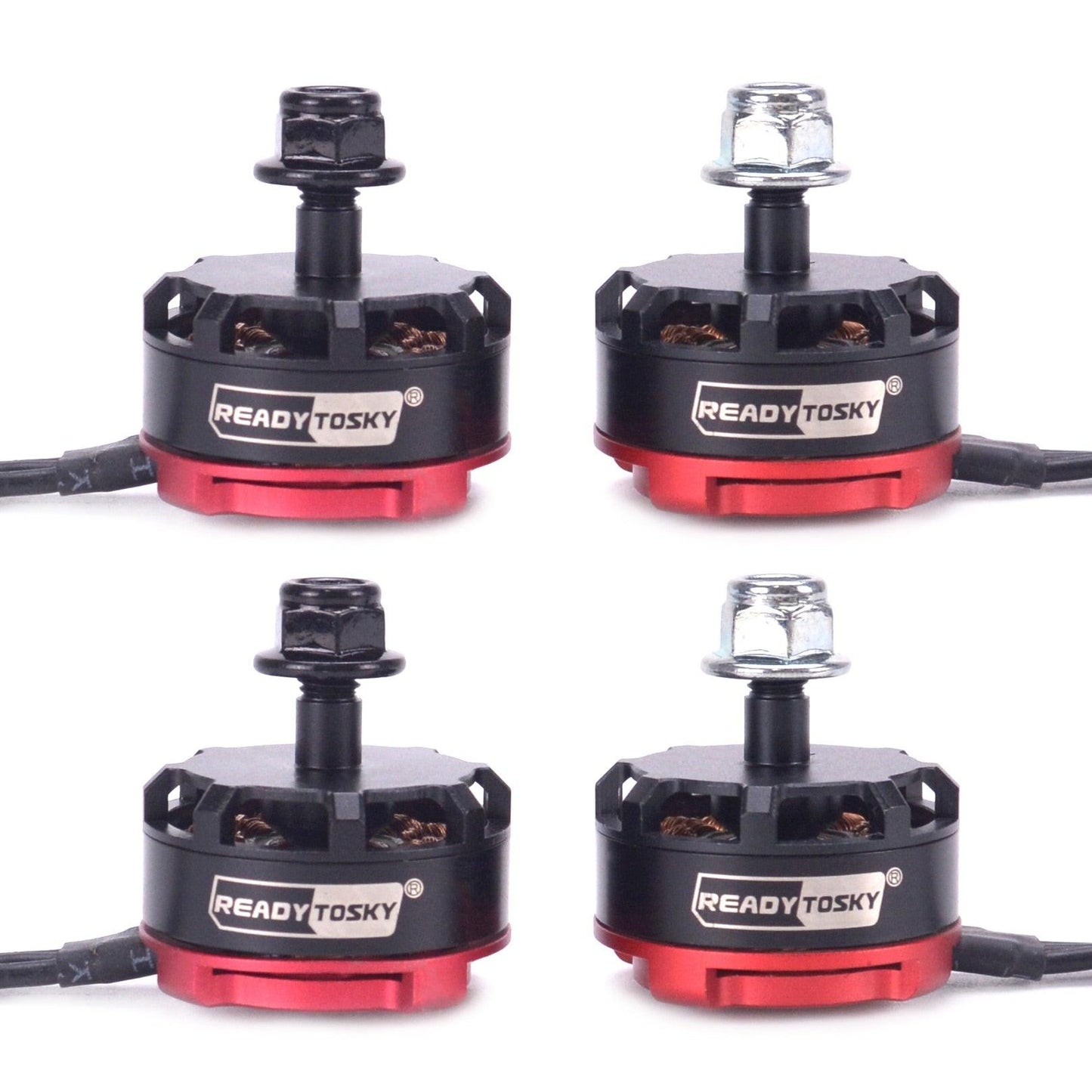

Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Color: Red
Length: 31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g

Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts

Model: Readytosky RS2205-2300KV


Framework: 12N14P


No. of Cells: 3 - 4S


Color: Red


Length: 31.7mm


Shaft: M5


KV: 2300


Max Thrust: 1024g


Diameter: 27.9mm


Propeller Suggested: HQ 5045 BN


Weight: 30g

Features:


1. Race Spec Performances


2. High Strength N52 Neodyum Magnets


3. Active Cooling Fins Greatly Reduce Motor Temeratures


4. Low CG, Light Weight Design


5. Japanese Bearing For Performances


6. Enchance Anti Off U Ring For Safety & Stablility


7. Dual Lock CW / CCW Locknuts

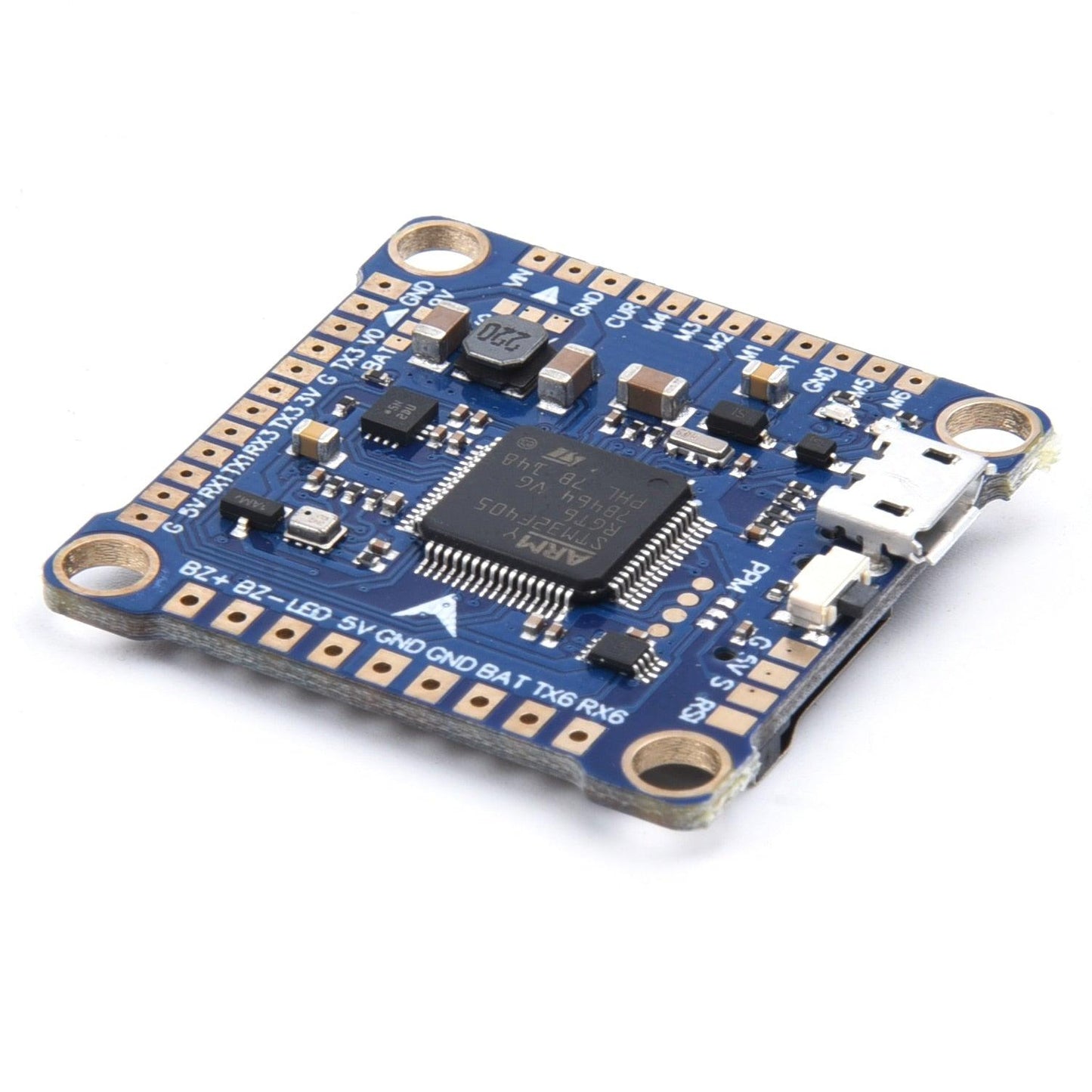

Omnibus F4 V3S Plus flight controller


Specification:


Item name: F4 V3S PLUS Flight Controller
Firmware:Omnibus~f4
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
BMI270 / MPU6500 6 axis SPI gyro & accelerometer (send at random )
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5v3a 9V3A BEC
On-board video filters (only 5V to VTX and camera)
Properties:
measured.
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning pids with your transmitter and
Tear it to the track in no time!

Note ： Only can use betaflight software.



QAV-R 220mm 220 Carbon Fiber Racing Drone, Enchance Anti Off U Ring For Safety & StablilityQAV-R 220mm 220 Carbon Fiber Racing Drone, Boasting a F4 processor, on-board Betaflight OSD, Micro

QAV-R 220mm 220 Carbon Fiber Racing Drone - F4 V

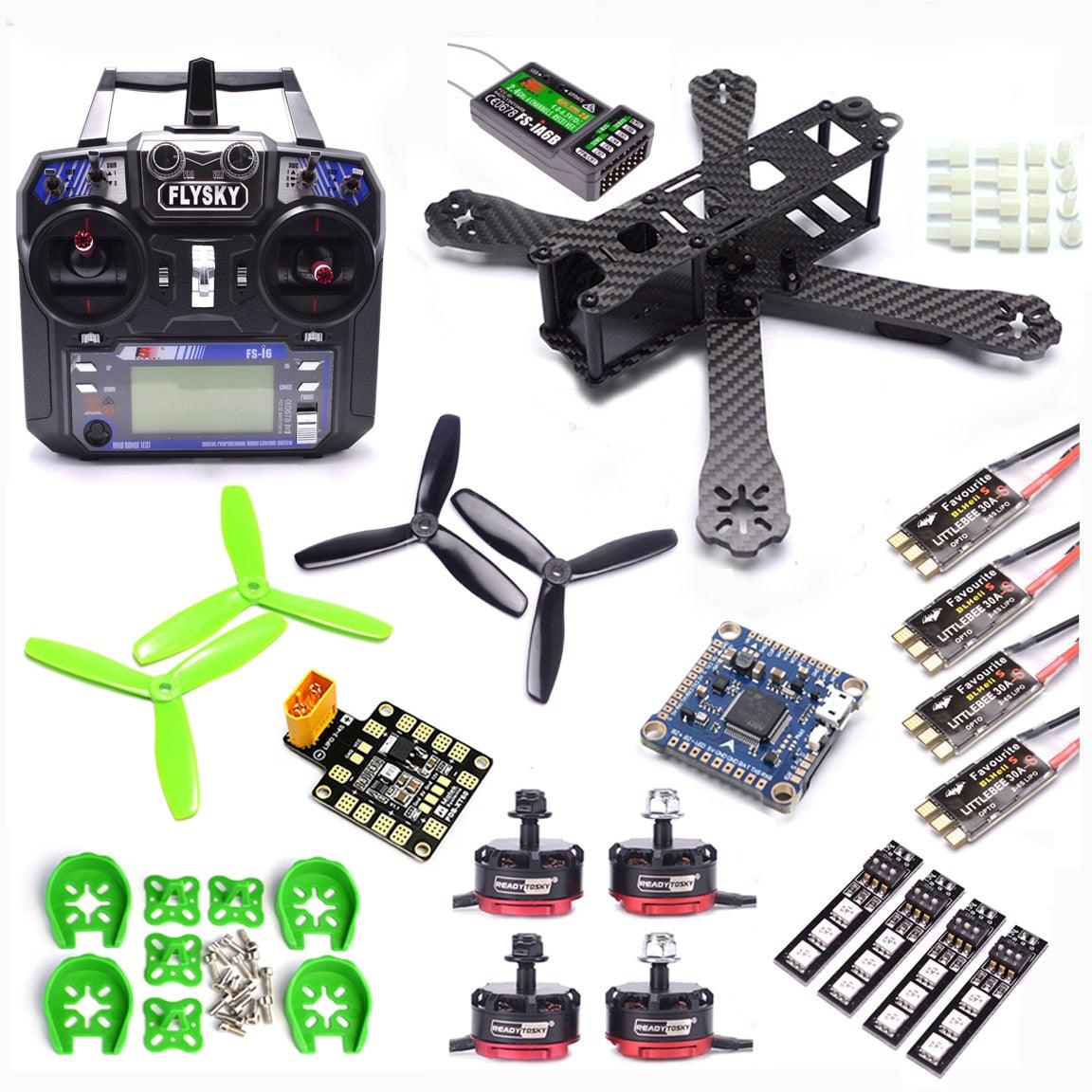

QAV-R 220mm 220 Carbon Fiber Racing Drone, READYTSSKY |Package Included

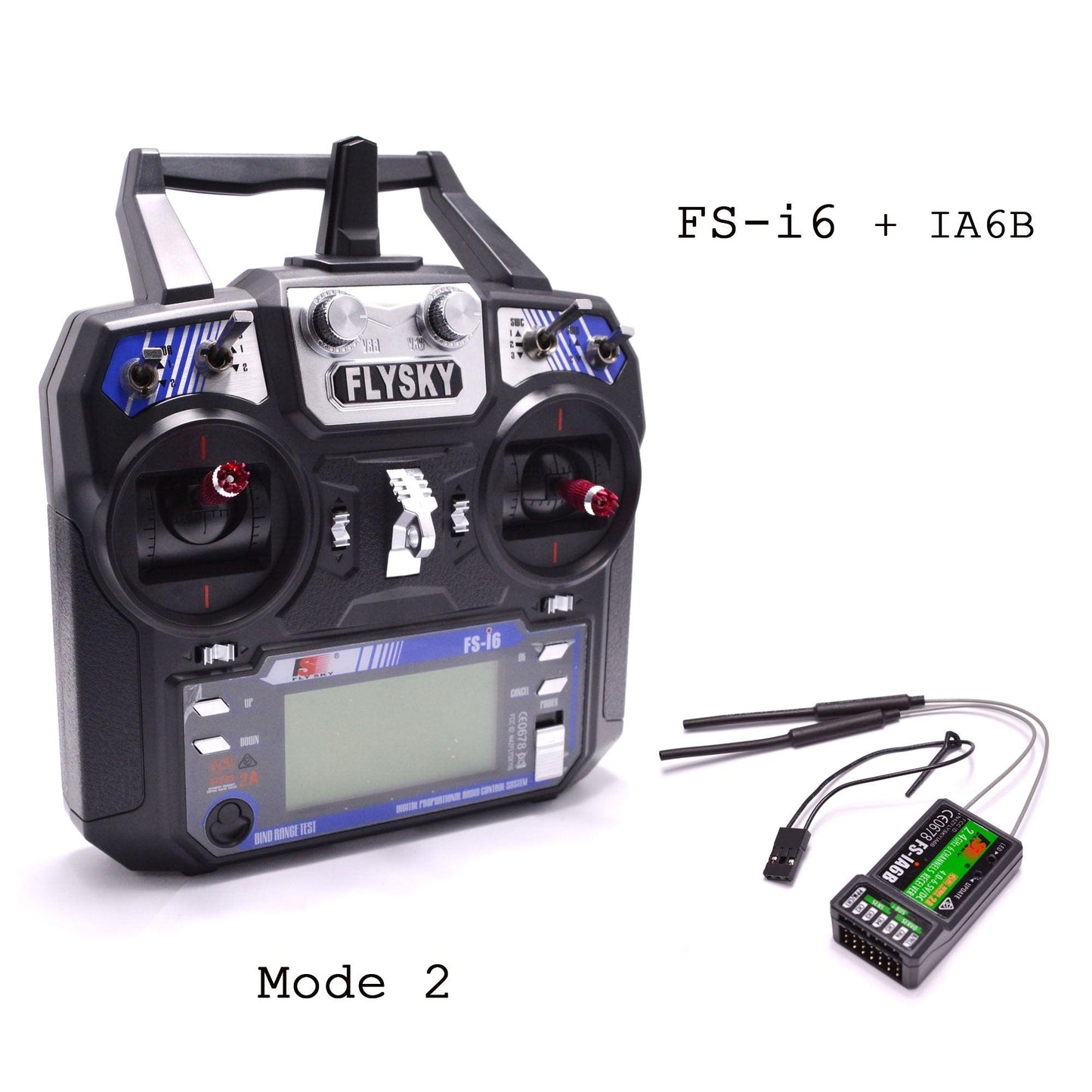

- Flysky i6 remote control with IA6B receiver （ send it as your choice）


- 1pcsQAV-R 220mm 4-Axis Carbon Fiber Quadcopter Frame Kit (not assembeled, just a frame kit)

- 1pcs Omnibus F4 V3S Plus flight controllerFlight Control Board
- 4pcs Littlebee 30A-SBLHeli_SPRO esc
- 4 pcs RS2205 2300kv (2CCW, 2 CW)
- 1pcs  5V / 12VPDB-XT60distribution board
- 4pcs  motor cover
- 4pcs LED
- 1setnlyon screws
- 4 pairs 5045 3 blade propellers
QAV-R 220mm 220 Carbon Fiber Racing Drone, only can use betaflight software.

QAV-R 220mm 220 Carbon Fiber Racing Drone, Readytosky OFFICIAL QAV-R 220mm Carbon Fiber Racing Drone

Readytosky OFFICIAL QAV-R 220mm Carbon Fiber Racing Drone FLYSKY E33 FS-I6 4 0 3 3 Kadtor IaOmte 8 8 HCADWOTT aoutoI

QAV-R 220mm 220 Carbon Fiber Racing Drone, Opto BLheli 30A 2-65 Lipo Littlebee 'favourit
QAV-R 220mm 220 Carbon Fiber Racing Drone, TOSKY ready ToSky ready ready ready TOSKYQAV-R 220mm 220 Carbon Fiber Racing Drone - F4 VQAV-R 220mm 220 Carbon Fiber Racing Drone, Dual Lock CW / CCW Locknuts Omnibus F4 V3S PlusQAV-R 220mm 220 Carbon Fiber Racing Drone, QAV-R 220mm Carbon Fiber Racing Drone Material : Composite Material Four-QAV-R 220mm 220 Carbon Fiber Racing Drone, QAV-R 220mm Carbon Fiber Racing Drone Material : Composite Material Four-
