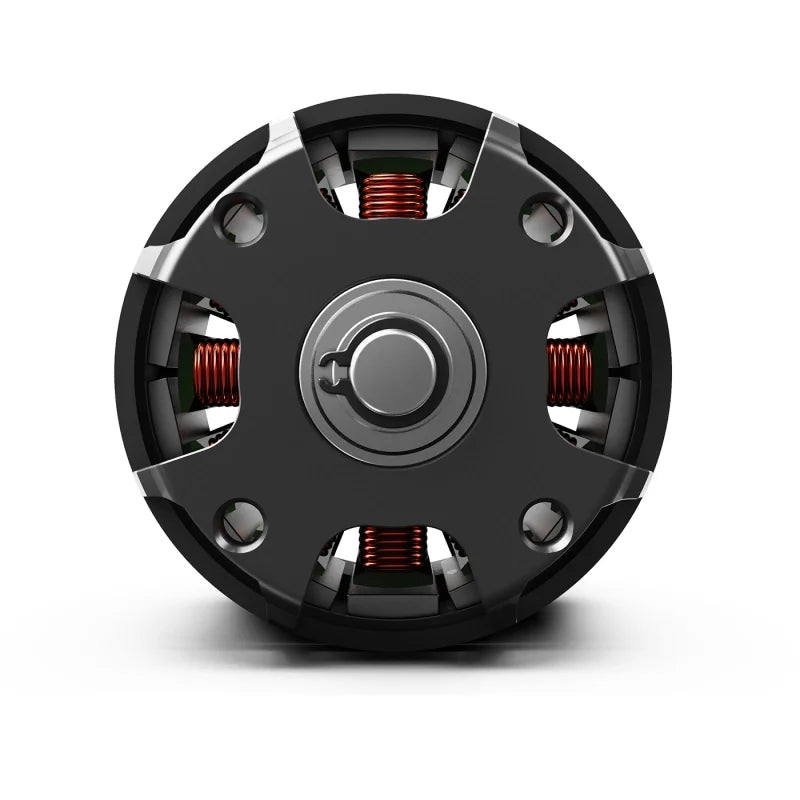

MAD 2815 VTOL Airplane Drone Motor - 4S 900KV 1050KV Max Thrust 2.6KG Suitable for 3.5KG Qudcopter 5.2KG Hexacopter

MAD 2815 VTOL Airplane Drone Motor - 4S 900KV 1050KV Max Thrust 2.6KG Suitable for 3.5KG Qudcopter 5.2KG Hexacopter

MAD

$74.30 USD
$74.30 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

MAD 2815 VTOL Airplane Drone Motor Overview

The MAD X2815 EEE V1.0 motor is designed with robust features suitable for various UAV applications. It comes with a protective rainproof coating and high-quality components like EZO 694ZZ bearings and anticorrosive stator from Taiwan. The motor is available in two KV ratings: 900KV and 1050KV. The 900KV version supports a higher maximum thrust of 2.3 kg, while the 1050KV version can achieve up to 2.6 kg of thrust. Both versions are compatible with a range of propellers and can handle significant power and torque, making them ideal for quadcopters, hexacopters, and octocopters with varying take-off weights.

MAD X2815 series motors are the classic UAV motors for small to medium industrial use, efficient and for endurance flights. These sizes of motors have been on the market for 10 years, MAD Components has optimised them to be very lightweight. ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance.

MAD 2815 VTOL Airplane Drone Motor Specifications

Motor Data

Motor Model MAD X2815 EEE V1.0
Stator TAIWAN / Anticorrosive
Motor Size D:35 × 40.1mm
Degree of Protection Rain protection
Centrifugal Heat Dissipation Independent
Propeller Mounting Holes D:15 M3×4
Shaft Diameter IN: 4 mm
Bearing EZO 694ZZ
Additional Accessories Propeller Adapter 1, Prop Plate 1, Nut 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, M38mm 4 Motor Screws, M38mm 4 Propeller Screws, Sticker2
Number of pole pairs 7
Varnished wire Degree 150°C
Magnet Degree 150°C
Cable Length 150 mm (extended Enameled wires)
Rotor Balance ≤3 mg
Motor Balance ≤10 mg
Motor Mounting Holes D:25 M3×4
Disruptive test 500 V

Specifications

Parameter 900KV 1050KV
RPM/V 900KV 1050KV
No Load Current 1.95A / 15V 1.43A / 10V
Motor Weight 113 g 113 g
Maximum Current 39.5 A 54.2 A
Maximum Thrust 2.3 kg 2.6 kg
Recommended ESC MAD AMPX PRO 40A (2~6S) AMPX PRO 40A(2~6S) / XROTOR Pro 60A(4-6S)
UAV take-off weight 4S-11” / 3.5kg--Quadcopter<br>5.2kg--Hexacopter<br>7kg--Octocopter 4S-11” / 3.5kg--Quadcopter<br>5.2kg--Hexacopter<br>7kg--Octocopter
Nominal Voltage 4-6S lipo battery 3-4S lipo battery
Internal resistance 35.6mΩ 27mΩ
Product Boxed Weight 300g (110 x 110 x 55 mm) 280g (110 x 110 x 55 mm)
Maximum Power 580W 795.6W
Maximum Torque 0.38 Nm 0.45 Nm
Recommended Propellers APC 11x5.5, APC 12x6, ACP 13x6.5 APC 11x5.5, APC 12x6, ACP 13x6.5
Single rotor take-off weight 0.45kg ~ 0.80kg 0.45kg ~ 0.80kg
