MAD 5020 IPE V3.0 VTOL Drone Motor Overview
The MAD 5020 IPE V3.0 205KV VTOL Drone Motor is a high-performance motor ideal for 2.5-3.5kg VTOL aircraft and quadcopters. It features a 205KV rating, making it suitable for long-range inspection, mapping, and surveying drones. Key specifications include a motor weight of 290g, a maximum thrust of 8kg, a maximum current of 40.7A, and a maximum power output of 1905W. The motor is designed with anticorrosive varnished wire, IP45 protection, and centrifugal heat dissipation. It is compatible with 12S lipo batteries and recommended ESC is MAD AMPX 60A. The motor dimensions are 56 × 41.3 mm, with various mounting and propeller options.
MAD 5020 IPE V3.0 VTOL Drone Motor Specifications
Motor Model |
MAD 5020 IPE V3.0 |
Number of pole pairs |
14 | ||||||
Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
Motor Size |
D:56 × 41.3 mm |
Magnet Degree |
150°C |
||||||
Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V |
MAD 5020 205KV
Specifications | Details | Specifications | Details |
---|---|---|---|
RPM/V | 205 KV | Nominal Voltage | 12S lipo battery |
No Load Current | 1.2A/20V | Internal resistance | 43mΩ |
Motor Weight | 290 g | Product Boxed Weight | 466g (110 x 110 x 50 mm) |
Maximum Current | 40.7 A | Maximum Power | 1905W |
Maximum thrust | 8 kg | Maximum Torque | 1.94 Nm |
Recommended ESC | MAD AMPX 60A (5-14S) | Recommended Propellers | 16x8.0, 17x10.0, 18x8.0 |
UAV take-off weight | 12S-18" 11kg--Quadcopter | Single rotor take-off weight | 2kg ~ 3kg |
16.5kg--Hexacopter | |||
22kg--Octocopter |
![MAD 5020 IPE V3.0 VTOL Drone Motor, High-performance VTOL drone motor with 205KV rating and up to 8kgf thrust.](https://rcdrone.top/cdn/shop/files/S28c122c172e84e54a6439385f62127e8r.webp?v=1718010330)
![MAD 5020 IPE V3.0 VTOL Drone Motor, Durable motor with anticorrosive coating, IP45 protection, and efficient heat dissipation.](https://rcdrone.top/cdn/shop/files/S92d01bb1d88c49f5ad6a311a8fec9f4bC.webp?v=1718010358)
![MAD 5020 IPE V3.0 VTOL Drone Motor, Small motor dimensions (56x41.3mm) with adjustable mounting and propeller choices.](https://rcdrone.top/cdn/shop/files/S7f40bc32c1bf4ed2b3f12fb171ce2ac1S.webp?v=1718010384)
Product Packaging
Company Profile
![MAD 5020 IPE V3.0 VTOL Drone Motor, KV205 brushless motor for VTOL drones, suitable for aerial quadcopters and other multi-rotors.](https://rcdrone.top/cdn/shop/files/H1e71a775da754687b6ce8d423ba8a883s_4d362568-1a56-4783-8a9b-7368a3b01586.webp?v=1718010418)
FAQ
![MAD 5020 IPE V3.0 VTOL Drone Motor, Brushless motor for VTOL drones, suitable for quadcopters, hexacopters, and octocopters.](https://rcdrone.top/cdn/shop/files/Hc1095d5b01ad4aeb88a3ed2c136539efn_41c4e896-2a38-4f1e-bead-97da4b4c12fa.webp?v=1718010457)
Certifications
![MAD 5020 IPE V3.0 VTOL Drone Motor, Motor for VTOL drones, suitable for aerial quadcopters, hexacopters, and octocopters.](https://rcdrone.top/cdn/shop/files/H01d01e515a4e47d593fc0a33e8c3c5ddt_53c2ba1d-ad3a-4208-bba0-1d03c6a60266.webp?v=1718010513)

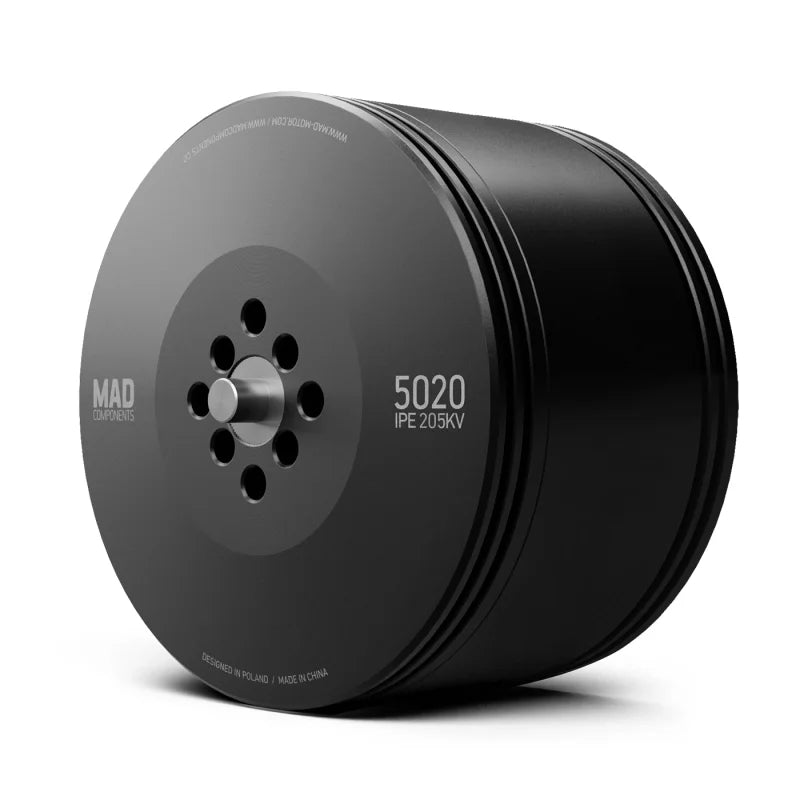

![MAD 5020 IPE V3.0 VTOL Drone Motor - KV205 Brushless Motor For Aerial RC Quadcopter Drone Hexacopter Octcopter multi-rotors VTOL Multicopter](http://rcdrone.top/cdn/shop/files/S38baa334671445569ffbd5499655d22cI.webp?v=1717939542&width=1445)

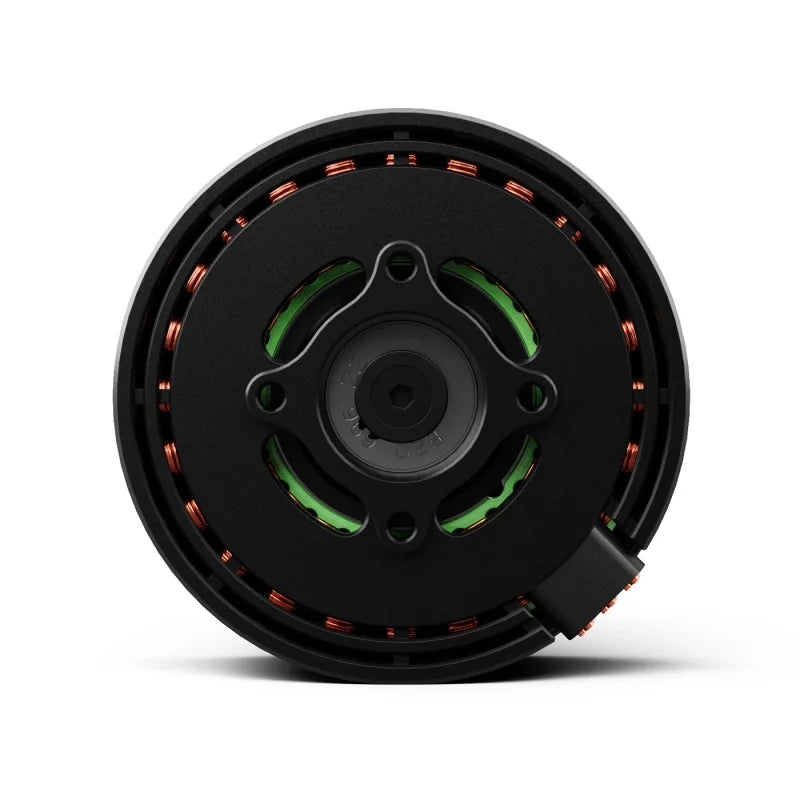

![MAD 5020 IPE V3.0 VTOL Drone Motor - KV205 Brushless Motor For Aerial RC Quadcopter Drone Hexacopter Octcopter multi-rotors VTOL Multicopter](http://rcdrone.top/cdn/shop/files/Sd28bb152c1e04fc6b7e2549e7bf9510cD.webp?v=1717939542&width=1445)

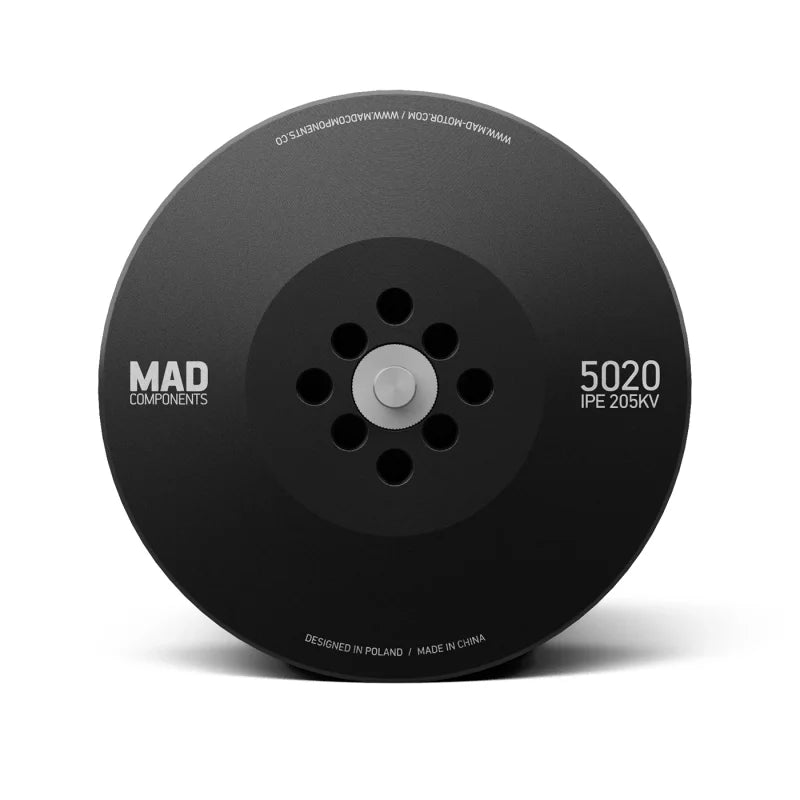

![MAD 5020 IPE V3.0 VTOL Drone Motor, VTOL drone motor for RC quadcopters, hexacopters, and octocopters.](http://rcdrone.top/cdn/shop/files/S0489c521701e46f081b4018a7c590a7ef.webp?v=1717939542&width=1445)
![MAD 5020 IPE V3.0 VTOL Drone Motor - KV205 Brushless Motor For Aerial RC Quadcopter Drone Hexacopter Octcopter multi-rotors VTOL Multicopter](http://rcdrone.top/cdn/shop/files/Sd0bead987cb74d209f7bd2d7facab81eU.webp?v=1717939543&width=1445)

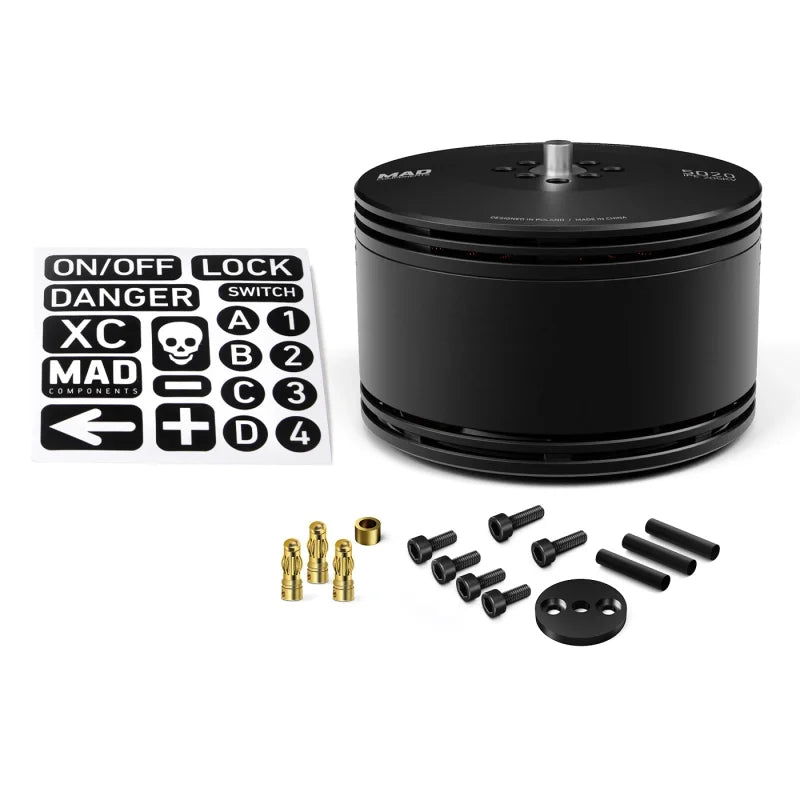

![MAD 5020 IPE V3.0 VTOL Drone Motor - KV205 Brushless Motor For Aerial RC Quadcopter Drone Hexacopter Octcopter multi-rotors VTOL Multicopter](http://rcdrone.top/cdn/shop/files/Sb12ac9b5f01e460e87e7f9887a9c0aec5.webp?v=1717939542&width=1445)
