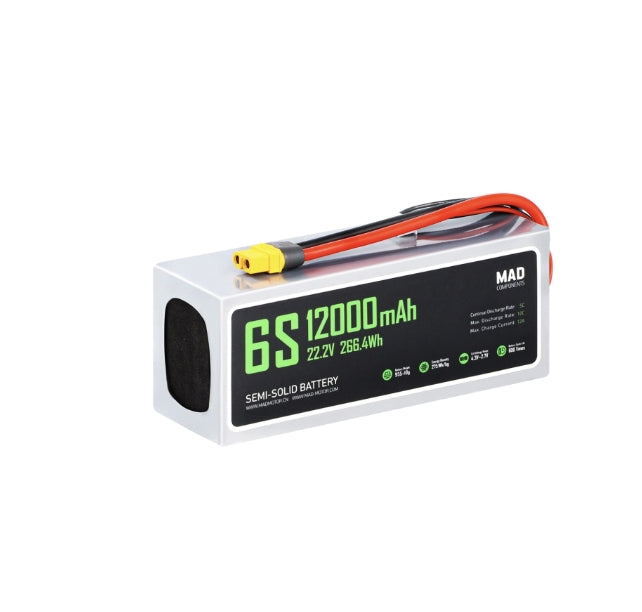

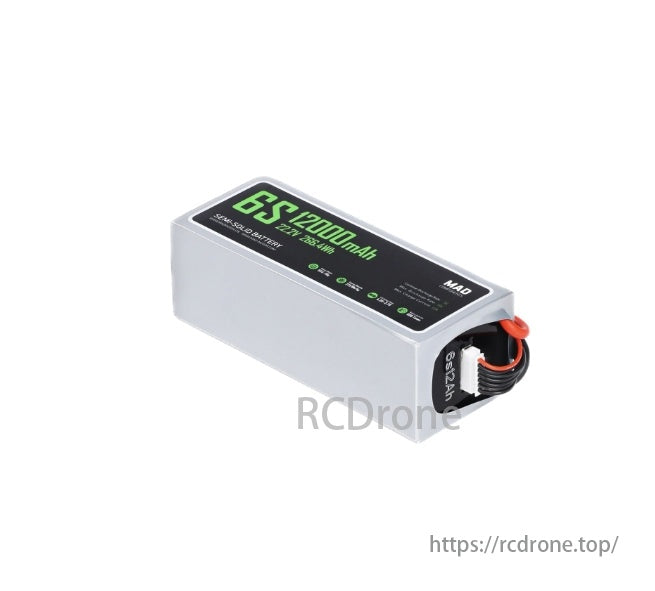

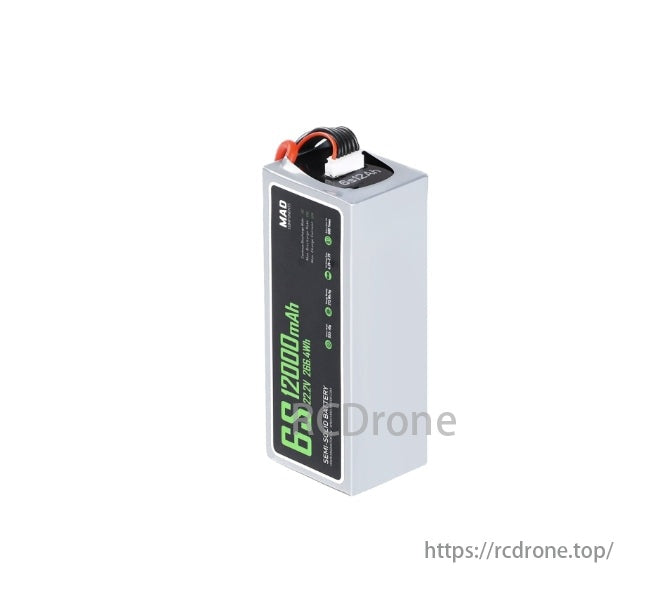

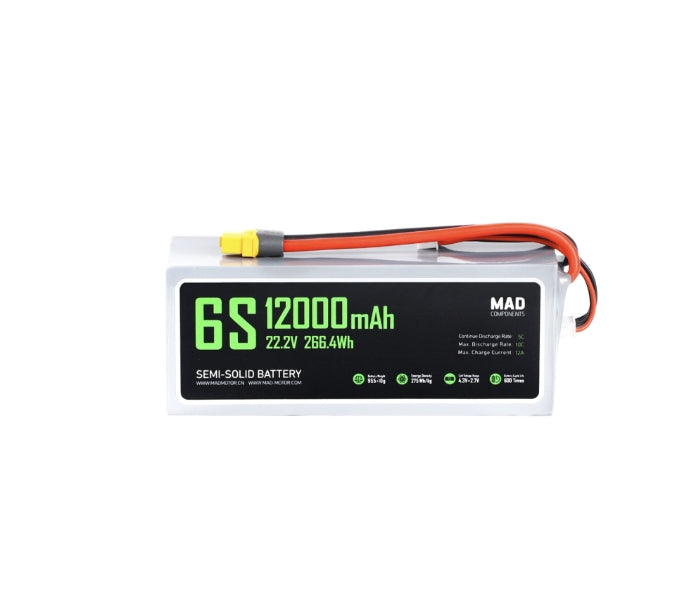

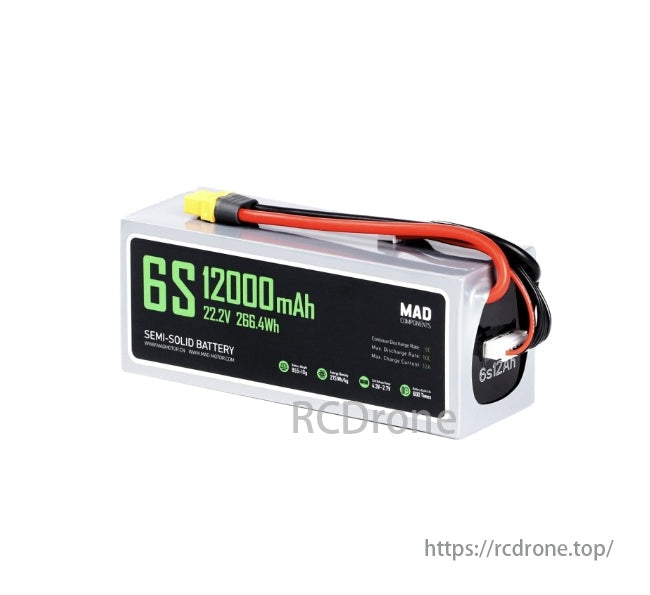

MAD 6S 12Ah Solid State Lithium-ion Drone Battery

Overview

The MAD 6S 12Ah Solid State Lithium-ion Drone Battery is engineered for high-performance UAV applications, offering 22.2V nominal voltage and 266.4Wh capacity for extended flight endurance. Built with cutting-edge solid-state lithium-ion technology, this battery ensures higher energy density, enhanced safety features, and superior power output. Whether used in aerial photography, industrial UAVs, or agricultural drones, this battery provides unmatched reliability and efficiency.

Specifications

Key Features

1. Advanced Battery Cell Technology

• Incorporates ionic conductor additives to enhance ionic conductivity and high-rate performance.
• Uses lithium source additives for improved material performance.
• Developed with a double lithium salt electrolyte formula for optimal high and low-temperature performance.

2. Optimized Design for UAV Applications

• Material Ratio Adjustments: The battery features an improved high-nickel cathode and silicon-based anode to increase energy density and cell safety.
• High Packing Density: Particle size optimization minimizes volume expansion over multiple charge cycles.
• Customized Auxiliary Materials: Lightweight materials such as aluminum-plastic film reduce overall weight while maintaining strength.

3. Safety Enhancements

• Flame Retardant Coatings: The battery diaphragm is coated with flame retardant materials, improving fire resistance.
• Electrolyte Flame Retardant: Special electrolyte additives reduce the risk of spontaneous combustion.
• Semi-Solid Battery System: Enhances safety and thermal stability, ensuring stable power delivery.

4. Reinforced Protection

• Lateral Reinforcement: 0.5mm thick FR4 fiberglass panels add 87% increased impact resistance, preventing damage from bumps and drops.
• Bottom Strengthening: A 2mm thick EVA shock-absorbing foam at the battery base protects against mechanical shocks during high-speed UAV accelerations.

5. Improved Structural and Cable Management

• Square Leveling Design: A rigid, structured casing ensures consistent size and fit for UAV compartments.
• Fixed Cable Routing: The battery features pre-positioned cable routing, reducing clutter and ensuring neat, reliable connectivity.

Applications

The MAD 6S 12Ah Solid State Li-ion Drone Battery is ideal for:

• Professional UAV Applications: Suitable for high-endurance aerial photography, mapping, and surveying.
• Agricultural Drones: Supports spraying drones with high power output and consistent energy delivery.
• Industrial Inspection Drones: Reliable for infrastructure inspection, security monitoring, and search & rescue UAVs.
• FPV Racing & High-Power UAVs: Provides fast discharge rates for racing drones and high-performance UAVs.

Precautions

• Battery Storage: Keep away from flammable materials, do not disassemble, and dispose of damaged batteries responsibly.
• Charging Guidelines: Use only a qualified smart charger and never exceed 2C charge current.
• Safety Handling: Avoid short circuits and prevent overcharging, as improper handling may cause battery damage or hazards.

Details

Drone battery, 6S 12Ah, powers flight. Semi-solid design with 22.2V and 266.4Wh capacity. Features include a continuous discharge rate of 5C, max discharge rate of 10C, and max charge current of 12A.

Product specifications include a 6s12Ah battery, dimensions 152*60*52mm, weight 960g, energy density 275Wh/kg, voltage range 25.8V-16.2V, and nominal voltage 22.2V. It has a continuous discharge current of 60A, max discharge current of 120A, and max charge current of 12A. Operating temperature is -40°C to 55°C.

CELL ADVANTAGE, MATERIAL DESIGN SAFETY. Material innovation includes adding ionic conductor additives for improved conductivity and performance, lithium source additives for material effect, and using a double lithium salt electrolyte formula for various battery properties.

Design optimization includes material ratio adjustment, optimal density, and custom auxiliary materials. Safety improvements involve surface flame retardant coating, electrolyte flame retardant additives, and a semi-solid system. These enhancements aim to boost cell safety, life, and energy density while meeting customer needs.

Increased protection with comprehensive lateral reinforcement. Four 0.5mm thick FR4 fiberglass panels enhance battery pack armor, boosting protection by 87%. Bottom strengthening uses 2mm EVA foam to cushion impact during rapid UAV acceleration, ensuring durability and safety.

Appearance optimization includes square leveling and a strengthened pack. The battery is hard, square, and flat with precise size control. Cables are routed in fixed positions for accurate control and smooth appearance. Specifications include 6S, 12000mAh, 22.2V, and 266.4Wh.

ATTENTION: Battery storage and charging precautions include avoiding flammable materials, not disassembling, using qualified chargers, and monitoring during charging. Overcharging can cause explosions. Non-free repair services cover damage from improper use or artificial overcharge/overdischarge.
