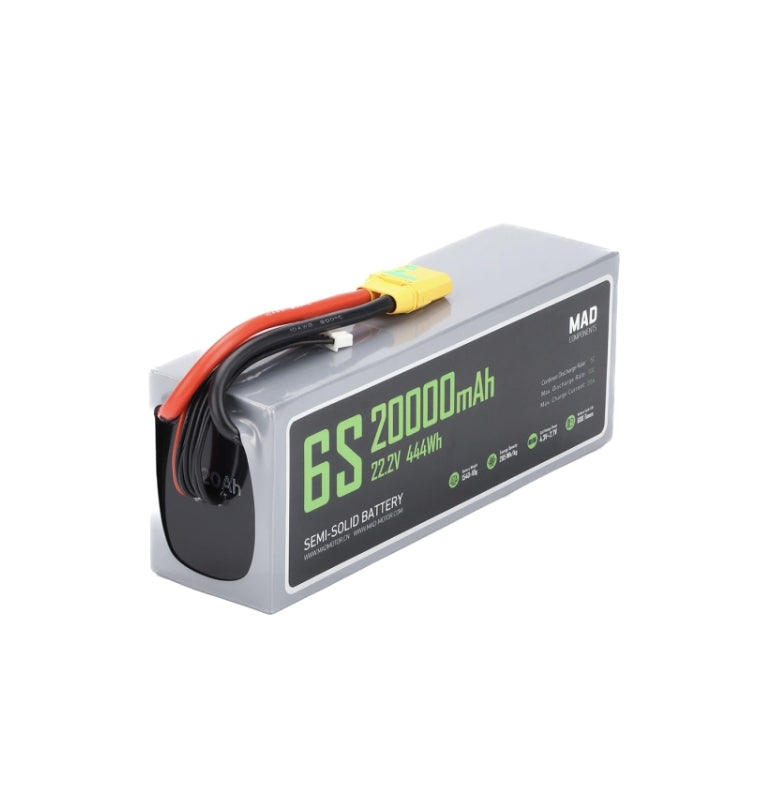

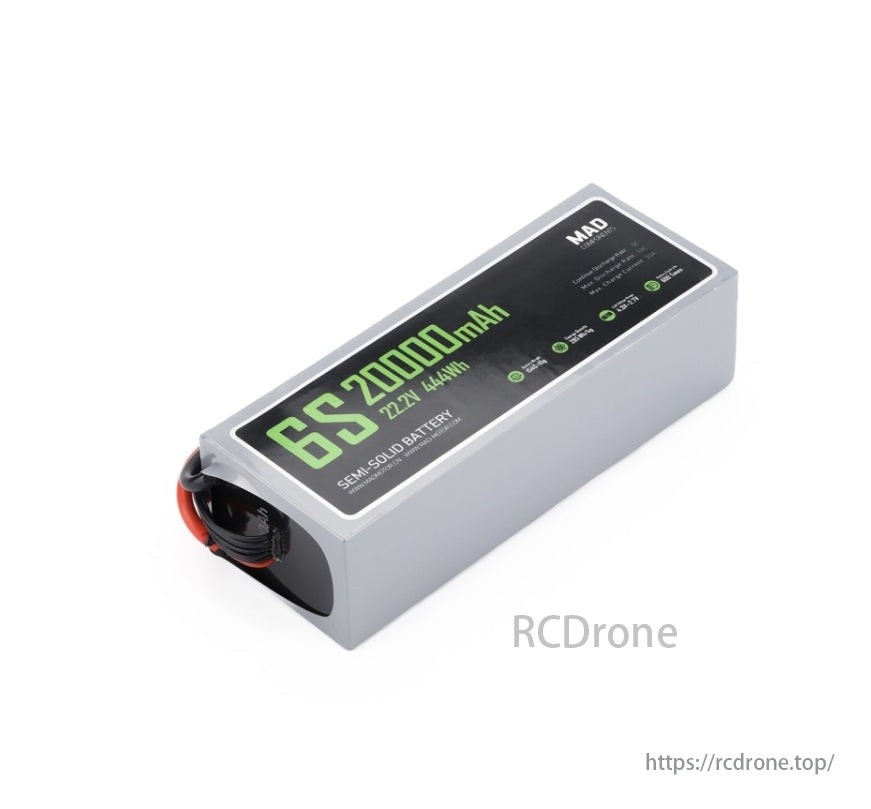

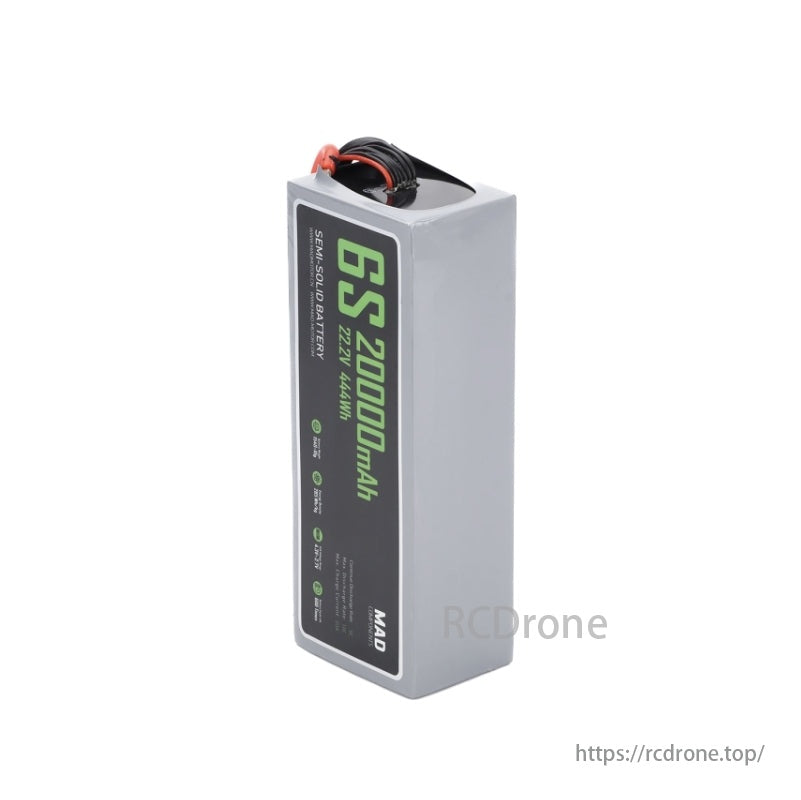

MAD 6S 20Ah Solid State Lithium-ion Drone Battery
MAD 6S 20Ah Solid State Lithium-ion Drone Battery
MAD
Couldn't load pickup availability
Overview
The MAD 6S 20Ah solid-state lithium-ion battery delivers a high-capacity and efficient power solution for drones requiring extended flight durations and strong discharge performance. With a 444Wh capacity and a nominal voltage of 22.2V, it is designed to support demanding UAV applications, including aerial surveying, agricultural operations, and industrial inspections. The combination of solid-state technology, enhanced energy density, and superior safety measures ensures reliable and consistent power output.
Specifications
| Parameter | Value |
|---|---|
| Battery Model | 6S 20Ah |
| Battery Dimensions (mm) | 190 × 72 × 54 |
| Battery Weight (g) | 1595 |
| Cell Energy Density (Wh/kg) | 300 |
| Battery Voltage Range (V) | 25.8 - 16.2 |
| Nominal Voltage (V) | 22.2 |
| Battery Energy (Wh) | 444.0 |
| Energy Density (Wh/kg) | 285 |
| Continuous Discharge Current (A) | 100 |
| Max. Discharge Current (A) | 200 |
| Max. Charge Current (A) | 20 |
| Cycle Life | 600 (1C) |
| Operating Temperature | -40°C to 55°C |
| Main Cable Model | 10AWG |
| Main Plug Model | XT90-S |
| Main Cable Length | 12 cm |
| Balance Cable Model | 22AWG |
| Balance Plug Model | XH2.54-7P |
| Balance Cable Length | 10 cm |
Features
- High energy density and optimized materials enhance power efficiency and overall battery lifespan.
- Continuous discharge of 100A and peak discharge of 200A provide stable performance for high-power UAV operations.
- Advanced safety mechanisms including flame retardant coatings, electrolyte stabilization, and a semi-solid cell structure reduce risks of overheating or thermal failure.
- Reinforced structural protection with FR4 fiberglass panels enhances durability, offering 87% improved impact resistance.
- Shock-absorbing bottom layer minimizes damage from sudden UAV movements, ensuring reliability in demanding conditions.
- Fixed-position cable routing and an optimized pack design provide ease of installation and a clean layout for drone integration.
Applications
- Long-endurance UAV operations requiring stable power delivery
- Agricultural drones for spraying and mapping missions
- Industrial and commercial UAVs performing structural inspections and surveillance
- High-performance FPV and racing drones demanding consistent energy output
Precautions
- Store the battery in a safe environment, away from flammable materials.
- Use only recommended smart chargers and do not exceed the designated charge rate.
- Avoid physical damage, overcharging, or short-circuiting to maintain longevity and safe operation.
Details
Drone battery, 6S 20Ah, powers flight. Semi-solid battery with 22.2V and 444Wh capacity. MAD Components brand. Continuous discharge rate of 5C, max discharge rate of 10C, and max charge current of 20A.
Product specifications include a 6s20Ah battery, dimensions 190*72*54mm, weight 1595g, energy density 300Wh/kg, voltage range 25.8V-16.2V, nominal voltage 22.2V, and 444.0Wh capacity. Continuous discharge current is 100A, max 200A, with a cycle life of 600 (1C) and operating temperature -40°C to 55°C.
CELL ADVANTAGE, MATERIAL DESIGN SAFETY. Material innovation includes: adding ionic conductor additives for improved conductivity, lithium source additives for material effect, and using a double lithium salt electrolyte formula for enhanced electrochemical properties.
Design optimization includes material ratio adjustment, optimal density, and custom auxiliary materials. Safety improvements involve surface flame retardant coating, electrolyte flame retardant additives, and a semi-solid system. These enhancements ensure cell safety, life, and energy density while meeting customer requirements.
Increased protection with comprehensive lateral reinforcement. Four 0.5mm thick FR4 fiberglass panels enhance battery pack armor, boosting protection by 87%. Bottom strengthening uses 2mm EVA foam to cushion impact during rapid UAV acceleration, ensuring durability and safety.

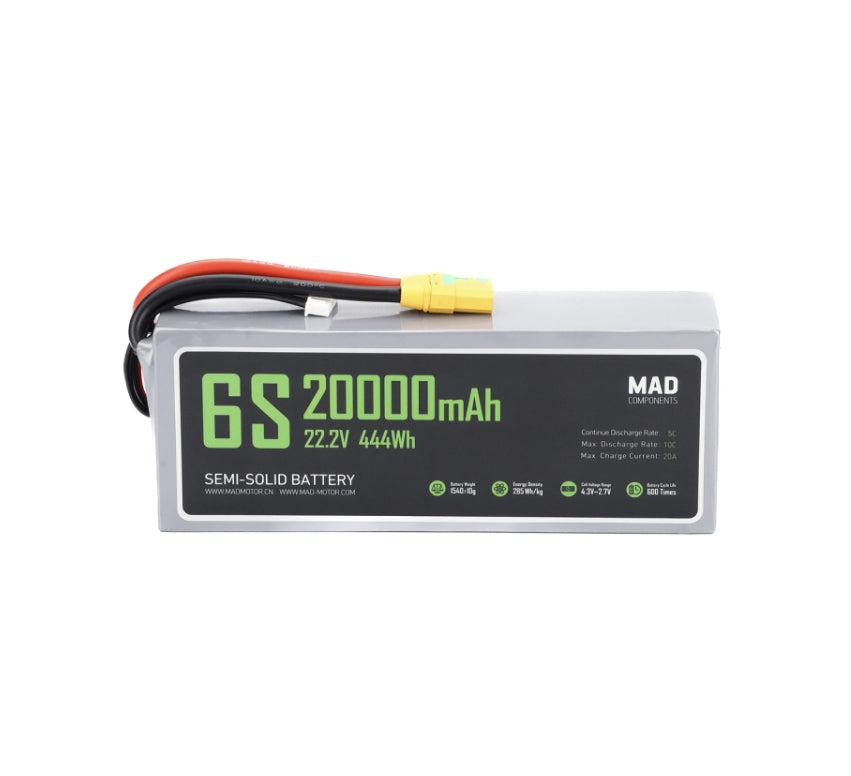

Appearance optimization includes square leveling and a strengthened pack. The battery is hard, square, and flat with precise size control. Cables are fixed for accurate positioning and smooth appearance. Specifications include 6S, 20000mAh, 22.2V, and 444Wh.
Attention: Battery storage and charging precautions include avoiding flammable materials, not disassembling, disposing of damaged batteries, using qualified chargers, and preventing overcharging. Non-free repair services cover damage from improper operation or artificial overcharge/overdischarge.
