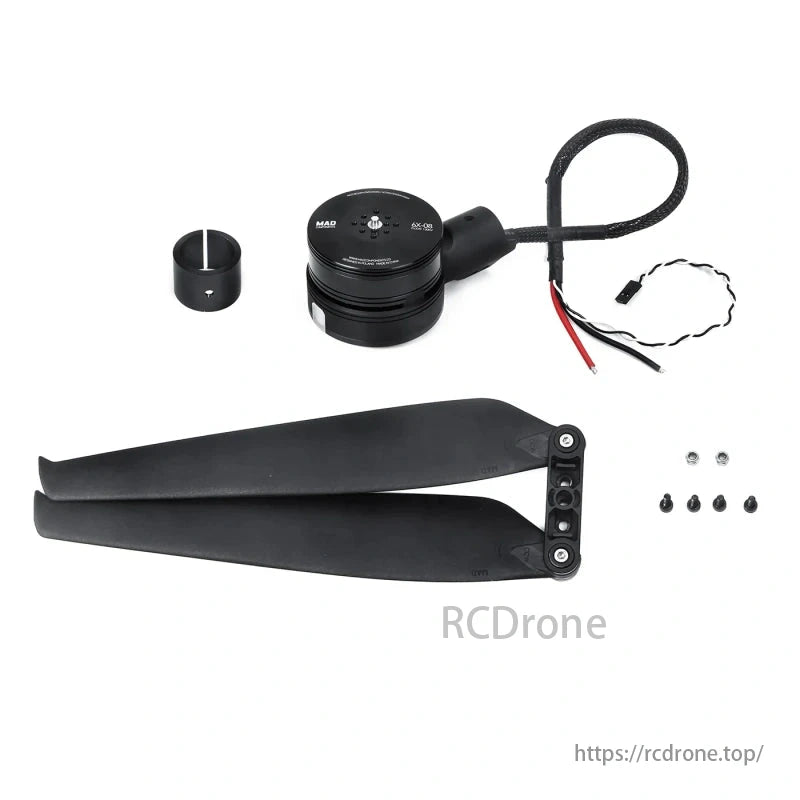

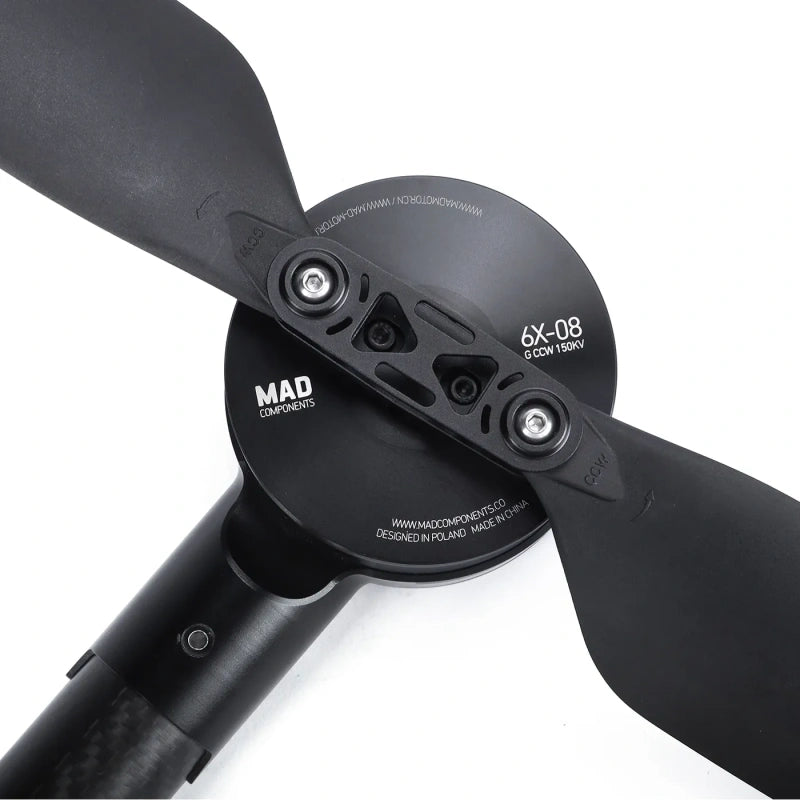

MAD 6X-08 M6C08 Drone Arm Set - 130KV 150KV Max Thrust 6KG/Rotor for Industrial Multi-rotor Drone

Overview

The MAD 6X-08 M6C08 Drone Arm Set is a high-performance propulsion system designed for industrial multi-rotor applications. It provides a payload capacity of 1.7-2.5kg per rotor and a maximum thrust of 6kg per rotor. The entire propulsion unit weighs only 481g, making it ideal for quadcopters, helicopters, and other multi-rotor UAVs used in long-range inspection, mapping, and surveying.

Key Features

• Supports up to 6kg of thrust per rotor, allowing for high payload applications.
• Lightweight design with a total combo weight of 481g, enhancing flight time.
• High-performance M6C08 brushless motor, available in 130KV and 150KV options.
• Integrated 60A FOC ESC with intelligent throttle response for precise control.
• Durable HAVOC 22x7.0" folding propellers, reducing vibration and improving efficiency.
• Advanced heat dissipation with a centrifugal cooling fan and 24 aluminum heat dissipation sheets.
• Easy plug-and-play installation, compatible with 30mm, 28mm, and 25mm drone arm tubes.

Technical Specifications

Basic Parameters

Propeller

Motor

ESC

Application Scenarios

• Industrial UAVs for professional mapping and surveying.
• Agricultural drones for monitoring and spraying.
• Long-range inspection UAVs.
• Heavy-lift drone operations.

The MAD 6X-08 M6C08 Drone Arm Set delivers high thrust, efficient cooling, and easy installation, making it a powerful and reliable choice for advanced multi-rotor applications.

Details

MAD 6X-08 Motor offers tuned propulsion systems for drones. The 6X-08 set supports 1.7-2.5kg payload per rotor with a max thrust of 5.9kg, weighing only 481g. Installation is super convenient with one plug and screw, compatible with various drone arm tubes.

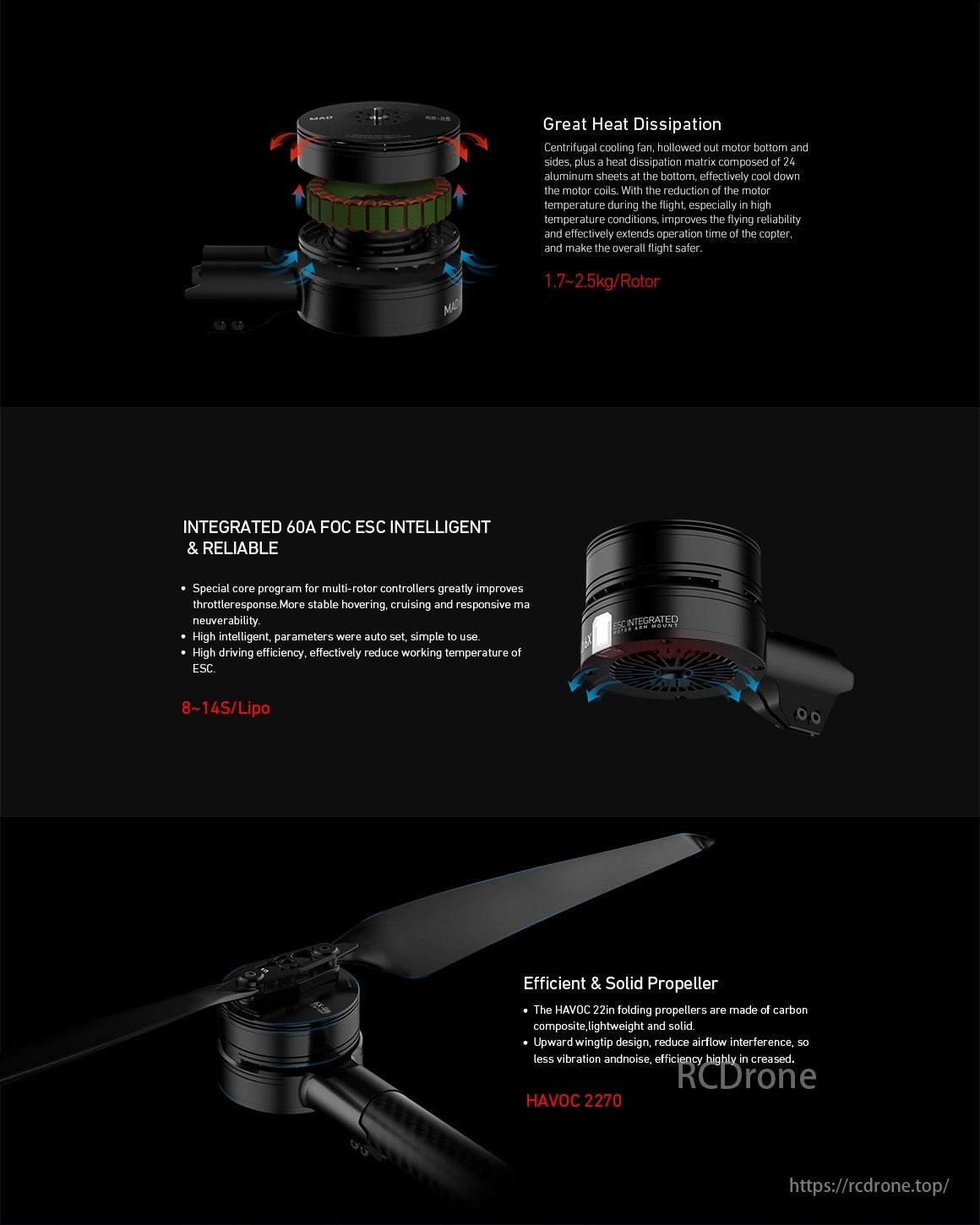

Great heat dissipation with a centrifugal cooling fan and aluminum sheets. Integrated 60A FOC ESC ensures intelligent and reliable performance, improving throttle response and driving efficiency. Efficient and solid propellers made of carbon composite enhance flight stability and reduce noise.

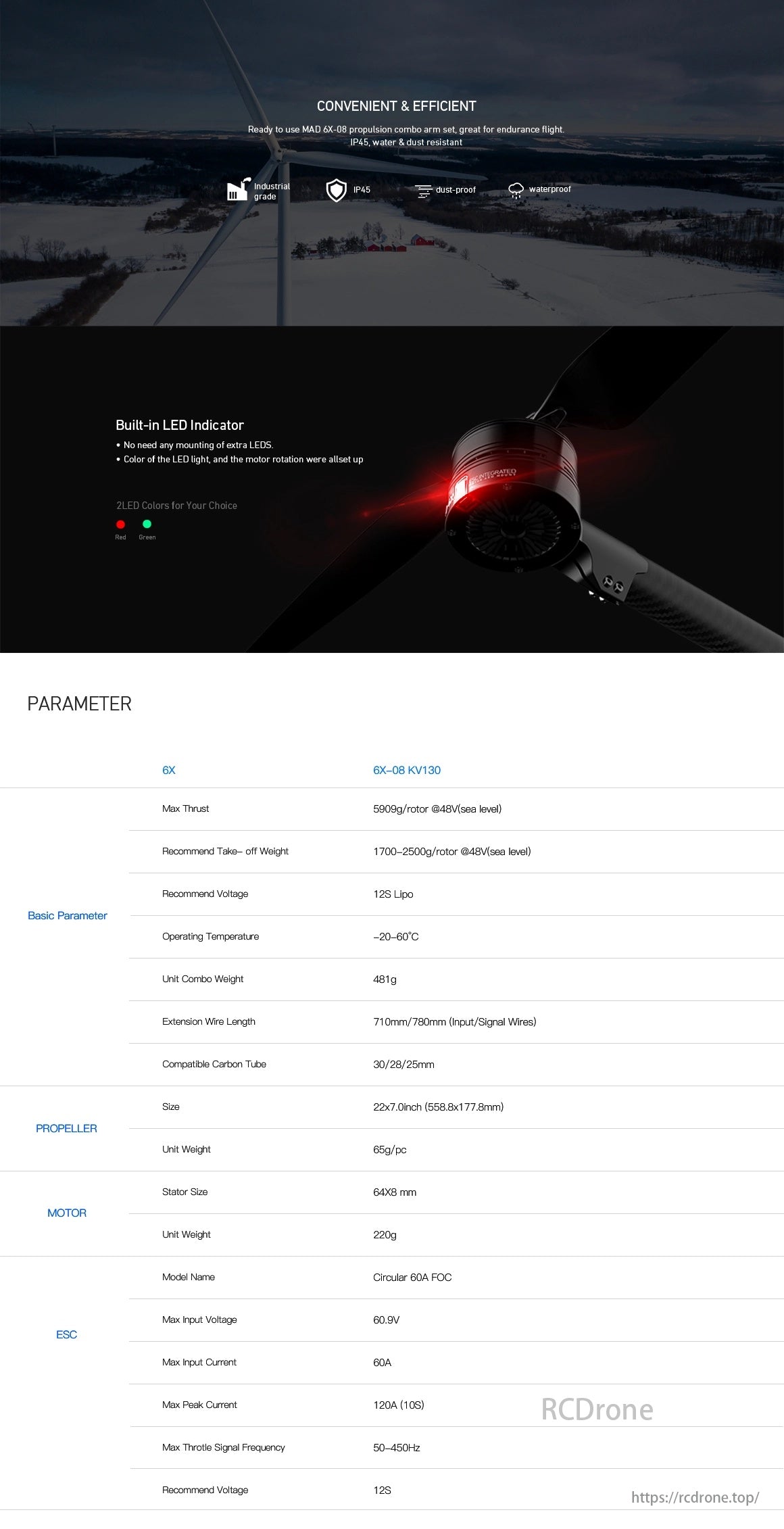

CONVENIENT & EFFICIENT Ready-to-use MAD 6X-08 propulsion combo arm set for endurance flights, great for IP4S, water and dust resistant, industrial-grade IP45. It has a built-in LED indicator, eliminating the need for extra LEDs. The color of the LED light and motor rotation are preset. Select from Slo-ZLED colors.

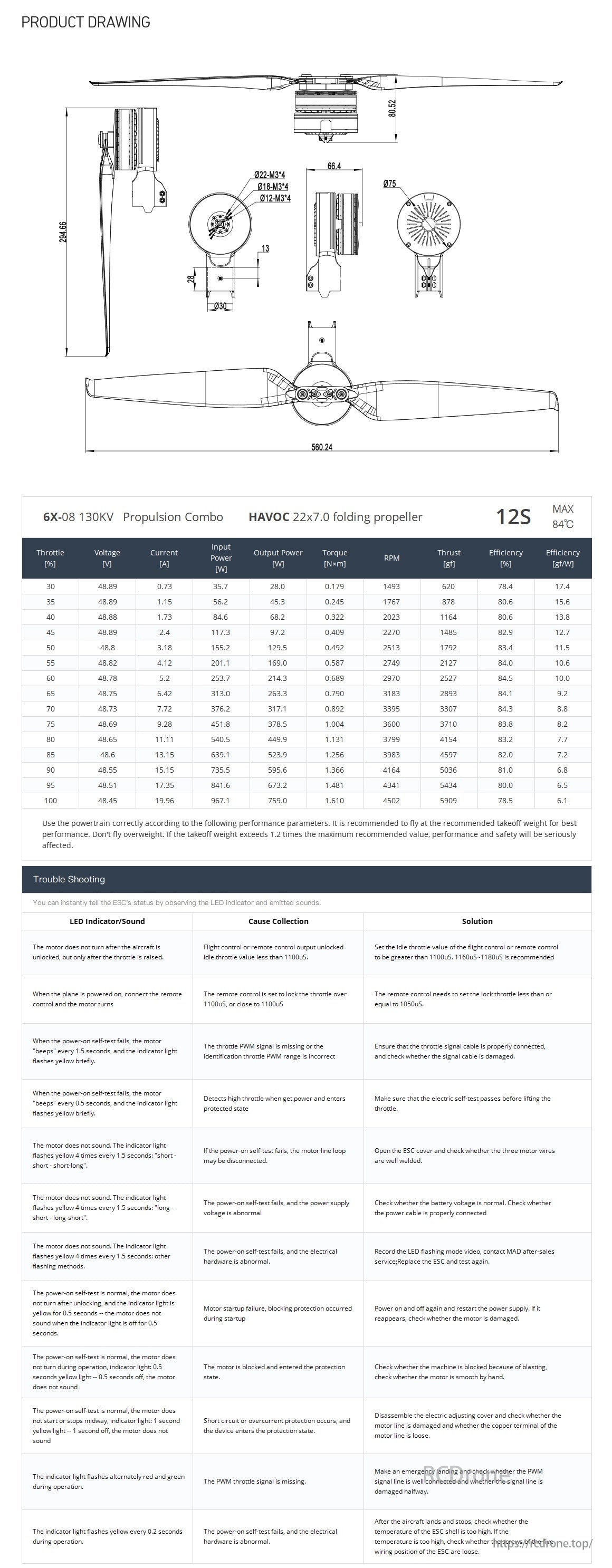

Product drawing details a 6X-08 130KV propulsion combo with HAVOC 22x7.0 folding propeller for 12S max 84°C operation. Includes throttle, voltage, current, power, torque, RPM, thrust, and efficiency data. Troubleshooting section addresses motor issues with LED indicators and solutions.

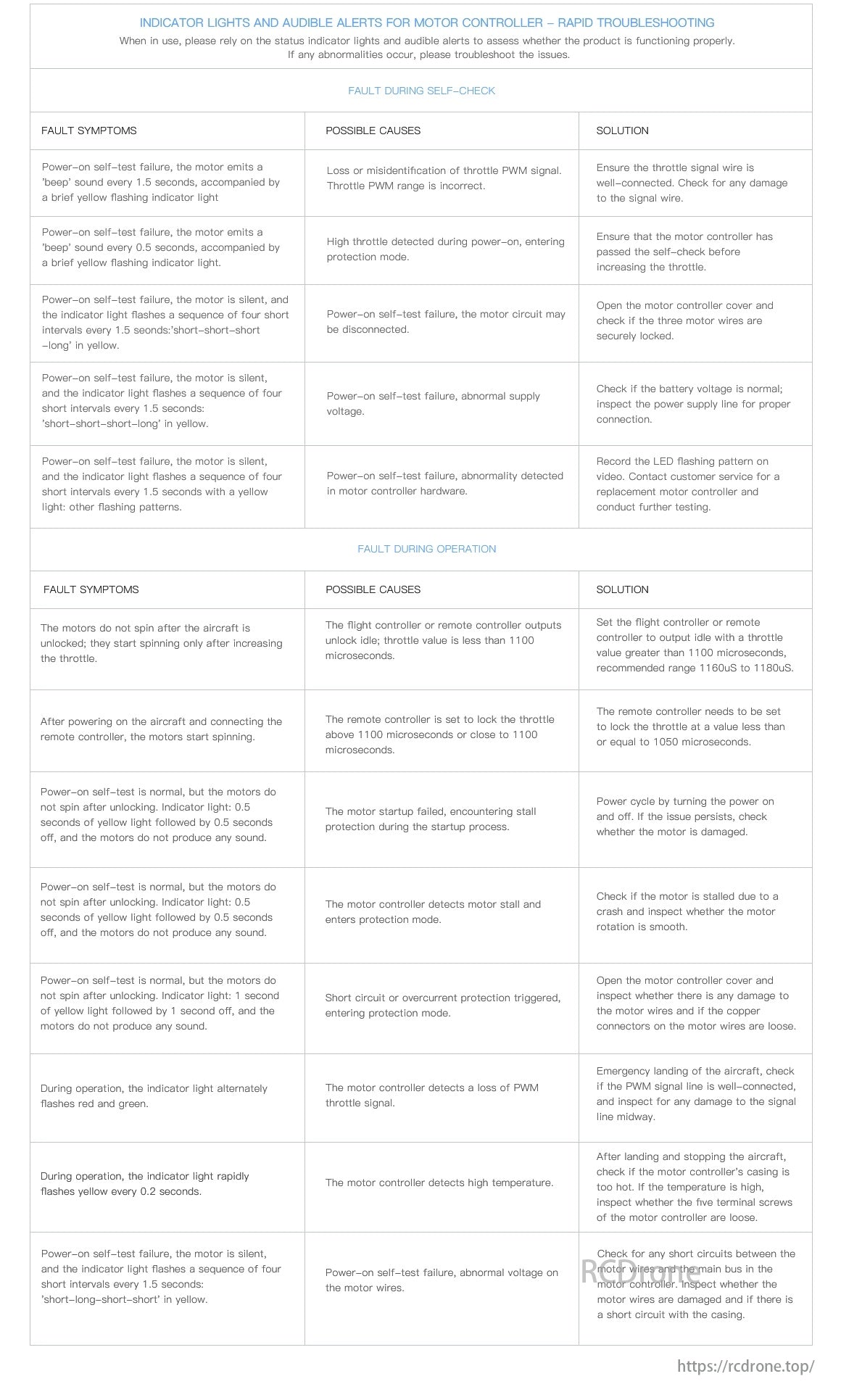

Indicator lights and audible alerts for motor controller troubleshooting. Fault symptoms, possible causes, and solutions are listed for power-on self-test failures and operational faults. Issues include throttle signal loss, high throttle detection, abnormal supply voltage, and motor stall protection. Solutions involve checking connections, adjusting settings, and inspecting components.
