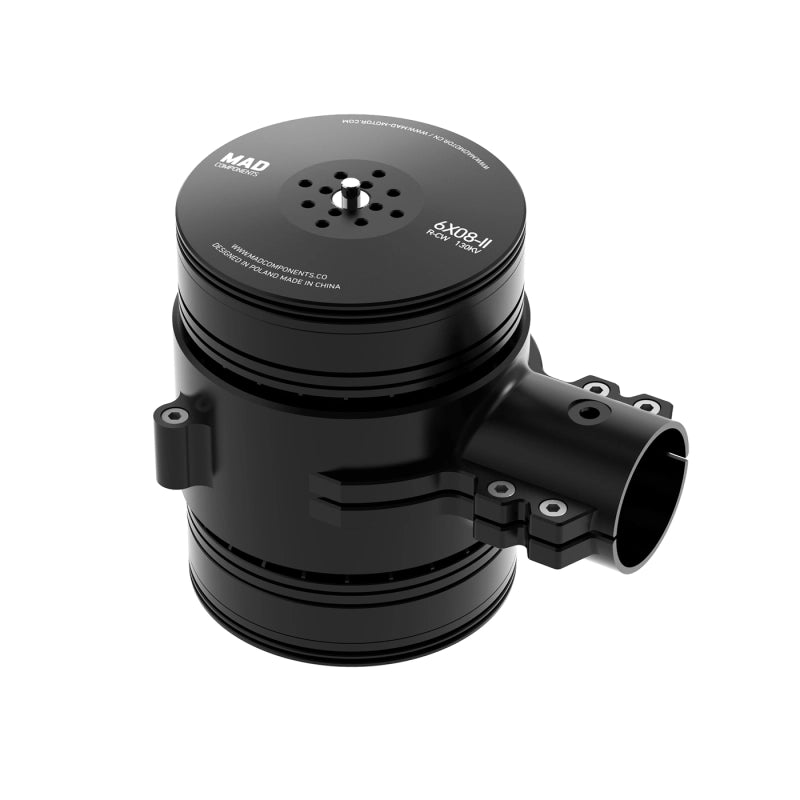

  • MAD 6X08-II 130KV Coaxial Drone Arm Set, MAO Components motor, designed in Poland, made in China.

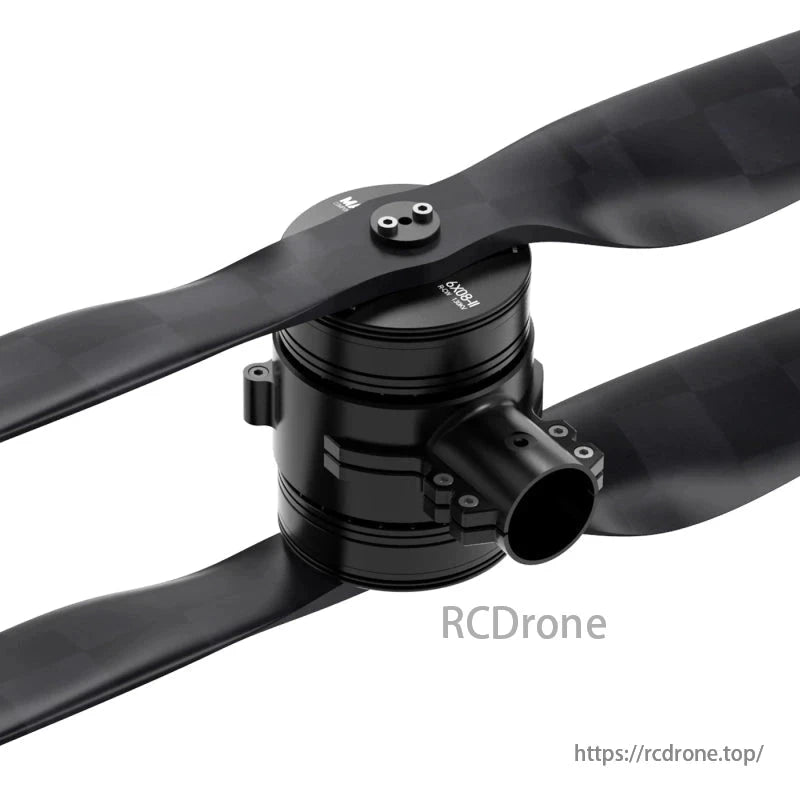

  • MAD 6X08-II 130KV Coaxial Drone Arm Set, Black propeller with carbon fiber blades attached to a motor hub.
  • MAD 6X08-II 130KV Coaxial Drone Arm Set - 12S M6C08 60A 4KG Payload Max 9kgF/rotor Propulsion System for Industrial Drone
1 5

MAD 6X08-II 130KV Coaxial Drone Arm Set - 12S M6C08 60A 4KG Payload Max 9kgF/rotor Multirotor Propulsion System for Industrial Drone

MAD 6X08-II 130KV Coaxial Drone Arm Set - 12S M6C08 60A 4KG Payload Max 9kgF/rotor Multirotor Propulsion System for Industrial Drone

MAD

$599.00 USD
$599.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Rotation Direction
LED Light
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MAD XP6 Drone Arm Set is an advanced propulsion system designed for agriculture and transport drones. Featuring a 12-14S power input, an integrated 80A ESC, and a high-thrust XP6 drone brushless motor, this system delivers a maximum thrust of 9.5kg per rotor. Built with IPX6 waterproofing, it ensures durability in harsh weather conditions. The arm set is designed for easy installation, reducing setup time while offering high efficiency and stability.

Key Features

  • Powerful Thrust: 9.5kg peak thrust, 3-5kg continuous thrust per rotor.
  • Integrated ESC: 80A intelligent sine wave control for smooth and efficient power management.
  • Waterproof & Durable: IPX6-rated protection, suitable for harsh environments.
  • Large 22-inch Folding Propeller: Polymer folding propeller reduces vibration and improves efficiency.
  • High-Visibility LED Navigation Light: Customizable LED colors for professional flight.
  • Easy Installation: Pre-assembled structure for quick deployment.
  • Recommended Use: Suitable for quadcopters (12-20kg takeoff weight) and hexacopters (18-30kg takeoff weight).

Specifications

Parameter Value
Maximum Thrust 9.5kg per rotor @ 46V
Continuous Thrust 3-5kg per rotor @ 46V
Battery Compatibility 12-14S LiPo
Operating Temperature -20°C to 50°C
Weight 710±10g
Waterproof Rating IPX6
Arm Tube Diameter 30mm
Propeller Size 22×7.0 inches
Propeller Weight 82g/pc
Motor Stator Size 64×12mm
Motor Weight 283g
Maximum Voltage 61V
Maximum Current 80A
Signal Frequency 50-500Hz

Applications

The XP6 Drone Arm Set is ideal for:

  • Agriculture Drones: 5L quadcopters and 10L hexacopters.
  • Smart Transport Drones: Heavy-lift operations with optimized thrust.
  • Industrial UAVs: Aerial spraying, logistics, and inspection tasks.

This propulsion system is a high-performance, plug-and-play solution designed for powerful, stable, and efficient drone operation.

Details

MAD 6X08-II 130KV Coaxial Drone Arm Set, MAD 6X08-II: Coaxial power system for UAVs, emphasizing efficiency, safety, endurance. Includes efficient motor, carbon fiber propeller, intelligent regulator; ideal for aerial tasks.

MAD 6X08-II is a coaxial power system for multi-rotor UAVs, focusing on force efficiency, safety, and endurance. It integrates a high-efficiency motor, special carbon fiber propeller, and intelligent electric regulator, suitable for aerial photography, surveying, and inspection tasks. The propulsion system offers simple design, convenient installation, and reliable structure.

MAD 6X08-II 130KV Coaxial Drone Arm Set, A high-efficiency disc motor with a lightweight core and 60A FOC regulator provides strong performance, safety, and reliability in tough conditions.

High efficiency disc motor with lightweight iron core design ensures greater tension and high efficiency. Equipped with 60A FOC intelligent electric regulator, it offers early warning, protection functions, fast throttle response, and stability in harsh environments, enhancing overall safety and reliability.

MAD 6X08-II 130KV Coaxial Drone Arm Set, LED heading light ensures visibility; carbon fiber propeller with mirror light treatment enhances flight time, reduces noise. Customizable 22"-24".

Highlight LED heading light ensures visibility. No additional color lights needed for multi-rotor aircraft, enhancing professional flight experience. High-quality carbon fiber propeller with unique mirror light treatment and imported materials increases flight time, reduces noise, and improves efficiency. Customizable to 22"-24".

MAD 6X08-II 130KV Coaxial Drone Arm Set, Product drawing includes dimensions and specifications for a propeller assembly.

Product drawing includes dimensions and specifications for a propeller assembly.

MAD 6X08-II 130KV Coaxial Drone Arm Set, Specs for MAD 6X08-II motor with CB2 prop and Circular FOC ESC; covers thrust, voltage, current, efficiency, and optimal performance within weight limits.

The document details specifications for a MAD 6X08-II 130KV motor with CB2 22X7.0IN Ultralight PROP and Circular FOC 60A ESC. It includes max thrust, voltage, current, efficiency, and performance parameters at various throttle settings, emphasizing optimal operation within recommended weight limits for safety and performance.

MAD 6X08-II 130KV Coaxial Drone Arm Set, ESC faults signaled by blinking and beeping; check connections, wiring, motor lines, power supply; adjust throttle, inspect hardware.

ESC blinking patterns and beeping sounds indicate various faults. Troubleshooting involves checking connections, signal wires, motor lines, and power supply. Solutions include adjusting throttle values, ensuring proper wiring, and inspecting hardware for damage. Faults during self-check and operation are addressed with specific checks and adjustments.
