MAD 6X10-II 150KV Coaxial Drone Arm Set - M6C10 12S 60A 6KG Payload Max 14kgF/rotor Multirotor Propulsion System for Industrial Drone

Overview

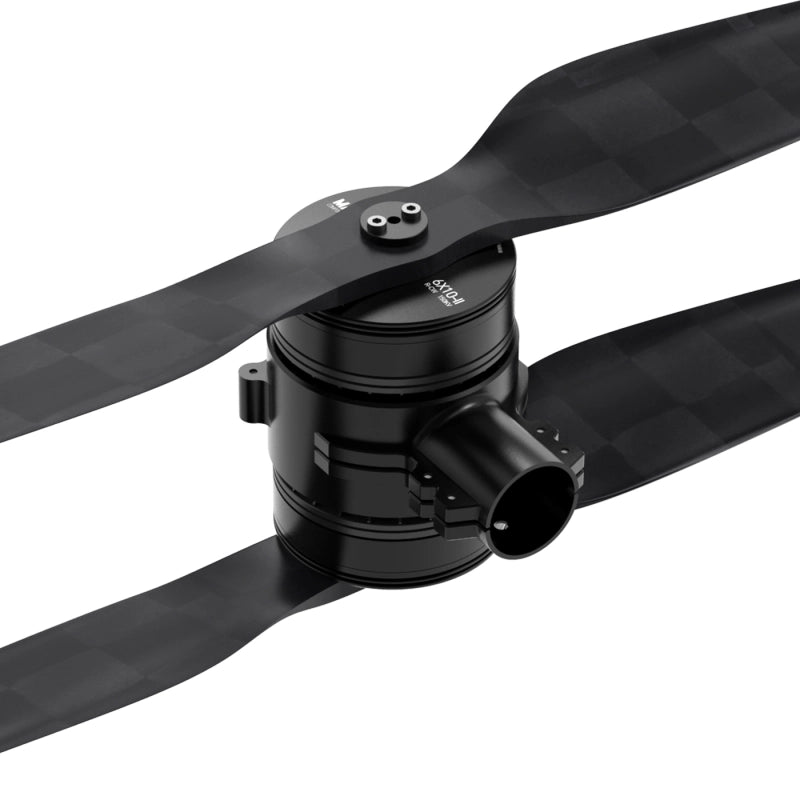

The MAD 6X10-II 150KV Coaxial Drone Arm Set is a high-performance propulsion system designed for industrial UAV applications such as aerial mapping, inspection, firefighting, military operations, and search & rescue missions. Engineered for efficiency, safety, and endurance, this coaxial power system offers a single-axis payload capacity of 4-6kg, with a maximum thrust of 14.4kgF per rotor at 48V. The integrated design includes a M6C10 brushless motor, 60A intelligent FOC ESC, and CB2 22x7.0-inch carbon fiber propellers, ensuring powerful performance and stable flight in demanding environments.

Key Features

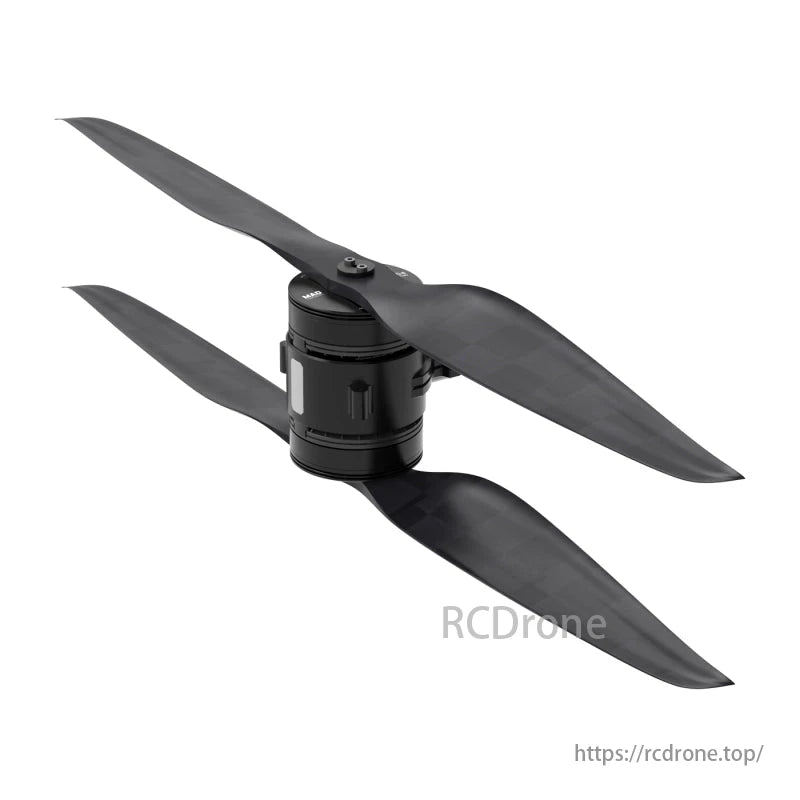

• Optimized Coaxial Power System: Upper and lower rotor configuration improves efficiency, stability, and redundancy for industrial drones.
• High Thrust Performance: 14.4kgF max thrust per rotor @ 48V, supporting heavy payloads up to 6kg per arm.
• Advanced ESC Technology: Circular 60A FOC sine wave ESC enhances throttle response, stability, and power efficiency.
• Lightweight & Durable Build: Integrated M6C10 brushless motor, high-strength carbon fiber propellers, and a reinforced aluminum casing ensure durability and lightweight performance.
• Smart Power Management: Built-in temperature, voltage, and current protection, with automatic fault detection for enhanced reliability.
• LED Status Indicator: Red/Green LED navigation light for easy drone orientation in night operations.
• Wide Voltage Compatibility: 12S LiPo support with a recommended takeoff weight of 4-6kg per arm.
• Easy Installation: Compatible with 30mm carbon tube mounts, with a conversion ring for 25mm tube compatibility.

Technical Specifications

Applications

• Aerial Mapping & Surveying
• Industrial & Infrastructure Inspection
• Firefighting & Emergency Response
• Search & Rescue Missions
• Heavy Payload Delivery
• Agriculture & Forestry Drones
• Defense & Military UAV Operations

The MAD 6X10-II 150KV Coaxial Drone Arm Set provides an efficient, high-thrust, and reliable propulsion solution for professional UAVs requiring heavy payload capacity and long endurance. Its integrated motor, ESC, and propeller system make it a top choice for industrial drone manufacturers and commercial UAV applications.

Details

MAD 6X10-II is a coaxial power system for multi-rotor UAVs, designed for extreme conditions. It features a high-efficiency motor, special carbon fiber propeller, and intelligent electric regulator. Suitable for aerial photography, surveying, and inspection, it offers optimized force efficiency, safety, and endurance.

High efficiency disc motor with lightweight iron core design ensures greater tension and high efficiency. Equipped with 60A FOC intelligent electric regulator, it offers early warning, protection functions, fast throttle response, and stable operation in harsh environments, enhancing overall safety and stability.

Highlight LED heading light ensures visibility. No additional color lights needed for multi-rotor aircraft, enhancing professional flight experience. High-quality carbon fiber propeller with unique mirror light treatment increases flight time, improves balance, and reduces vibration. Customizable to match other blades.

Product drawing details dimensions and specifications for a propeller assembly.

PARAMETER details for MAD 6X10-II KV150 include max thrust, recommended takeoff weight, voltage, operating temperature, and unit combo weight. Propeller specifications feature diameter/pitch and weight. Motors have a stator size and weight. FOC ESC includes model name, input voltage, current, and throttle signal frequency. Performance data for various throttle percentages is provided.

The document provides troubleshooting for motor controllers, detailing LED indicator patterns and audible alerts. It covers faults during self-check and operation, listing symptoms like beeping sounds, flashing lights, and motor behavior. Solutions include checking connections, adjusting settings, and inspecting hardware for damage or loose wires.
