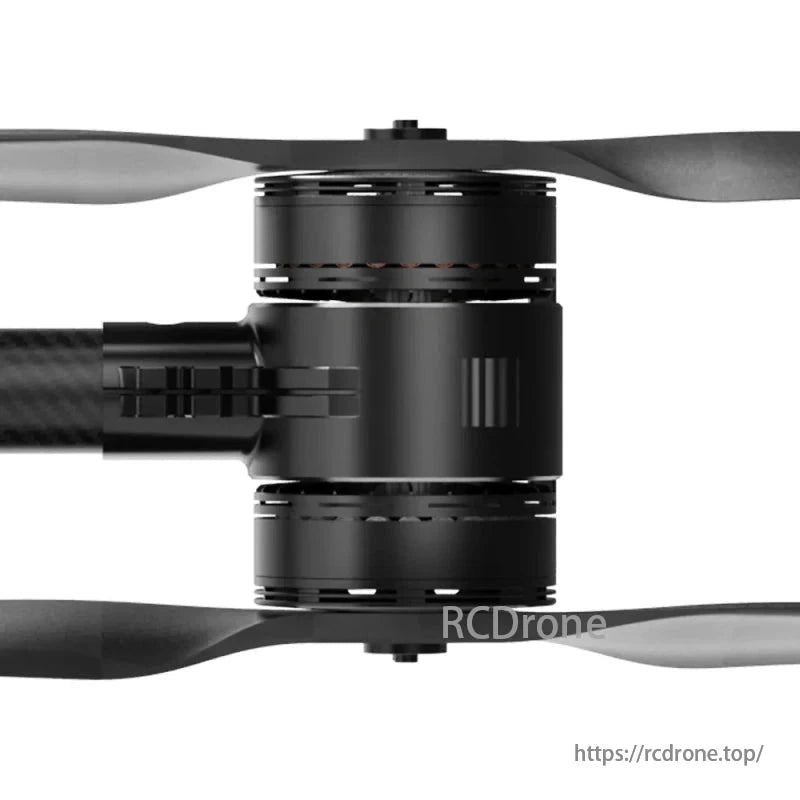

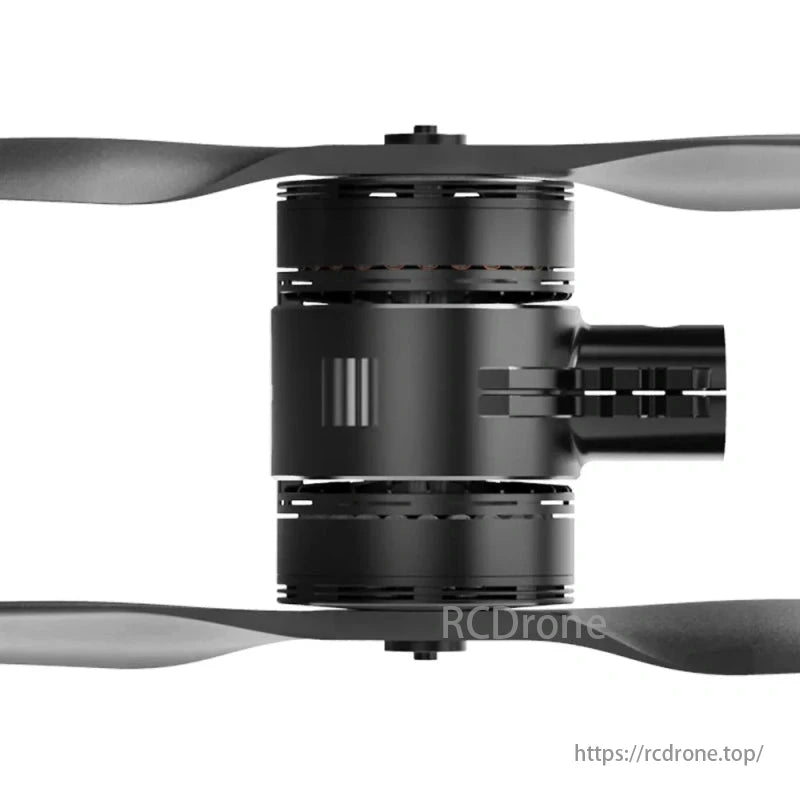

MAD 6X12-II 170KV Coaxial Drone Arm Set - 12S M6C12 Motor 60A ESC 2270 Prop 7KG Payload 15kgF/rotor Multirotor Propulsion System for Industrial Drone

Overview

The MAD 6X12-II 170KV Coaxial Drone Arm Set is a high-performance propulsion system engineered for professional industrial drones requiring high thrust, efficiency, and endurance. Designed to handle payloads of 5-7kg per arm, this coaxial power system delivers a maximum thrust of 15kgF per rotor at 48V, making it ideal for heavy-lift UAV applications such as aerial mapping, industrial inspections, search & rescue, and military operations. The system integrates an M6C12 high-efficiency brushless motor, 60A intelligent FOC ESC, and 2270 ultralight carbon fiber propellers, ensuring reliable performance under extreme conditions.

Specifications

Features

• High Thrust Capability: Capable of generating 15kgF max thrust per rotor, supporting heavy payloads up to 7kg per arm.
• Optimized Coaxial Design: Provides enhanced stability, efficiency, and redundancy, ensuring smooth operation under extreme conditions.
• Integrated Intelligent ESC: The 60A FOC sine wave controller improves throttle response and efficiency, featuring overvoltage, overcurrent, over-temperature, and short-circuit protection.
• Lightweight & Durable Construction: The M6C12 brushless motor, combined with high-strength carbon fiber propellers, enhances durability while reducing weight.
• Smart Power Management: Built-in safety measures, including hardware self-test programs, ensure reliable performance.
• LED Status Indicators: Red/Green LED navigation lights assist in visibility for night operations.
• Flexible Mounting Compatibility: Designed to fit 30mm carbon tube mounts, with an adapter for 25mm compatibility.
• Aerodynamic Carbon Fiber Propellers: 22-24 inch CB2 2270 propellers enhance flight time, dynamic balance, and vibration control, contributing to improved energy efficiency.

Applications

• Aerial Mapping & Surveying
• Industrial Inspection & Monitoring
• Firefighting & Emergency Response
• Search & Rescue Operations
• Heavy Payload Transport
• Agriculture & Forestry UAVs
• Defense & Military UAV Missions

The MAD 6X12-II 170KV Coaxial Drone Arm Set is a top-tier propulsion system designed for high-performance industrial UAVs, delivering unmatched power, efficiency, and reliability for professional applications.

Details

MAD 6X12-II is an upper and lower coaxial structure power system for multi-rotor UAVs. It optimizes force efficiency, safety, and endurance under extreme conditions. Suitable for aircraft with a 30mm carbon tube diameter, it integrates a high-efficiency motor, special carbon fiber propeller, and intelligent electric regulator for professional aerial photography and surveying.

High efficiency disc motor with lightweight iron core design, producing greater tension and high efficiency. 6x12-II equipped with Circular 60A FOC intelligent electric regulator ensures safety with early warning and protection functions. Optimized control algorithm for fast throttle response and stability in harsh environments.

Highlight LED heading light ensures visibility. No additional color lights needed for multi-rotor aircraft, enhancing professional flight experience. High-quality carbon fiber propeller with unique mirror light treatment increases flight time, offering perfect balance and zero vibration, designed for aerodynamics to improve capacity, noise, impact resistance, and flight efficiency.

Product drawing includes dimensions and specifications for a mechanical component.

PARAMETER details for MAD 6X12-II 170KV motor with CB2 22X7.0IN propeller and Circular FOC 60A ESC. Max thrust: 1480g/rotor, recommend take-off weight: 5000g-7000g/rotor. Operating temperature: -20°C to 60°C. Unit combo weight: 1050g. Efficiency ranges from 74.5% to 83.9%.

Troubleshooting guide for ESC status using LED indicators and sounds. Lists symptoms, causes, and solutions for various issues like motor not starting, abnormal indicator lights, and audible alerts. Covers faults during self-check and operation, providing detailed steps for resolution. Essential for diagnosing and fixing ESC problems efficiently.
