MAD AM32 3-8S 80A 4-in-1 Drone ESC
MAD AM32 3-8S 80A 4-in-1 Drone ESC
MAD
Couldn't load pickup availability
Overview

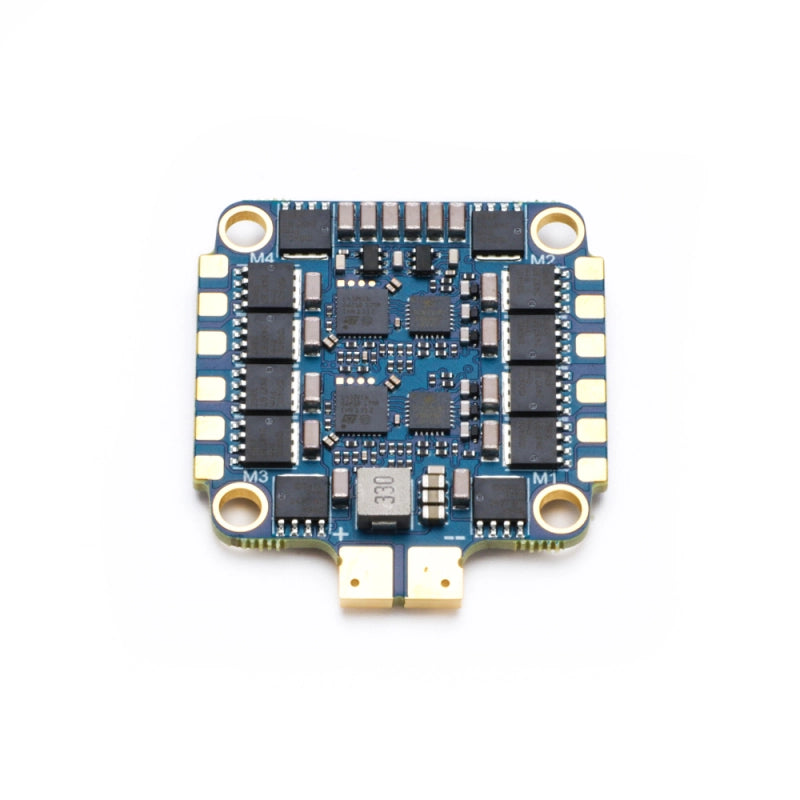

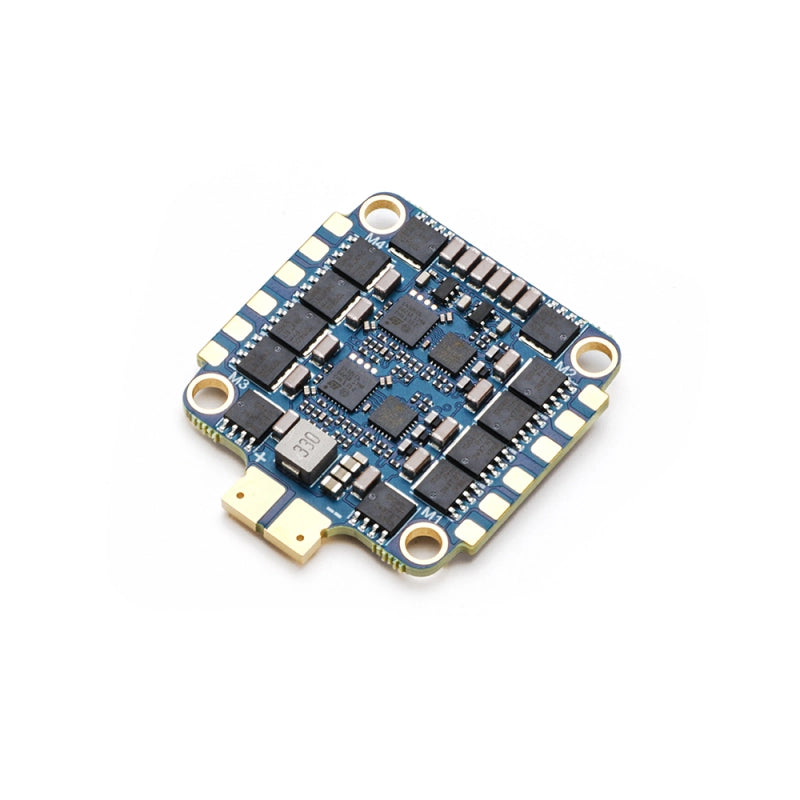

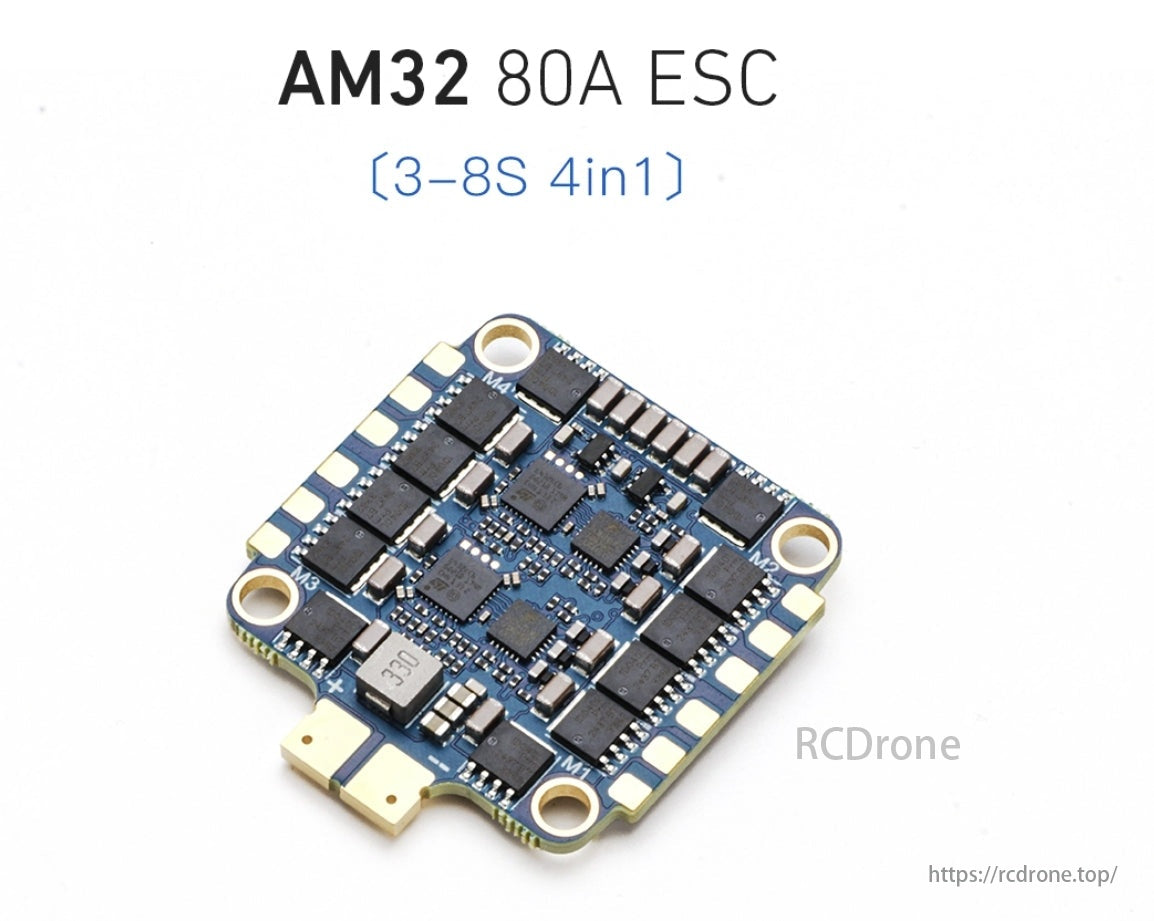

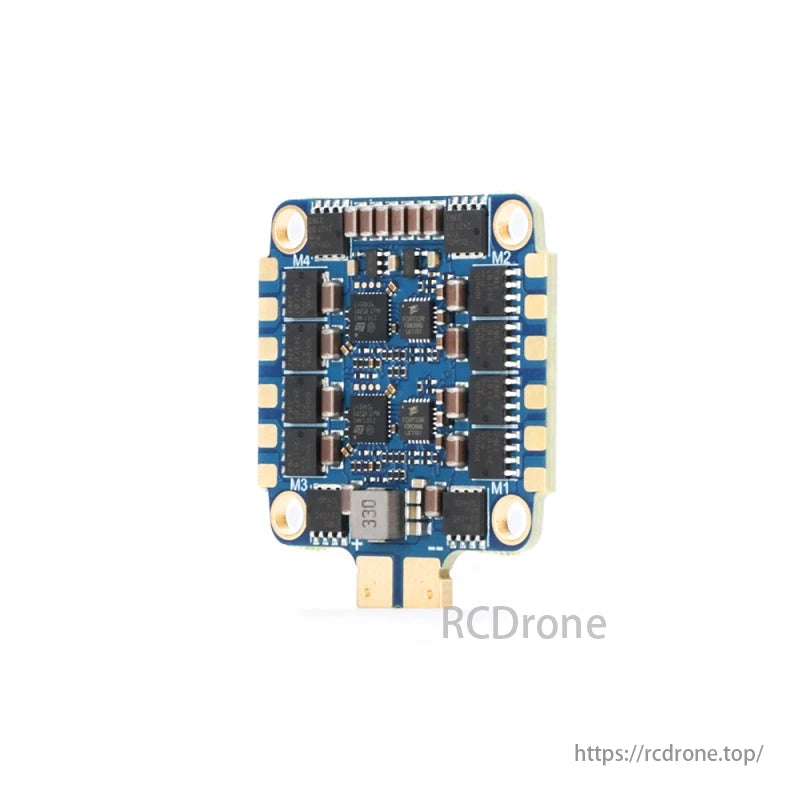

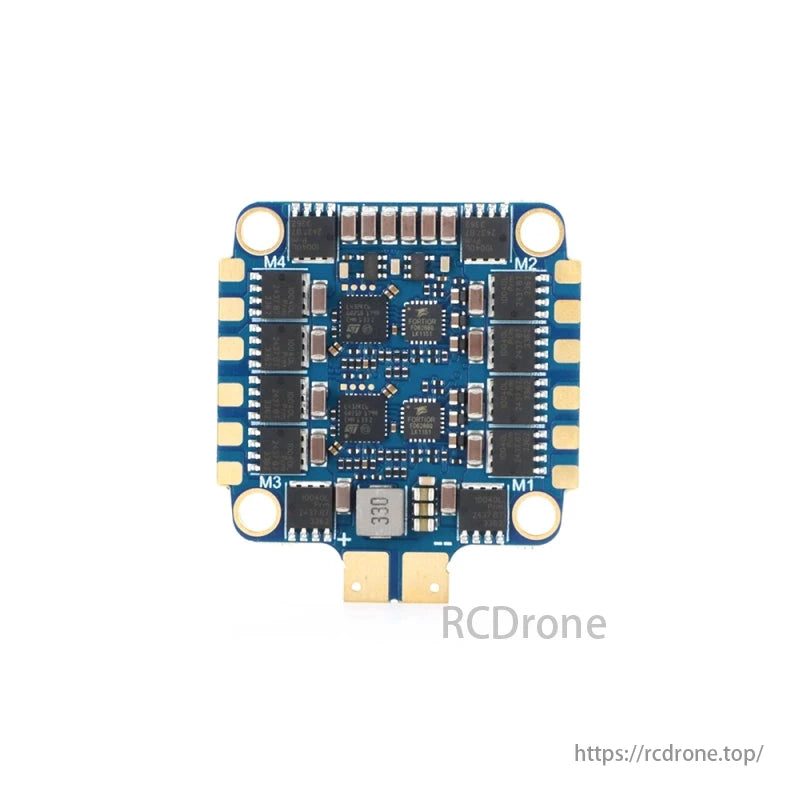

The MAD AM32 80A 4-in-1 ESC is a high-performance electronic speed controller designed for FPV racing, freestyle, and cinematic drones. Built with Infineon aviation-grade MOSFETs, high-capacity MLCC capacitors, and a STM32L431/432 Cortex-M4 processor, this ESC ensures efficient heat dissipation, fast motor response, and stable power output.
It supports 3-8S LiPo batteries, making it ideal for high-power drone builds. The integrated 3-in-1 driver and 4 independent current sensors provide real-time voltage and current monitoring, while online firmware updates keep the ESC running with the latest performance enhancements.
Key Features
- Supports 3-8S LiPo Batteries – Versatile power input for different drone configurations.
- 80A Continuous Current Per ESC Circuit – Delivers high power for demanding applications.
- BLHeli-32 Firmware – Provides advanced motor control and customization.
- Infineon Aviation-Grade MOSFETs – Enhances heat dissipation and overcurrent resistance.
- High-Voltage MLCC Capacitors (TDK 35V 22uF) – Ensures stable power delivery and minimal fluctuation.
- STM32L431/432 Cortex-M4 Processor – High-speed data processing for precise motor control.
- 4 Independent Current Sensors – Enables real-time telemetry feedback for monitoring voltage and current.
- Multiple ESC Protocols Supported – PWM, DShot150/300/600/1200, OneShot125/42, MultiShot.
- Gold-Plated 8P Socket – Easy and reliable connection with flight controller ribbon cables.
- Online Firmware Upgrade – Download updates from the network for optimal performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AM32 80A 3-8S 4-in-1 ESC |
| Input Voltage | 3-8S LiPo |
| Continuous Current | 80A (per ESC circuit) |
| Processor | STM32L431 / STM32L432 Cortex-M4 |
| Firmware | BLHeli-32 |
| ESC Protocols | PWM, DShot150/300/600/1200, OneShot125/42, MultiShot |
| Board Size | 40mm x 43mm x 7mm |
| Mounting Hole Spacing | 30.5mm |
| Weight | 14.2g (excluding wiring) |
Advanced Features
- Integrated 3-in-1 Driver – Optimized motor control for smooth throttle response.
- 4 Independent Current Sensors – Real-time voltage and current monitoring.
- High-Voltage Input Capacitors – TDK 35V 22uF MLCC capacitors ensure stable operation.
- Automotive-Grade MOSFETs – Low internal resistance (1.5mΩ) for efficient power flow.
- 8-Layer PCB Design – Enhances heat resistance and electrical conductivity.
- Gold-Plated 8P Socket – Ensures stable connectivity with flight controllers.
- Firmware Upgradeable – Download latest firmware via GitHub repository.
Ideal for:
- FPV Racing Drones – High-speed, precise throttle control for competitive racing.
- Freestyle Drones – Smooth power delivery for aerial maneuvers.
- Cinematic Drones – Reliable performance for stable flight and high-quality video capture.

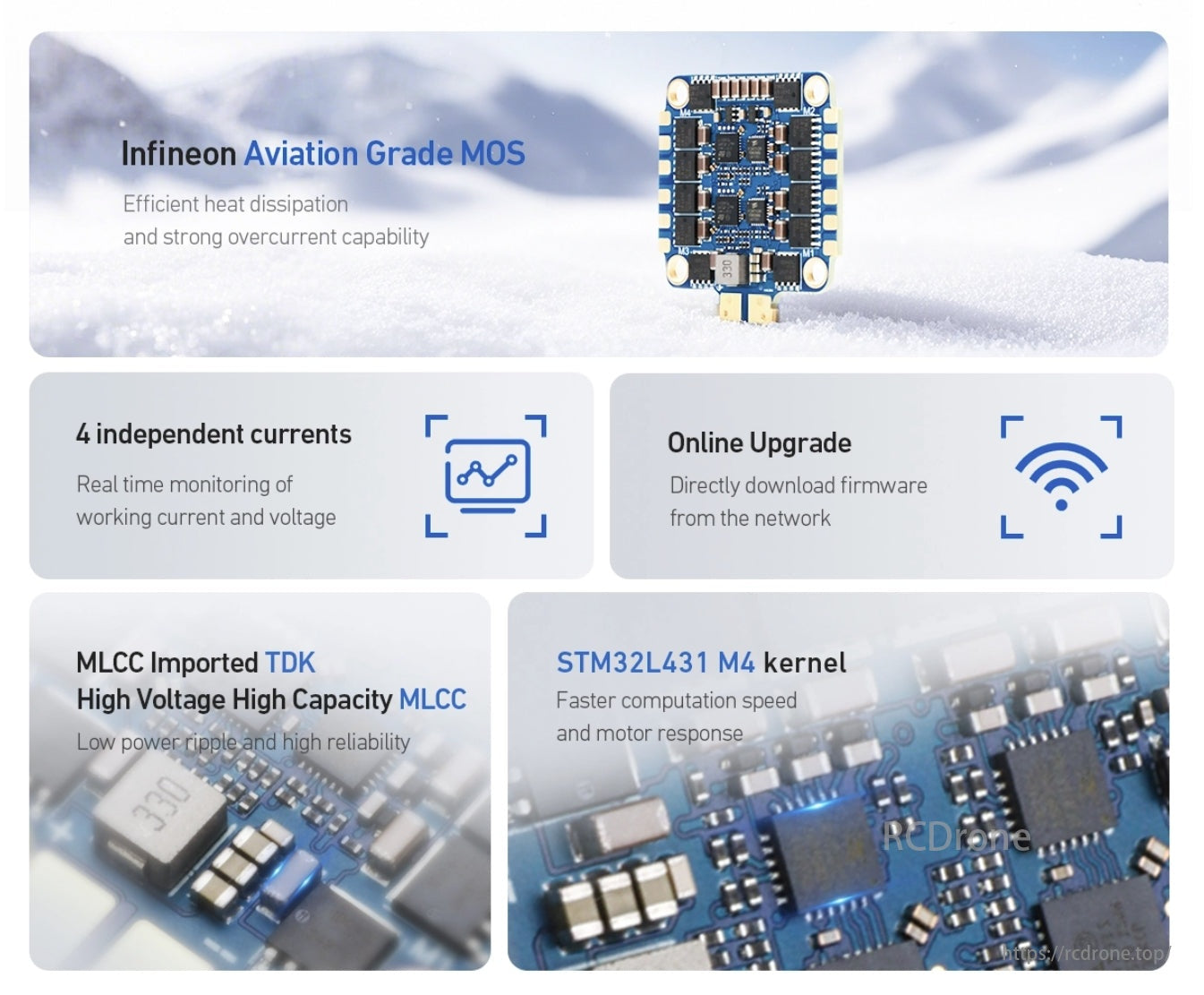

Infineon Aviation Grade MOS offers efficient heat dissipation, strong overcurrent capability, 4 independent currents for real-time monitoring, online upgrades, MLCC imported TDK, and STM32L431 M4 kernel for faster computation.

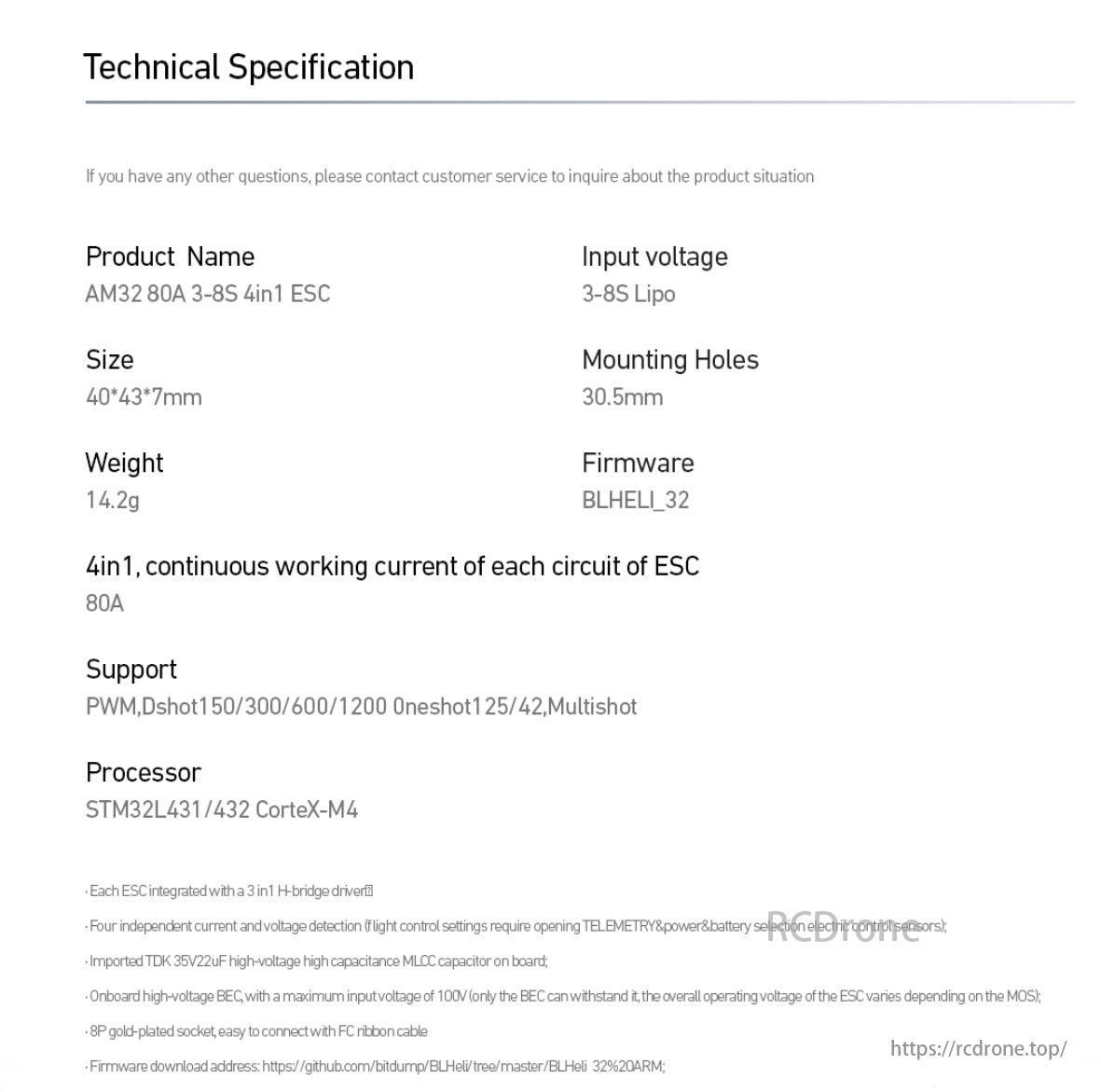

Technical specifications for AM32 80A 3-8S 4in1 ESC: Input voltage 3-8S Lipo, size 40*43*7mm, weight 14.2g, firmware BLHELI_32, continuous working current 80A per circuit. Supports PWM, Dshot, Oneshot, Multishot. Processor STM32L431/432 Cortex-M4. Features include integrated H-bridge drivers and high-voltage BEC.
