Overview

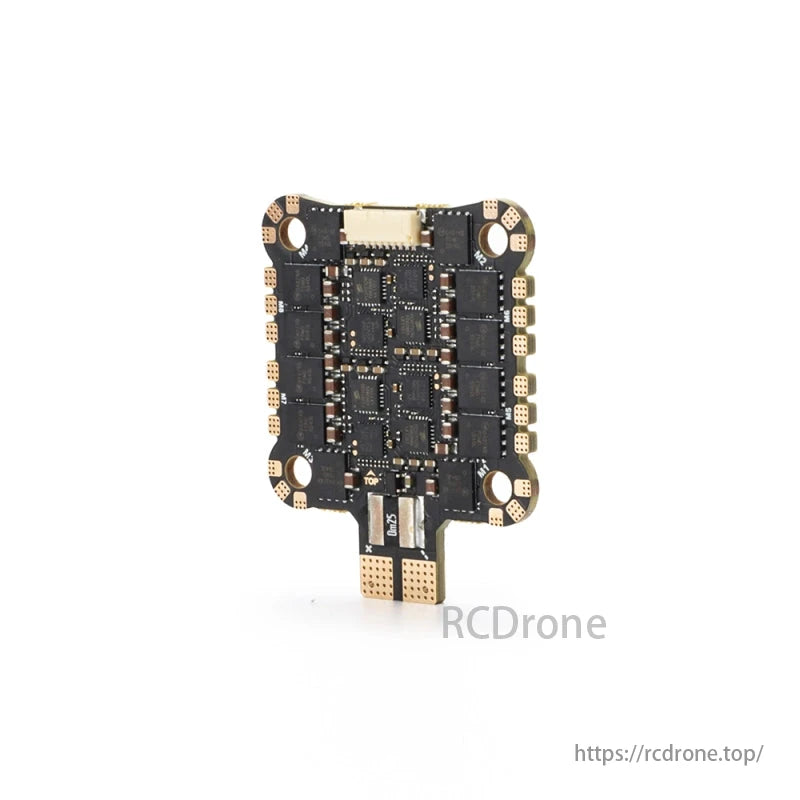

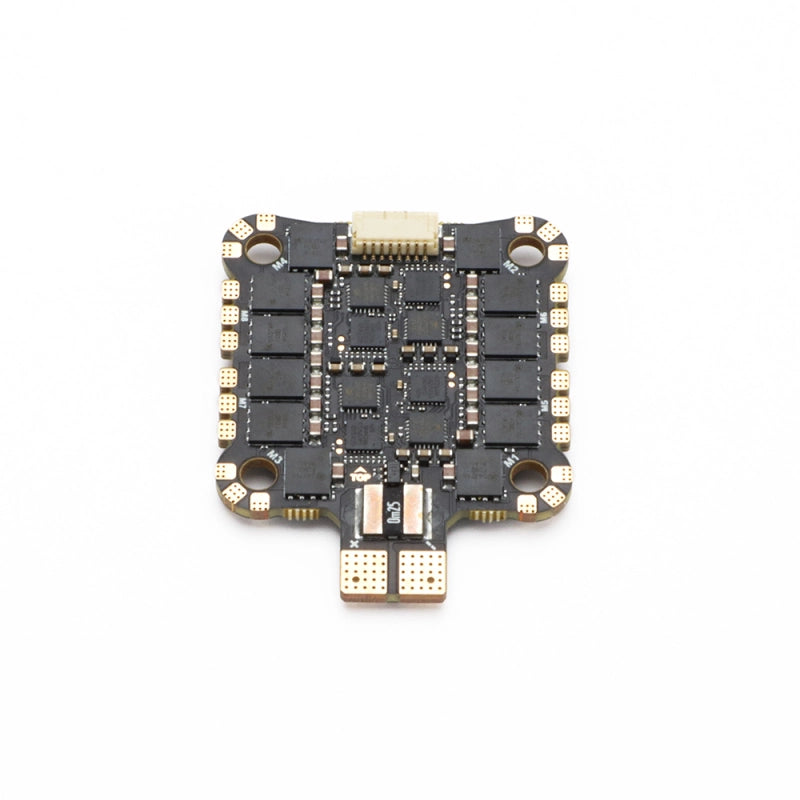

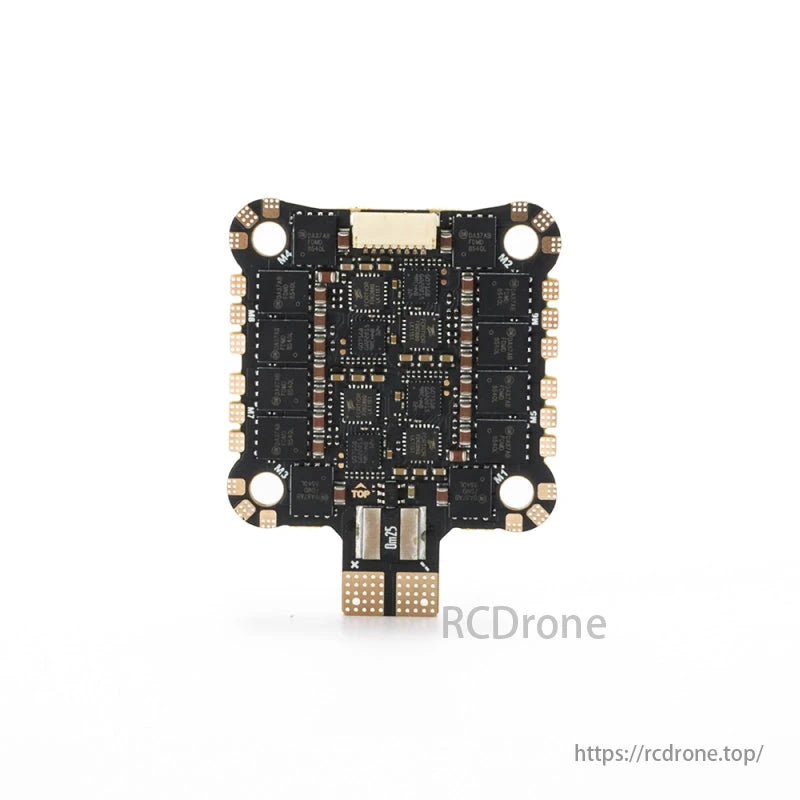

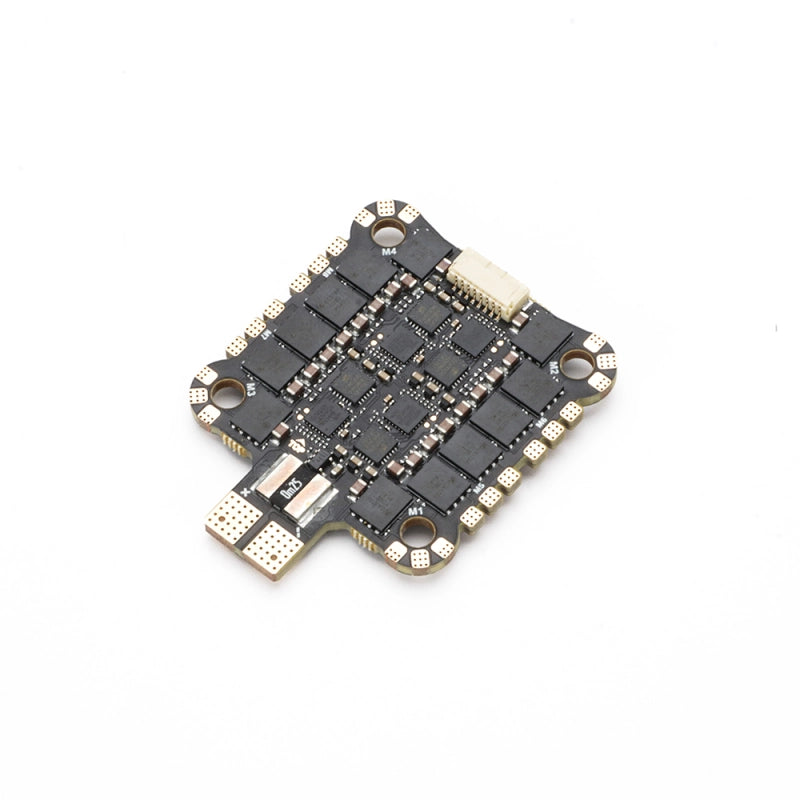

The MAD AM32 50A 8-in-1 ESC is a high-performance electronic speed controller (ESC) designed for X4, Y6, and X8 drone configurations. Supporting 2-8S LiPo batteries, this ESC is built with Infineon automotive-grade dual N MOSFETs, ensuring efficient heat dissipation, strong overcurrent resistance, and reliable power delivery. The integrated 3-in-1 driver enables real-time current monitoring, while online firmware upgrades provide easy updates.
With STM32G071 32-bit high-performance processing, this ESC delivers fast motor response and high-speed data handling, making it an ideal choice for heavy-lift drones, professional UAVs, and high-power multirotors.
Key Features
- Supports 2-8S LiPo Batteries – Wide voltage compatibility for various drone types.
- 50A Continuous Current Per ESC Circuit (8x50A) – Reliable power for multi-rotor configurations.
- BLHeli-32 Firmware – Optimized motor control with customizable settings.
- Infineon Automotive-Grade Dual N MOSFETs – Strong overcurrent resistance and minimal heat generation.
- High-Capacity 920uF TDK Low ESR Capacitors – Stable voltage regulation and reduced power fluctuation.
- STM32G071 32-bit Processor – High-speed signal processing for precise motor control.
- 8-Layer Copper PCB (2x4OZ) – Ensures high heat resistance and improved electrical conductivity.
- Telemetry Feedback Support – Sends voltage and current data to the flight controller.
- Drive Signal Support – Compatible with DShot150-1200, MultiShot, OneShot, and PWM protocols.
- Dual 8P Signal Line Interface – Enables seamless operation in X4, Y6, and X8 drone configurations.
- Online Upgrade Support – Download firmware updates directly via the network.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AM32 50A 2-8S 8-in-1 ESC |
| Input Voltage | 2-8S LiPo |
| Continuous Current | 50A per ESC (8x50A) |
| Maximum Current (10s) | 60A |
| Processor | STM32G071 32-bit, 64MHz working frequency |
| Firmware | BLHeli-32 |
| Telemetry Feedback | Supported |
| BEC Output | Not supported |
| Board Size | 40.5mm x 51mm x 5mm |
| Weight | 12g (excluding wiring) |
| ESC Protocols | DShot150-1200, MultiShot, OneShot, PWM |
Connection and Integration
- 8 Motor Outputs – Supports X4, Y6, and X8 drone configurations.
- Power Terminals – BAT (+) and GND (-) for secure battery connections.
- Dual 8P Signal Line Interface – Ensures seamless multi-rotor operation.
- Telemetry Data Output – Sends voltage and current data to the flight controller for real-time monitoring.
Advanced Features
- High-Density Copper PCB – 8-layer PCB with 2x4OZ copper thickness for superior heat resistance and conductivity.
- Integrated 3-in-1 Driver Chip – Optimized motor control for smooth operation and enhanced stability.
- Low Internal Resistance – 1.5mΩ automotive-grade MOSFETs for efficient current flow and minimal heat output.
- Dual Interface for Versatile Setups – Enables multiple drone configurations without additional ESCs.
- Online Firmware Updates – Easily upgrade ESC performance and features via firmware downloads.
Ideal for:
- Heavy-Lift Drones – High-current capability for carrying payloads and industrial equipment.
- Professional UAVs – Reliable power management for cinematography, surveying, and agricultural drones.
- Multirotor Configurations – Optimized for X4, Y6, and X8 drones, reducing the need for multiple ESCs.
Infineon Automotive Grade Dual N MOS. Efficient heat dissipation, strong overcurrent capability. Integrated 3-in-1 driver, online upgrade, imported TDK capacitor, STM32G071 processor, 64M working frequency.
Technical specifications for AM32 50A 2-8S 8in1 ESC include: input voltage 2-8S LiPo, size 40.5*51*5mm, weight 12g, maximum current 60A, persistent current 50A*8, STM32G071 processor, Dshot150-1200/MultiShot/OneShot/PWM drive signal support, and telemetry feedback. Features high-performance components for reliability and efficiency.
