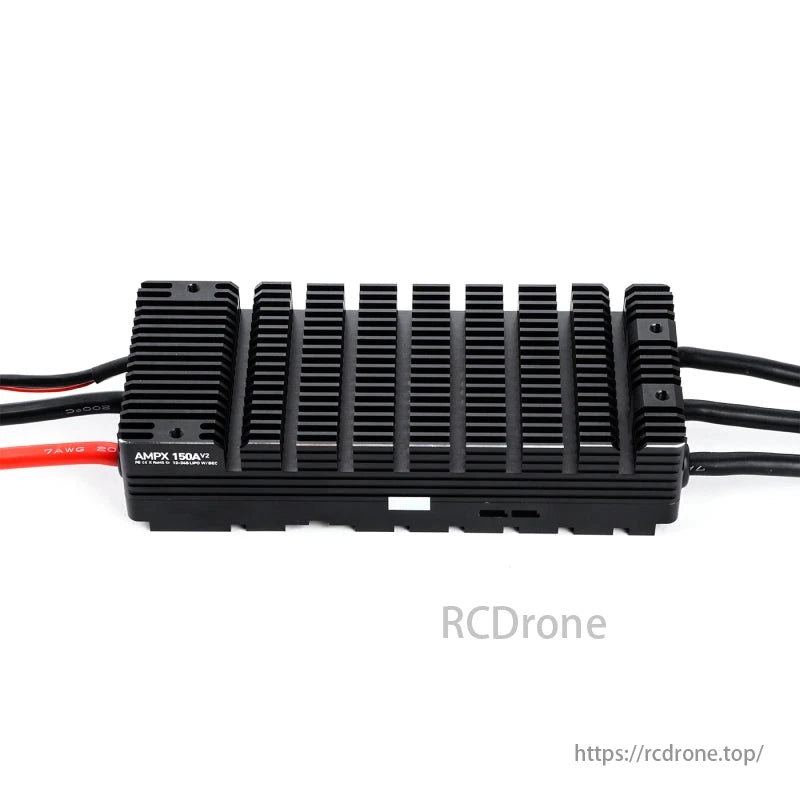

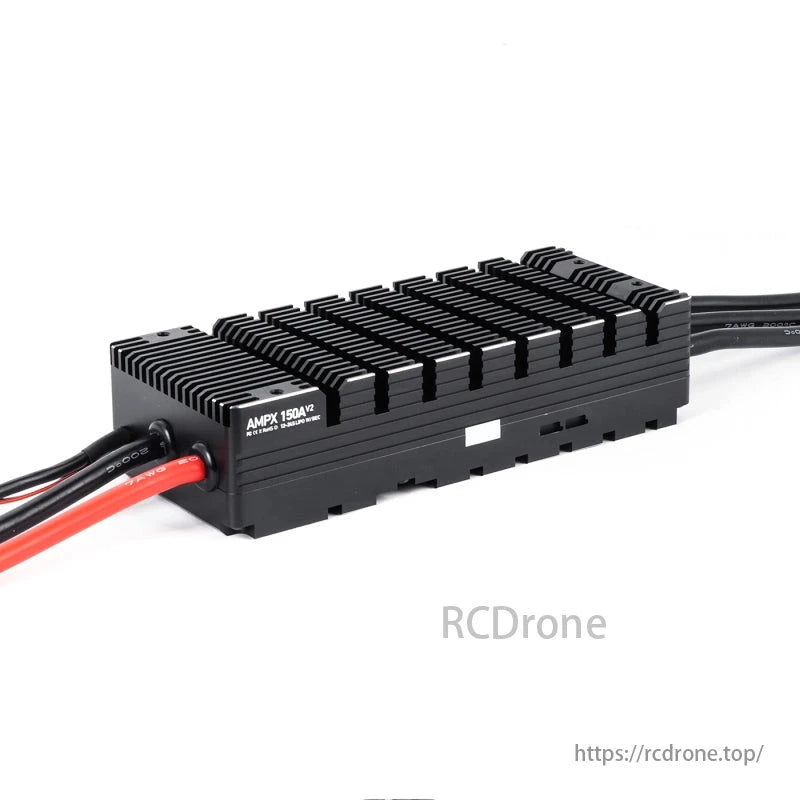

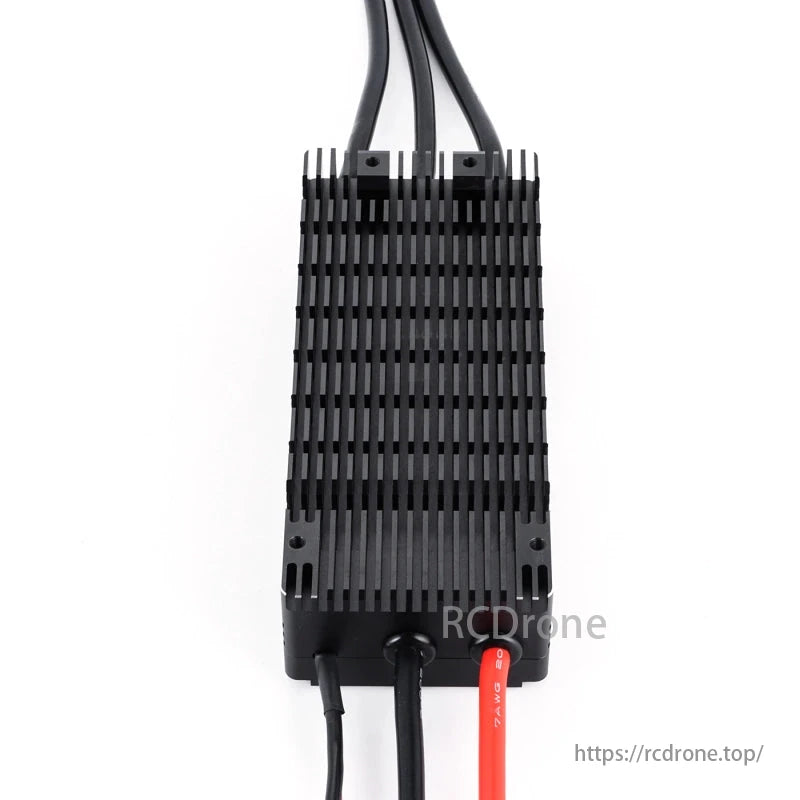

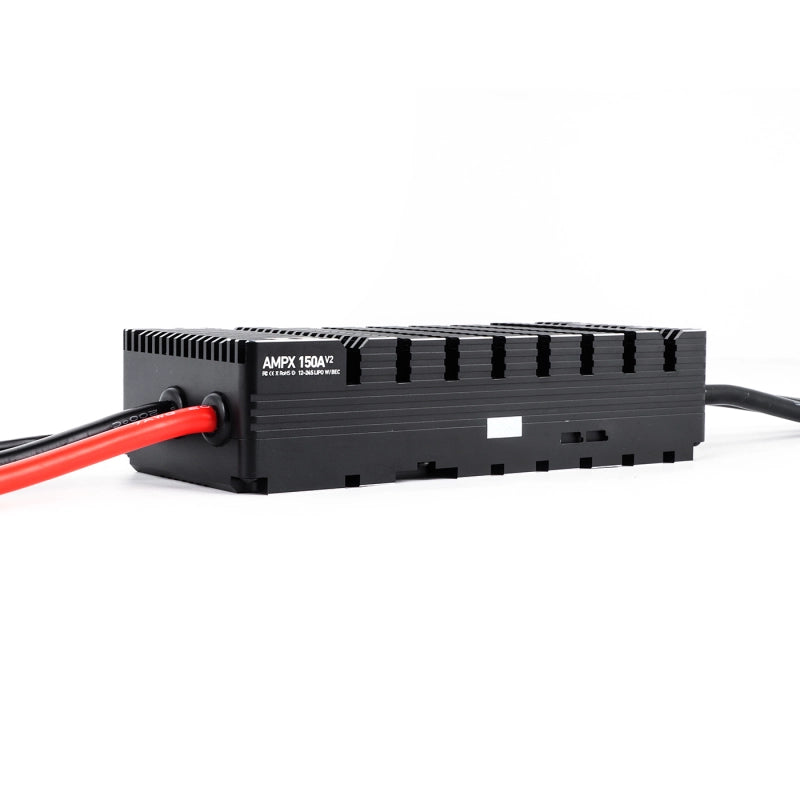

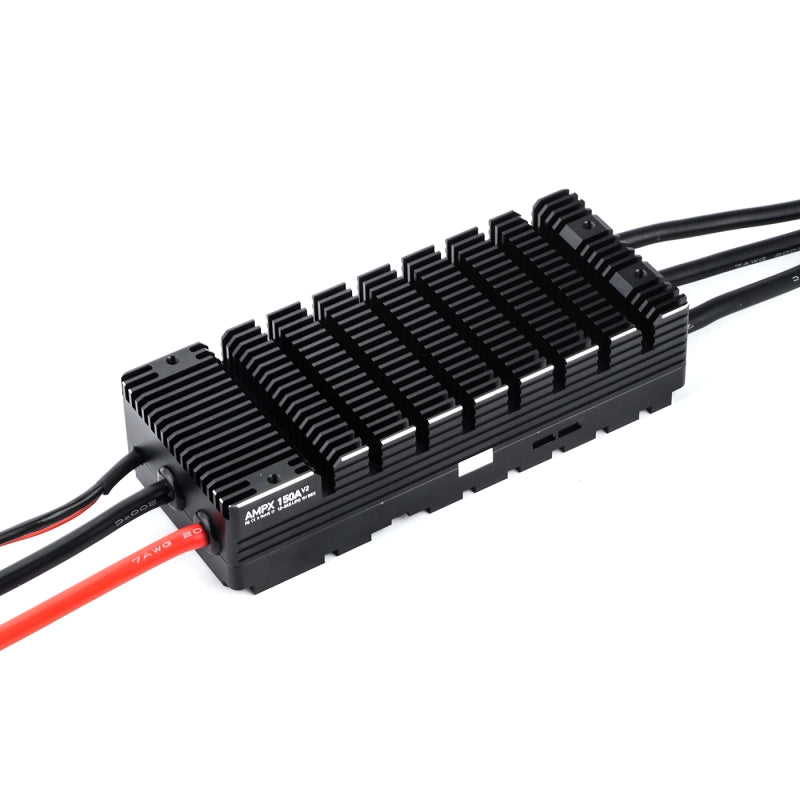

Overview
The MAD AMPX 150A HV ESC is a high-performance electronic speed controller (ESC) designed for 12-24S lithium battery systems. It supports a continuous current of 150A, features IP67 waterproof protection, and integrates CAN communication for real-time flight control data transmission. With dual throttle control (RPM + CAN) and firmware upgradability, this ESC delivers superior efficiency and precision for UAV applications.

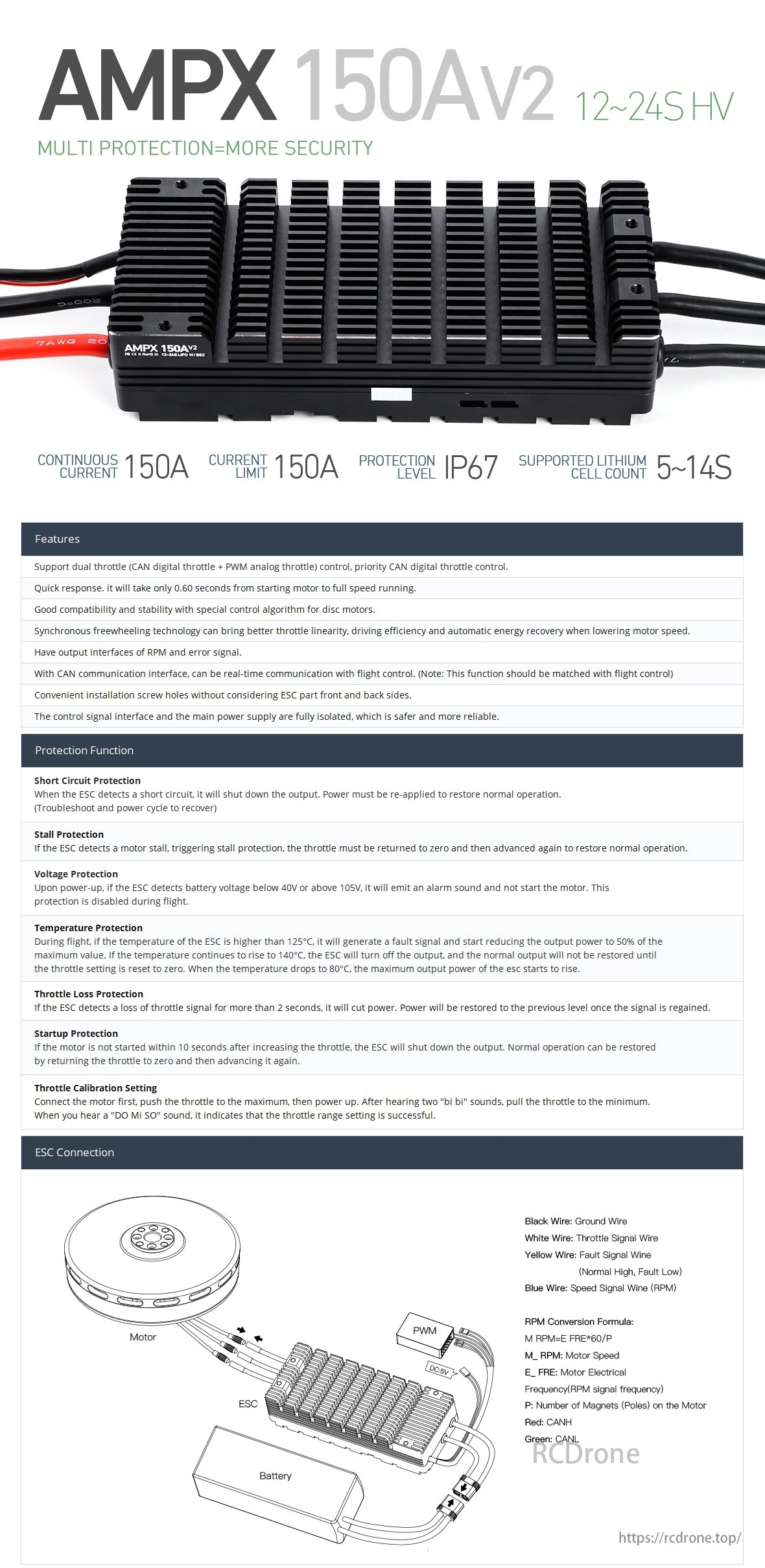

Key Features
- High Power Support: Operates on 12-24S LiPo with a 150A continuous current rating.
- Ultra-Fast Response: Achieves full speed in just 0.60 seconds.
- Optimized for Disc Motors: Utilizes a special control algorithm for better stability and performance.
- Synchronous Freewheeling Technology: Enhances throttle linearity, energy efficiency, and automatic recovery.
- Dual Throttle Control: Supports PWM analog throttle + CAN digital throttle, prioritizing CAN throttle.
- Real-Time CAN Communication: Provides voltage, current, temperature, and operational status updates.
- Upgradeable Firmware: Ensures long-term performance optimization.
- Overload Protection: Enables unlimited automatic restart for uninterrupted performance.
- Fully Isolated Control Signals: Improves safety by separating control signals and power supply.
- Convenient Installation: Features pre-drilled mounting holes for flexible setup.
Protection Functions
- Short Circuit Protection: Automatically shuts down output; manual power cycle required for recovery.
- Stall Protection: Resets throttle to zero when a motor stall is detected, restoring normal operation.
- Voltage Protection: Issues an alarm if voltage falls below 40V or exceeds 105V.
- Temperature Protection: Reduces output at 125°C, shuts down at 140°C, and restores operation at 80°C.
- Throttle Loss Protection: Cuts power if no throttle signal is detected for over 2 seconds.
- Startup Protection: Prevents ESC shutdown if the motor fails to start within 10 seconds.

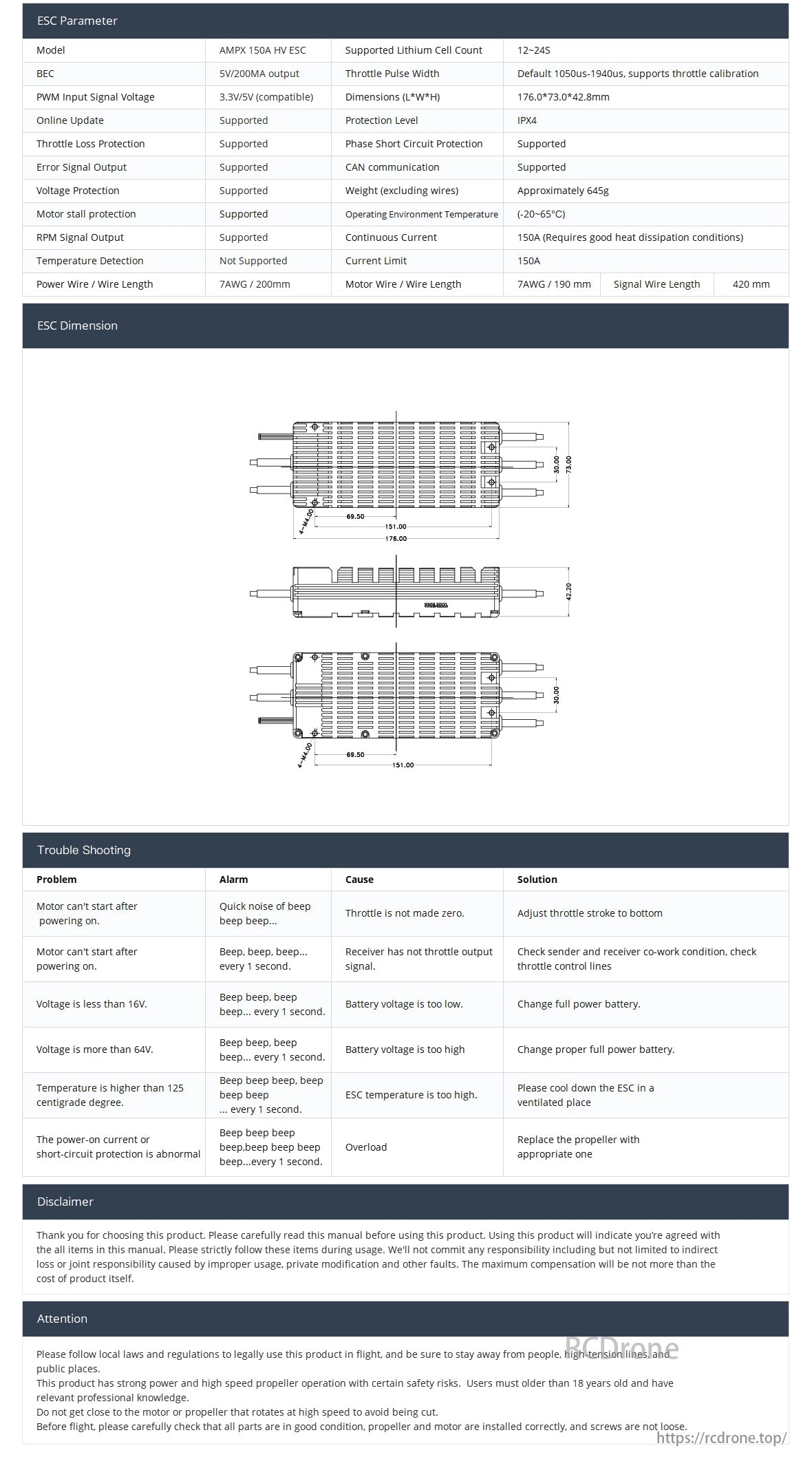

Technical Specifications
| Parameter | Details |
|---|---|
| Model | MAD AMPX 150A HV ESC |
| Supported Battery | 12-24S Lithium |
| Continuous Current | 150A |
| Current Limit | 150A |
| BEC Output | 5V/200mA |
| PWM Input Voltage | 3.3V/5V (compatible) |
| Protection Level | IP67 |
| Dimensions (LWH) | 176.0 * 73.0 * 42.8mm |
| Weight (excluding wires) | ~645g |
| Operating Temperature | -20°C to 65°C |
| Wire Length | 7AWG (Power: 200mm, Motor: 190mm), Signal: 420mm |
ESC Connection & Wiring
- Black Wire: Ground
- White Wire: Throttle Signal
- Yellow Wire: Fault Signal (Normal High, Fault Low)
- Blue Wire: RPM Signal
- Red Wire: CANH
- Green Wire: CANL
Troubleshooting Guide
| Issue | Alarm | Cause | Solution |
|---|---|---|---|
| Motor won’t start | Beeping sound | Throttle is not at zero | Adjust throttle to minimum |
| No motor response | Beep every second | No throttle signal from receiver | Check receiver and connections |
| Low voltage warning | Beep, beep… | Battery voltage below 40V | Use a fully charged battery |
| High voltage warning | Beep, beep… | Battery voltage exceeds 105V | Use an appropriate battery |
| Overheating | Rapid beeping | ESC temperature exceeds 125°C | Allow cooling before operation |
| Overload | Continuous beeping | Motor overload | Use a properly sized propeller |
PPG Version (V3.0) Features
The V3.0 version includes brake function support and compatibility with PPG Controllers, displaying real-time flight parameters. Recommended PPG power combos:
- AMPX 150A (12-24S) V3.0 with V135 35KV motor and 51X24 propeller (Max Thrust: 60kg).
- AMPX 200A (12-24S) V3.0 with M40C30 50KV motor and 47X13 propeller (Max Thrust: 70kg).
- AMPX 300A (12-24S) V3.0 with M50C35 40KV motor and 57X19 propeller (Max Thrust: 90kg).
Price & Variants
- Version V2.0 (CAN communication & firmware upgradeable) - $691.00.
- Version V3.0 (With PPG) - Available with additional functionalities.
Safety & Compliance
- Follow local UAV regulations.
- Avoid contact with high-speed propellers.
- Ensure secure installation before operation.
AMPX 150Av2 ESC offers multi-protection, supporting 12-24S HV and 5-14S lithium cells. Features include dual throttle control, quick response, disc motor compatibility, and CAN communication. Protection functions cover short circuit, stall, voltage, temperature, throttle loss, startup, and calibration settings. Continuous current is 150A with IP67 protection level.
AMPX 150A HV ESC supports 12-24S lithium cells, with dimensions 176.0x73.0x42.8mm and weighs 645g. Features include BEC, PWM input, online updates, protection modes, CAN communication, and temperature detection. Troubleshooting covers motor start issues, voltage limits, and overheating. Disclaimer advises legal use and safety precautions for users over 18.
