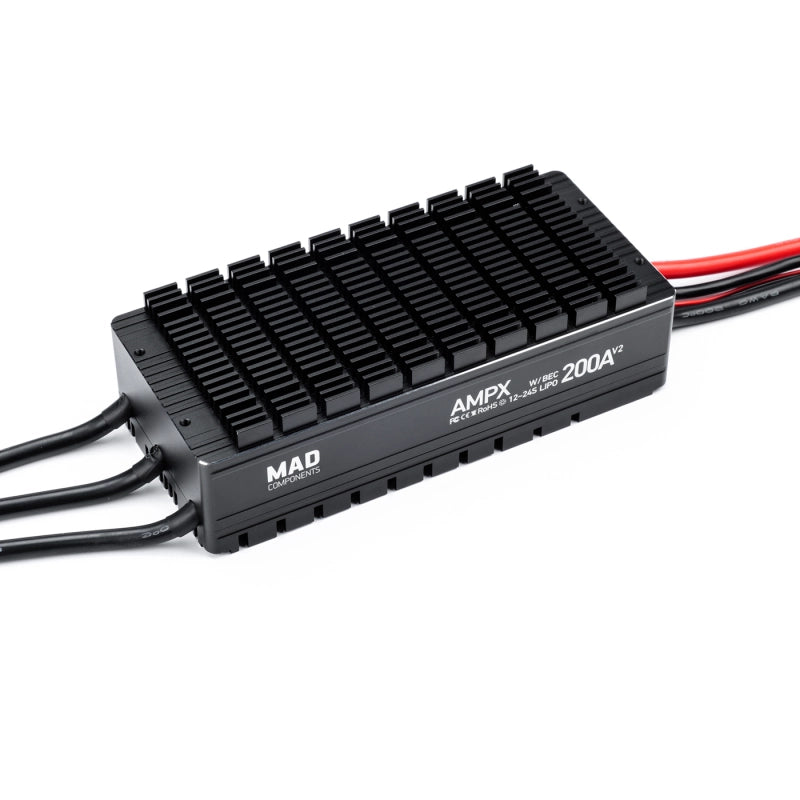

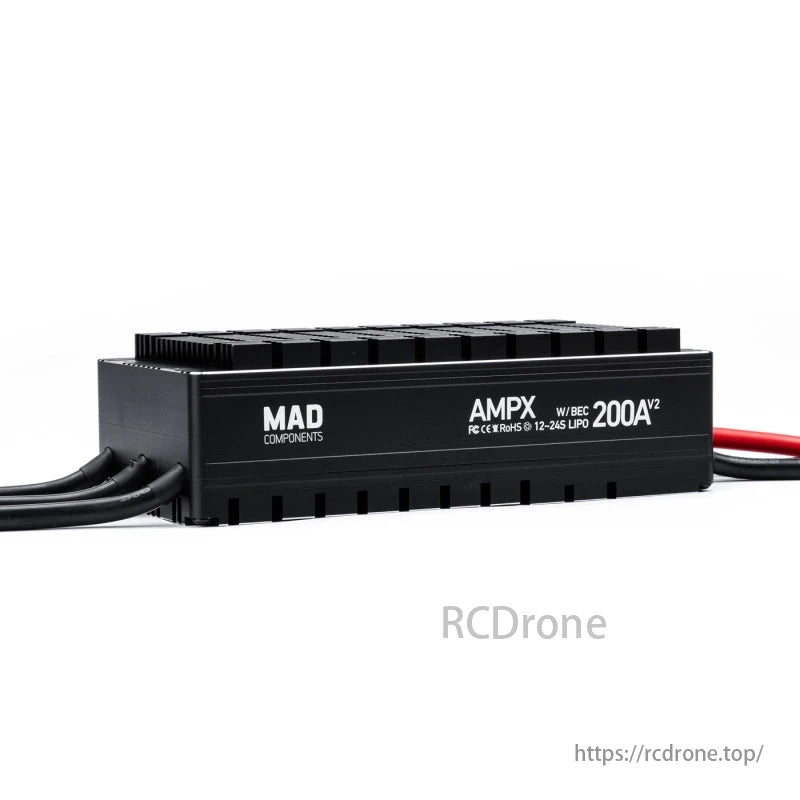

MAD AMPX 200A(12-24S) HV Drone ESC

Overview

The MAD AMPX 200A (12–24S) HV Drone ESC is a high-performance electronic speed controller designed for heavy-lift drones, electric aircraft, and other demanding power systems. Supporting an ultra-wide input range from 12S to 24S (approximately 40V to 100V) and delivering a continuous current of 200A, it provides stable, reliable power control in high-load conditions. Multiple protection features safeguard the system, ensuring enhanced safety and efficiency.

Key Features

• Wide Voltage Range: Compatible with 12–24S LiPo battery packs (40V–100V) for diverse high-power applications.
• High Current Capacity: Sustains 200A continuous current (peak also up to 200A), allowing smooth operation under heavy loads.
• IPX4 Protection: Resistant to water splashes and dust, suitable for outdoor or challenging environments.
• Comprehensive Safeguards: Equipped with over-voltage, under-voltage, over-current, and short-circuit protection, along with temperature monitoring and overheat protection.
• Advanced Drive Algorithm: Delivers rapid startup, strong torque, and precise speed regulation, enhancing power output efficiency.
• Signal Interface & Control: Supports standard PWM input (50–400 Hz) by default; CAN communication is available on certain versions for real-time monitoring and parameter tuning.

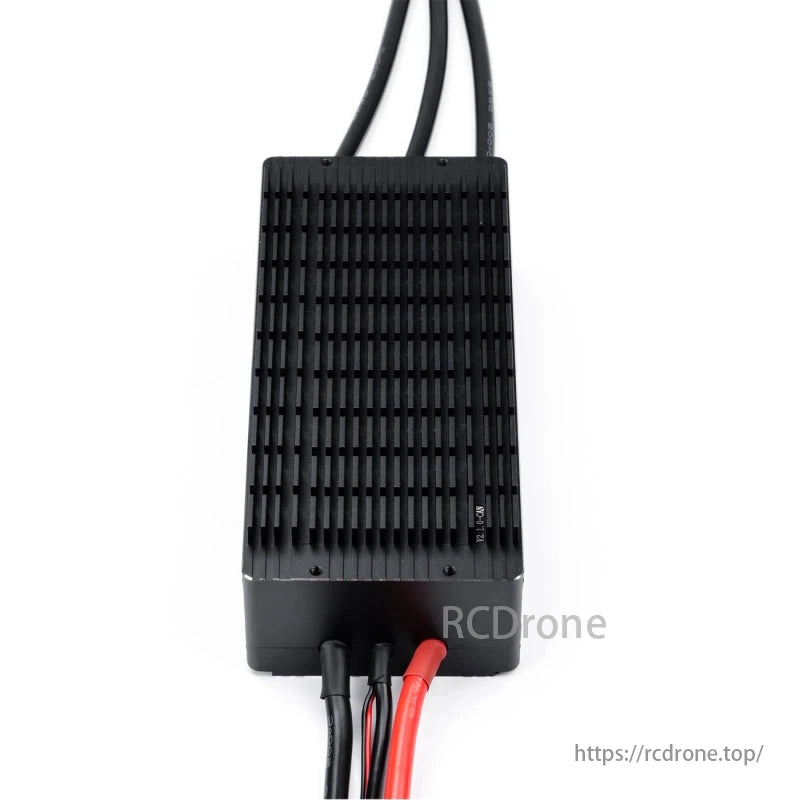

• Robust Cooling: Metal housing and efficient heat-sink design ensure proper heat dissipation during high-power output.

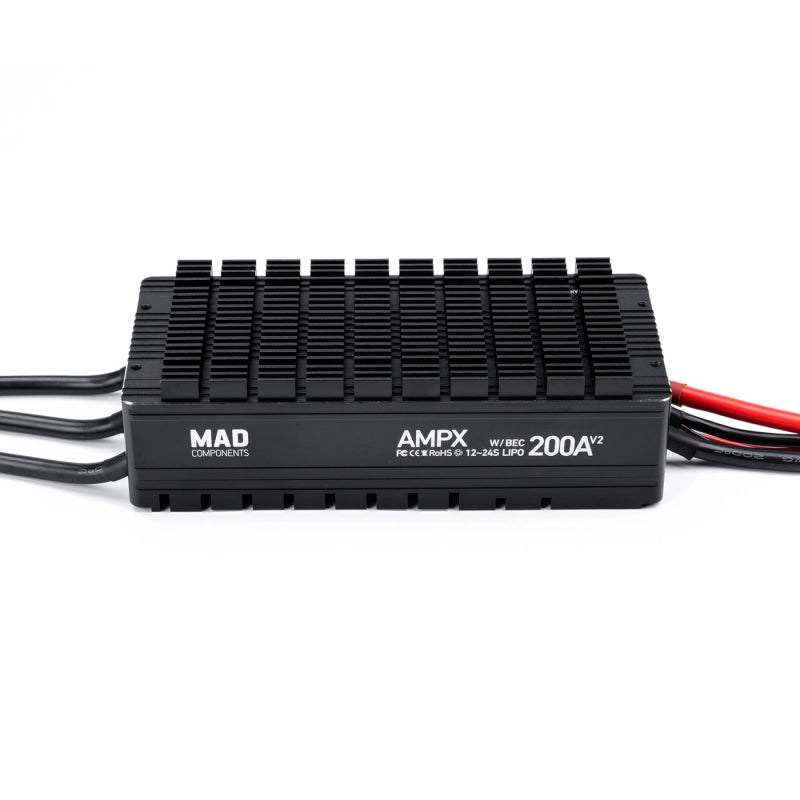

• Compact & Easy to Install: Measures approximately 80 mm (L) × 63 mm (W) × 45 mm (H), with well-placed mounting holes and cable routing.

Version Information

• V1.0: No CAN communication or BEC. Ideal for straightforward PWM control setups.
• V2.0: Includes CAN communication and a built-in BEC, enabling more advanced control and power distribution.
• V3.0: Tailored for electric paramotors and other ultra-high-power applications, featuring CAN communication for complex flight control needs.

Recommended Motor Compatibility
Works exceptionally well with the m50c35 pro EEE 35kv motor and other high-torque, low-kV motors. Ideal for heavy-load or extended-flight scenarios that demand consistent, efficient power output.

Technical Specifications

Installation & Usage Guidelines

• Power Connection: Ensure correct polarity and motor phase wiring, and use cables rated for the required current. Maintain input voltage within 40V–100V.
• Signal Wiring: Connect the signal cable to the flight controller or receiver (PWM) or to the CAN bus (V2.0 or V3.0). If using the BEC (V2.0), verify compatibility with the powered device.
• Cooling & Mounting: Provide adequate airflow around the ESC. Secure it on a suitable surface using screws, and consider additional heat sinking or thermal compound if needed.
• Testing & Maintenance: Begin with a low-load test to check motor direction, RPM, temperature, and protection mechanisms. Gradually increase the load and periodically inspect all connections and components.

Common Issues & Troubleshooting

• Motor Fails to Start: Verify battery voltage, wiring polarity, and signal output from the flight controller or receiver.
• Motor Vibration or Stuttering: Check motor wiring sequence, phase alignment, and flight controller motor mapping.
• Motor Overheating or Shutdown: Reduce load or improve cooling if overheat protection triggers. Confirm motor/propeller configuration is suitable for the application.
• Low Voltage Alarm: Ensure the battery has sufficient capacity and discharge rating, and recharge or replace if necessary.

Safety & Disclaimer

• Operate in compliance with local laws and regulations for high-power drones or electric aircraft.
• Prioritize safety of personnel and equipment; avoid flying in crowded or hazardous areas.
• Any modifications or use of non-original parts may lead to unpredictable risks or damage.
• Conduct regular inspections to keep all components, screws, and wiring secure.

Applicable Scenarios

• Professional multirotor or fixed-wing drones requiring heavy payload capacity or extended flight duration.
• Electric paramotor systems (V3.0) needing CAN-based advanced control and safety monitoring.
• Industrial robots, AGVs, and special-purpose vehicles demanding high voltage and current drive systems.
• Other high-power electric platforms such as electric surfboards and boats.

Conclusion
With wide 12–24S voltage support, 200A continuous current capability, multiple safety features, and optional CAN communication and BEC, the MAD AMPX 200A (12–24S) HV Drone ESC is an excellent choice for high-power drone and electric flight applications. Three available versions (V1.0, V2.0, and V3.0) cater to different control and power requirements. When paired with a high-torque motor like the m50c35 pro EEE 35kv, it delivers robust, efficient performance in demanding conditions, fulfilling the needs of professional users seeking power, reliability, and safety.

AMPX 200A V2 offers multi-protection for enhanced security. Features include dual throttle control, quick response, and CAN communication. It supports 12-24S lithium cells with protections against short circuits, stalls, voltage issues, temperature, throttle loss, and startup errors. Throttle calibration ensures optimal performance.

AMPX 200A HV ESC supports 12-24S lithium cells, with dimensions 161.0x72.2x46.8mm and weighs approximately 580g. Features include BEC, PWM input, online updates, various protections, CAN communication, and RPM signal output. Operating temperature is -20 to 65°C. Troubleshooting covers motor start issues, voltage problems, and overheating.

Operating voltage: 4.5-5.5V, power: 0.22-0.358W, brightness: 300 cd/m², refresh time: 0.3s, operating temperature: -20 to 55°C, storage temperature: 5 to 70°C, size: 68x38.2x16.6mm. Recommended power combos include ESCs, motors, and propellers with max thrust up to 90kg.

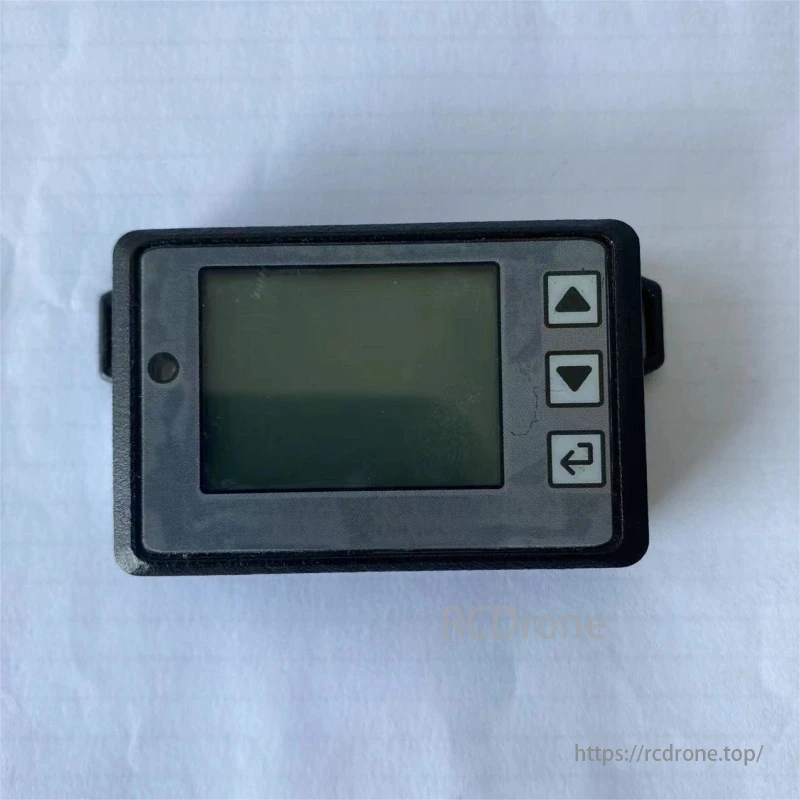

PPG Controller displays SOC, flight altitude, CAN status, ESC and motor temperatures. Features mode display, fall display interface, voltage, current. Includes up, down, power, and enter buttons for operation.
