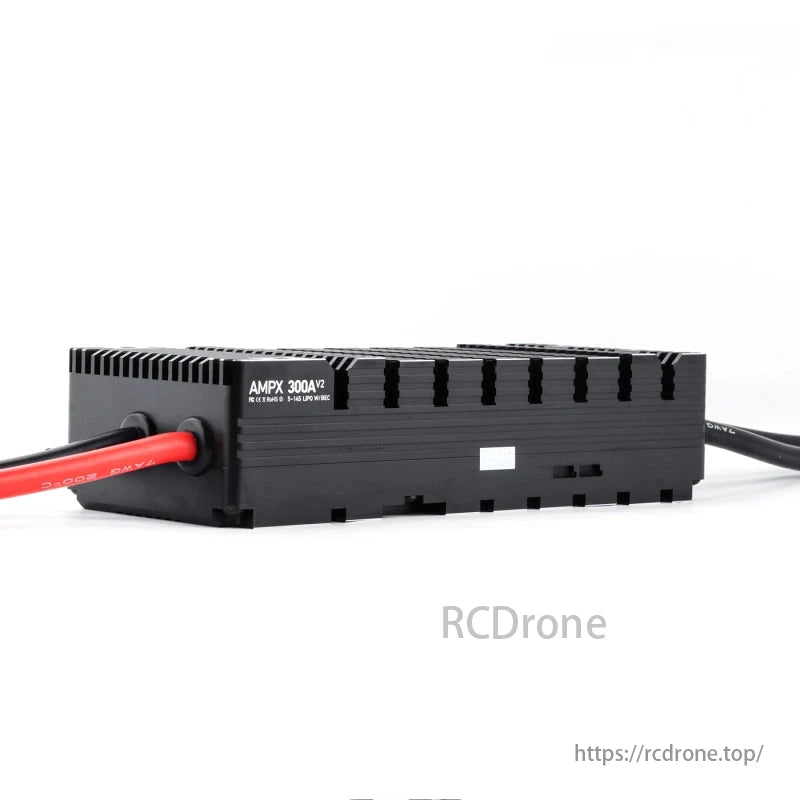

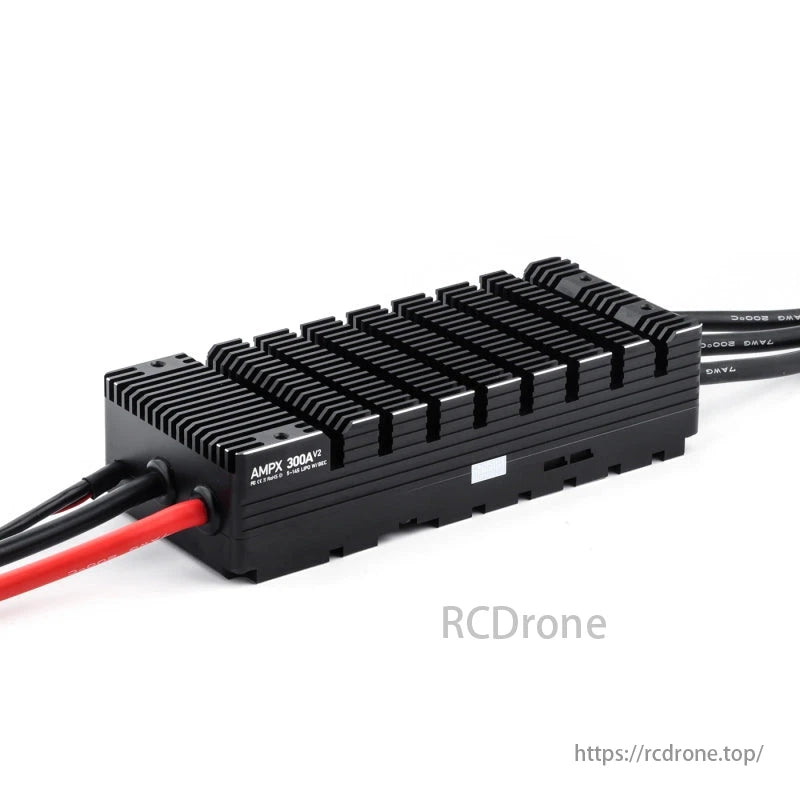

Overview
The MAD AMPX 300A HV ESC is a high-performance 5-14S lithium battery electronic speed controller (ESC) designed for demanding UAV applications. It delivers a continuous current of 300A with IPX4 protection for enhanced reliability. Featuring CAN communication, it enables real-time interaction with flight controllers. With dual throttle control (RPM + CAN) and firmware upgradability, it ensures superior performance and adaptability.
Key Features
- High Power Support: Operates on 5-14S LiPo (16V-64V) with a 300A continuous current rating.
- Ultra-Fast Response: Achieves full speed in just 0.28 seconds.
- Optimized for Disc Motors: Uses a specialized control algorithm for stability and efficiency.
- Synchronous Freewheeling Technology: Improves throttle linearity, efficiency, and energy recovery.
- CAN Communication: Real-time integration with flight control for status monitoring.
- Dual Throttle Control: Supports RPM signal & CAN digital throttle for precise control.
- Upgradeable Firmware: Ensures long-term adaptability through online updates.
- Overload Protection: Unlimited automatic restart capability.

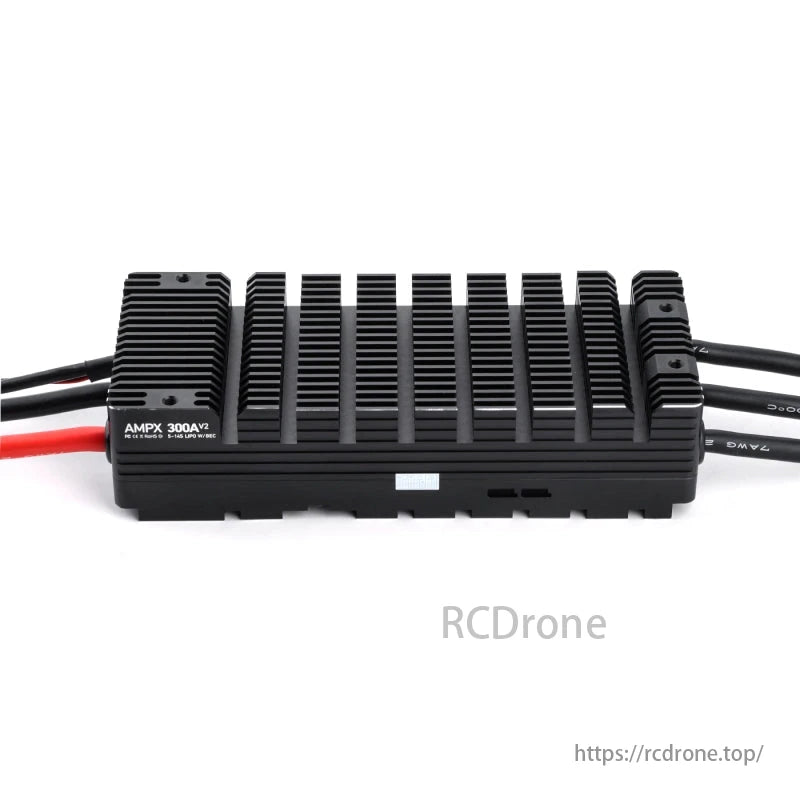

- Compact & Easy Installation: Features pre-drilled mounting holes.
Protection Functions
- Short Circuit Protection: Automatically shuts down output; requires manual power cycle for recovery.
- Stall Protection: Resets throttle to zero and gradually restores normal operation.
- Voltage Protection: Alarms if voltage drops below 16V or exceeds 64V.
- Temperature Protection: Reduces output when above 125°C, shutting down at 140°C, and restoring at 80°C.
- Throttle Loss Protection: Cuts power if no throttle signal is received for 2+ seconds.
- Startup Protection: Prevents ESC shutdown if motor fails to start within 10 seconds.

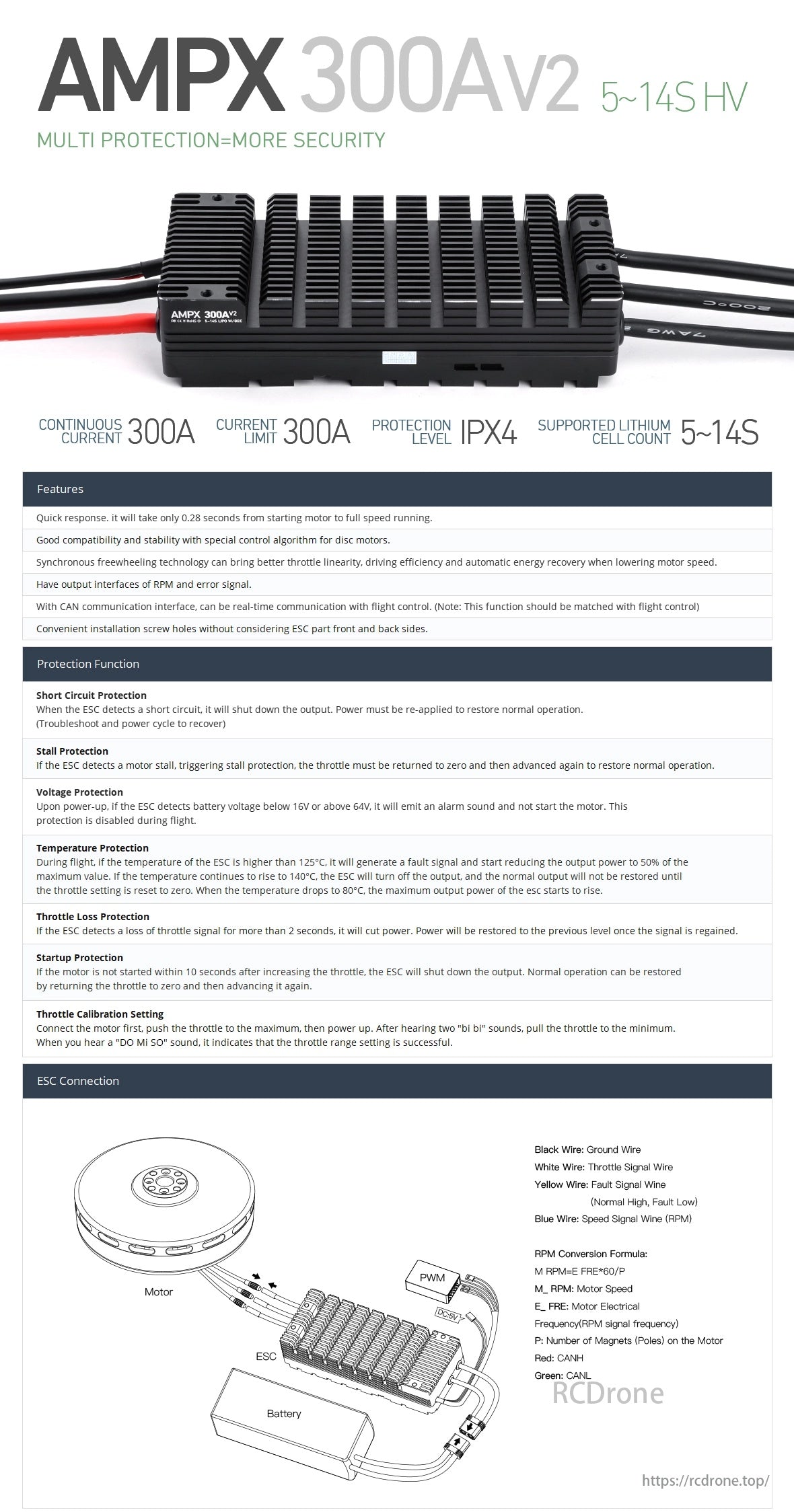

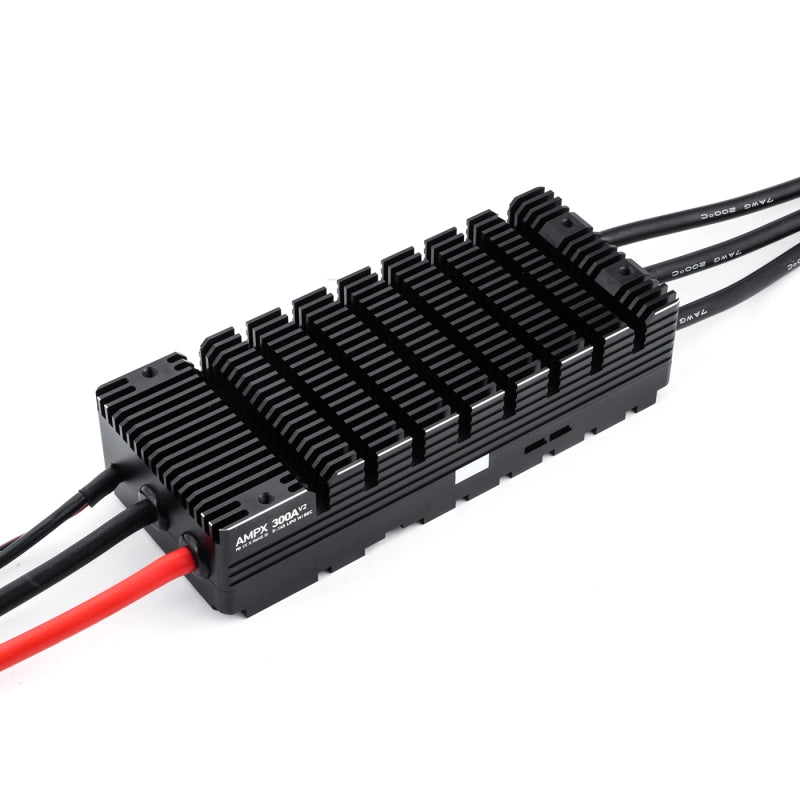

Technical Specifications
| Parameter | Details |
|---|---|
| Model | AMPX 300A HV ESC |
| Supported Battery | 5-14S Lithium |
| Continuous Current | 300A |
| Current Limit | 300A |
| BEC Output | 5V/200mA |
| PWM Input Voltage | 3.3V/5V (compatible) |
| Protection Level | IPX4 |
| Dimensions (LWH) | 176.0 * 73.0 * 42.8mm |
| Weight (excluding wires) | ~645g |
| Operating Temperature | -20°C to 65°C |
| Wire Length | 7AWG (Power: 200mm, Motor: 190mm), Signal: 420mm |

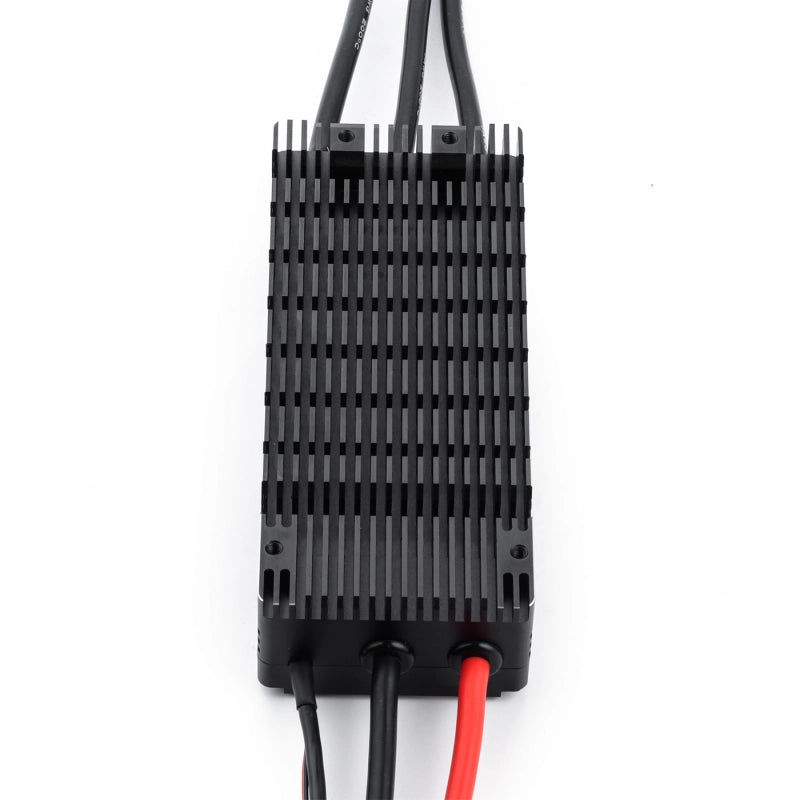

ESC Connection & Wiring
- Black Wire: Ground
- White Wire: Throttle Signal
- Yellow Wire: Fault Signal (Normal High, Fault Low)
- Blue Wire: RPM Signal
- Red Wire: CANH
- Green Wire: CANL

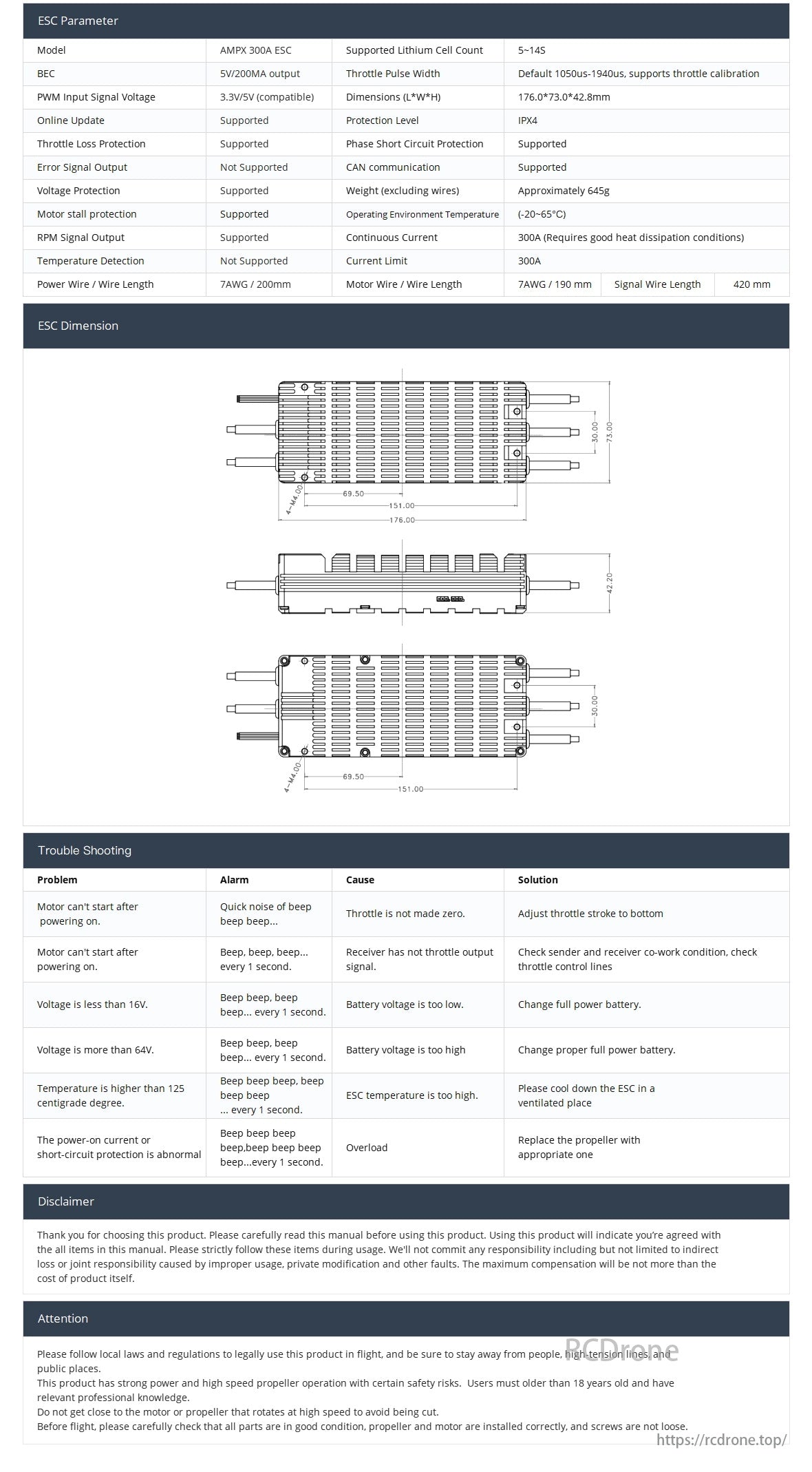

Troubleshooting Guide
| Issue | Alarm | Cause | Solution |
|---|---|---|---|
| Motor won’t start | Beeping sound | Throttle is not at zero | Adjust throttle to minimum |
| No motor response | Beep every second | No throttle signal from receiver | Check receiver and connections |
| Low voltage warning | Beep, beep… | Battery voltage below 16V | Use a fully charged battery |
| High voltage warning | Beep, beep… | Battery voltage exceeds 64V | Use an appropriate battery |
| Overheating | Rapid beeping | ESC temperature exceeds 125°C | Allow cooling before operation |
| Overload | Continuous beeping | Motor overload | Use a properly sized propeller |
Recommended Usage
- Compatible Motors: Works well with M30 IPE PRO.
- Recommended Version: V2.0 with CAN communication for real-time monitoring.
Price & Variants
- Version V2.0 (CAN communication & firmware upgradeable).
Safety & Compliance
- Follow local UAV regulations.
- Avoid contact with high-speed propellers.
- Ensure secure installation before operation.
Details
AMPX 300A V2 ESC offers multi-protection, supporting 5-14S HV. Features include quick response, disc motor compatibility, and CAN communication. Protection functions cover short circuit, stall, voltage, temperature, throttle loss, startup, and calibration. Wiring diagram details connections for motor, battery, and ESC.
AMPX 300A ESC supports 5-14S lithium cells, with dimensions 176.0x73.0x42.8mm and weighs approximately 645g. Features include BEC output, online update, various protections, CAN communication, and RPM signal output. Operating temperature is -20 to 65°C. Troubleshooting covers motor start issues, voltage limits, and overheating solutions. Disclaimer advises careful usage and safety precautions.
