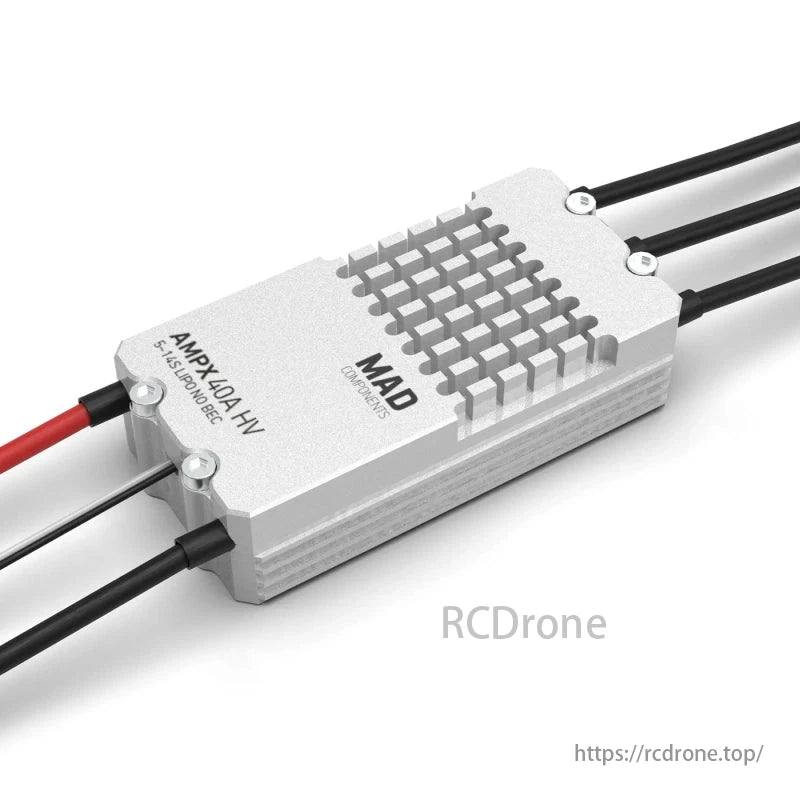

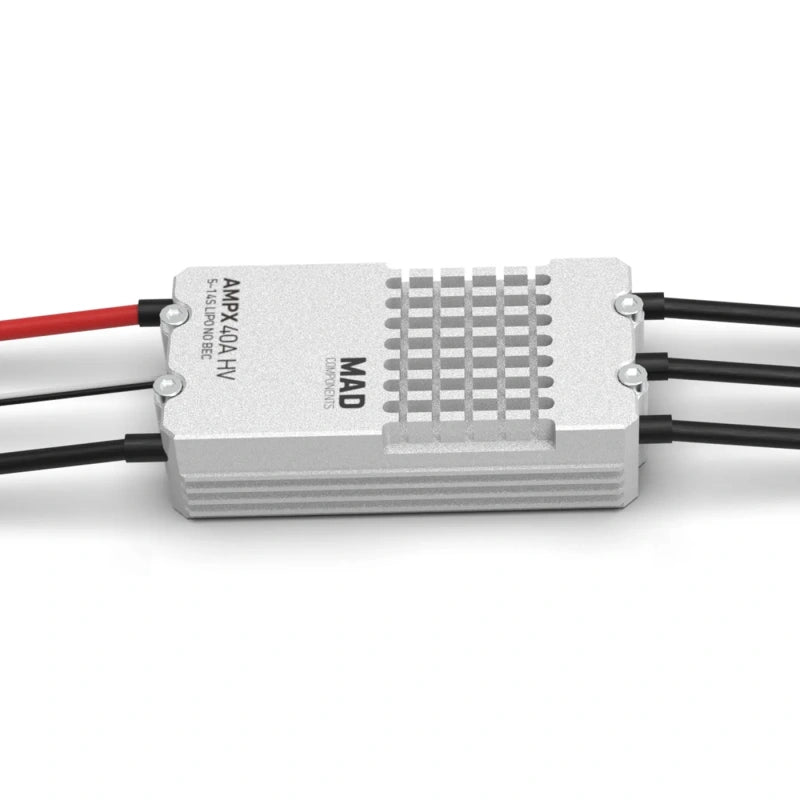

MAD AMPX 40A (5-14S) Drone ESC W/box – High-Performance HV ESC for Multirotors

Overview

The MAD AMPX 40A (5-14S) Drone ESC is a high-voltage electronic speed controller designed for powerful drone applications. Supporting 5-14S LiPo (16V-64V), it ensures high efficiency and reliability for large industrial, agricultural, and high-performance FPV drones. The AMPX 40A V2.0 introduces CAN communication, real-time telemetry, and dual throttle control (RPM + CAN) for enhanced precision and safety.

Key Features

• Supports 5-14S LiPo (16V-64V): Wide voltage range for high-power drone applications.
• Quick Response: Accelerates from start to full speed in just 0.25 seconds.
• IPX4 Protection: Enhanced water and dust resistance.
• Synchronous Freewheeling Technology: Improves throttle linearity, driving efficiency, and automatic energy recovery.
• Short Circuit, Overload, and Stall Protection: Ensures safe operation in all conditions.

V2.0 Enhanced Features

• Dual Throttle Control (RPM + CAN): Provides real-time control and accuracy.
• Firmware Upgradeable: Keeps the ESC updated with latest features and improvements.
• Unlimited Automatic Restart on Overload: Enhances system stability.
• CAN Communication: Enables real-time monitoring of voltage, current, temperature, and operational status.

Specifications

Protection Functions

• Short Circuit Protection: Shuts down output in case of a short circuit.
• Stall Protection: Stops motor operation if a stall is detected.
• Voltage Protection: Emits an alarm if the battery voltage falls below 16V or exceeds 64V.
• Temperature Protection: Reduces power output if the temperature exceeds 125°C; fully shuts down at 140°C.
• Throttle Loss Protection: Cuts power if the throttle signal is lost for more than 2 seconds.
• Startup Protection: Shuts down if the motor is not started within 10 seconds of increasing throttle.

Installation & Usage

• Throttle Calibration Required: Ensures smooth operation and precise throttle response.
• Motor Wiring Diagram Included for proper connection setup.

Recommended Upgrade

For better stability and real-time telemetry, the AMPX 40A V2.0 with CAN communication is highly recommended.

Details

AMPX 40A ESC offers multi-protection for enhanced security. Features include quick response, good compatibility with disc motors, and synchronous freewheeling technology. Protection functions cover short circuit, stall, voltage, temperature, throttle loss, startup, and calibration settings. Continuous current is 40A, with a current limit of 48A.

AMPX 40A ESC HV dimensions: 61x30.44x15.6mm, IPX4 protection, supports 5-14S LiPo, 40A continuous current, PWM input 3.3V/5V, motor wire 16AWG/380mm, signal wire 420mm. Trouble shooting includes motor start issues, voltage limits, and temperature warnings. Disclaimer advises careful usage and legal compliance.

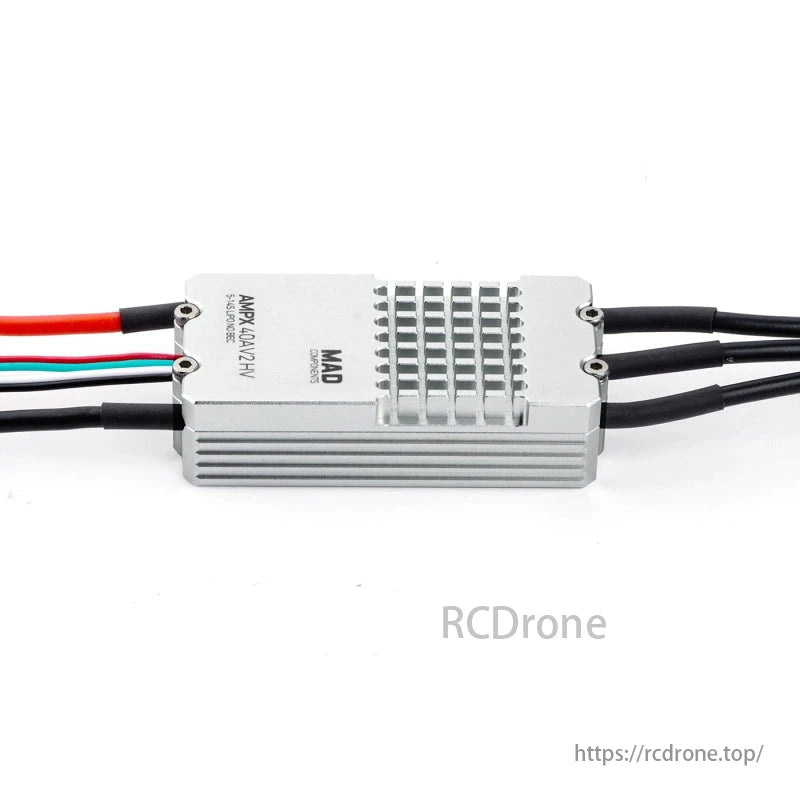

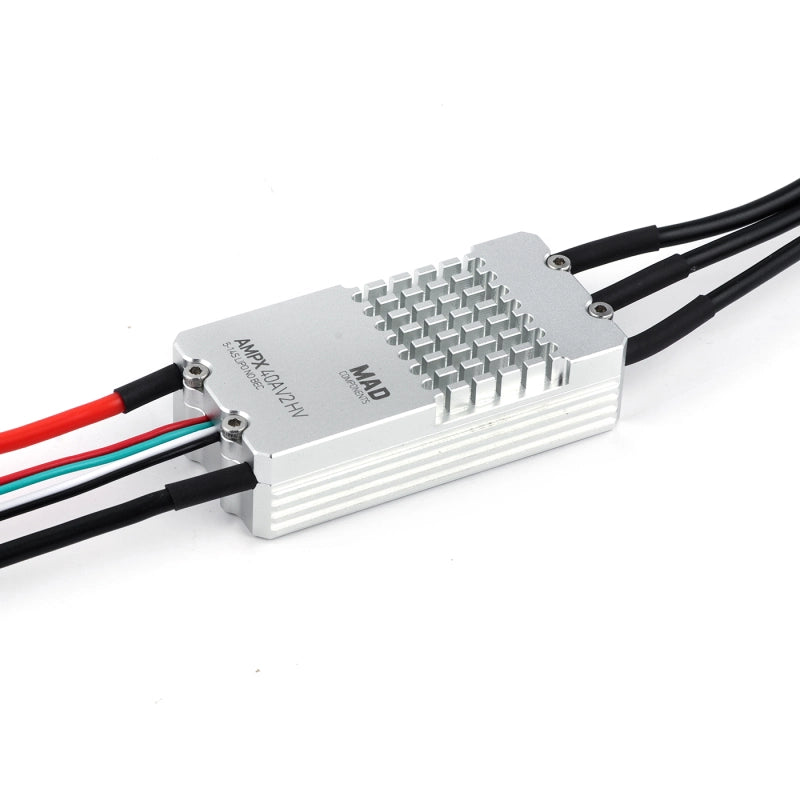

AMPX 40Av2 offers multi-protection for enhanced security. Features include quick motor response, disc motor compatibility, and CAN communication. Protection functions cover short circuits, stalls, voltage, temperature, throttle loss, and startup issues. Throttle calibration ensures successful signal range setting.

AMPX 40A ESC HV supports 5-14S lithium cells, with dimensions 62.2x31.0x16.0mm and a weight of approximately 60g. It features IPX4 protection, phase short circuit protection, and CAN communication. Operating temperature is -20 to 65°C, with a continuous current of 40A. Trouble shooting includes motor start issues and voltage/temperature alerts.
