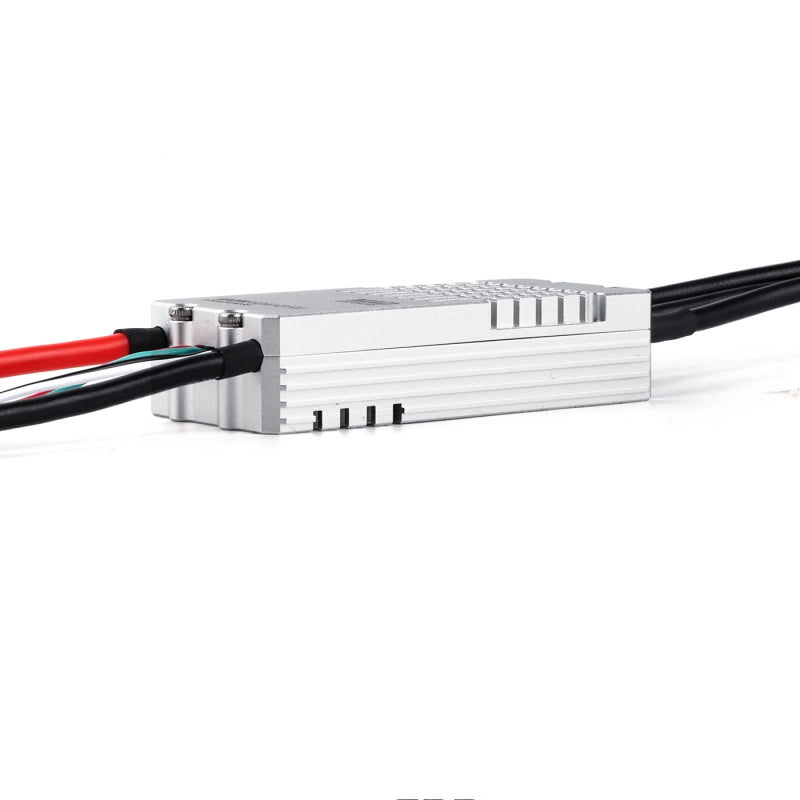

MAD AMPX 60A (5-14S HV) Drone ESC Support PWM + CAN

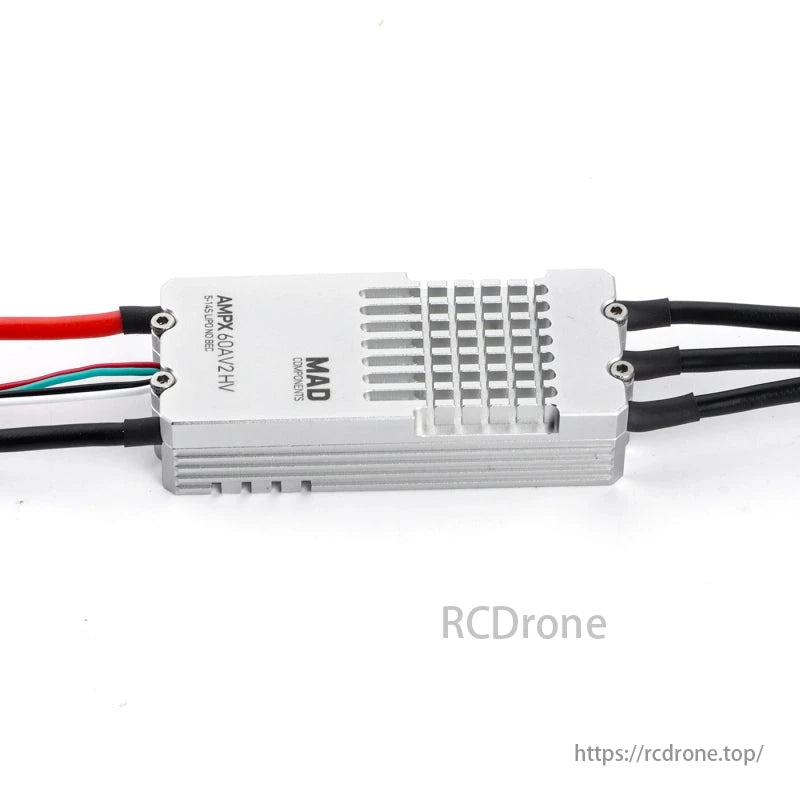

Overview

The MAD AMPX 60A V2.0 ESC is a high-performance electronic speed controller (ESC) designed for drone applications, supporting 5-14S LiPo batteries (16V-64V). With a continuous current of 40A and a peak current limit of 48A, this IPX4-rated ESC ensures efficient performance, superior protection, and seamless CAN communication for real-time flight control monitoring. The V2.0 model introduces dual throttle control (PWM + CAN), automatic overload restart, and firmware upgradability, making it an excellent choice for professional UAV applications.

Key Features

• Supports 5-14S LiPo (16V-64V)
• Dual throttle control (PWM + CAN)
• Continuous current: 40A | Peak current: 48A
• IPX4 protection level – Water and dust resistance
• Firmware upgradeable for future enhancements
• Overload protection with automatic restart
• Real-time CAN communication for voltage, current, temperature, and operational status
• Fast motor response – only 0.25s from idle to full speed
• Optimized algorithm for disc motors ensuring high compatibility and smooth operation
• Synchronous freewheeling for improved efficiency and energy recovery
• Throttle calibration support for precise motor control

Protection Functions

• Short Circuit Protection – Auto shut-off with 100ms recovery.
• Stall Protection – Throttle reset required for reactivation.
• Voltage Protection – Prevents startup below 16V or above 64V.
• Temperature Protection – Reduces power output at 125°C, auto shutdown at 140°C, and restores at 80°C.
• Throttle Loss Protection – Cuts power if signal is lost for over 2 seconds.
• Startup Protection – Ensures safety by requiring throttle reset if the motor fails to start.

ESC Parameters

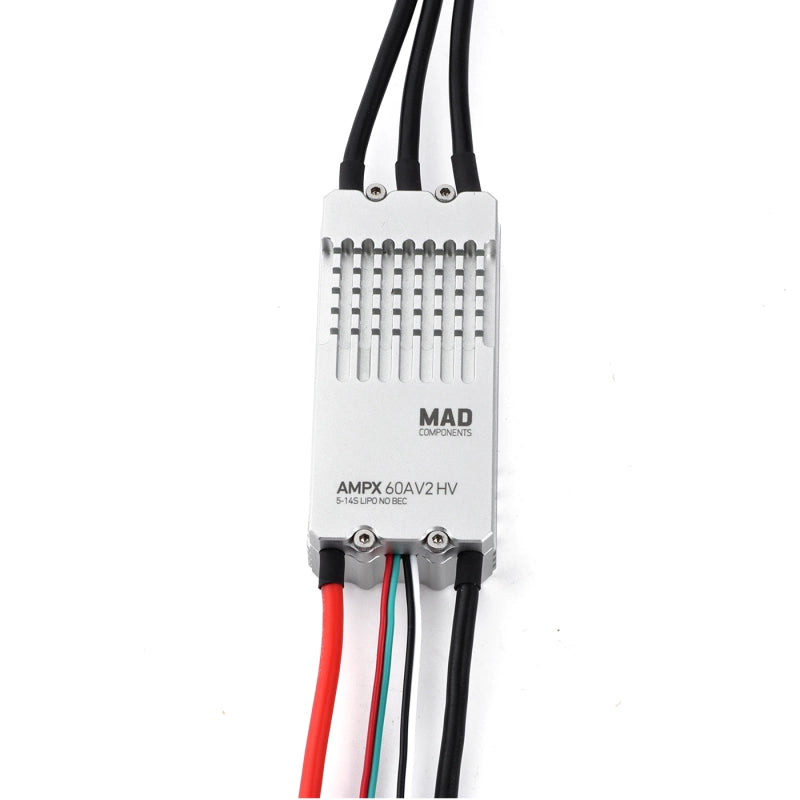

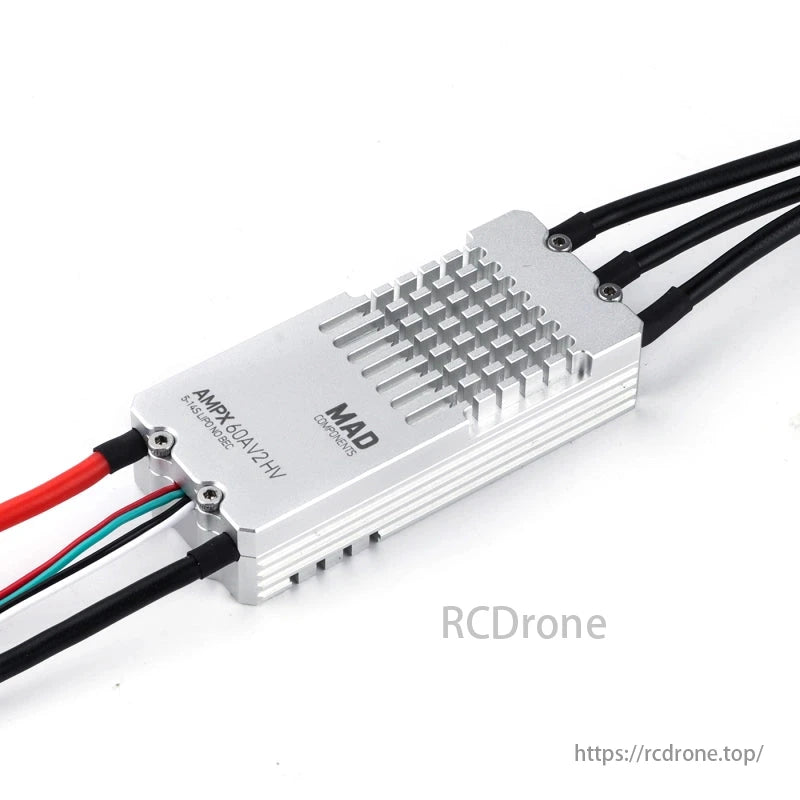

ESC Connection Guide

• Black Wire – Ground Wire
• White Wire – Throttle Signal Wire
• Red Wire – CANH
• Green Wire – CANL

The AMPX 60A V2.0 supports CAN communication, allowing real-time monitoring of voltage, current, temperature, and operational status through flight control.

Troubleshooting Guide

Why Choose MAD AMPX 60A V2.0 ESC?

1. Advanced CAN Integration – Provides seamless real-time communication with flight control for enhanced safety and monitoring.
2. Reliable Protection Features – Short-circuit, stall, voltage, and temperature protections ensure maximum safety and performance.
3. Optimized for Drone Applications – Specifically designed for high-performance UAV systems, ensuring efficient and smooth operation.
4. Future-Proof with Firmware Upgradeability – Keep your ESC up to date with future firmware updates.
5. Enhanced Energy Efficiency – Synchronous freewheeling improves throttle linearity, driving efficiency, and motor lifespan.

The MAD AMPX 60A V2.0 ESC is the ideal choice for UAV enthusiasts and professionals, offering powerful protection, CAN communication, and firmware upgradeability. Whether you're building a high-performance drone or upgrading your existing flight system, this high-voltage ESC delivers efficiency, reliability, and cutting-edge features.

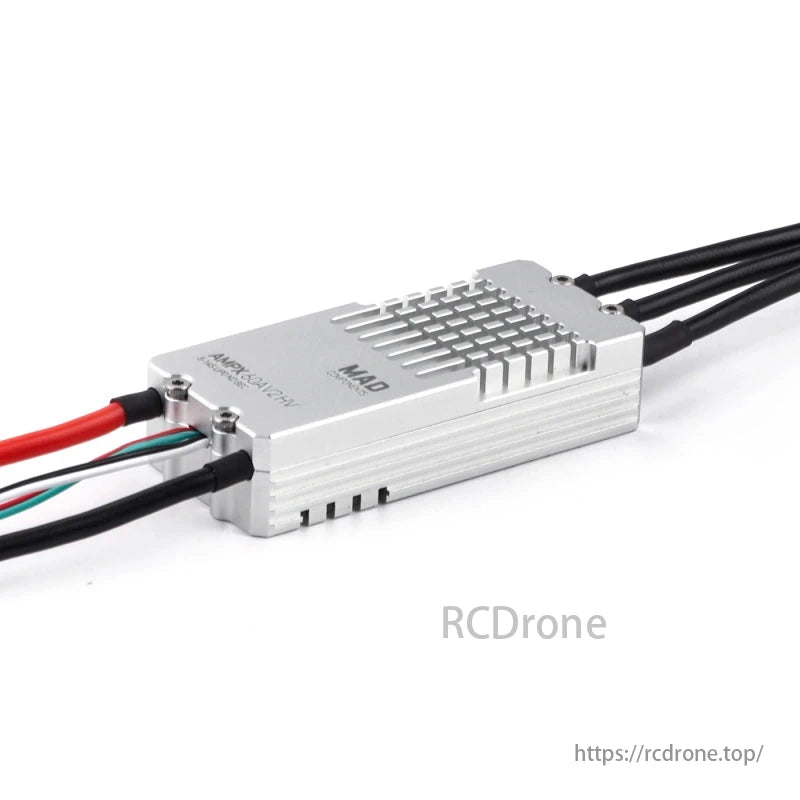

Details

AMPX 60Av2 ESC offers multi-protection, supporting 5-14S HV. Features include quick response, disc motor compatibility, and CAN communication. Protection functions cover short circuit, stall, voltage, temperature, throttle loss, startup, and calibration. Continuous current is 40A with a 48A limit.
