MAD AMPX FOC 60A (5-14S) ESC - WaterProof Regulator ESC for large and heavy delivery multirotor

MAD AMPX FOC 60A (5-14S) ESC - WaterProof Regulator ESC for large and heavy delivery multirotor

MAD

$125.00 USD
$125.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

MAD AMPX 60A FOC (5-14S) ESC SPECIFICATIONS

Brand Name: MAD COMPONENTS

Is Electric: No battery

Origin: Mainland China

Material: Plastic

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

Size: 60A

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: RoHS

Upgrade Parts/Accessories: ESC

Remote Control Peripherals/Devices: ESC

Tool Supplies: Assembled class

Quantity: 1 pcs

Model Number: AMPX ESC 60A (5-14S) W/BOX

Technical Parameters

Model AMPX 60A HV
BEC No
PWM Input Signal Voltage 3.3V/5V (compatible)
Online Update Not available
Throttle Loss Protection Available
Phase Short Circuit Protection Available
Size (LWH) 7131.4415.8 mm
Power Line 14 AWG / 75 mm
Battery Section 5~14S
Recommended Battery 12S Compatible
Signal Frequency 50~500Hz Current
Protection Available
Stall Protection Available
Error Signal Output Not available
Protection Level IPX4
Motor Line 14 AWG / 35 mm
Continuous Current 60A (under good cooling conditions)
Instant Current 80A (under good cooling conditions)
Throttle Pulse Width Default 1050us-1940us, throttle adjustment is available
Voltage Protection Available
Temperature Protection Available
Unit Weight 68 g
Working Environmental Temperature -20~65 ℃
MAD AMPX FOC 60A (5-14S) ESC, Waterproof ESC for large, heavy multirotors.

AMPX ESC 60A (5-14S) W/BOX

Specially designed for efficient drone motors.
Supports 5-14S, max input voltage 61V. Max continuously working current 60A. Only weighs 68g (with leads).
Optimized cooling design
Only take 0.25 seconds from starting motor to full speed running
DEO technology significantly improves throttle linearity and driving efficiency, and automatic energy recovery when lowering motor speed

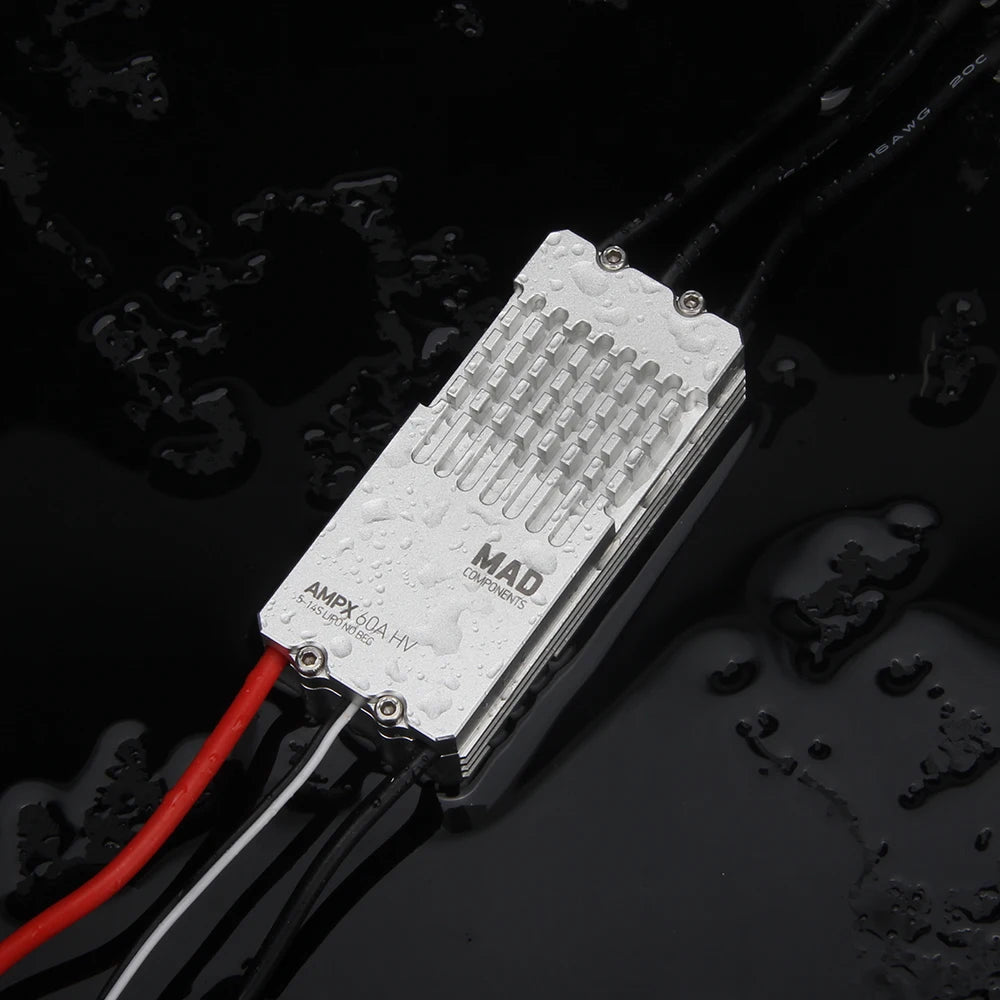

High protection level IPX4, water resistant, works well under harsh environment.

Motor Test Benchmarks

MAD AMPX FOC 60A (5-14S) ESC, LiPo battery regulator for drone motors with efficient cooling and high current output.MAD AMPX FOC 60A (5-14S) ESC, Quick response drone feature: stabilizes hovering and cruising with optimal throttle and energy recovery.MAD AMPX FOC 60A (5-14S) ESC, Reliable ESC for harsh environments: water-resistant, durable, and protected against overcurrents, surges, and stalling.MAD AMPX FOC 60A (5-14S) ESC, Waterproof regulator for heavy-duty quadcopters, ensuring reliable performance and durability in harsh environments.MAD AMPX FOC 60A (5-14S) ESC, Waterproof regulator for large multirotors, ensuring safe delivery.MAD AMPX FOC 60A (5-14S) ESC, Waterproof regulator for large, heavy drones used in multirotor deliveries.

Company Profile

MAD AMPX FOC 60A (5-14S) ESC, Waterproof regulator for large, heavy drones with multi-rotors.

FAQ

MAD AMPX FOC 60A (5-14S) ESC, Waterproof regulator for large, heavy drones; ideal for multi-rotors and delivery applications.
MAD AMPX FOC 60A (5-14S) ESC, Waterproof regulator for large, heavy-duty multirotors, ideal for deliveries.

Certifications
