Overview

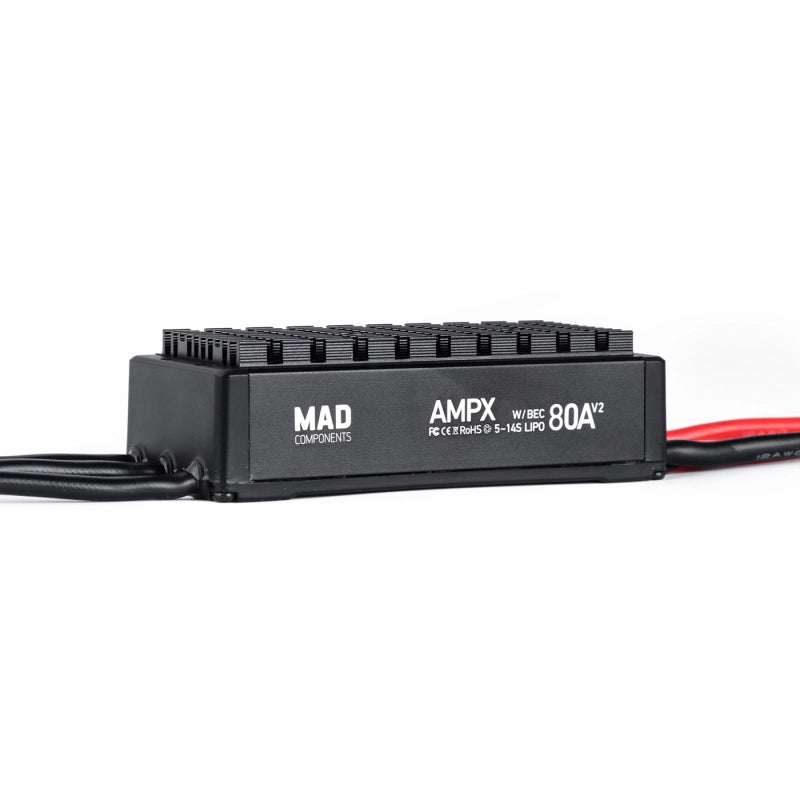

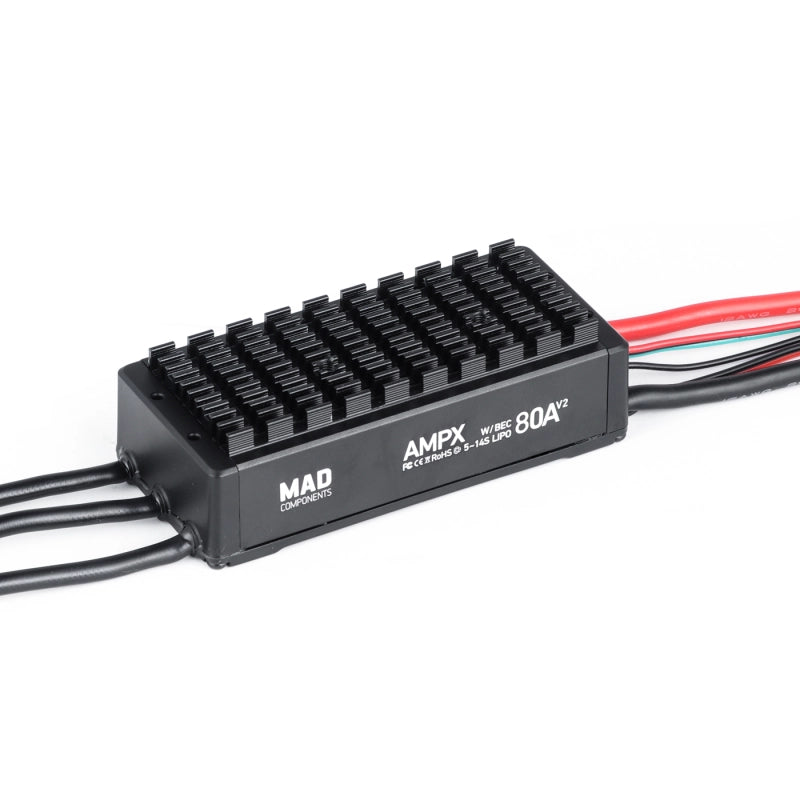

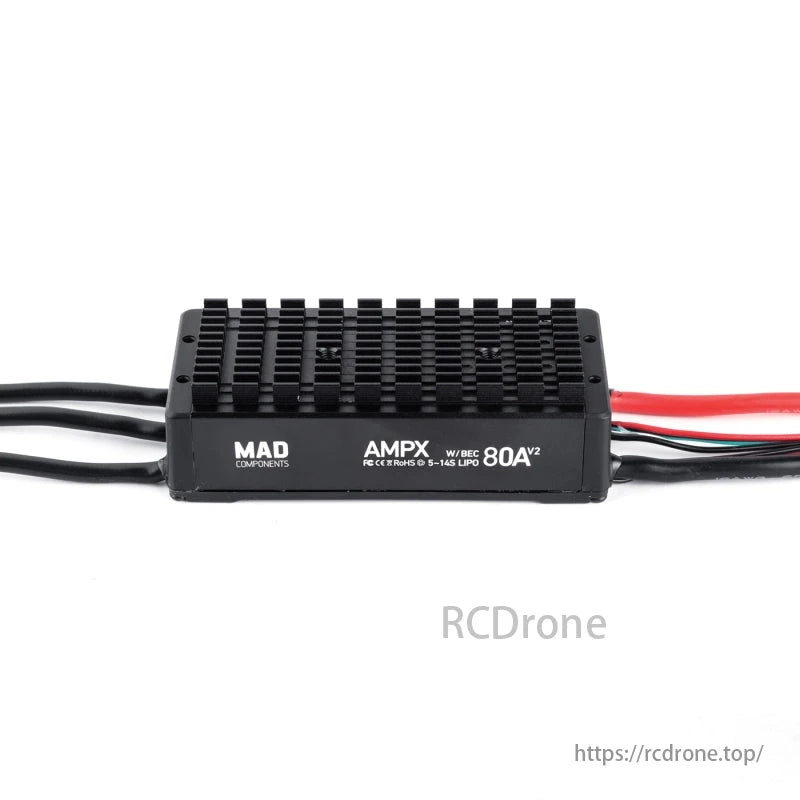

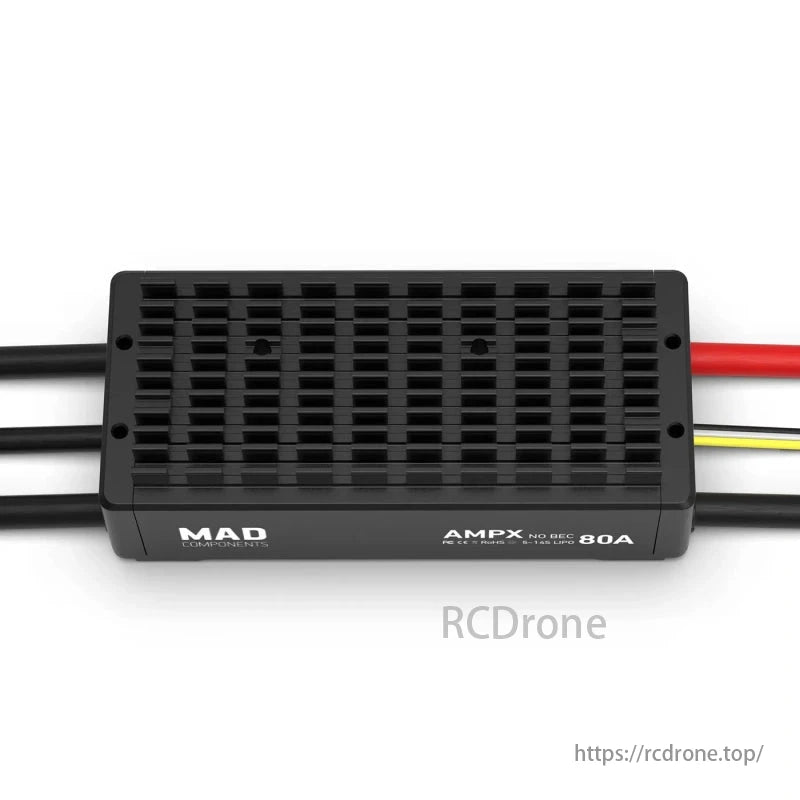

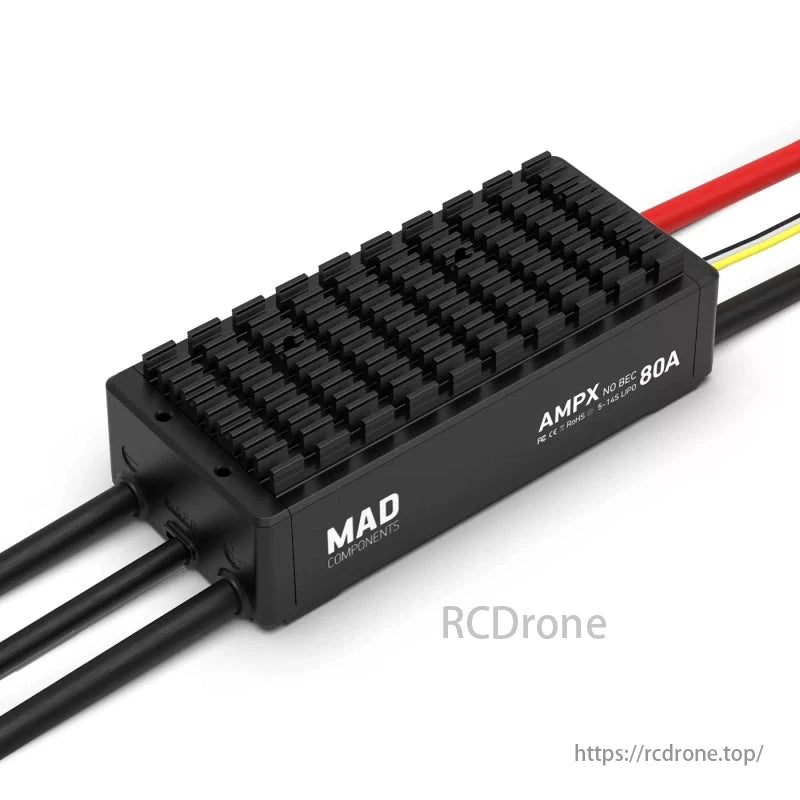

The MAD AMPX 80A (5-14S) Drone ESC is a high-power electronic speed controller designed for UAV applications, offering exceptional reliability, efficiency, and protection. It supports 5-14S LiPo batteries (16V-64V) and features CAN communication, dual throttle control (RPM+CAN), and an IP67-rated waterproof and dustproof design. This ESC comes in two versions (V1.0 and V2.0), with the V2.0 version featuring enhanced performance and upgraded firmware compatibility.
Key Features
- High Continuous Current Handling: Supports 80A continuous current with 84A peak current limit.
- Wide Voltage Compatibility: Works with 5-14S LiPo batteries (16V-64V).
- CAN Communication Interface (V2.0): Enables real-time data exchange with flight controllers, providing voltage, current, temperature, and operational status.
- Firmware Upgradeable (V2.0): Allows updates for enhanced functionality.
- Integrated BEC (V2.0): Provides 5V/200mA output for additional power supply needs.
- IP67 Protection Level: Fully waterproof, dustproof, and corrosion-resistant.

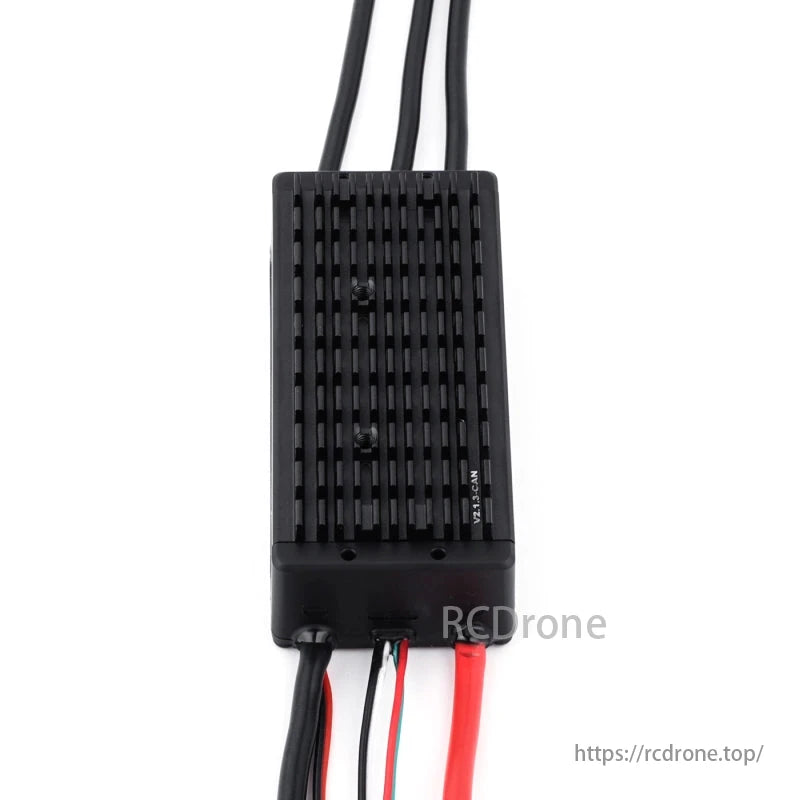

- Optimized Cooling Design: Includes a high-efficiency aluminum heat sink for superior heat dissipation.
- Overload Protection: Unlimited automatic restart for enhanced safety.
- Advanced Throttle Control: Supports RPM + CAN dual throttle mode.
- Convenient Installation: Integrated mounting screw holes ensure easy installation without considering front and back sides.
Protection Functions
- Short Circuit Protection: Automatically shuts down output in case of short circuit. Power must be re-applied to restore normal operation.
- Stall Protection: If a motor stall is detected, the throttle must be reset to zero before resuming.
- Voltage Protection: If the ESC detects voltage below 16V or above 64V, it will emit an alarm and disable flight.
-
Temperature Protection:
- At 125°C, the ESC reduces output power to 50%.
- At 140°C, the ESC shuts down completely.
- Normal output is restored when the temperature drops to 80°C.
- Throttle Loss Protection: If the ESC detects a loss of throttle signal for over 2 seconds, it cuts power and restores it once the signal is regained.
- Startup Protection: If the motor does not start within 10 seconds, the ESC shuts down to prevent damage.
- Throttle Calibration Setting: A DO MI SO sound confirms a successful throttle range setting.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | AMPX 80A ESC |
| Supported Battery | 5-14S LiPo (16V-64V) |
| BEC Output (V2.0 only) | 5V / 200mA |
| PWM Input Signal Voltage | 3.3V / 5V (compatible) |
| Protection Level | IP67 (Waterproof and Dustproof) |
| Continuous Current | 80A |
| Peak Current (5s) | 84A |
| Throttle Pulse Width | 1050us-1940us (supports throttle calibration) |
| Error Signal Output | Supported |
| CAN Communication (V2.0 only) | Supported |
| Phase Short Circuit Protection | Supported |
| Operating Temperature | -20°C to 65°C |
| Dimensions (LWH) | 79.6 × 36 × 23.5 mm |
| Weight (excluding wires) | Approx. 190g |
| Power Wire / Wire Length | 12AWG / 800mm |
| Motor Wire / Wire Length | 12AWG / 150mm |
| Signal Wire Length | 1000mm |
ESC Connection Guide
- Black Wire: Ground wire
- White Wire: Throttle signal wire
- Yellow Wire: Fault signal wire
- Orange Wire: RPM signal wire (V2.0 only)
- Red Wire: CANH (V2.0 only)
- Green Wire: CANL (V2.0 only)
Troubleshooting Guide
| Problem | Alarm | Cause | Solution |
|---|---|---|---|
| Motor won’t start | Beep beep beep… | Throttle not at zero | Adjust throttle to bottom |
| Voltage below 16V | Beep beep… every second | Battery voltage too low | Use a fully charged battery |
| Voltage above 64V | Beep beep… every second | Battery voltage too high | Use an appropriate battery |
| Temperature exceeds 125°C | Beep beep beep beep… | ESC overheating | Cool down ESC in a ventilated area |
| Short-circuit detected | Beep beep beep beep… | Overload | Replace propeller with a suitable one |
Applications
- Professional Drone Builds
- FPV Racing & Freestyle
- Aerial Photography & Videography UAVs
- Industrial & Heavy-Lift Drones
- Fixed-Wing & VTOL Aircraft
Safety & Compliance
- Follow local flight regulations for legal drone operation.
- Users must be over 18 years old and have technical knowledge of ESC operation.
- Keep hands and body away from the propeller during operation.
- Verify all connections before flight to ensure safety.
Details
AMPX 80A ESC offers multi-protection, supporting 5-14S lithium cells. Features include quick response, good compatibility, synchronous freewheeling, and IP67 waterproofing. Protection functions cover short circuits, stalls, voltage, temperature, throttle loss, startup, and calibration settings. Continuous current is 80A with a limit of 84A.
AMPX 80A ESC features dimensions of 79.6x36x23.5mm, IP67 protection, and supports 5-14S LiPo cells. It includes various protections like throttle loss, stalled motor, and temperature. Troubleshooting covers issues like motor start failure and voltage problems. Disclaimer advises careful usage and legal compliance for safe operation.
AMPX 80Av2 offers multi-protection for enhanced security. It supports 5-14S HV, with a continuous current of 80A and a current limit of 84A. Features include quick response, good compatibility, synchronous freewheeling, CAN communication, IP67 protection, and convenient installation. Protection functions cover short circuit, stall, voltage, temperature, throttle loss, and startup.
AMPX 80A ESC supports 5-14S LiPo, with BEC output and CAN communication. Dimensions: 79.6x36.0x23.5mm, weight: 90g. Features include online update, throttle loss protection, voltage/motor stall protection. Operating temp: -20 to 65°C. Troubleshooting covers motor start issues, voltage limits, and temperature alerts. Disclaimer advises legal use and safety precautions.
