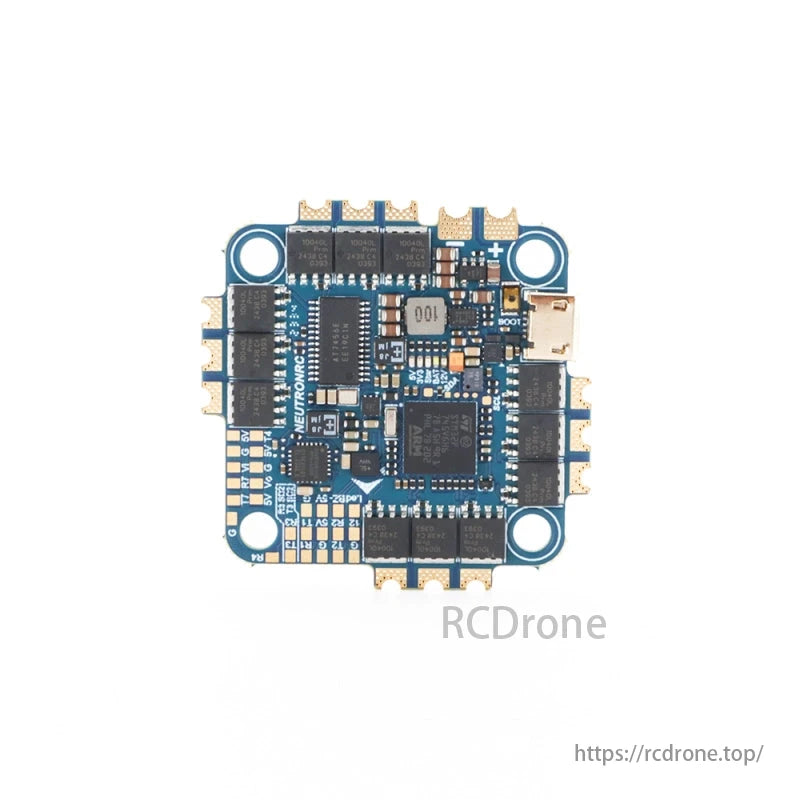

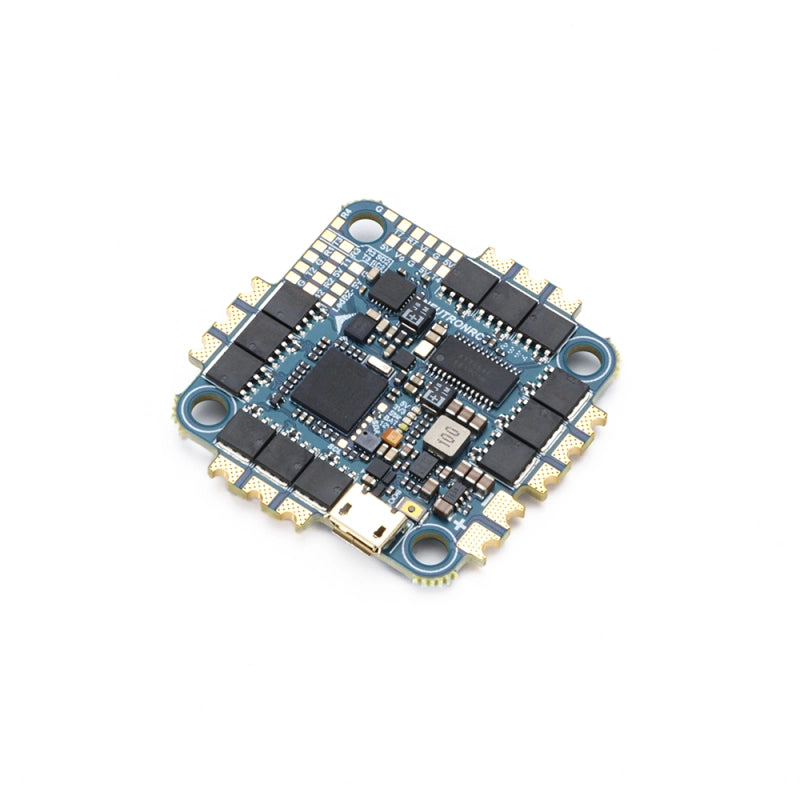

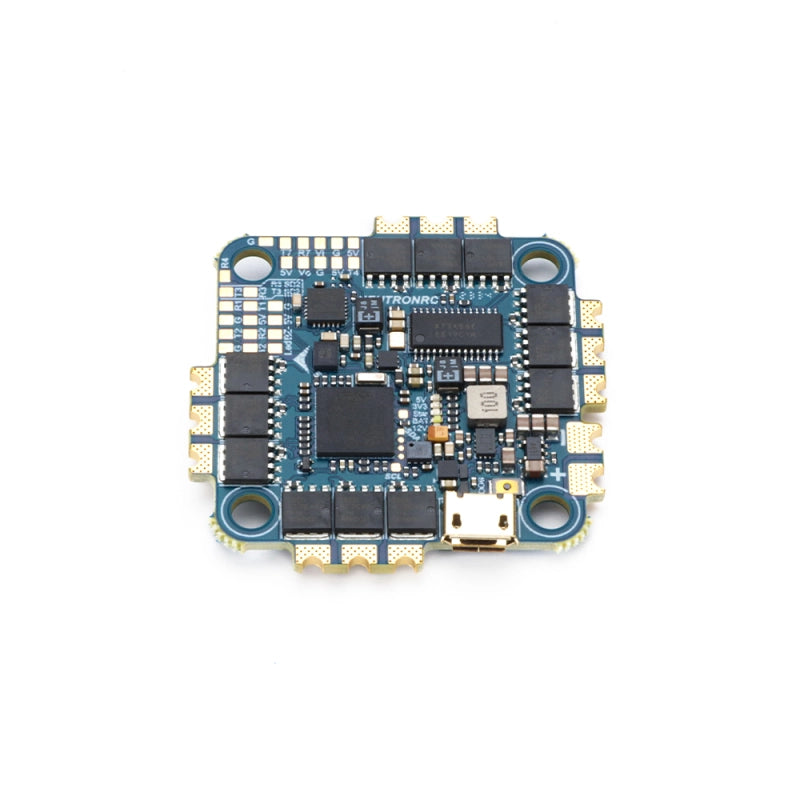

MAD F745 80A 3-8S G30.5 AIO Flight Controller

Overview

The MAD F745 80A 3-8S G30.5 AIO Flight Controller is a high-performance all-in-one (AIO) flight controller designed for 5-10 inch FPV drones. Featuring a powerful STM32F745VGH6 MCU, dual gyro configuration, and BLHeli_32 ESC firmware, this flight controller provides exceptional processing power, stability, and flight precision. With dual BEC outputs (5V 1.5A & 12V 1.5A), a built-in OSD, and a comprehensive power management system, this unit ensures smooth and efficient performance for high-speed FPV racing and freestyle drones.

Key Features

• Enhanced Firmware Support – Preloaded with Betaflight firmware, supporting Betaflight 4.5 for MPU6000 and enhanced BMI270 presets.
• Advanced Dual Gyro Configuration – Equipped with MPU6000 (SPI2) and BMI270 (SPI1) for precision flight control.
• High-Performance MCU – STM32F745VGH6 with a 216MHz clock speed and 1MB Flash, ensuring fast processing and low latency.
• Integrated BLHeli_32 ESC Firmware – Delivers efficient motor control with 80A (6S) / 65A (8S) current support.
• Versatile Mounting Compatibility – 30.5×30.5mm mounting pattern, compatible with a wide range of FPV drone frames.
• Comprehensive Power Management – Dual BECs (5V 1.5A & 12V 1.5A), current sensor (Scale 50), and voltage sensor (Scale 210).
• Integrated OSD & Blackbox – Built-in AT7456E OSD for real-time flight data and 32MB SPI Flash blackbox for flight logging.
• DJI/Vista Compatibility – Features SH1.0-6pin connector for plug-and-play compatibility with DJI Vista and Air Unit.
• Optimized for 5-10 Inch Drones – Supports 3-8S LiPo input for various drone sizes, including long-range and cinematic drones.

Technical Specifications

Frame Compatibility

• 3-8S 60A for 5-7 inch frames
  • 8S: 2207 1700KV, 2306.5 1700KV, 2505 1550KV, 28XX 1700KV motors
  • 6S: Standard motor configurations
• 3-8S 80A for 5-10 inch frames
  • 8S: 10-inch 3110 900kV motors
  • 6S: 10-inch 3110 1250KV motors
