MAD FLUXER Matt Pro 13x4.4 Inch Carbon Fiber Drone Propeller

Overview

Lightweight 14.7g, thrust up to 3.6kg, optimized for 5000–8000RPM, 6mm mounting hole, 13x4.4” CW/CCW pair.

Key Features

• Made from uni-/bi-directional carbon fiber prepreg with balsa core

• Super fast response & high rigidity

• Optimized performance at low RPM

• Matt finish over woven carbon fiber

• Excellent efficiency with max thrust up to 1807g at 7980RPM

• Designed for competitive performance at a competitive price

Recommended Configuration

Performance Test Data

Specifications

• Size: 330.2 × 111.8 mm

• Weight (Single): 14.7g

• Material: High-quality carbon fiber + resin

• Surface Finish: Polished/Matt

• Working Temp: –40°C to 65°C

• Optimum RPM: 5000–8000 RPM

• Max Single Thrust: 3.6kg

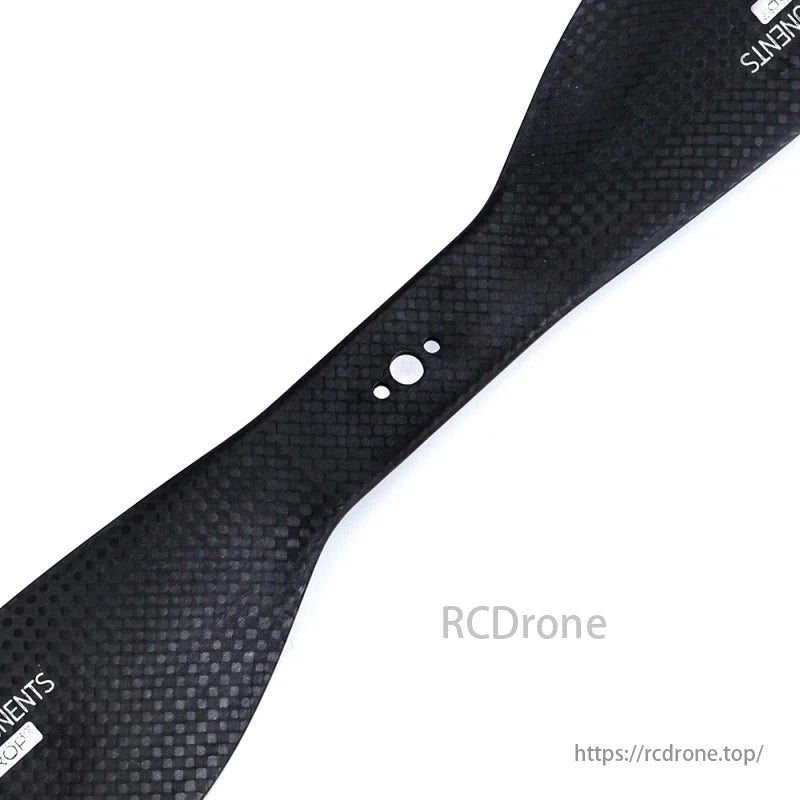

• Mounting Hole: 6mm

• Storage Temp: –10°C to 50°C

• Humidity: <85%

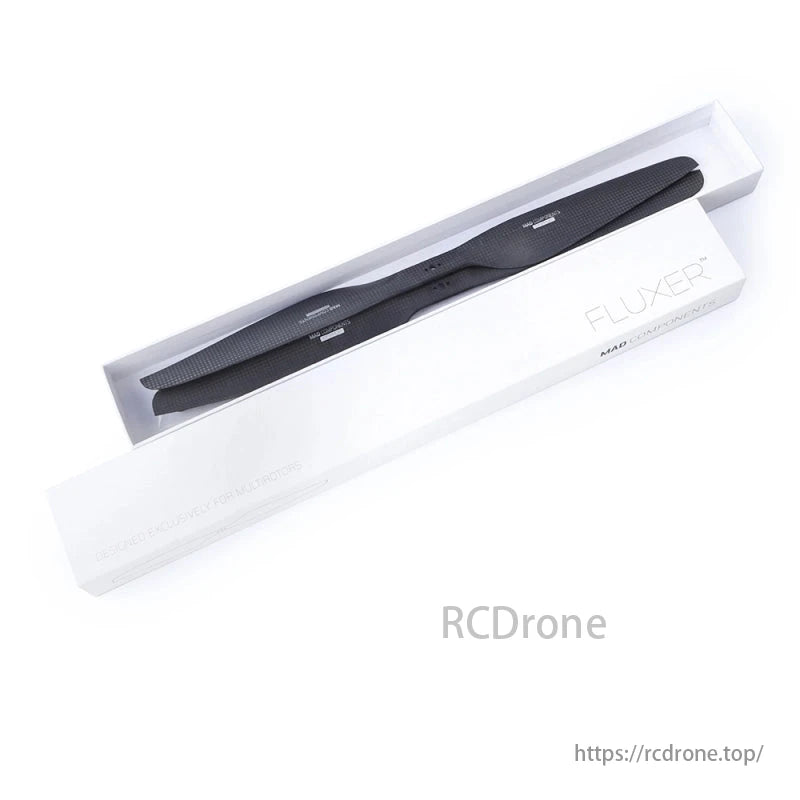

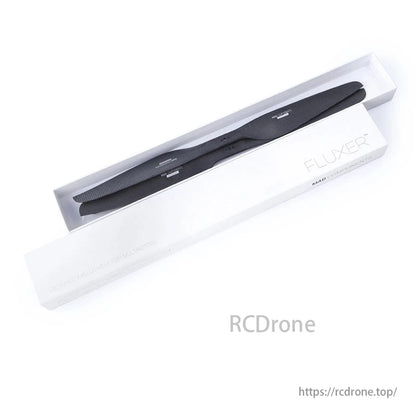

• Package: Color box

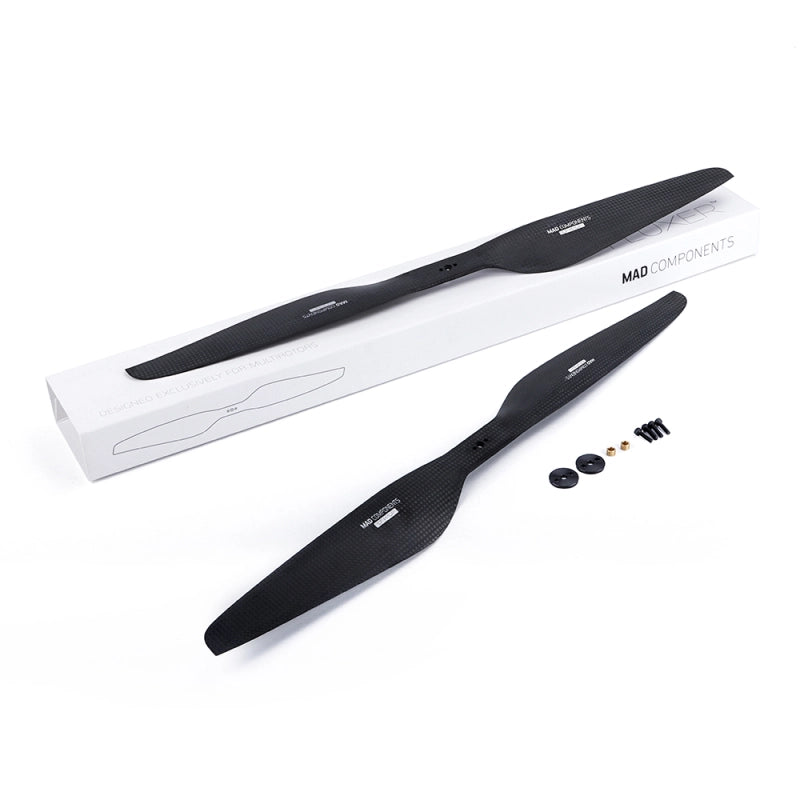

What’s Included

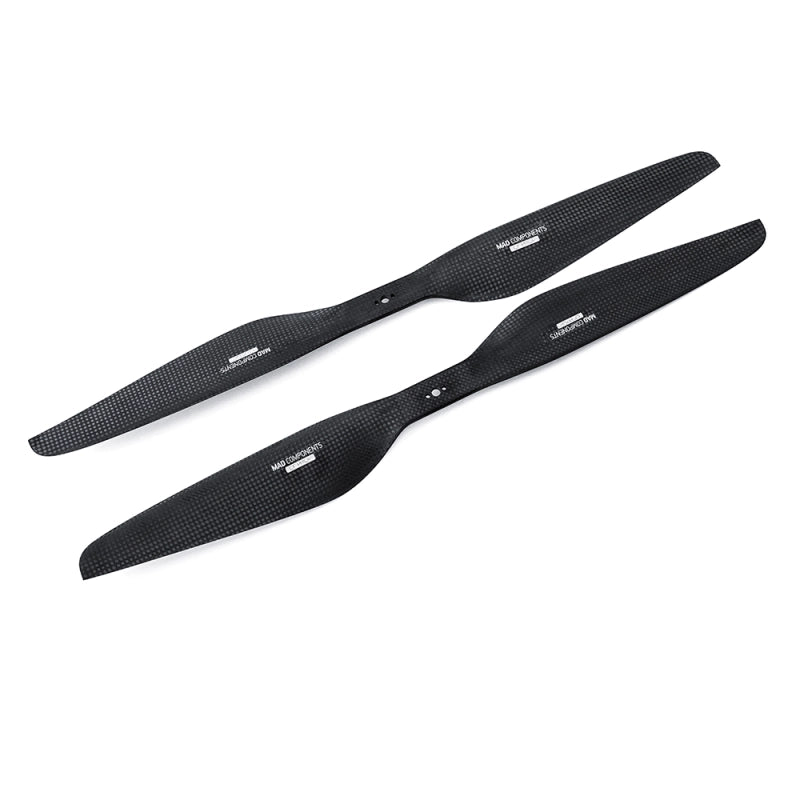

• 2x 13x4.4” Carbon Fiber Props (1 CW + 1 CCW)

• 2x Cover Plate

• 2x Ø6/Ø4 Adapter Ring

• 4x M3*10 Hex Socket Cap Screws

Details

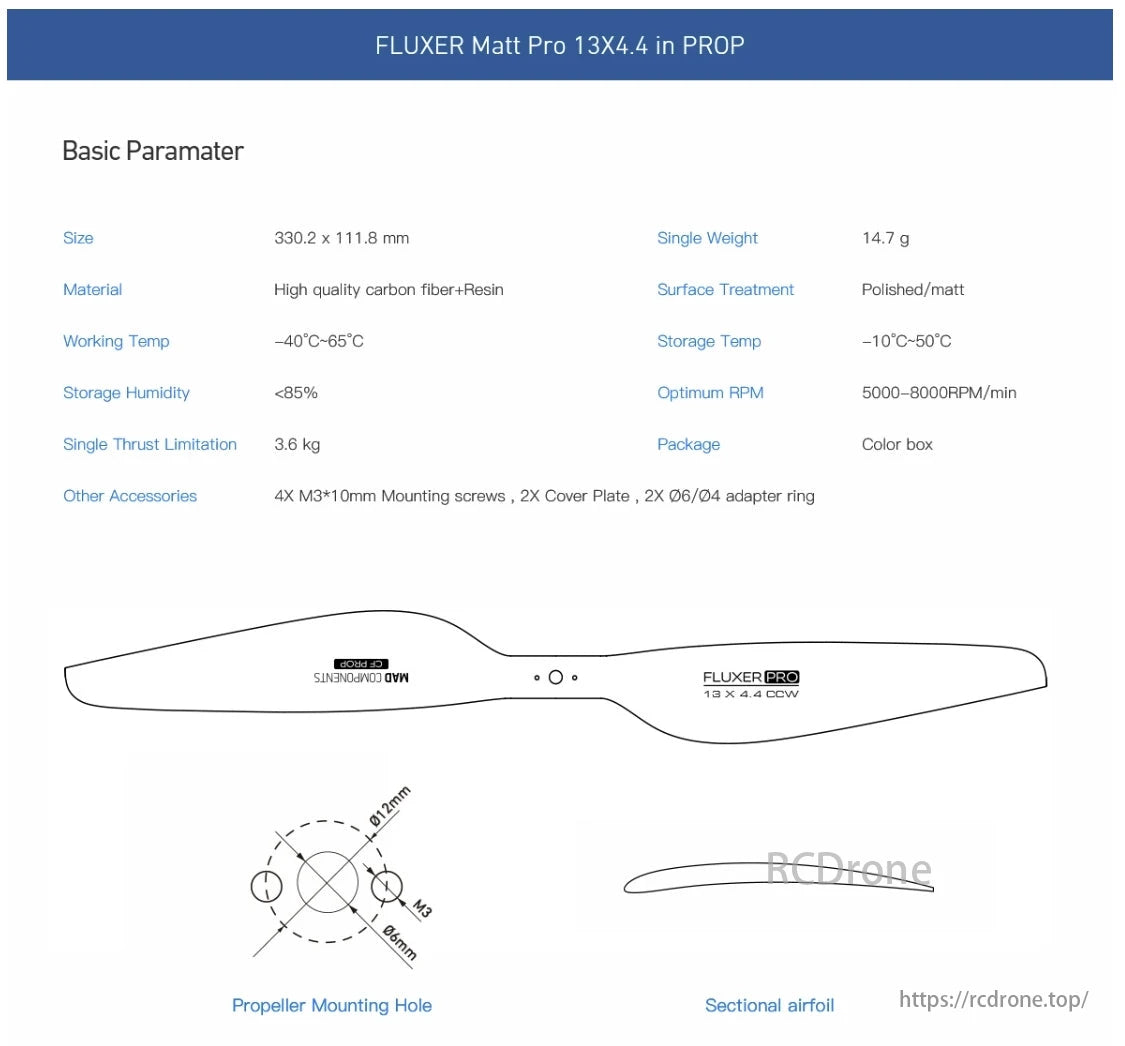

The MAD FLUXER Matt Pro 13X4.4 in PROP is a high-quality carbon fiber and resin propeller with dimensions of 330.2 x 111.8 mm. It weighs 14.7 grams and has a single thrust limitation of 3.6 kg. The working temperature range is -40°C to 65°C, and the storage temperature range is -10°C to 50°C. The optimum RPM is 5000-8000 RPM/min. Additional accessories include mounting screws, cover plates, and adapter rings. The propeller features a polished/matt surface treatment and comes in a color box package.

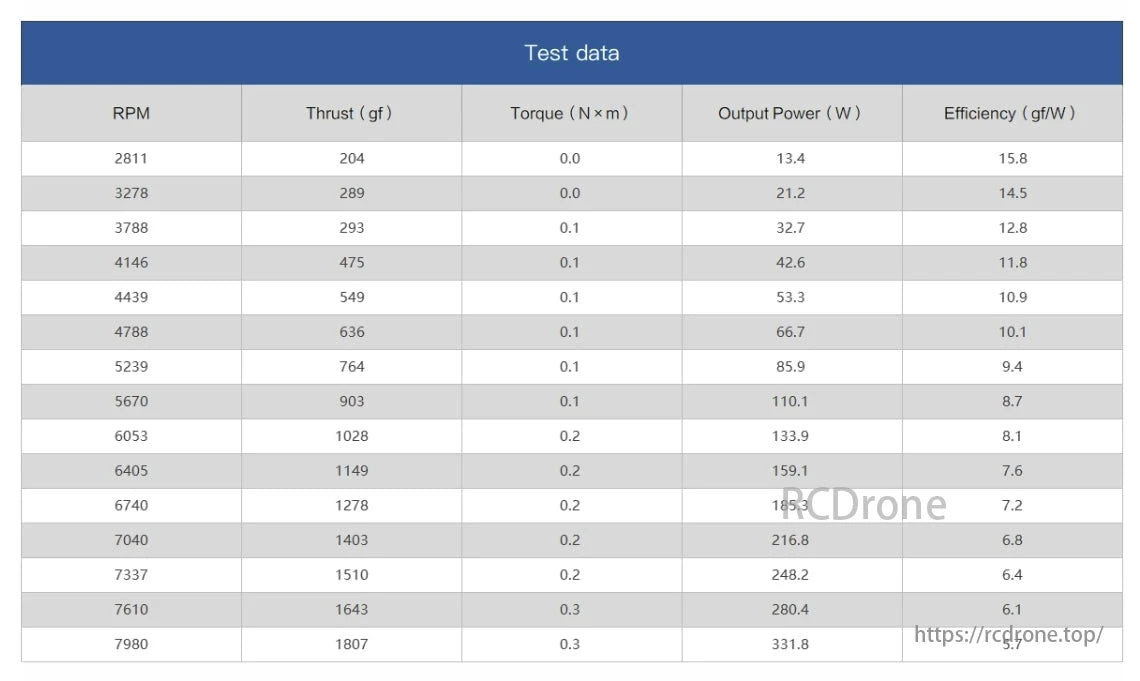

The table presents test data for a motor, showing its performance across various RPMs. Key metrics include thrust (gf), torque (N×m), output power (W), and efficiency (gf/W). As RPM increases, thrust and output power generally rise, while efficiency decreases. Torque remains low until higher RPMs. The data highlights the trade-off between power output and efficiency at different operating speeds.

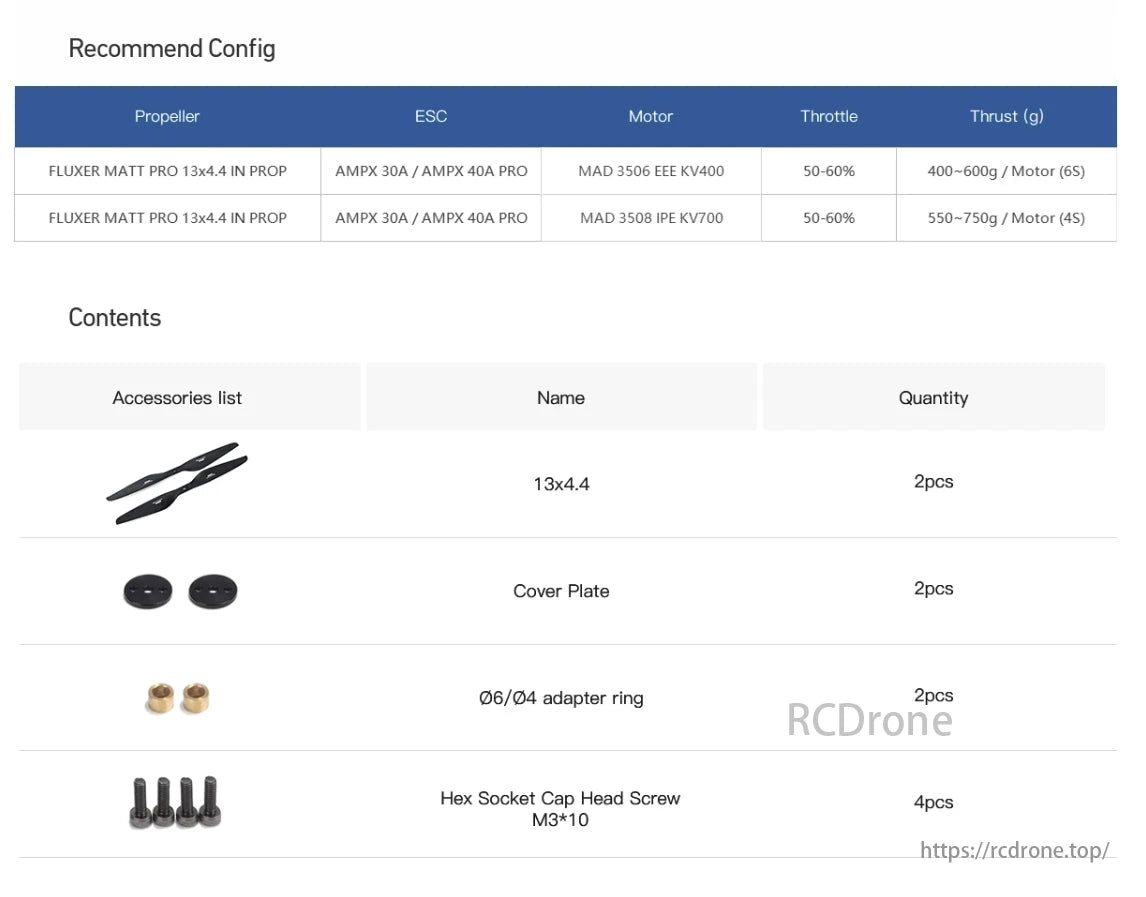

The image provides a recommended configuration for a drone setup, including propellers, ESCs, motors, throttle range, and thrust specifications. It also lists the contents of the package, which includes 2 pieces of 13x4.4 propellers, 2 cover plates, 2 adapter rings (Ø6/Ø4), and 4 hex socket cap head screws (M3*10). The recommended motors are MAD 3506 EEE KV400 and MAD 3508 IPE KV700, with corresponding thrust ranges of 400-600g and 550-750g per motor.
