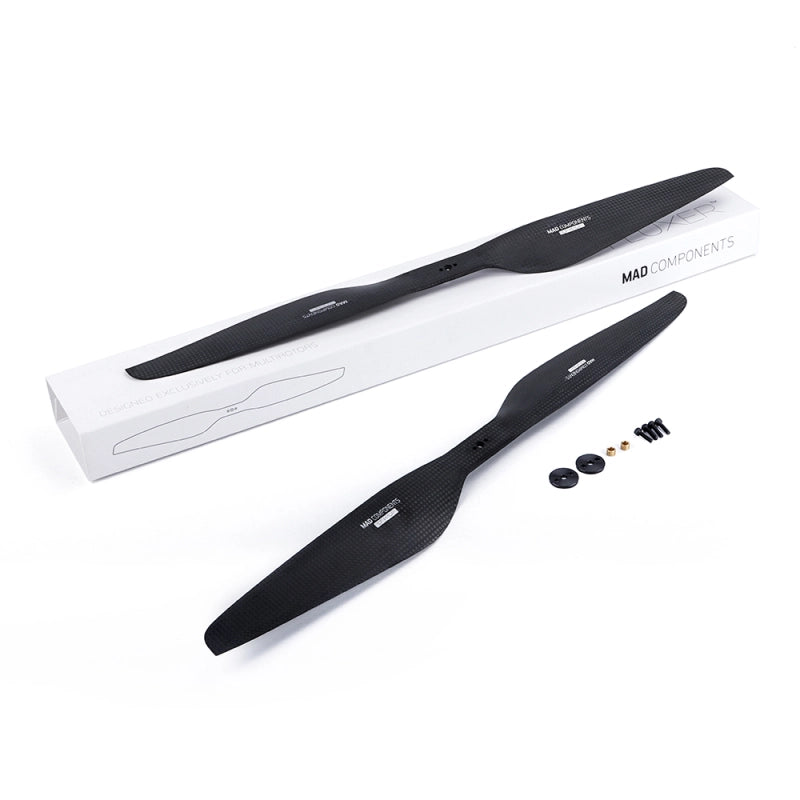

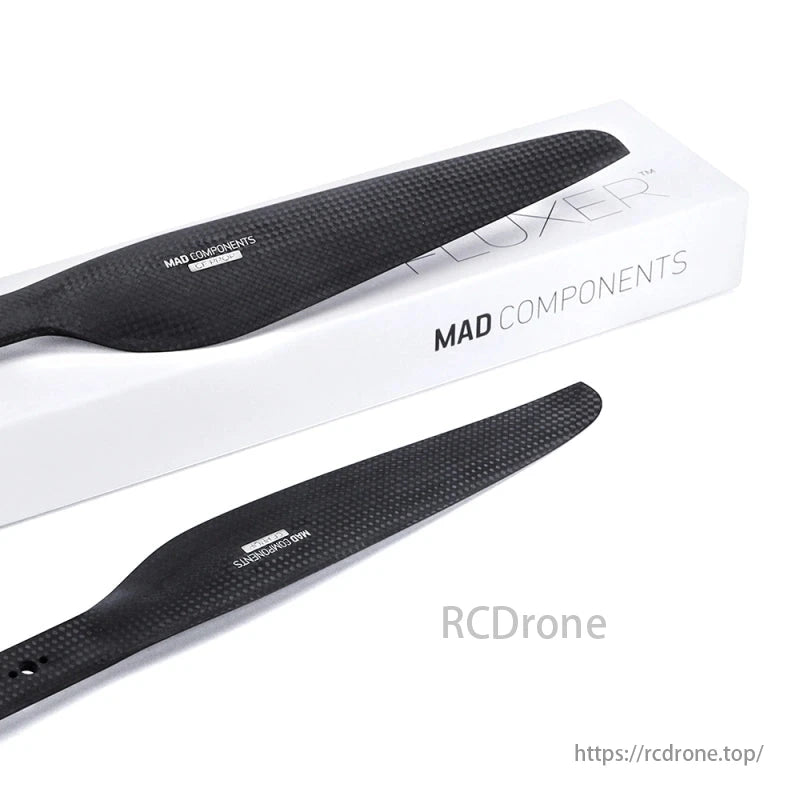

  • Black MAD COMPONENTS propellers with a textured surface, paired with a white FLUXER™ box, are designed for drones.

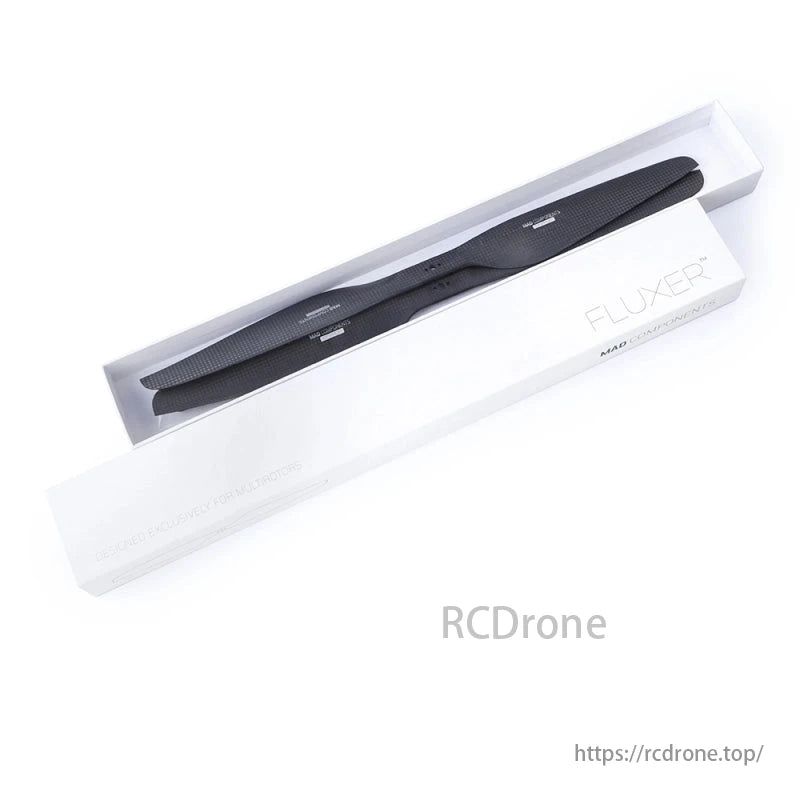

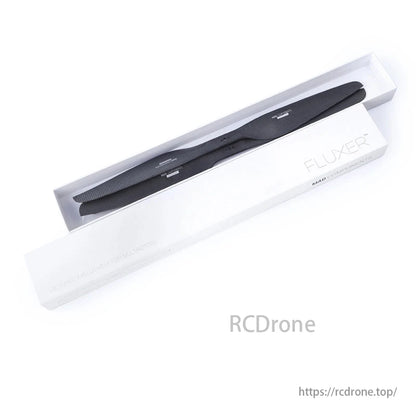

  • A black drone arm in a white "FLUXER" box by MAD COMPONENTS, for multicopters.

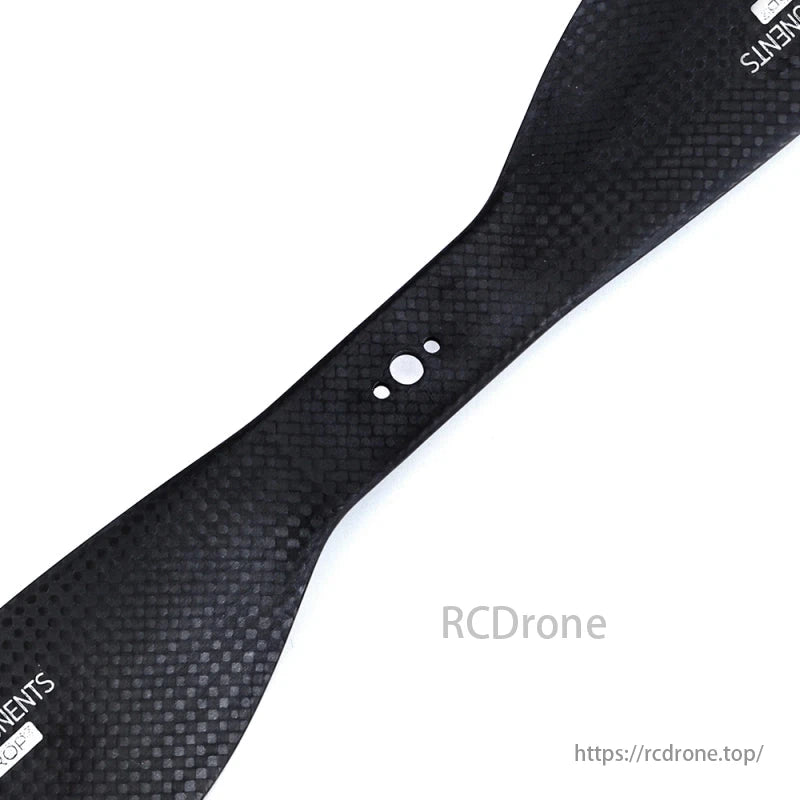

  • A black carbon fiber drone propeller with white balancing dots and "COMPONENTS" text.
  • MAD FLUXER Matt Pro 16x5.4 Inch Carbon Fiber Drone Propeller
1 6

MAD FLUXER Matt Pro 16x5.4 Inch Carbon Fiber Drone Propeller

MAD FLUXER Matt Pro 16x5.4 Inch Carbon Fiber Drone Propeller

MAD

$106.00 USD
$106.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Holes Position
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MAD FLUXER Matt Pro 16x5.4" drone propeller is engineered for performance and value, crafted from uni-directional and bi-directional carbon fiber prepreg with a balsa wood core. Weighing only 28g, it delivers high strength with low inertia. Designed for 4000–6000RPM and up to 7kg single thrust, this 406.4×137.2mm prop ensures fast response and optimal low-RPM efficiency, with a durable matte finish and 6mm mounting hole.

Key Features

  • Carbon Fiber + Balsa Core for maximum rigidity and lightweight structure

  • Matte Surface Finish over woven carbon fiber prepreg for sleek appearance

  • Optimized for Low RPM: High efficiency and stable thrust from 4000 to 6000RPM

  • 6mm Mounting Hole: Compatible with standard multi-rotor mounting systems

  • High Responsiveness: Supports rapid throttle change for precise control

  • One CW + One CCW Propeller included

Technical Specifications

Parameter Value
Size 406.4 × 137.2 mm
Weight 28 g
Material Uni- & Bi-directional carbon fiber prepreg + balsa core
Surface Matte / Polished
Working Temp -40°C to 65°C
Storage Temp -10°C to 50°C
Storage Humidity <85%
Optimum RPM 4000–6000 RPM
Single Thrust Limit 7.0 kg

Performance Test Data

RPM Thrust (gf) Torque (N·m) Power (W) Efficiency (gf/W)
967 40 0.0 1.3 30.38
1982 190 0.1 11.4 16.28
2899 510 0.1 33.0 15.45
3847 910 0.2 77.1 11.76
4683 1270 0.3 139.0 9.12
5541 1820 0.4 227.1 8.04
6426 2530 0.5 362.9 6.98
7147 3020 0.7 499.8 6.05
7862 3740 0.8 665.1 5.63
8649 4580 1.0 894.8 5.11

Recommended Configuration

Propeller ESC Motor Throttle Thrust (per motor)
FLUXER Matt Pro 16x5.4 AMPX 30A / 40A Pro MAD 4008 EEE KV380 (6S) 50–60% 700–1000g
FLUXER Matt Pro 16x5.4 AMPX 30A / 40A Pro MAD 4014 IPE KV370 (6S) 50–60% 750–1100g

Package Contents

Item Quantity
16x5.4 Propeller 2 pcs
Cover Plate 2 pcs
Ø6/Ø4 Adapter Ring 2 pcs
M3×10 Hex Socket Cap Screws 4 pcs



Details

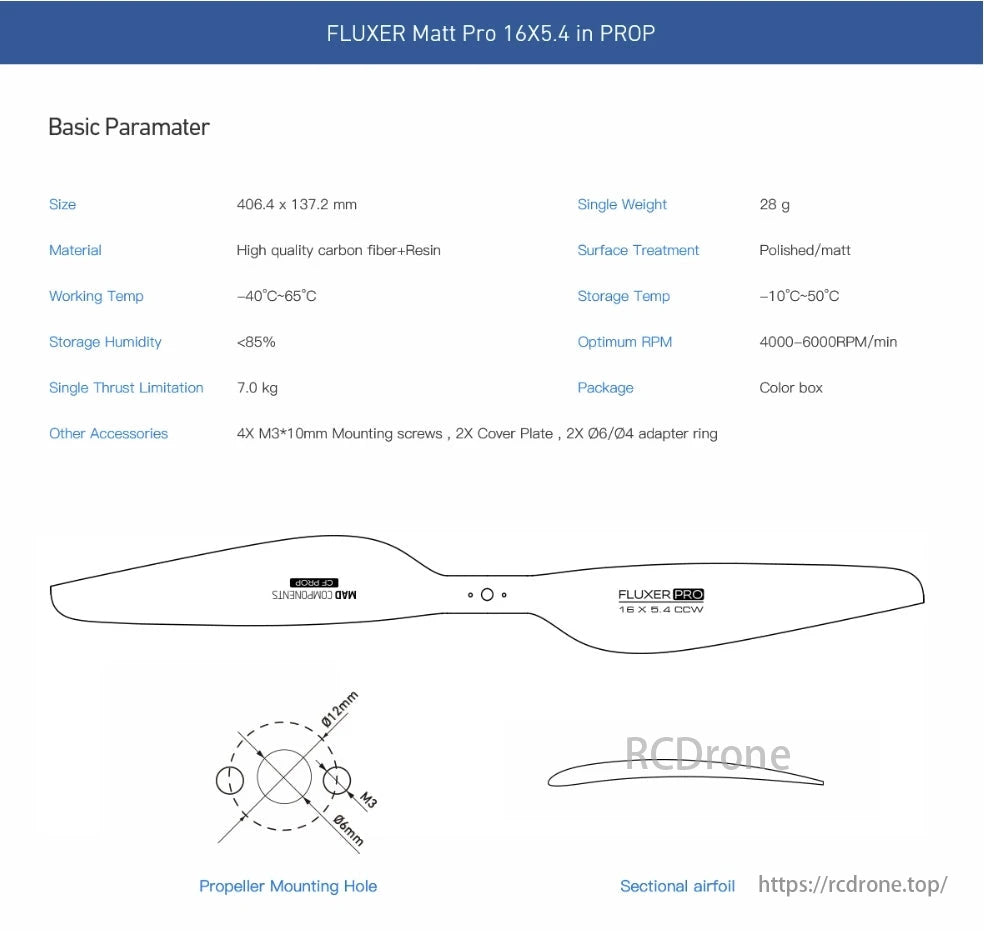

MAD Fluxer Pro Drone Prop, The FLUXER Matt Pro 16X5.4 propeller is a carbon fiber and resin model, sized 406.4 x 137.2 mm, weighing 28 g, with a thrust limit of 7 kg and optimal RPM of 4000-6000. Includes accessories.

The FLUXER Matt Pro 16X5.4 in PROP is a high-quality carbon fiber and resin propeller with dimensions of 406.4 x 137.2 mm and a weight of 28 g. It features a polished/matt surface treatment, operates at -40°C to 65°C, and stores at -10°C to 50°C with humidity below 85%. The thrust limitation is 7.0 kg, and the optimal RPM range is 4000-6000 RPM/min. It includes mounting screws, cover plates, and adapter rings, packaged in a color box.

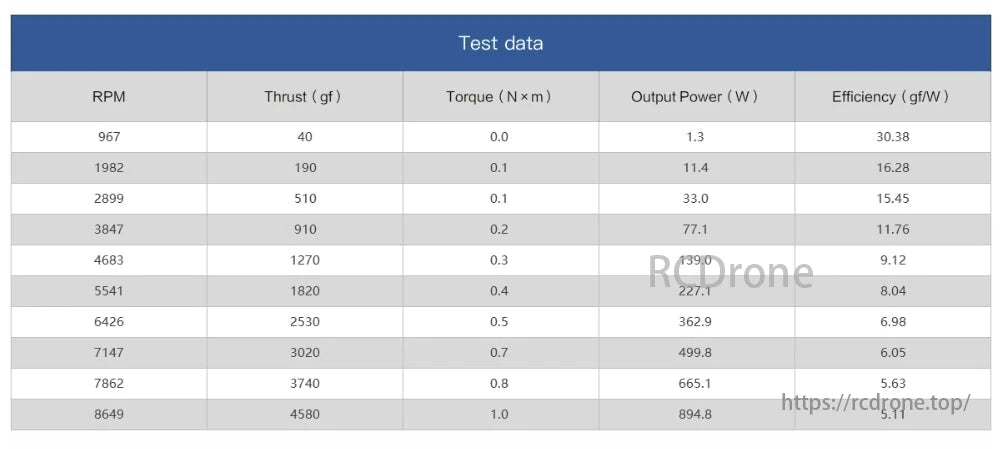

MAD Fluxer Pro Drone Prop, The table shows motor test data indicating thrust, torque, and output power increase with RPM, while efficiency decreases at higher speeds.

The table presents test data for a motor, showing RPM, thrust (gf), torque (N×m), output power (W), and efficiency (gf/W) at various speeds. Thrust increases with RPM, while efficiency decreases as RPM and output power rise. Torque also increases with RPM, correlating with higher output power.

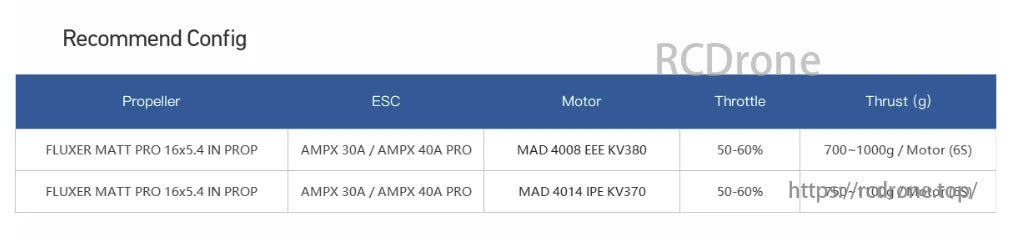

MAD Fluxer Pro Drone Prop, Two drone setups use FLUXER props and AMPX ESC. Option 1: MAD 4008 motor, 700-1000g thrust. Option 2: MAD 4014 motor, 750-1100g thrust.

The recommended configuration includes two options for a drone setup. Both use the FLUXER MATT PRO 16x5.4 IN PROP propeller and AMPX 30A / AMPX 40A PRO ESC. The first option pairs with the MAD 4008 EEE KV380 motor, achieving 700-1000g thrust per motor at 50-60% throttle on a 6S battery. The second option uses the MAD 4014 IPE KV370 motor, providing 750-1100g thrust per motor under the same conditions.

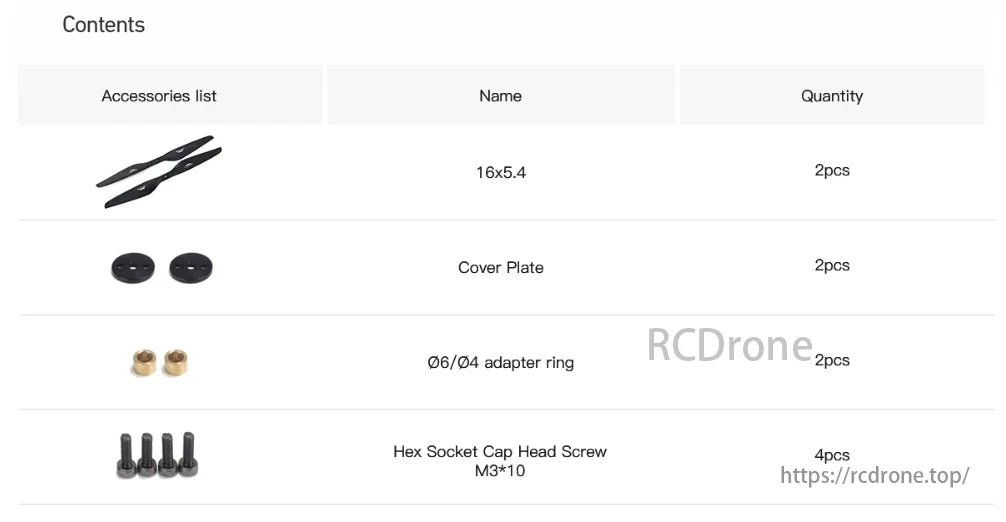

MAD Fluxer Pro Drone Prop, Accessories include propellers, cover plates, adapter rings, and screws.

List of accessories includes 16x5.4 propellers (2pcs), cover plates (2pcs), Ø6/Ø4 adapter rings (2pcs), and M3*10 hex socket cap head screws (4pcs).
