MAD FLUXER Pro Matt 18x6.1 Inch Carbon Fiber Drone Propeller
MAD FLUXER Pro Matt 18x6.1 Inch Carbon Fiber Drone Propeller
MAD
Couldn't load pickup availability
Basic Parameters
-
Size: 457.2 × 155.4 mm / 18 × 6.1 inch
-
Single Weight: 31.5 g
-
Material: High-quality carbon fiber + resin
-
Surface Treatment: Polished/Matt
-
Working Temperature: -40°C ~ 65°C
-
Storage Temperature: -10°C ~ 50°C
-
Storage Humidity: <85%
-
Optimum RPM: 3900–5600 RPM/min
-
Single Thrust Limitation: 8.5 kg
-

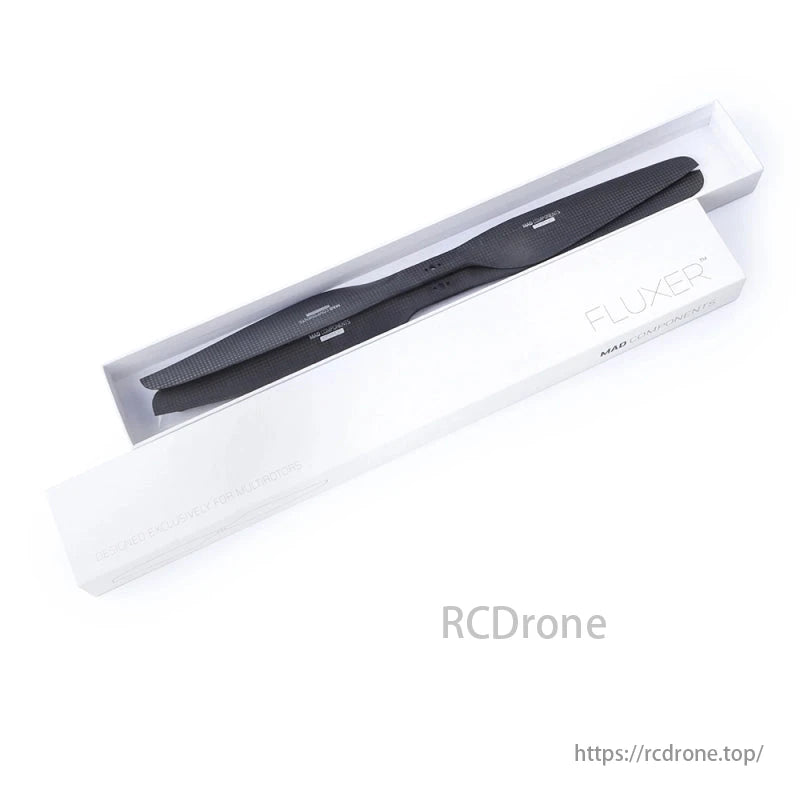

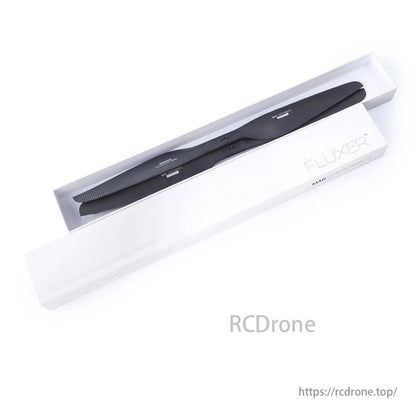

Package: Color box
-

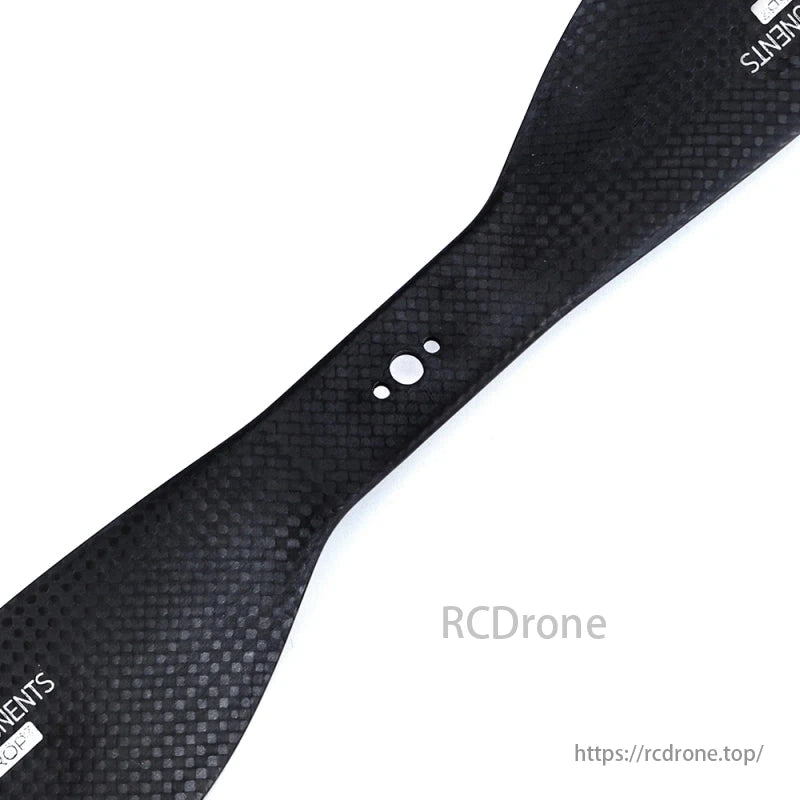

Mounting Hole: φ6 mm, φ12 mm mounting circle, M3 screws
Performance Test Data
| RPM | Thrust (gf) | Torque (N·m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 2401 | 519 | 0.1 | 48.7 | 10.8 |
| 2722 | 670 | 0.2 | 66.8 | 10.1 |
| 3165 | 963 | 0.2 | 98.6 | 9.8 |
| 3544 | 1243 | 0.3 | 134.7 | 9.6 |
| 3892 | 1519 | 0.3 | 175.0 | 9.0 |
| 4194 | 1809 | 0.4 | 218.4 | 8.6 |
| 4786 | 2336 | 0.5 | 315.6 | 7.7 |
| 5066 | 2687 | 0.6 | 378.3 | 7.3 |
| 5605 | 3231 | 0.7 | 504.5 | 6.6 |
| 6115 | 3895 | 0.8 | 667.7 | 6.0 |
| 6639 | 4553 | 1.0 | 864.2 | 5.4 |
Recommended Configuration
| Propeller | ESC | Motor | Throttle | Thrust (g) |
|---|---|---|---|---|
| FLUXER Pro 18x6.1 IN PROP | AMPX 30A / AMPX 40A PRO | MAD 5005 EEE / IPE KV300 | 50-60% | 900–1200g / Motor (6S) |
| FLUXER Pro 18x6.1 IN PROP | AMPX 40A HV | MAD 5008 EEE / IPE KV170 | 50-60% | 900–1200g / Motor (12S) |

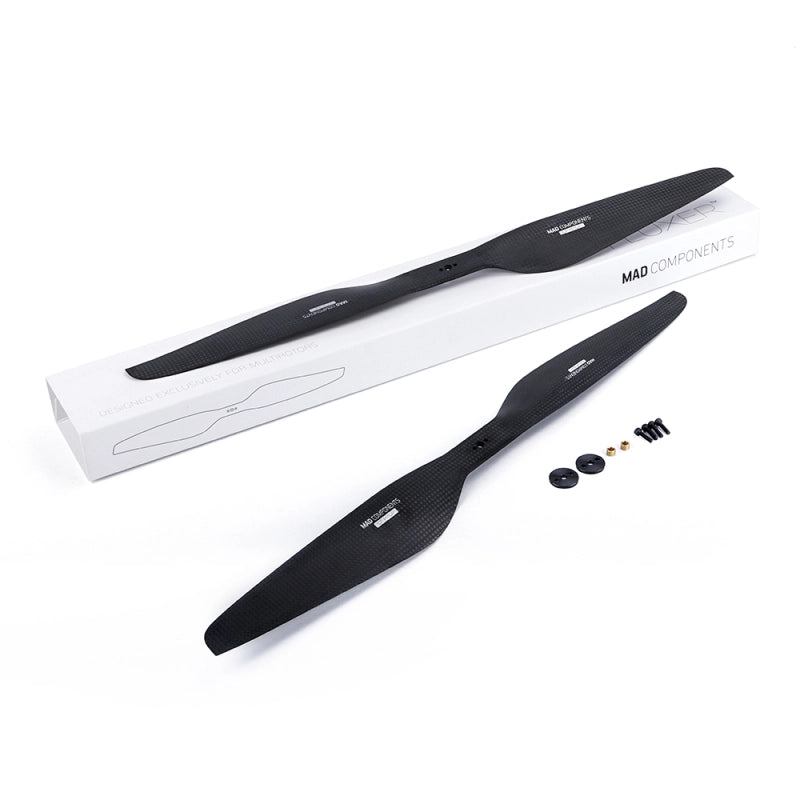

Package Contents
| Accessories List | Name | Quantity |
|---|---|---|
| Propellers | FLUXER Pro 18x6.1 (CW + CCW) | 2 pcs |
| Cover Plate | — | 2 pcs |
| Ø6/Ø4 Adapter Ring | — | 2 pcs |
| Hex Socket Cap Head Screw M3*10 | — | 4 pcs |

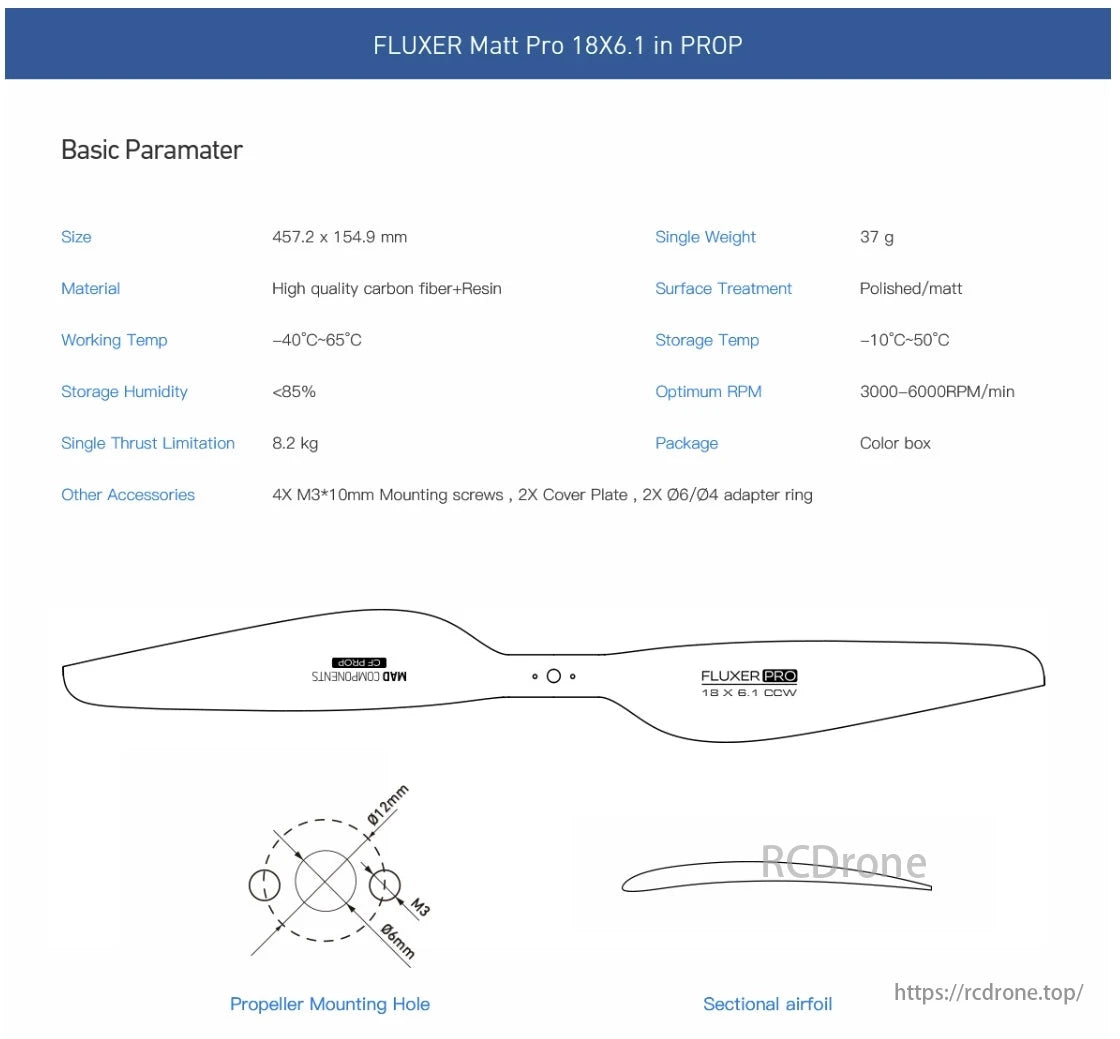

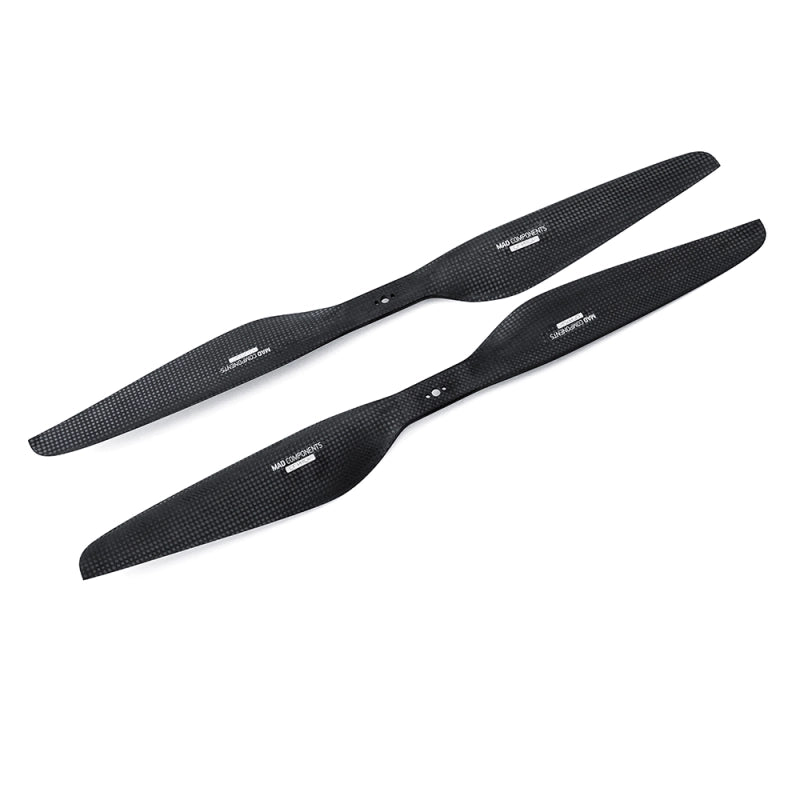

The FLUXER Matt Pro 18X6.1 in PROP is a lightweight, high-quality carbon fiber propeller with polished/matt surface treatment, designed for optimal performance between 3000-6000 RPM/min. It features a size of 457.2 x 154.9 mm, weighs 37 g, and has a single thrust limitation of 8.2 kg. The propeller includes mounting screws, cover plates, and adapter rings, suitable for use within a working temperature range of -40°C to 65°C and storage humidity below 85%.

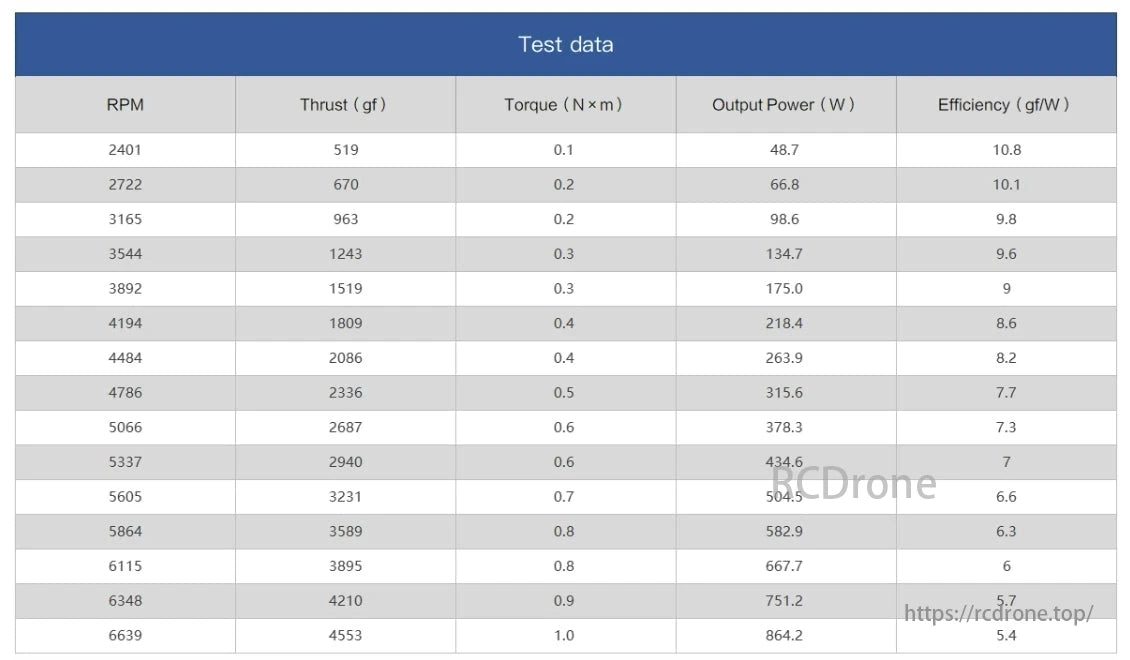

The table presents test data for a motor, showing RPM, thrust (gf), torque (N×m), output power (W), and efficiency (gf/W) across various operating conditions.

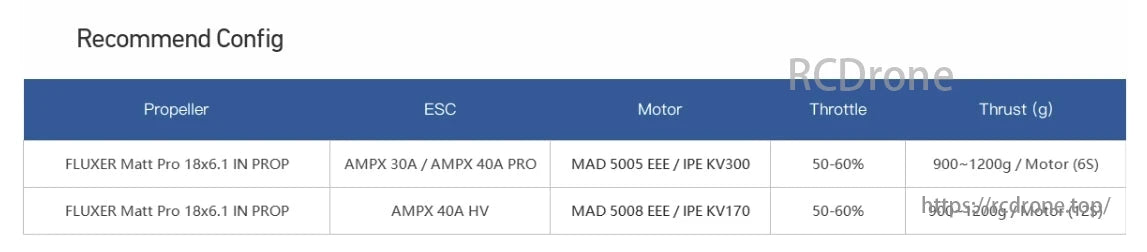

The image presents a recommended configuration for drone setups, detailing components and their specifications: 1. **Propeller**: FLUXER Matt Pro 18x6.1 IN PROP is used in both configurations. 2. **ESC (Electronic Speed Controller)**: - AMPX 30A / AMPX 40A PRO in the first setup. - AMPX 40A HV in the second setup. 3. **Motor**: - MAD 5005 EEE / IPE KV300 in the first setup. - MAD 5008 EEE / IPE KV170 in the second setup. 4. **Throttle**: Both setups operate at 50-60% throttle. 5. **Thrust**: - 900~1200g per motor for the 6S battery setup. - 900~1200g per motor for the 12S battery setup. This table provides a comparison of two recommended configurations based on different ESC and motor combinations, suitable for various power requirements and battery voltages.

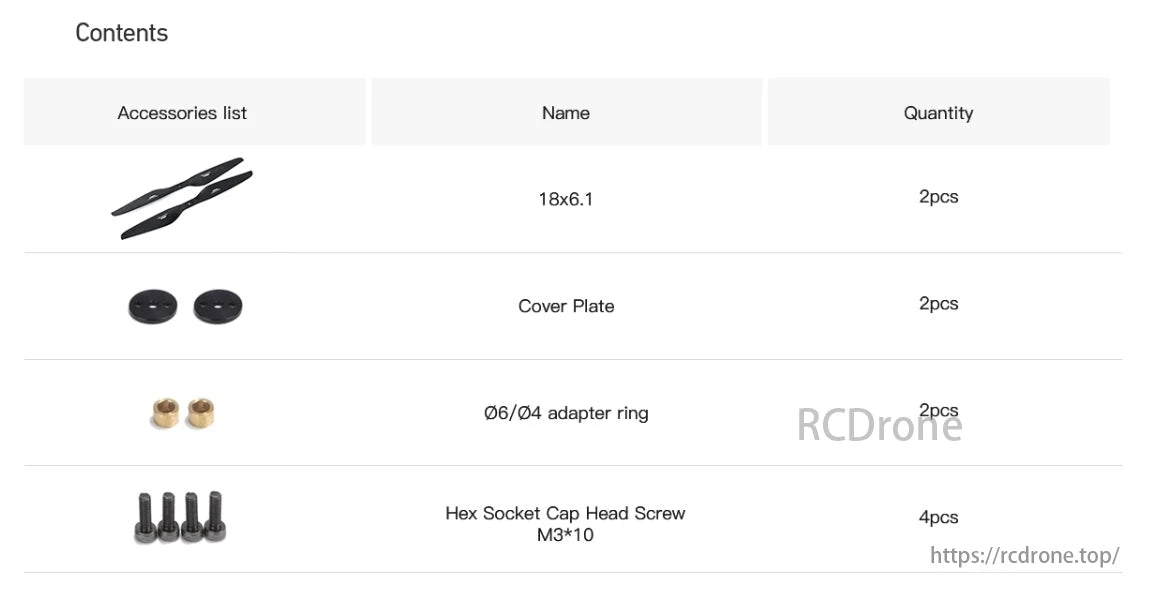

The image lists drone accessories: 2x 18x6.1 propellers, 2x cover plates, 2x Ø6/Ø4 adapter rings, and 4x M3*10 hex socket cap head screws.
