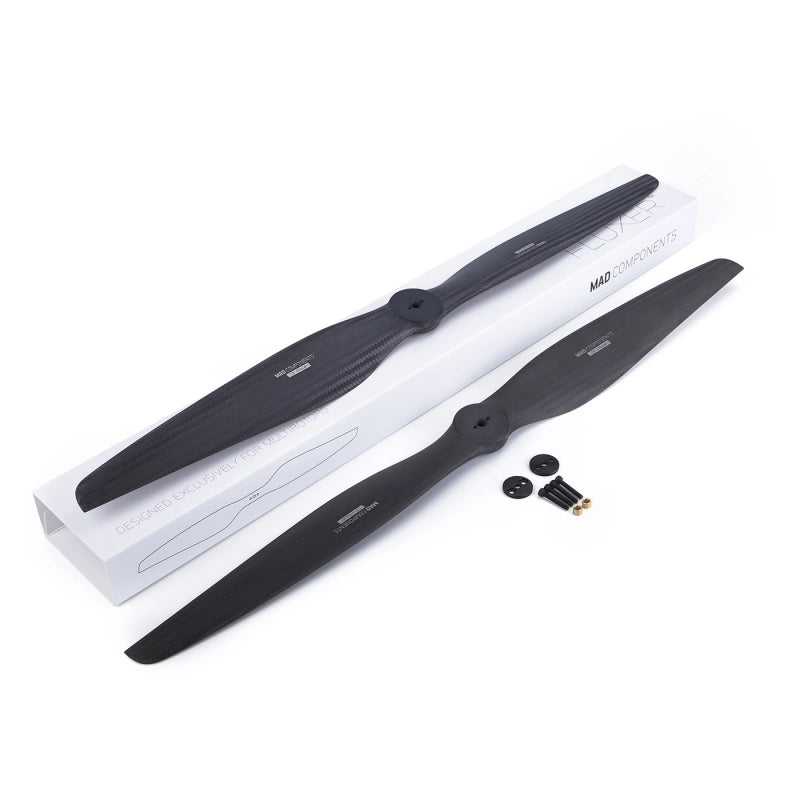

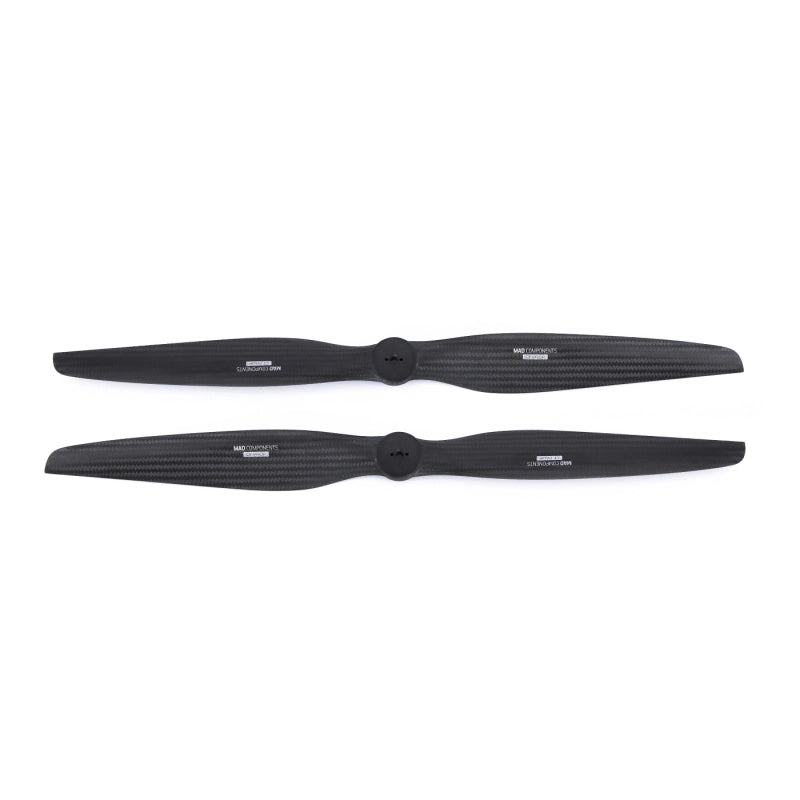

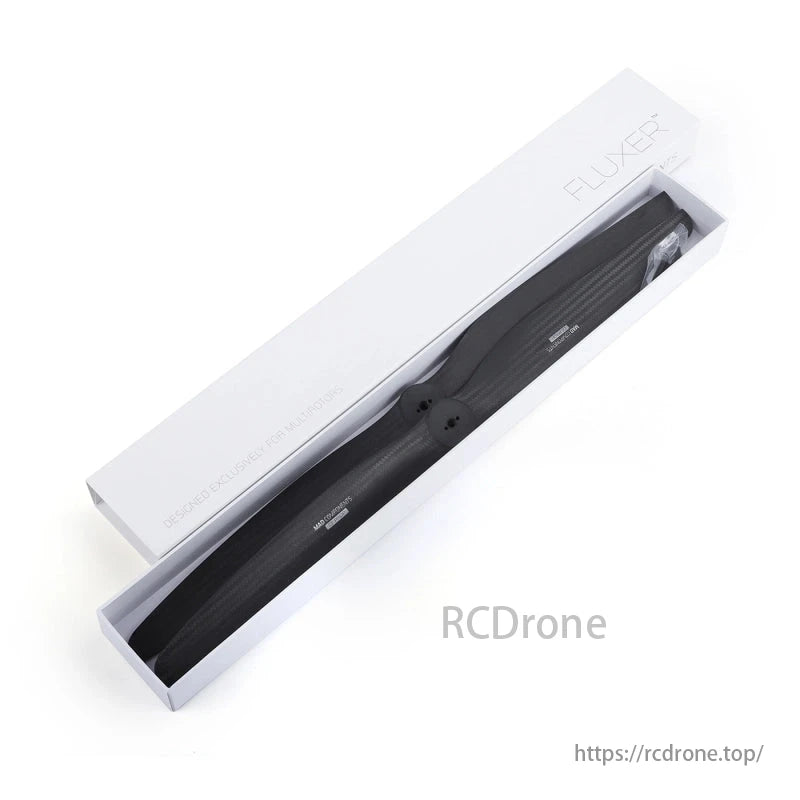

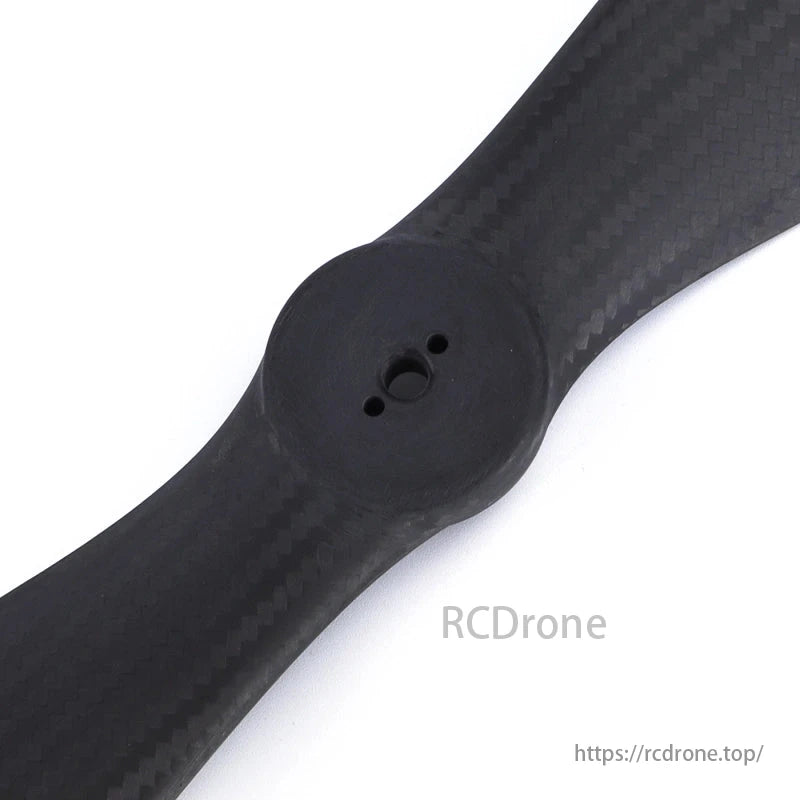

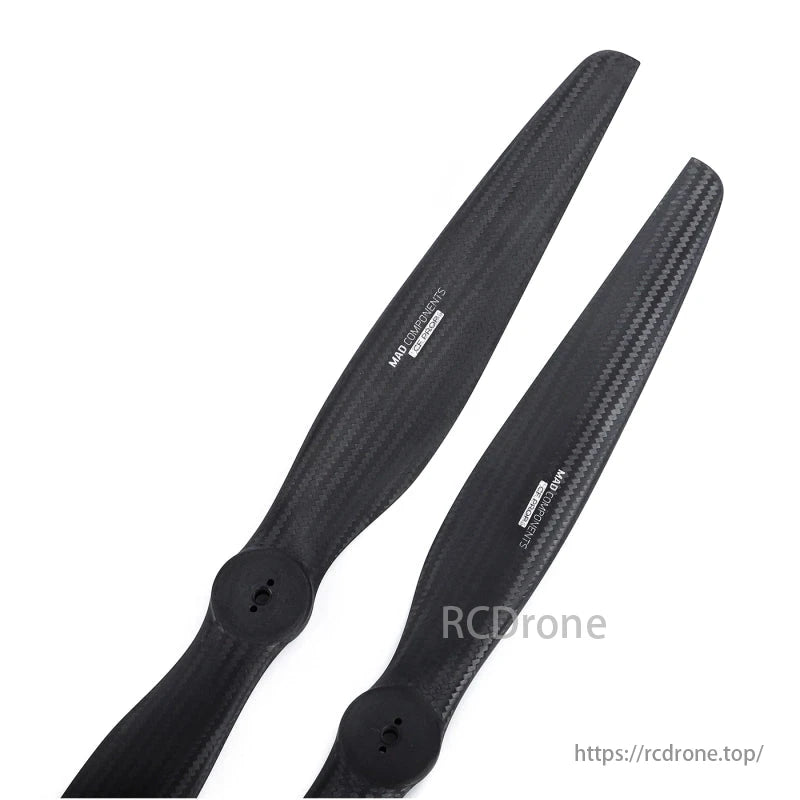

• MAD FLUXER VTOL 18.1x7.2 Inch Carbon Fiber Drone Propeller
  • MAD FLUXER VTOL 18.1x7.2 Inch Carbon Fiber Drone Propeller
  • "FLUXER drone accessory designed exclusively for DJI Mavic series."
  • MAD FLUXER VTOL 18.1x7.2 Inch Carbon Fiber Drone Propeller
  • MAD FLUXER VTOL 18.1x7.2 Inch Carbon Fiber Drone Propeller
1 5

MAD FLUXER VTOL 18.1x7.2 Inch Carbon Fiber Drone Propeller

MAD FLUXER VTOL 18.1x7.2 Inch Carbon Fiber Drone Propeller

MAD

$105.00 USD
$105.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Holes Position
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Crafted with high-quality carbon fiber and resin, the FLUXER VTOL 18.1x7.2 inch propeller features an integrated structure for increased strength and safety. Designed specifically for VTOL aircraft, it offers a reduced prop surface and optimized pitch, minimizing air resistance while maximizing thrust and responsiveness. Weighing just 32g per blade, it operates efficiently between 3900–5600RPM with a single thrust limit of 8kg. Best paired with MAD brushless motors, it ensures high durability, fast startup, and smooth performance.

Key Specifications

Parameter Details
Size 459.72 × 182.88 mm
Material High-quality carbon fiber + Resin
Single Weight 32 g
Surface Treatment Polished/Matt
Working Temp –40℃ to 65℃
Storage Temp –10℃ to 50℃
Storage Humidity <85%
Single Thrust Limitation 8 kg
Optimum RPM 3900–5600 RPM
Package Color box
Accessories 4x M3*18mm Screws, 2x Ø6/Ø4 Adapter Rings, 2x Cover Plates

Performance Test Data

RPM Thrust (gf) Torque (N·m) Output Power (W) Efficiency (gf/W)
3588 1495 0.4 206.1 7.30
4245 2122 0.5 307.1 6.90
4809 2787 0.7 436.7 6.40
5286 3347 0.8 561.8 6.00
5705 3959 0.9 708.4 5.60
6142 4751 1.1 908.2 5.20
6569 5307 1.3 1105.6 4.80
6956 5961 1.4 1331.5 4.50
7353 6657 1.6 1580.4 4.20
7721 7452 1.8 1863.4 4.00
8078 8202 2.0 2109.2 3.90
8434 8932 2.2 2469.0 3.60
8777 9708 2.3 2802.7 3.50
9079 10621 2.6 3207.7 3.30
9442 11773 2.9 3782.0 3.10

Packing List

Item Quantity
FLUXER VTOL 18.1x7.2 Propeller (CW+CCW) 2 pcs
Cover Plate 2 pcs
Ø6/Ø4 Adapter Ring 2 pcs
M3*18 Hex Socket Cap Screws 4 pcs



Details

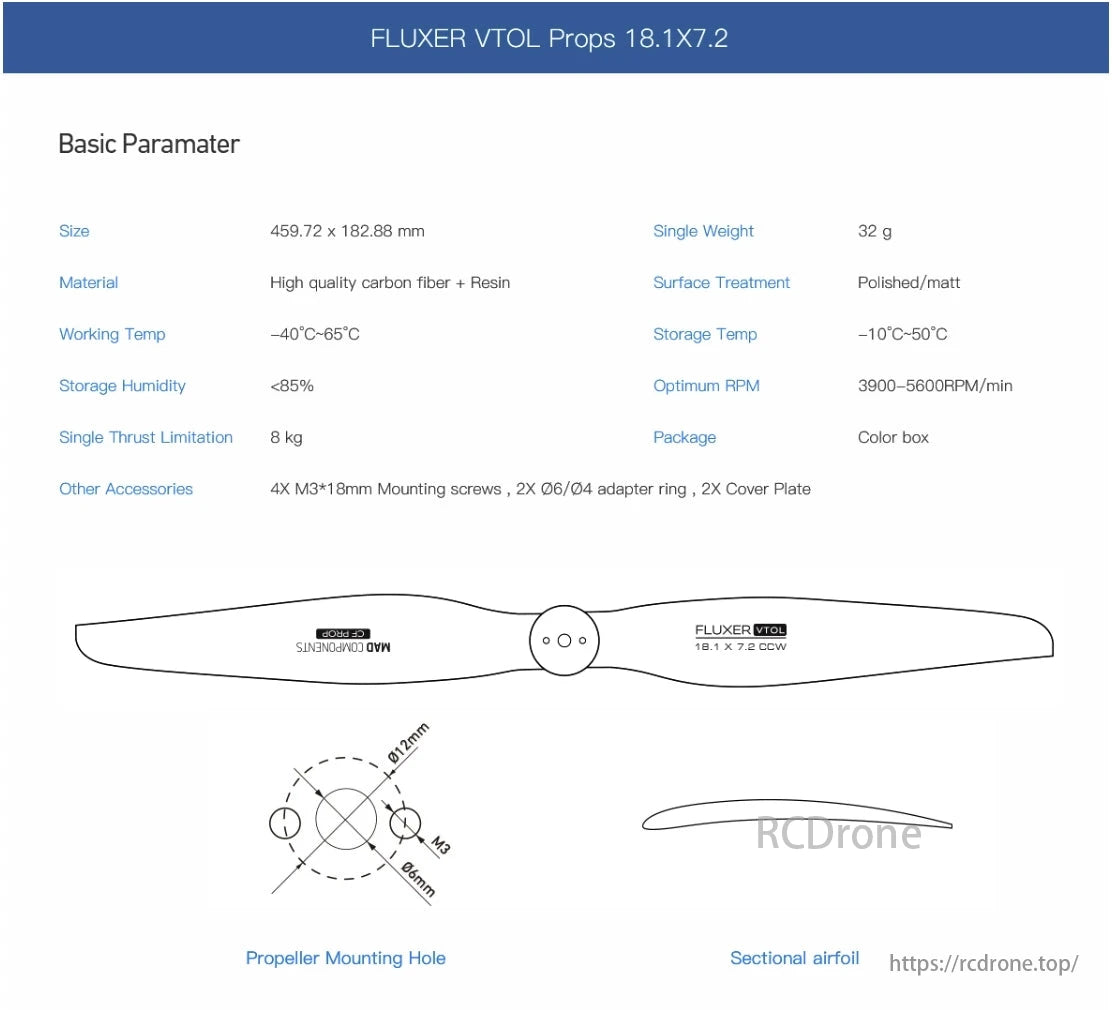

MAD Fluxer VTOL Propeller, FLUXER VTOL Props 18.1X7.2: Carbon fiber propeller, 459.72x182.88 mm, 32 g, optimal RPM 3900-5600, 8 kg thrust limit, includes screws, rings, and plates.

The image describes the FLUXER VTOL Props 18.1X7.2, a high-quality carbon fiber propeller with dimensions 459.72 x 182.88 mm, weighing 32 g. It operates optimally at RPMs between 3900-5600 and has a thrust limitation of 8 kg. The propeller includes mounting screws, adapter rings, and cover plates.

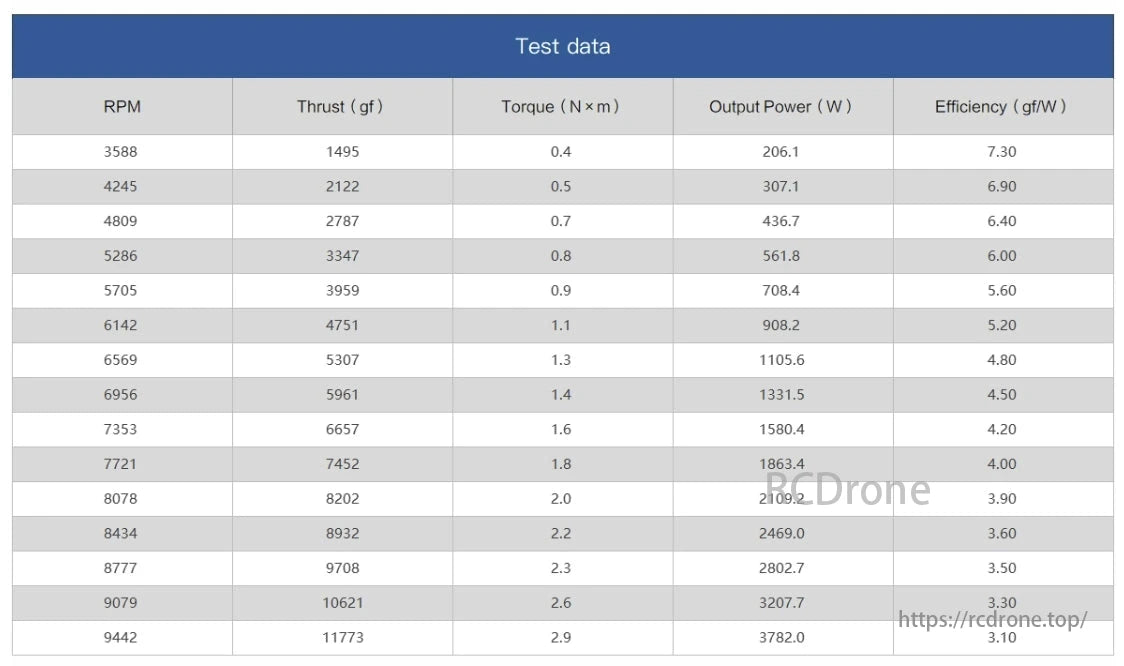

MAD Fluxer VTOL Propeller, The table displays motor test data, including RPM, thrust, torque, output power, and efficiency under different operating conditions.

The table presents test data for a motor, showing RPM, thrust (gf), torque (N×m), output power (W), and efficiency (gf/W) across various operating conditions.

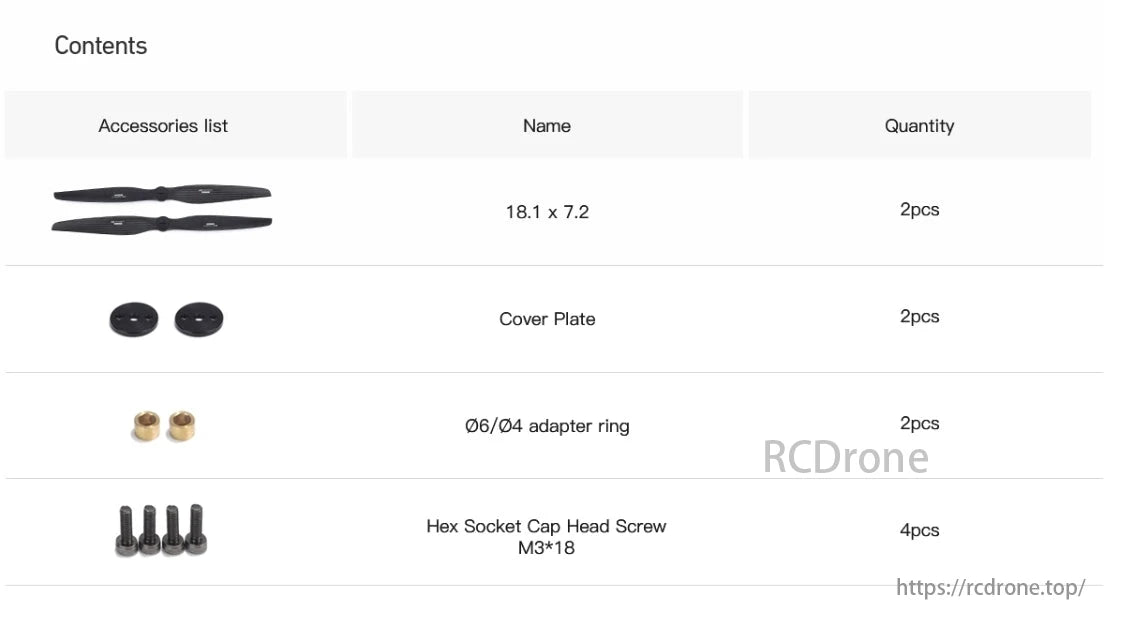

MAD Fluxer VTOL Propeller, The image shows drone accessories: 2 propellers, 2 cover plates, 2 adapter rings, and 4 screws.

The image lists drone accessories: 2 propellers (18.1 x 7.2), 2 cover plates, 2 adapter rings (Ø6/Ø4), and 4 hex socket cap head screws (M3*18).
