MAD FOC 120A 8-14S Drone ESC

Overview

The MAD FOC 120A 8-14S ESC is a high-performance electronic speed controller designed for industrial UAVs and heavy-lift drones, supporting FOC (Field-Oriented Control) modulation for smooth and efficient power delivery. This ESC is optimized for Mad M10, M17, and M20 series motors, supporting 10-12kg take-off weight. Its advanced sinusoidal drive ensures stable operation even in harsh environments, while the integrated self-check program enhances system reliability and security.

Key specifications:

• Voltage Support: 8-14S LiPo (up to 60.9V)
• Rated Current: 35A
• Peak Current: 150A (10S)
• Max RPM: 13,000 RPM (10 Pole Pairs)
• IP Rating: IPX7 (Water-resistant)
• Communication Protocol: CAN
• Weight (without cable): 116g
• Working Temperature: -20°C to 50°C
• Compatible Motors: M10 KV100, M17 KV100/KV110, M20 MINI KV110, M20 KV110
• Compatible Propellers: 29” to 40”

Key Features

1. Instant Throttle Response

• The fast motor acceleration and deceleration response allows the ESC to adjust rapidly (within 10ms) to throttle changes, ensuring precise control.

2. Optimized Heat Dissipation

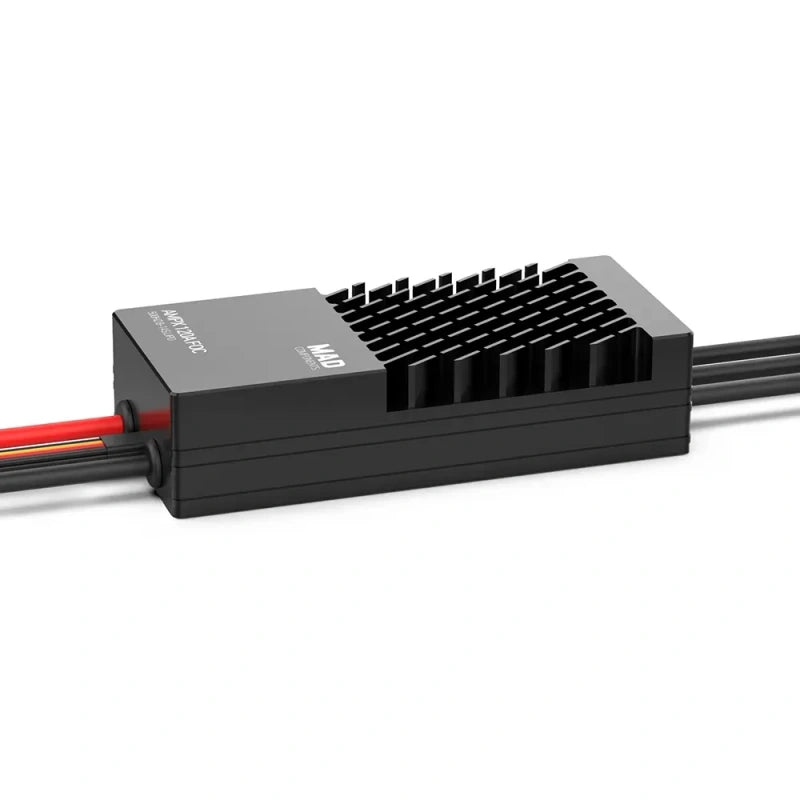

• The ESC features a double-sided heat dissipation structure, reducing thermal resistance and maintaining a low internal temperature (only 15°C higher than the shell temperature).
• Improved cooling performance ensures stable operation under full load.

3. Advanced Protection Mechanisms

• Hardware Self-Check: Automatically detects hardware faults before flight to reduce failure risks.
• Short Circuit & Overcurrent Protection: Prevents damage from electrical faults.
• High Voltage Protection: Ensures stability even at 60.9V max input.
• High Temperature Protection: Prevents overheating failures.

4. Electric Modularity & Easy Maintenance

• Independent modular design allows easy replacement of individual components.
• Secure wiring system prevents accidental disconnections.
• Quick assembly and disassembly using simple tools.

5. CAN Communication Interface

• Supports firmware updates via CAN.
• Enables real-time system monitoring and enhances flight control communication.
• Improves black-box data logging for enhanced failure analysis.

6. PWM Control & Digital Throttle

• Supports PWM input (200-2000µs)
• Frequency Range: 50-450Hz
• Idle RPM: Minimum 300 RPM, configurable via software.
• Max RPM: 5000 RPM, configurable via software.

ESC Protection Mechanism

The MAD FOC 120A ESC incorporates an intelligent self-diagnostic system and LED indicator patterns to troubleshoot potential issues:

Issue	Cause	Solution
Motor does not turn after unlocking	Throttle signal below 1100µs	Set idle throttle to 1100µs-1180µs
Motor “beeps” every 15 seconds	Incorrect/missing PWM signal	Check throttle cable connection
Motor enters protected state	High throttle detected at startup	Reduce throttle before starting
Motor does not respond	Power-on self-test failure	Check battery voltage & connections
Short circuit detected	Overcurrent protection activated	Inspect motor & wiring

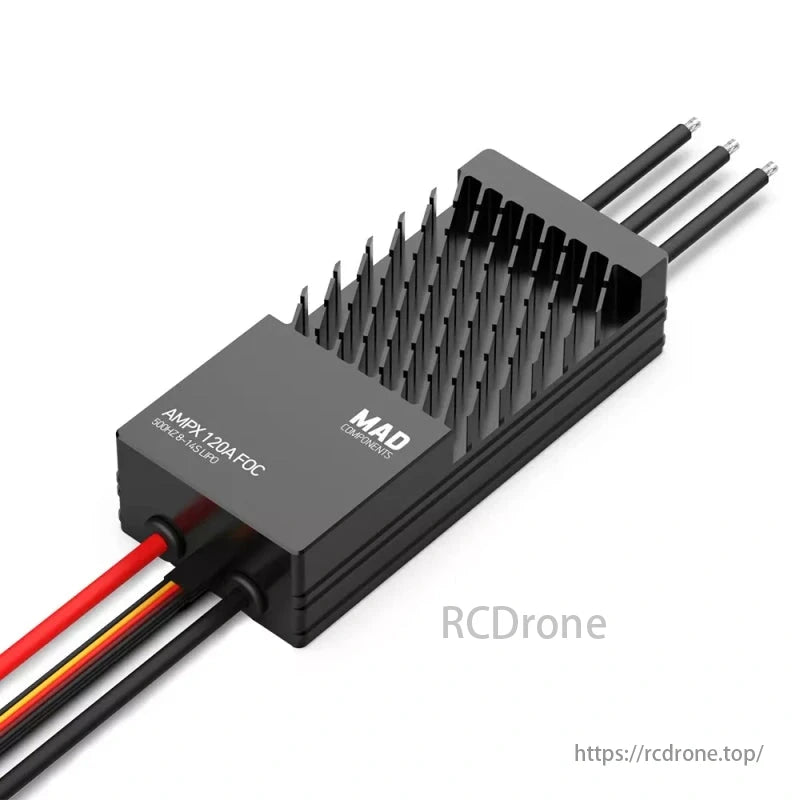

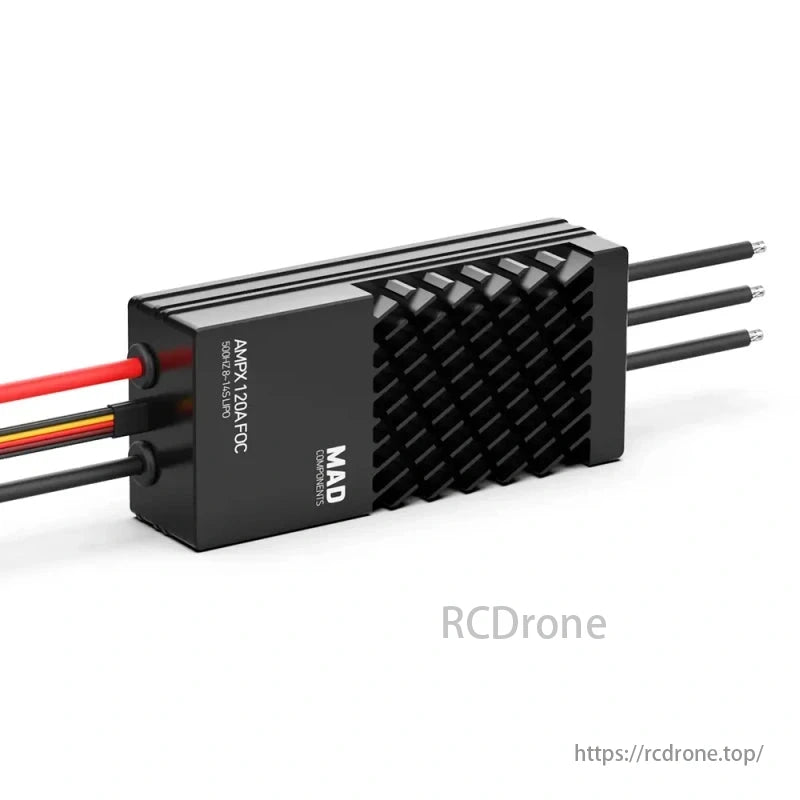

ESC Connection & Dimensions

The MAD FOC 120A ESC features an intuitive wiring layout for simple installation:

• Yellow: CANH
• Red: CANL
• Brown/Black: GND
• White: PWM Input

Physical Dimensions:

• Length: 120mm
• Width: 49mm
• Height: 26.4mm
• Mounting Hole Spacing: 40mm

ESC Compatibility Recommendations

Electric Regulation	Motor	Voltage	Recommended Propeller
AMPX 120A FOC	M10 KV100	48V	29” - 32”
AMPX 120A FOC	M17 KV100	48V	30” - 36”
AMPX 120A FOC	M17 KV110	48V	32”
AMPX 120A FOC	M20 MINI KV110	48V	34” - 40”
AMPX 120A FOC	M20 KV110	48V	32” - 36”

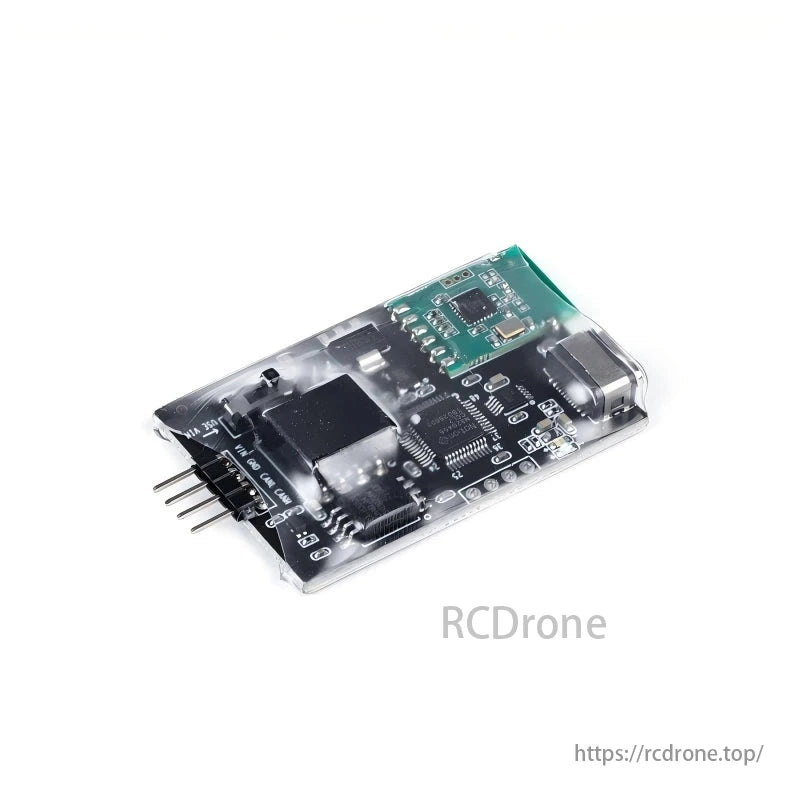

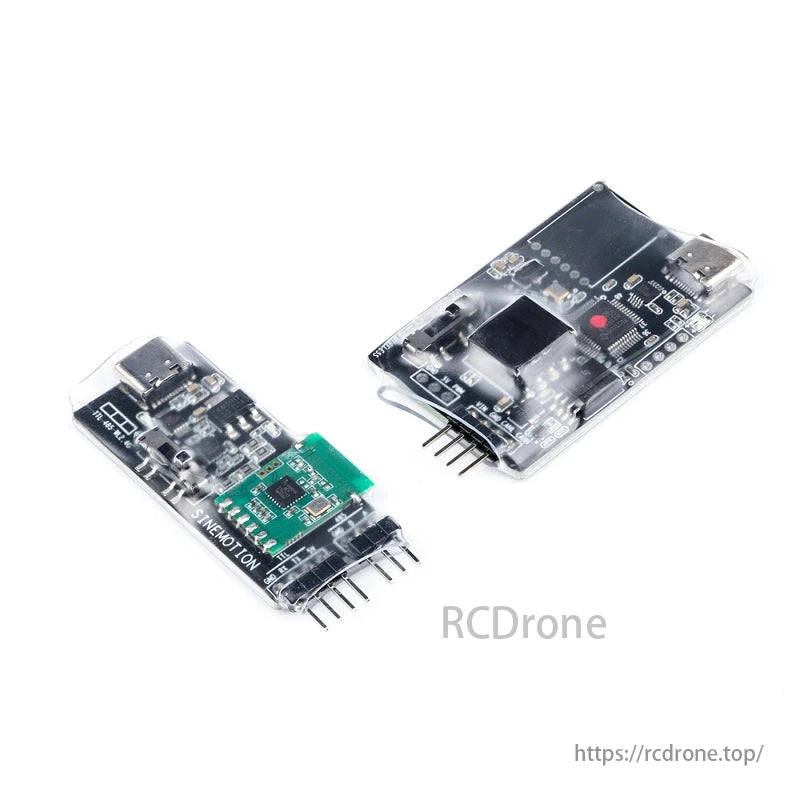

Firmware & Configuration

• Custom Firmware Required: This FOC ESC requires specific firmware based on the motor and propeller used.
• Default Firmware: If no request is made, the ESC will ship with default firmware.
• Firmware Upgrade Guide: Available on the product page.

FOC ESC Software

1. View Manual

2. FOC ESC Software
3. FOC ESC Communication Protocol



The MAD FOC 120A 8-14S ESC is a high-efficiency and intelligent speed controller designed for professional UAV applications. With advanced protection features, fast throttle response, and integrated CAN communication, it ensures reliable performance for industrial drone operations. Ideal for heavy-lift drones, aerial surveys, and agriculture UAVs, this ESC delivers smooth power modulation and robust durability in demanding environments.
