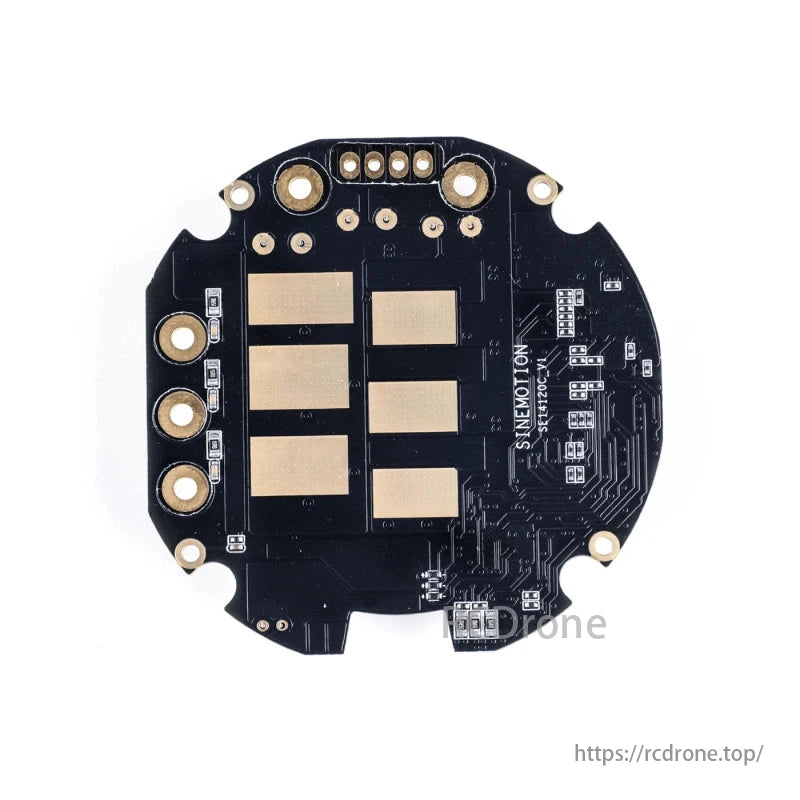

Overview
The MAD FOC 60A 14S ESC is an advanced FOC (Field-Oriented Control) ESC designed for industrial UAV applications, supporting MAD X6, X8, and X10 motors. This ESC provides smooth sinusoidal drive modulation, ensuring fast throttle response, enhanced stability, and optimized energy efficiency. With support for up to 14S LiPo batteries and instant current capability of 60A, it is ideal for single-rotor drones with take-off weights of 1.5-12kg.
Built with comprehensive self-check features, robust protection mechanisms, and CAN communication, this ESC offers enhanced system reliability and real-time telemetry, making it an essential component for high-performance drone operations.
Key Features
- Fast Throttle Response: Optimized control algorithms enable rapid acceleration and deceleration, reaching throttle limits in just 10ms.
- Efficient Heat Dissipation: The double-sided heat dissipation design minimizes thermal resistance, ensuring the internal temperature stays within 15°C of the surface temperature for optimal operation.
- Advanced Protection System: Features blocking protection, short-circuit protection, overcurrent protection (150A limit), and PWM interference filtering, safeguarding the ESC and motor.
- Self-Diagnostic System: Automatically detects internal hardware faults, reducing failure risks and providing error feedback via LED indicators or software.
- CAN Communication & Data Logging: Enables firmware updates and real-time system monitoring, enhancing data accuracy for maintenance and post-flight analysis.
- Compact & Lightweight Design: Weighing only 28g (excluding cables), with a diameter of 70.7mm, it is optimized for minimal space consumption while delivering maximum power efficiency.

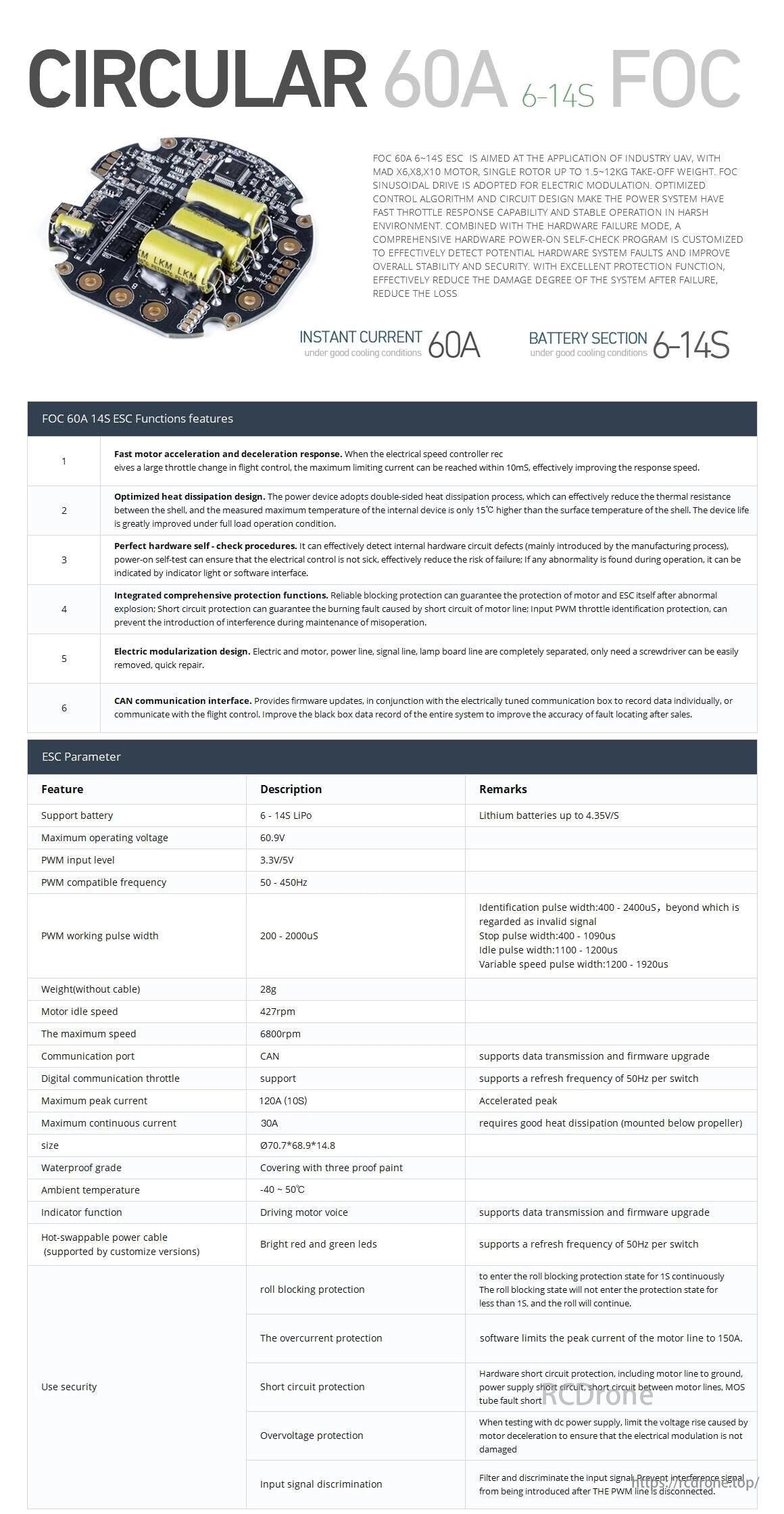

Technical Specifications
| Feature | Description | Remarks |
|---|---|---|
| Battery Support | 6 - 14S LiPo | Up to 4.35V/S |
| Max Operating Voltage | 60.9V | - |
| PWM Input Level | 3.3V / 5V | - |
| PWM Frequency | 50 - 450Hz | - |
| PWM Pulse Width | 200 - 2000μs | Includes identification and stop pulse width ranges |
| Motor Idle Speed | 427rpm | - |
| Max Speed | 6800rpm | - |
| Communication Port | CAN | Supports data transmission & firmware upgrade |
| Peak Current | 120A (10s) | - |
| Continuous Current | 30A | Mounted below the propeller for heat dissipation |
| Waterproof Grade | Three-layer protective coating | - |
| Operating Temperature | -40°C to 50°C | - |
| Hot-Swappable Power Cable | LED Indicators (Red/Green) | Supported on custom versions |

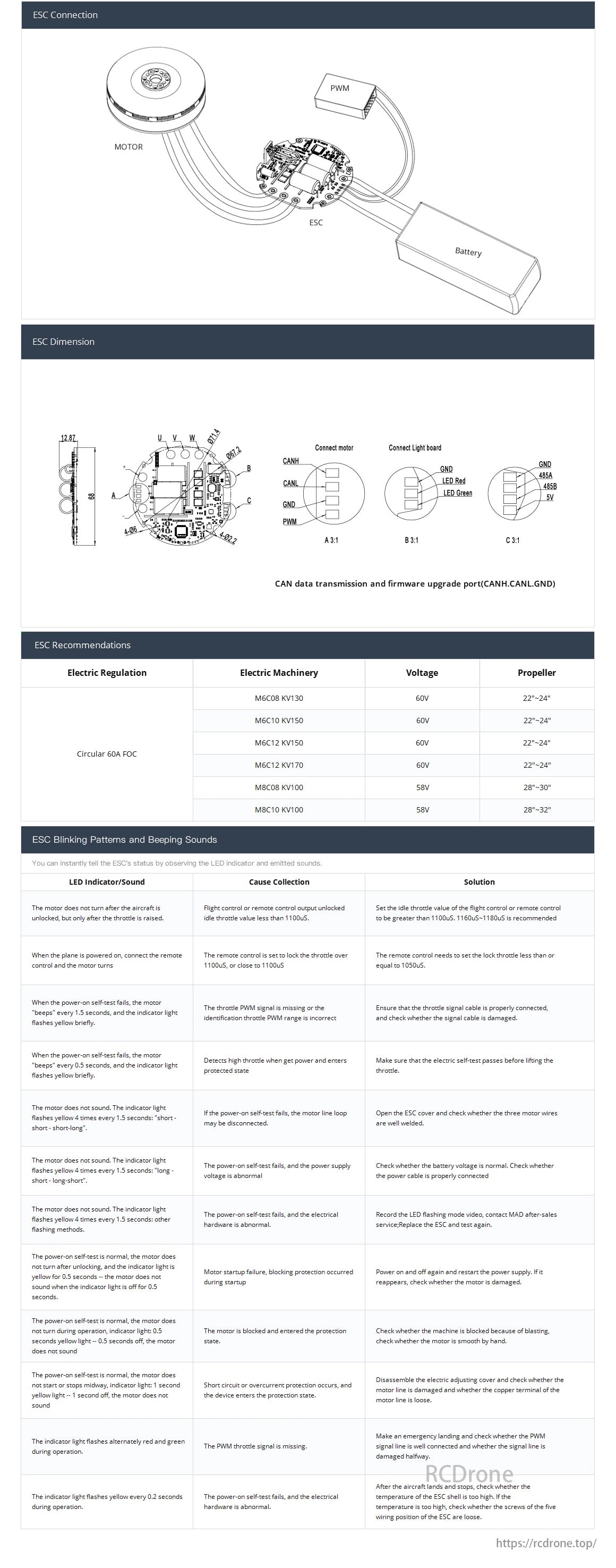

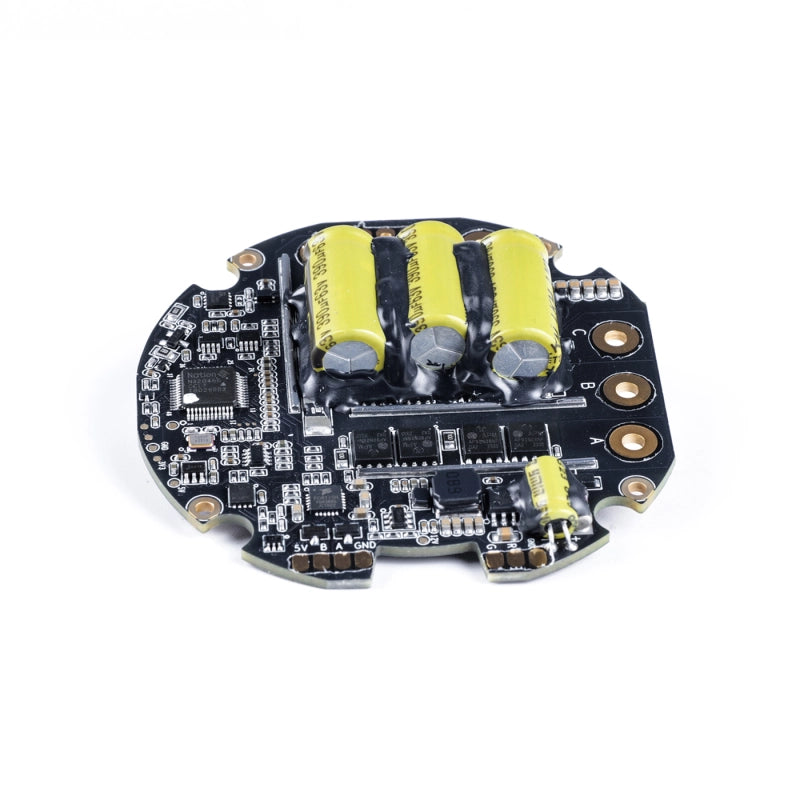

ESC Connection & Wiring
The MAD FOC 60A 14S ESC features a user-friendly connection system:

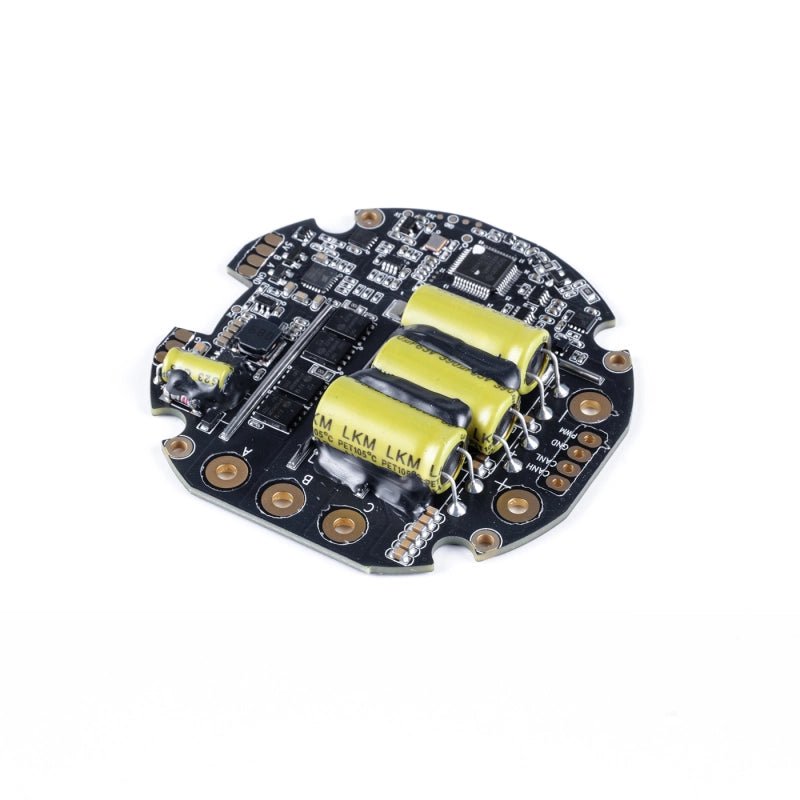

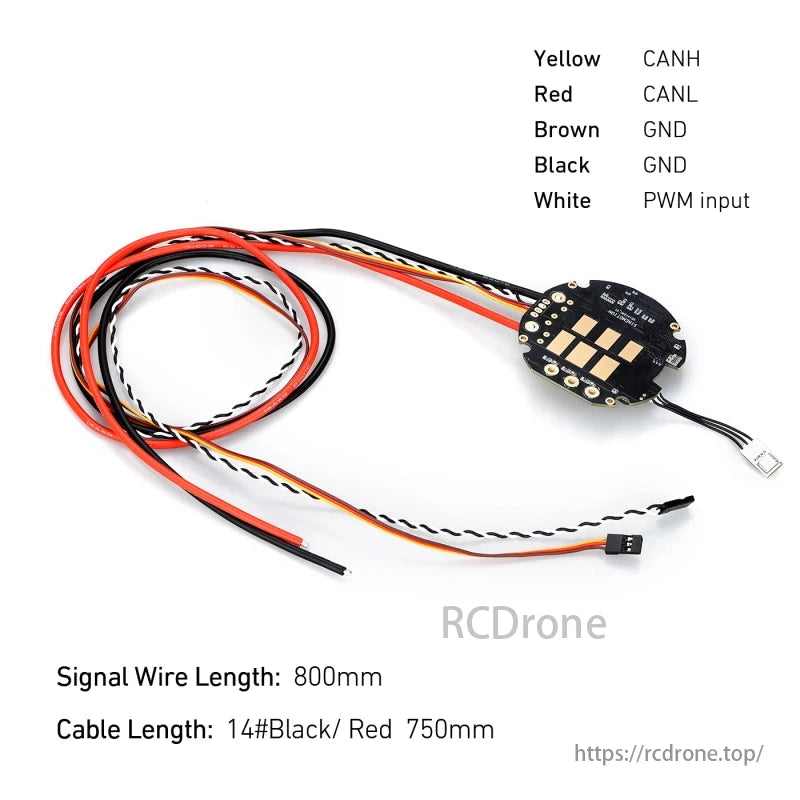

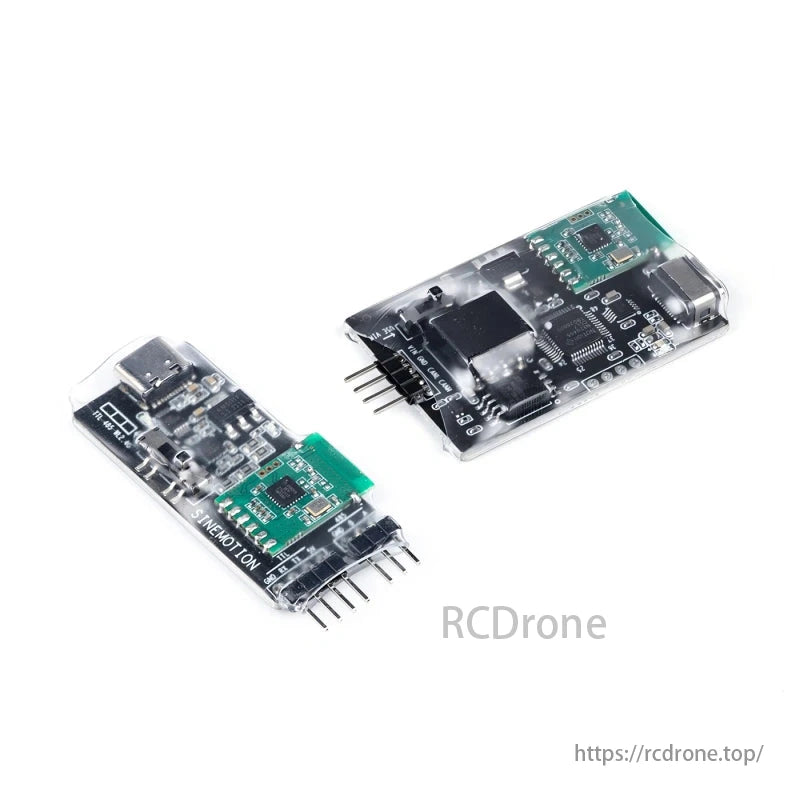

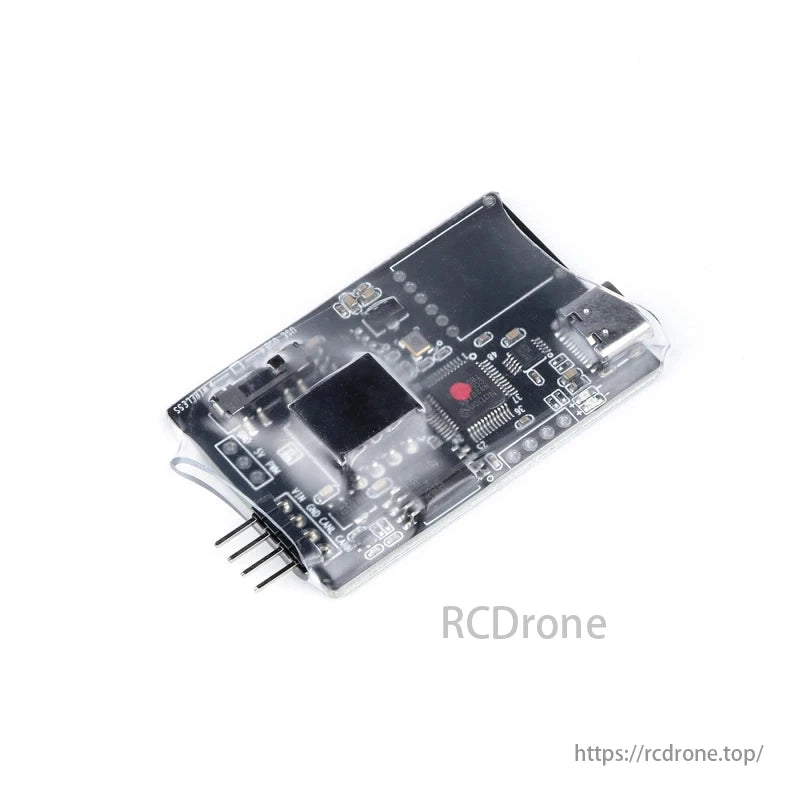

- CAN Data Transmission & Firmware Upgrade Port: CANH, CANL, GND connections.
- Motor & Power Connections: Clearly labeled terminals for U, V, W motor leads and power input.
ESC Compatibility Recommendations
This ESC is compatible with a range of MAD motors and propeller sizes, ensuring optimal performance for industrial UAVs:
| Electric Machinery | Voltage | Recommended Propeller |
|---|---|---|
| M6C08 KV130 | 60V | 22” - 24” |
| M6C10 KV150 | 60V | 22” - 24” |
| M6C12 KV150 | 60V | 22” - 24” |
| M6C12 KV170 | 60V | 22” - 24” |
| M8C08 KV100 | 58V | 28” - 30” |
| M8C10 KV100 | 58V | 28” - 32” |
ESC Blinking Patterns & Beeping Sounds
The LED indicators and beeping sounds provide real-time status monitoring and troubleshooting:
| LED Indicator/Sound | Cause | Solution |
|---|---|---|
| No throttle response after unlocking | PWM signal too low (<1100μs) | Increase throttle value to 1100μs - 1180μs |
| Beeping every 1.5s | Power-on self-test failure | Check throttle signal cable connection |
| Continuous beeping | High throttle detected at startup | Ensure throttle is at idle before power-on |
| Flashing yellow 4 times | Power loop disconnected | Check motor wiring and battery voltage |
| Alternating red & green | Missing PWM throttle signal | Verify PWM wiring connections |
FOC 60A 6-14S ESC is designed for industry UAVs, supporting MAD X5X8X10 motors. It features fast motor response, optimized heat dissipation, hardware self-check, comprehensive protection, electric modularization, and CAN communication. Parameters include support for 6-14S LiPo batteries, 60.9V max voltage, and various safety features.
ESC Connection diagram illustrates motor, ESC, and battery setup. Dimensions and recommendations for Circular 60A FOC ESC are provided, including compatible motors, voltages, and propellers. LED indicator patterns and beeping sounds diagnose issues like motor startup failure or blocked state, with solutions for each problem.
