MAD HB110-72X31 Drone Arm Set - 9KV Motor, 55KW Power Output, 110KG Thrust for Multi-Rotor/E-VTOL Drones

MAD HB110-72X31 Drone Arm Set - 9KV Motor, 55KW Power Output, 110KG Thrust for Multi-Rotor/E-VTOL Drones

MAD

$11,399.00 USD
$11,399.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Propeller Size
Rotation Direction
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MAD Hummingbird HB110-72X31 Drone Arm Set is an integrated propulsion system designed for heavy-lifting, high-capacity multi-rotor and e-VTOL applications. With exceptional thrust and power output, this set is ideal for large-scale drones used in industries such as urban mobility, logistics, and delivery.

This complete system includes the MAD M90C60 EEE motor, SineSic Pro 160A ESC, and CB2 72X31 Propellers, which are optimized for delivering high thrust and power with great reliability.

Key Features:

  • Motor Model: MAD M90C60 EEE V1.0

    • KV Rating: 9KV
    • Nominal Voltage: 354V-400V
    • Motor Size: Diameter: 257 mm, Length: 123 mm
    • Internal Resistance: 40.5 Ω
    • Maximum Thrust: 201 kg
    • Maximum Power: 55.6 KW
    • No Load Current: 1.44A @ 40V
    • Recommended Continuous Thrust: 110 kg
    • Motor Weight: 12.7 kg

  • ESC Model: SineSic Pro 160A 30KW (150V-435V)

    • Continuous Current: 160A (under good cooling)
    • Instant Current: 320A (under good cooling)
    • Input Voltage: 96V-100S LiPo
    • Protection Level: IP67
    • Cable Length (Input): 675 mm (10AWG Silicone Flexible Wire)
    • Cable Length (Output): 600 mm (10AWG Silicone Flexible Wire)
    • PWM Input Signal Voltage: 3.3V/5V
    • Weight: 1895 g

  • Propellers Model: CB2 72X31 MATT

    • Material: High-quality carbon fiber + Resin
    • Dimensions: 1828.8 mm x 787.4 mm (single propeller)
    • Weight per Propeller: 1080 g
    • Mounting Hole Size: Ø75 mm (M8), Ø50 mm (M6)

Performance Data:

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N·m] RPM Thrust [gf] Efficiency [%] Efficiency [g/W]
30 353.69 11.94 4223.1 3722.8 32.318 1100 38132 88.2 9.0
35 353.63 17.22 6089.5 5440.9 41.400 1255 50974 89.3 8.4
40 353.61 24.73 8744.8 7802.1 53.370 1396 65229 89.2 7.5
45 353.65 33.53 11440.6 10256.7 64.268 1542 77400 89.7 6.8
50 353.61 41.55 14637.2 12926.4 74.675 1653 87951 90.0 6.4
55 353.54 49.85 17625.3 15791.1 85.379 1767 104749 89.7 5.9
60 353.54 56.93 19111.2 16722.3 92.842 1872 112748 89.8 5.5
65 353.51 62.06 22071.3 19347.0 110.140 1983 120717 88.7 5.2
70 353.51 72.24 25714.3 22698.1 110.140 2060 144578 86.7 4.9
75 353.60 83.41 29476.3 25990.0 120.345 2134 158014 85.6 4.5

Applications:

The Hummingbird HB110-72X31 is designed for demanding industrial applications, including:

  • Heavy Payload Drones: Suitable for carrying large payloads with high efficiency.
  • Urban Mobility and Delivery: Ideal for drones used in urban logistics and cargo delivery.
  • Large-Scale Multi-Rotor and e-VTOL Aircraft: Excellent for applications requiring high thrust and power.

This system ensures high performance with aviation-grade aluminum construction, Japanese bearings, and high-performance curved magnets, making it durable and reliable for heavy-duty tasks. The SineSic Pro ESC enhances power management, and the motor's cooling system ensures continuous operation even under heavy load.

Details

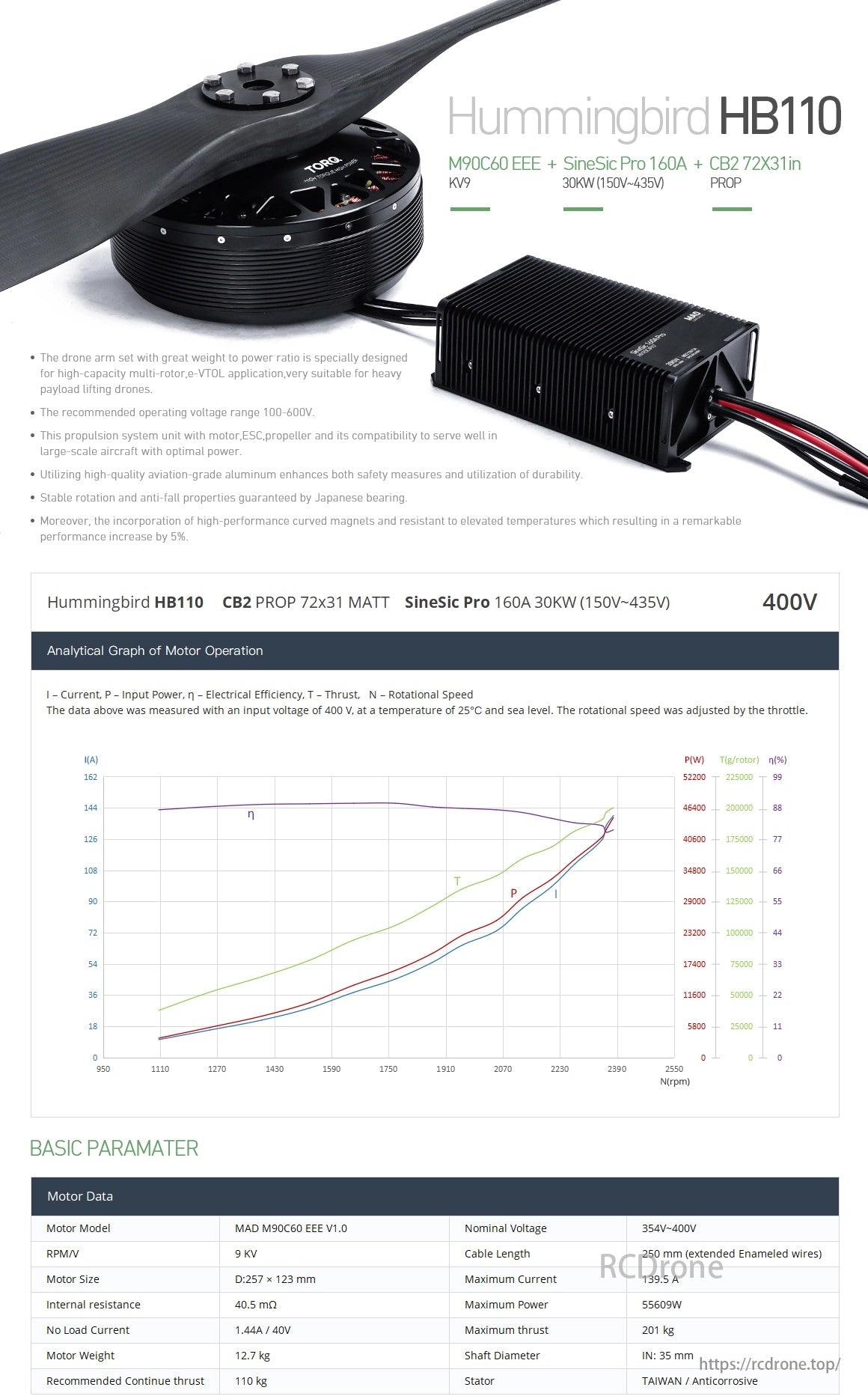

MAD HB110-72X31 Drone Arm Set – 9KV Motor, Hummingbird HB110 drone arms offer high weight-to-power ratio, 100-600V operation, 5% performance boost, aluminum build, for heavy payloads and large aircraft.

Hummingbird HB110 drone arm set with high weight-to-power ratio for heavy payload lifting drones. Recommended operating voltage range 100-600V. Compatible with large-scale aircraft, utilizing high-quality aluminum and Japanese bearings. Performance increase by 5%. Motor data includes nominal voltage, RPM/V, motor size, internal resistance, no load current, motor weight, recommended continue thrust, cable length, maximum current, maximum power, maximum thrust, shaft diameter, and stator details.

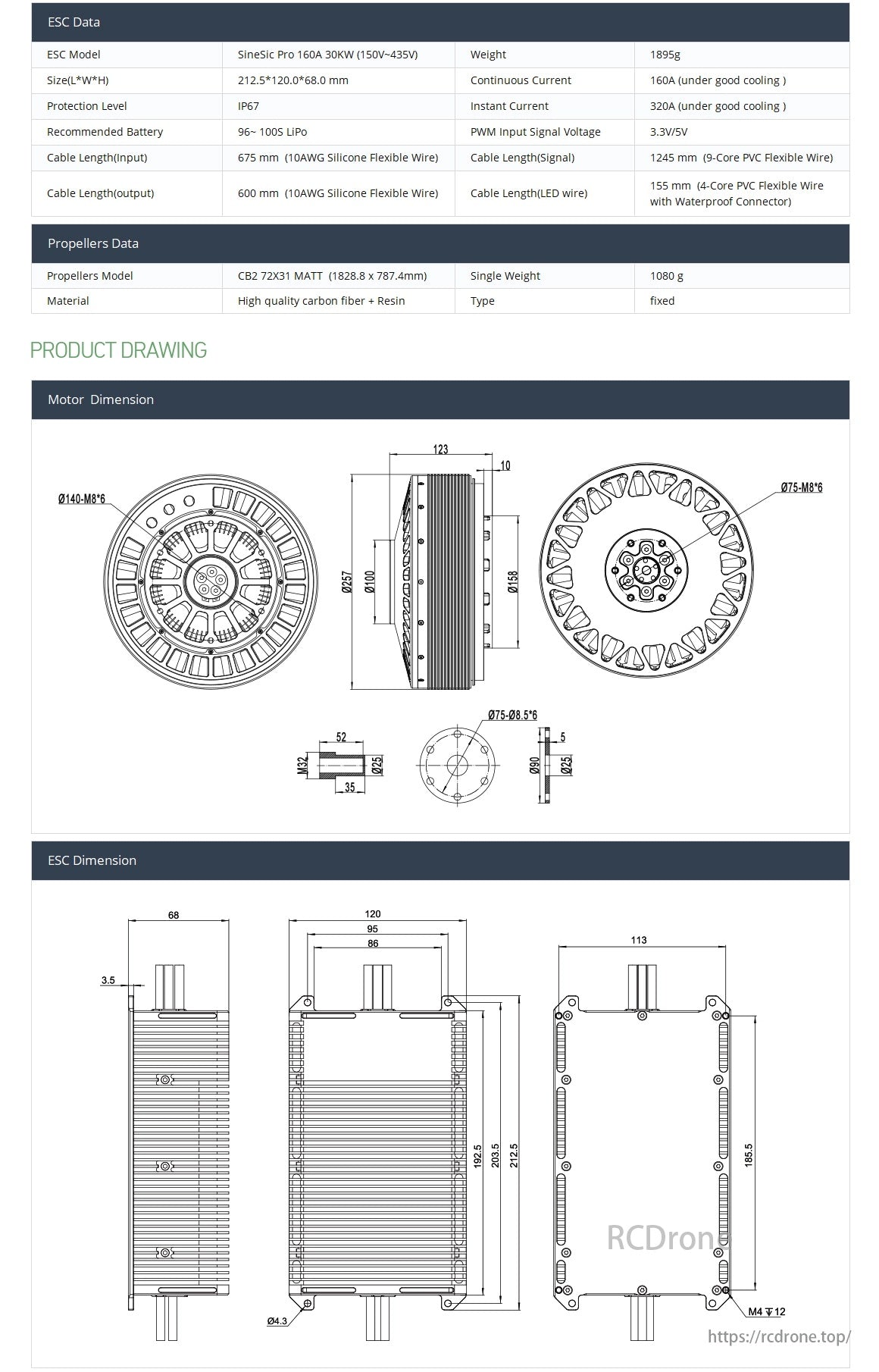

MAD HB110-72X31 Drone Arm Set – 9KV Motor, ESC Data: SineSic Pro 160A, 30KW, 1895g. Continuous 160A, instant 320A. Propellers CB2 72X31 MATT, 1080g each. Includes dimensions, protection, battery, and material specs.

ESC Data: SineSic Pro 160A, 30KW, 1895g weight. Continuous current 160A, instant current 320A. Propellers: CB2 72X31 MATT, 1080g each. Motor dimensions and ESC dimensions provided. Specifications include size, protection level, recommended battery, cable lengths, and material details.

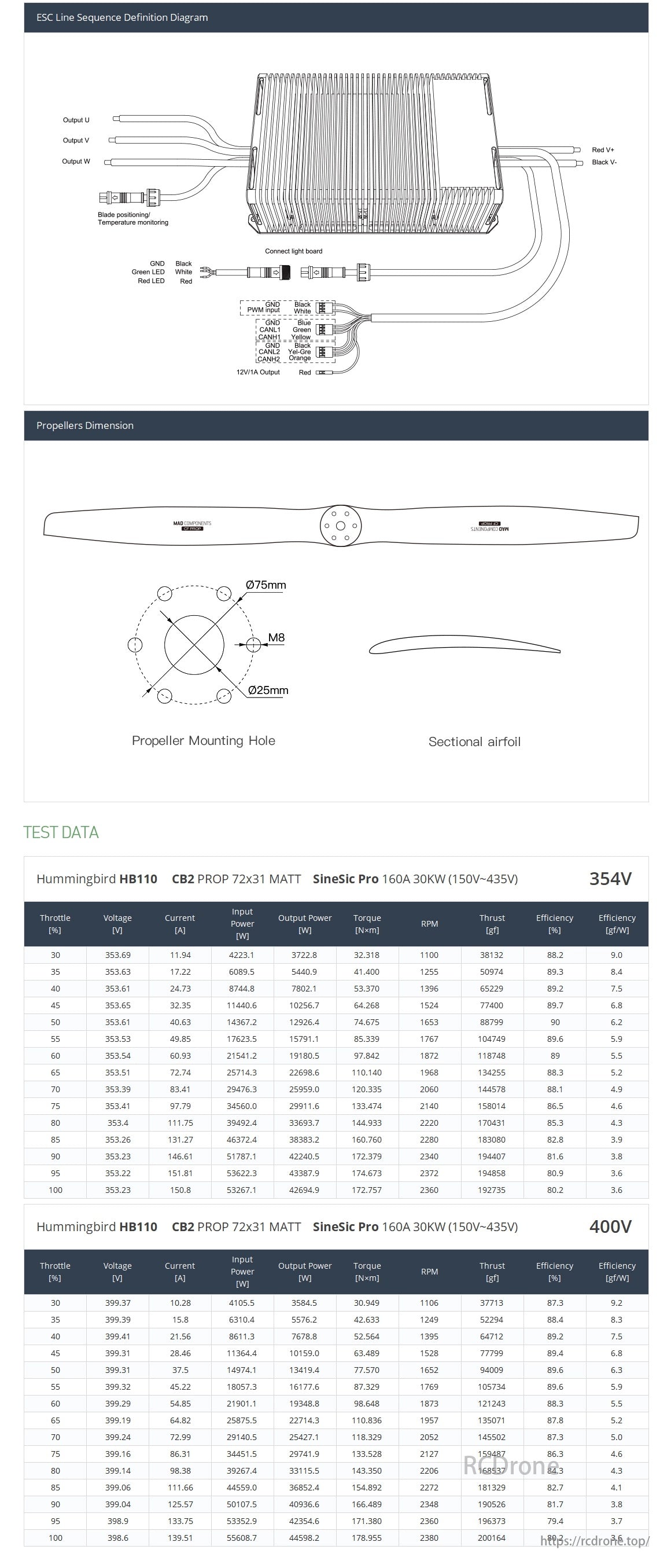

MAD HB110-72X31 Drone Arm Set – 9KV Motor, Diagram details ESC connections, propeller specs, and test data comparing performance metrics for 354V and 400V setups.

ESC Line Sequence Definition Diagram outlines connections for blade positioning, temperature monitoring, and light board. Propellers Dimension details include mounting hole specifications. Test data compares performance metrics like voltage, current, power, torque, RPM, thrust, efficiency at various throttle levels for 354V and 400V setups.
