Overview

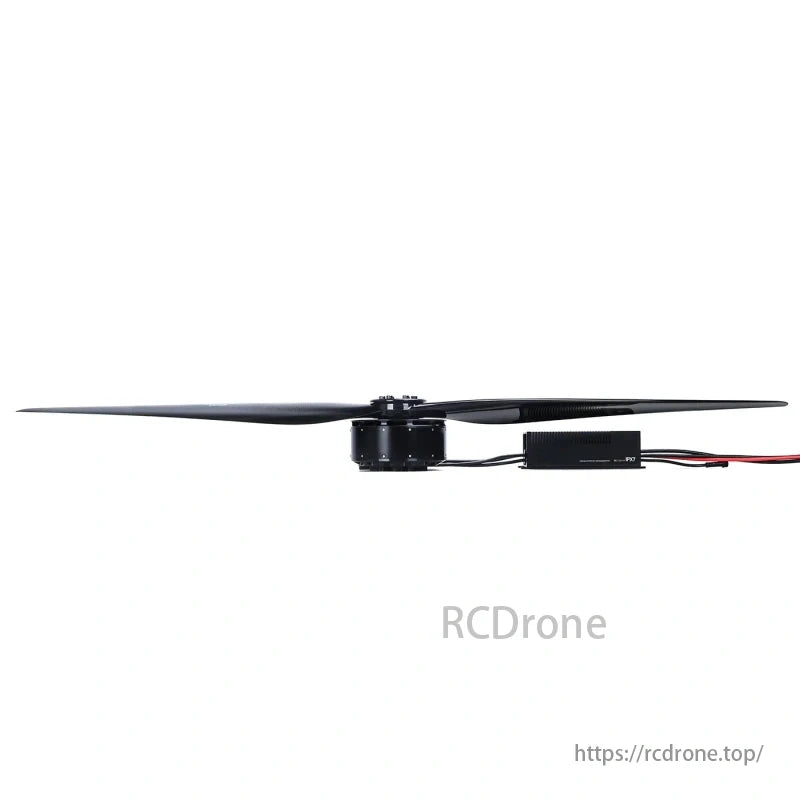

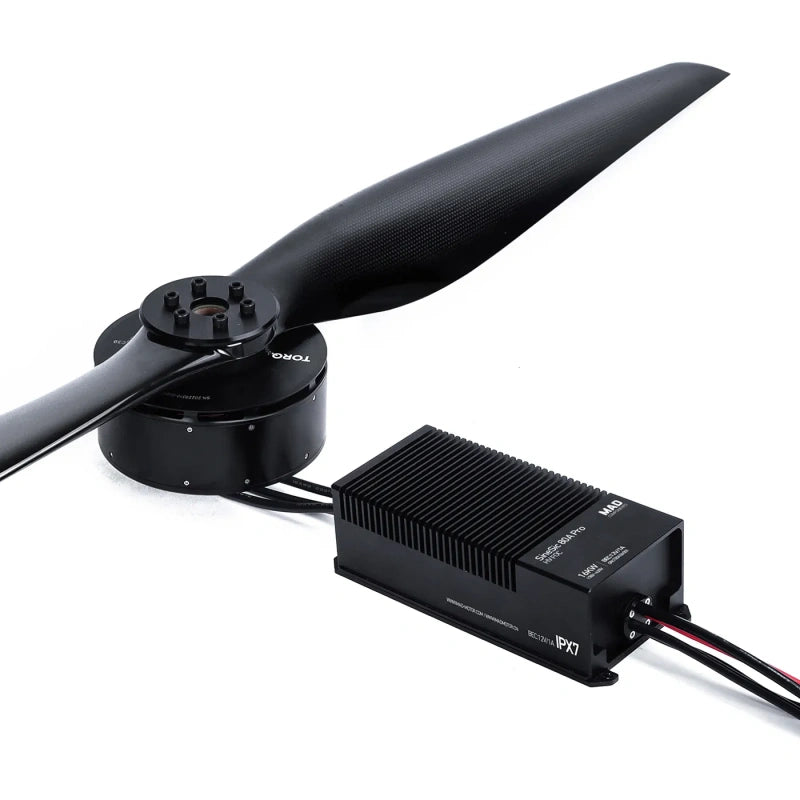

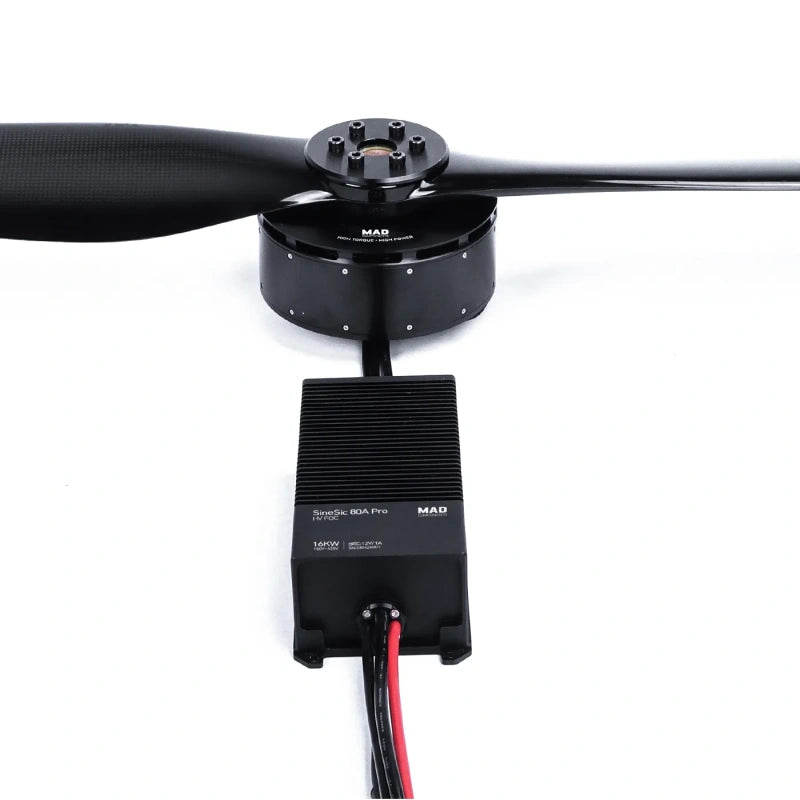

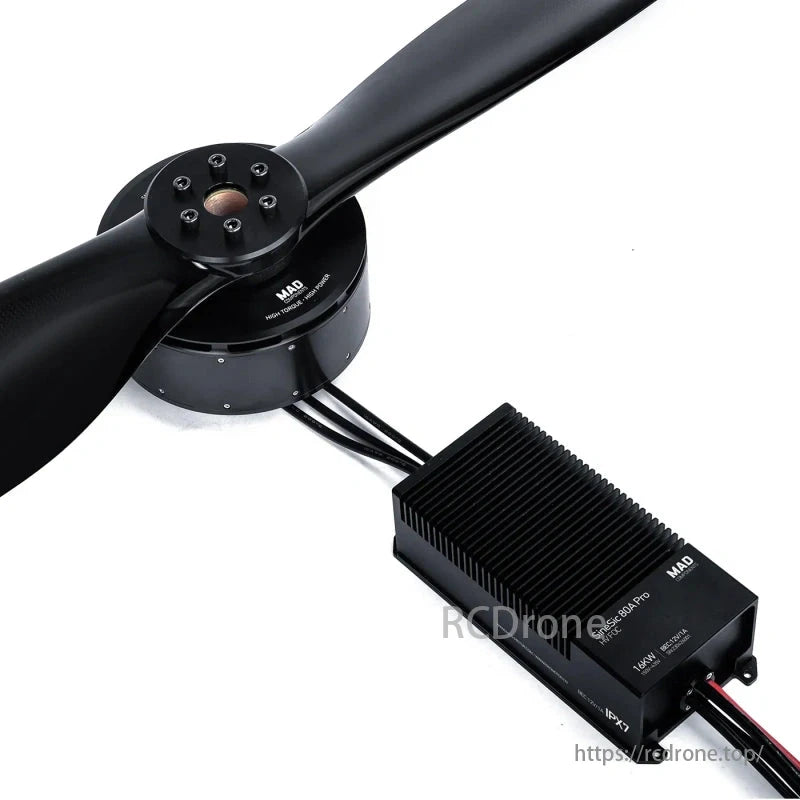

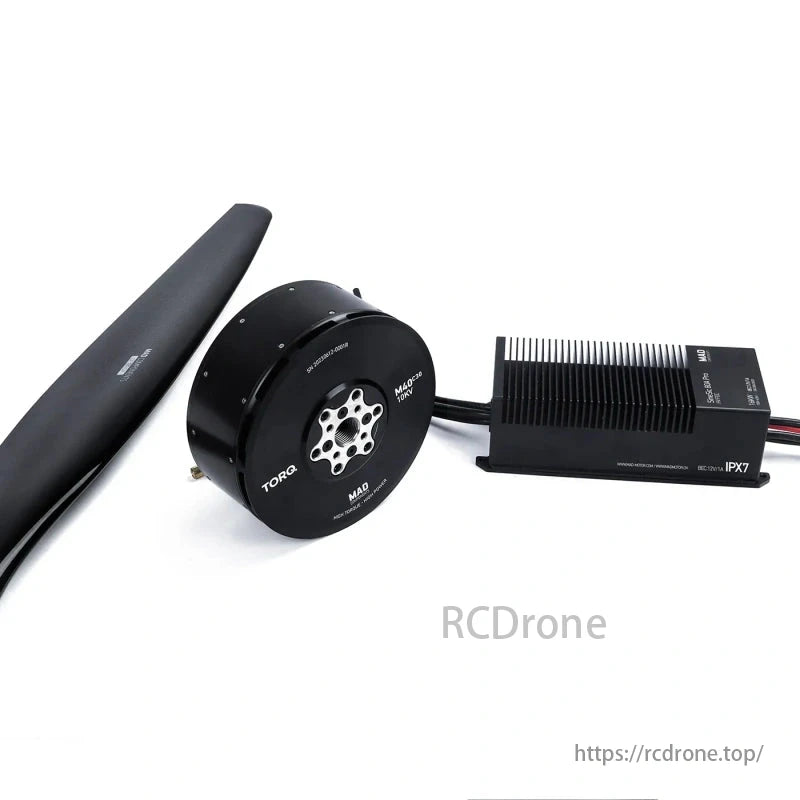

The MAD HB30 47.5X17.4 drone arm set is an integrated propulsion system designed for heavy-lifting multi-rotor and e-VTOL applications. It includes the M40C30 IPE V3.0 motor, SineSic Pro 80A ESC, and FLUXER PRO 47.5X17.4 propeller. The system delivers up to 79.2 kg of thrust per rotor with a continuous power output of 19 kW, making it suitable for large-scale UAVs requiring high payload capacity.
Specifications
Motor Data
| Parameter | Value |
|---|---|
| Motor Model | MAD M40C30 IPE V3.0 |
| KV Rating | 10 KV |
| Nominal Voltage | 354V-400V |
| Motor Size | D:151.4 × 81 mm |
| Internal Resistance | 387 mΩ |
| No Load Current | 1.8A / 50V |
| Maximum Current | 54.9 A |
| Maximum Power | 19,483 W |
| Maximum Thrust | 79.2 kg |
| Recommended Continuous Thrust | 30 kg |
| Shaft Diameter | IN: 25 mm |
| Motor Weight | 3,460 g |
| Stator | Taiwan / Anticorrosive |
| Cable Length | 150 mm (extended enameled wires) |
ESC Data
| Parameter | Value |
|---|---|
| ESC Model | SineSic Pro 80A 16KW (150V~435V) |
| Size (L×W×H) | 197.0 × 88.0 × 59.5 mm |
| Protection Level | IP67 |
| Recommended Battery | 96~100S LiPo |
| Cable Length (Input) | 690 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Output) | 600 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Signal) | 1250 mm (9-Core PVC Flexible Wire) |
| Cable Length (LED Wire) | 155 mm (4-Core PVC Flexible Wire with Waterproof Connector) |
| Weight | 1400 g |
| Continuous Current | 80A (under good cooling) |
| Instant Current | 150A (under good cooling) |
| PWM Input Signal Voltage | 3.3V / 5V |
Propeller Data
| Parameter | Value |
|---|---|
| Propeller Model | FLUXER 47.5X17.4 GLOSSY |
| Material | High-quality carbon fiber + resin |
| Single Weight | 405 g |
| Type | Fixed |
Performance Data
400V Performance Test Results
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | Output Power (W) | Torque (N·m) | RPM | Thrust (gf) | Efficiency (%) | Efficiency (gf/W) |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 399.46 | 1.82 | 727.0 | 545.5 | 4.201 | 1240 | 7878 | 75.0 | 10.8 |
| 35 | 399.41 | 2.85 | 1138.3 | 919.0 | 6.011 | 1460 | 11191 | 80.7 | 9.8 |
| 40 | 399.39 | 4.18 | 1669.4 | 1404.8 | 7.985 | 1680 | 14180 | 84.5 | 8.2 |
| 45 | 399.43 | 6.23 | 2488.4 | 2135.0 | 10.891 | 1872 | 20294 | 85.8 | 8.2 |
| 50 | 399.45 | 8.27 | 3303.5 | 2882.4 | 14.028 | 2081 | 24576 | 87.4 | 7.4 |
| 55 | 399.42 | 10.98 | 4385.6 | 3888.4 | 16.343 | 2272 | 30181 | 88.7 | 6.9 |
| 60 | 399.38 | 14.11 | 5633.5 | 5036.9 | 19.497 | 2468 | 35664 | 89.4 | 6.3 |
| 70 | 399.39 | 21.66 | 8651.2 | 7737.6 | 26.211 | 2688 | 40958 | 89.4 | 5.6 |
| 75 | 399.36 | 26.35 | 10521.3 | 9332.3 | 29.815 | 2896 | 54377 | 88.7 | 5.7 |
| 85 | 399.39 | 36.55 | 14594.0 | 12859.6 | 36.888 | 3239 | 67300 | 88.1 | 4.6 |
| 95 | 399.38 | 44.2 | 17650.8 | 15359.0 | 42.884 | 3492 | 76088 | 87.4 | 4.3 |
| 100 | 399.32 | 48.79 | 19482.8 | 16709.5 | 44.176 | 3612 | 79099 | 85.8 | 4.1 |
Applications
- Heavy payload multi-rotor drones
- e-VTOL air mobility systems
- Cargo and delivery drones
- Surveillance and industrial UAVs
The MAD HB30 47.5X17.4 drone arm set is a high-thrust propulsion system designed for professional UAV applications requiring stability, durability, and efficiency. It ensures optimal power-to-weight ratio, making it a leading choice for large-scale drone operations.
Details
Hummingbird HB30 propulsion system includes M40C30 IPE motor, SineSic Pro 80A ESC, and FLUXER PRO propeller. Designed for heavy payload lifting drones, it operates at 100-600V with high efficiency and durability. Graphs show performance metrics like current, power, thrust, and rotational speed. Basic parameters include motor size, weight, and maximum thrust.
SineSiC Pro 80A ESC with IP67 protection, weighs 1400g. Continuous current: 80A; instant current: 150A. Uses 96-100S LiPo battery. Propellers are FLUXER 47.5X17.4 GLOSSY, made of carbon fiber and resin. Dimensions and wiring diagrams provided for motor and ESC.
Propellers Dimension details include mounting hole and sectional airfoil specifications. Test data for Hummingbird HB30 FLUXER PRO 47.5X17.4 GLOSSY with SineSic Pro 80A 16KW at 354V and 400V shows various throttle levels, voltage, current, input/output power, torque, RPM, thrust, efficiency, and specific efficiency values across different settings.
