MAD HB30-52X19 Drone Arm Set - 30KG Thrust M40C30 10KV, Sinesic Pro 80A ESC, 52x19 Inch Prop,Propulsion for Large VTOL / Multirotor Drone
MAD HB30-52X19 Drone Arm Set - 30KG Thrust M40C30 10KV, Sinesic Pro 80A ESC, 52x19 Inch Prop,Propulsion for Large VTOL / Multirotor Drone
MAD
Couldn't load pickup availability
Overview

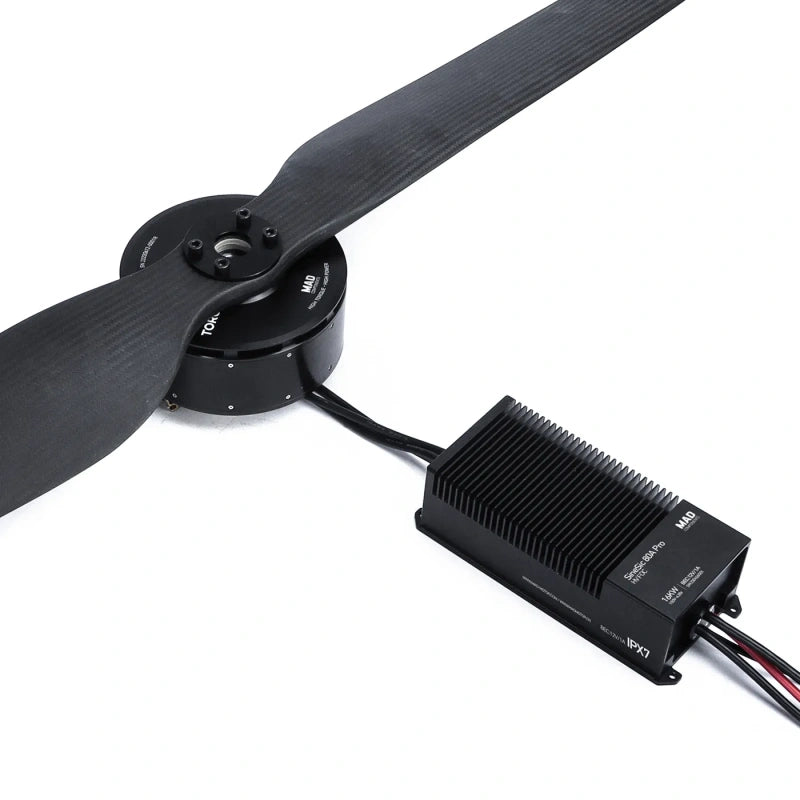

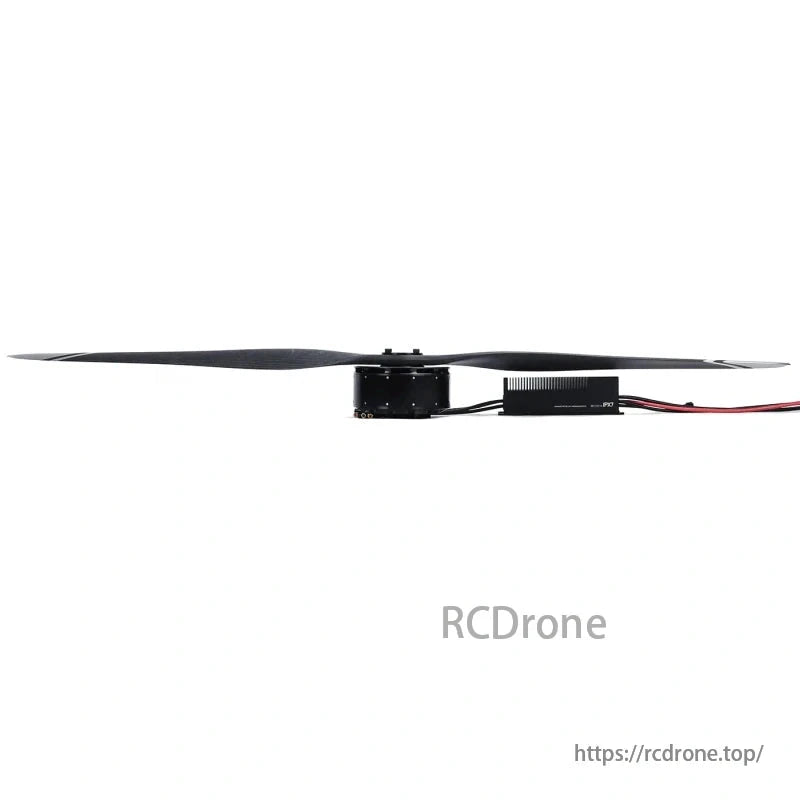

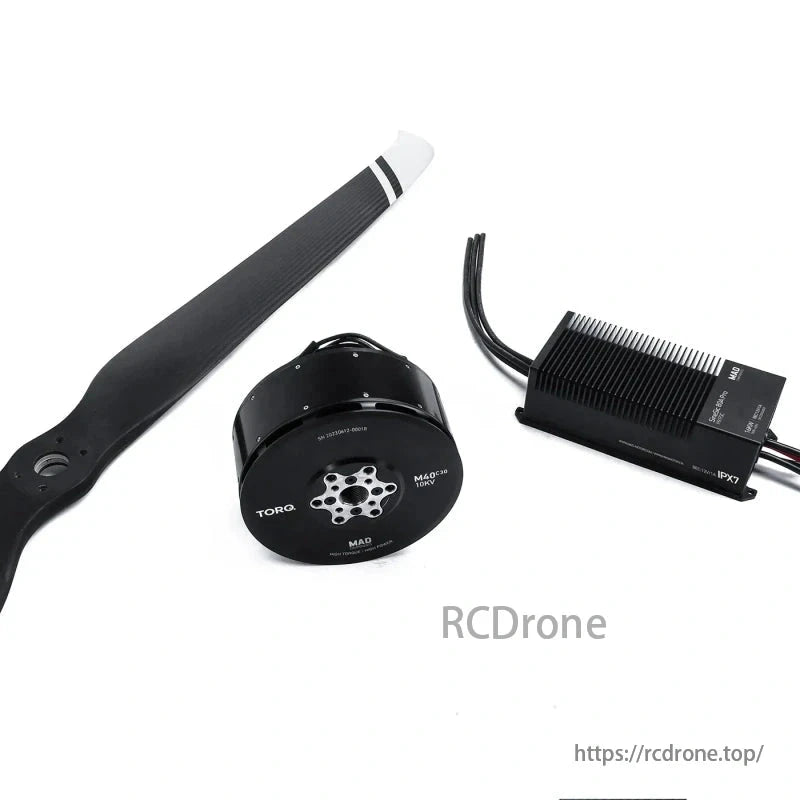

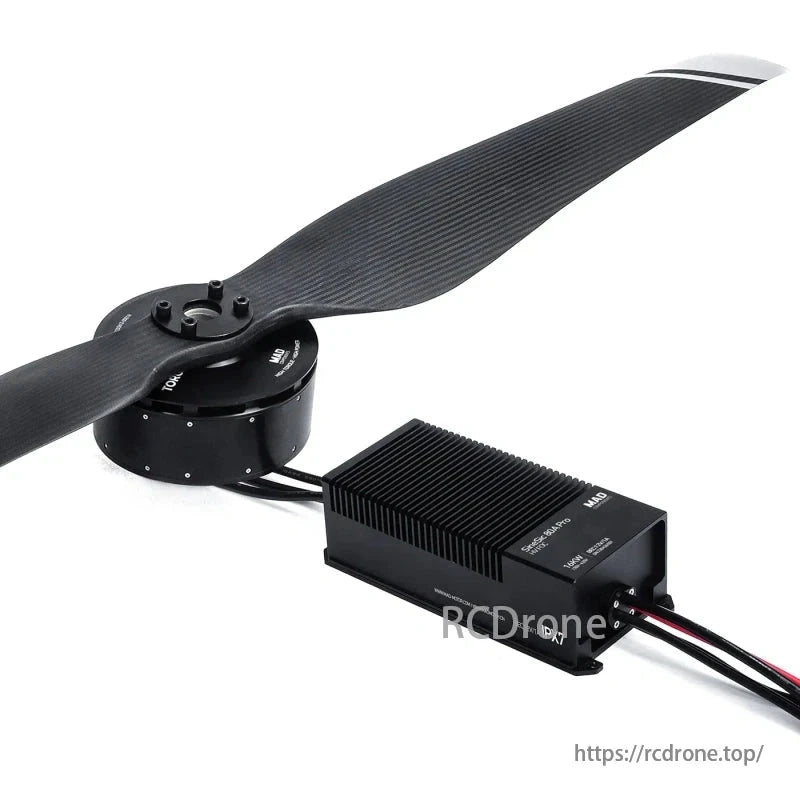

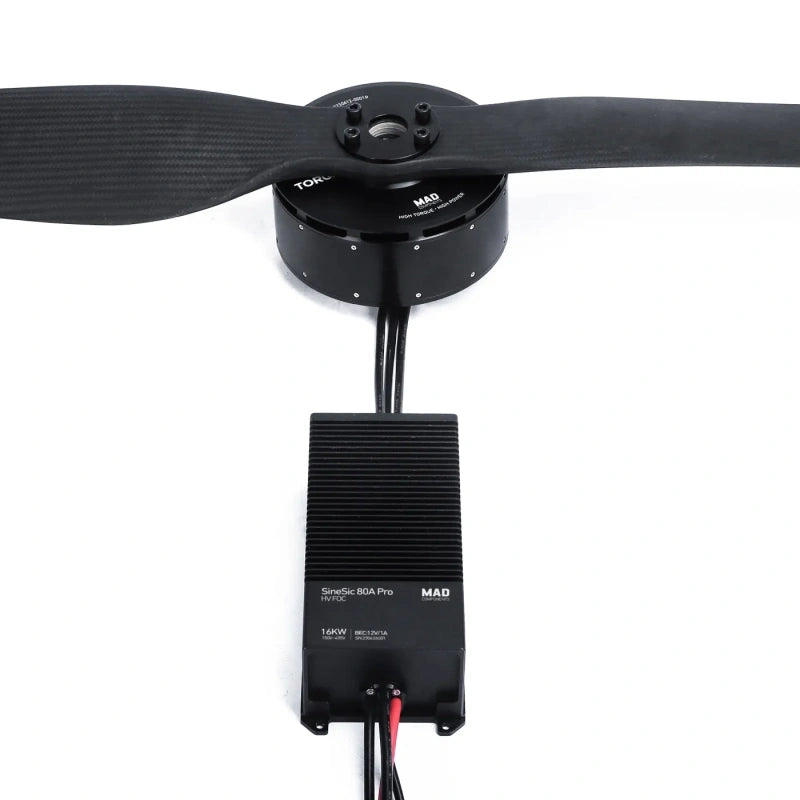

The MAD HB30-52X19 drone arm set is a high-performance propulsion system designed for heavy-lifting multi-rotor and e-VTOL drones. It includes the M40C30 IPE V3.0 motor, SineSic Pro 80A ESC, and CB2 52X19 inch propeller, delivering up to 79 kg of maximum thrust with a continuous 30 kg thrust per rotor. The system is optimized for applications requiring high efficiency, durability, and powerful thrust output, making it suitable for cargo drones, urban air mobility, and large UAV operations.
Specifications
Motor Data
| Parameter | Value |
|---|---|
| Motor Model | MAD M40C30 IPE V3.0 |
| KV Rating | 10 KV |
| Nominal Voltage | 354V-400V |
| Motor Size | D:151.4 × 81 mm |
| Internal Resistance | 387 mΩ |
| No Load Current | 1.8A / 50V |
| Maximum Current | 52.2 A |
| Maximum Power | 18,464 W |
| Maximum Thrust | 79 kg |
| Recommended Continuous Thrust | 30 kg |
| Shaft Diameter | IN: 25 mm |
| Motor Weight | 3,460 g |
| Stator | Taiwan / Anticorrosive |
| Cable Length | 150 mm (extended enameled wires) |
ESC Data
| Parameter | Value |
|---|---|
| ESC Model | SineSic Pro 80A 16KW (150V~435V) |
| Size (L×W×H) | 197.0 × 88.0 × 59.5 mm |
| Protection Level | IP67 |
| Recommended Battery | 96~100S LiPo |
| Cable Length (Input) | 690 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Output) | 600 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Signal) | 1250 mm (9-Core PVC Flexible Wire) |
| Cable Length (LED Wire) | 155 mm (4-Core PVC Flexible Wire with Waterproof Connector) |
| Weight | 1400 g |
| Continuous Current | 80A (under good cooling) |
| Instant Current | 150A (under good cooling) |
| PWM Input Signal Voltage | 3.3V / 5V |
Propeller Data
| Parameter | Value |
|---|---|
| Propeller Model | CB2 52X19 MATT |
| Dimensions | 1320.8 × 482.6 mm |
| Material | High-quality carbon fiber + resin |
| Single Weight | 550 g |
| Type | Fixed |
Key Features
- Optimized for large VTOL and multi-rotor UAVs with high payload demands.
- Delivers 30 kg continuous thrust per rotor, with 79 kg peak thrust for high-lift operations.
- Wide voltage range (354V-400V) for increased power efficiency.
- SineSic Pro 80A ESC with IP67 protection for durability in harsh conditions.
- Lightweight, high-strength propeller with aerodynamic efficiency for stable flight.
- Aviation-grade aluminum motor housing for enhanced heat dissipation and longevity.
Applications
- Heavy payload multi-rotor drones
- e-VTOL air mobility systems
- Cargo and delivery drones
- Industrial and surveillance UAVs
The MAD HB30-52X19 drone arm set provides an integrated high-thrust solution for drone manufacturers and operators requiring powerful, efficient, and reliable propulsion systems for large UAVs.
Details
Hummingbird HB30 propulsion system for heavy payload lifting drones. Designed for high-capacity multi-rotor eVTOL applications, suitable for 100-600V voltage range. Features high-quality aluminum, Japanese bearings, and curved magnets. Achieves 79 kg thrust with 400V input, optimized for large-scale aircraft.
ESC Data: SineSic Pro 80A, 16KW, 1400g weight. Dimensions: 197x88x59.5mm. Continuous current: 80A. Protection level: IP67. Propellers: CB2 52X19 MATT, 550g each. Motor dimensions and ESC dimensions are detailed in drawings. Specifications include cable lengths and recommended battery type.
ESC Line Sequence Definition Diagram outlines connections for brushless positioning and temperature monitoring. Propellers Dimension details include mounting holes and sectional airfoil. Test data for Hummingbird HB30 CB2 PROP 52x19 MATT at 354V and 400V shows various throttle, voltage, current, power, torque, RPM, thrust, efficiency, and specific efficiency values.
