Overview

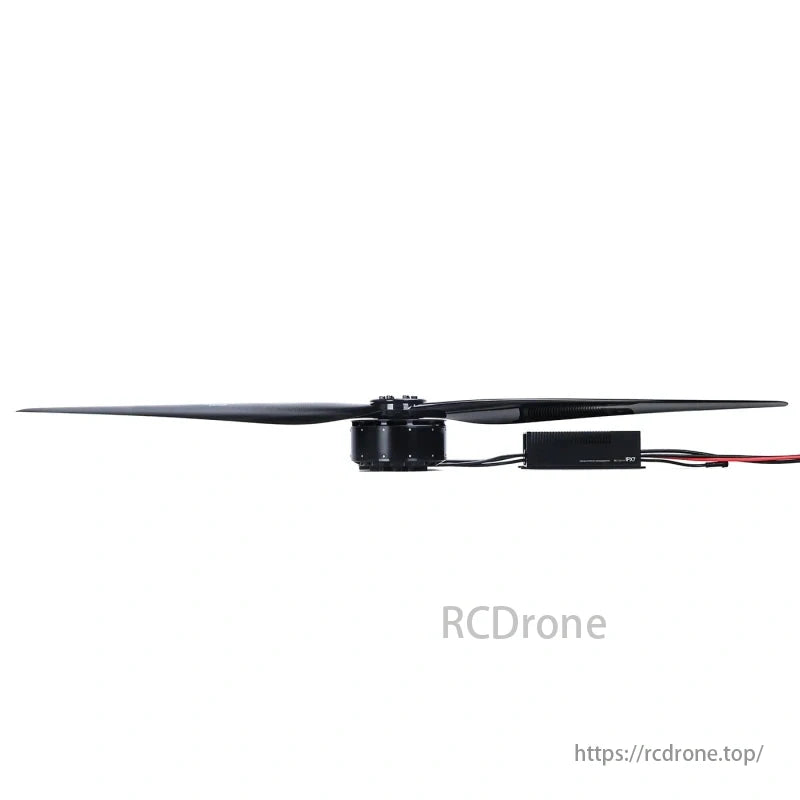

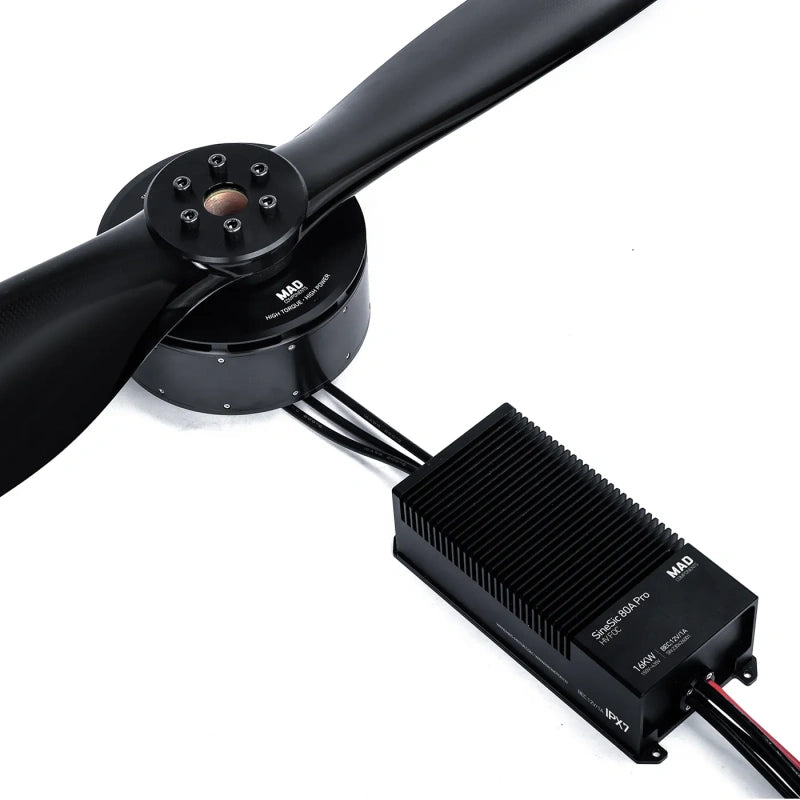

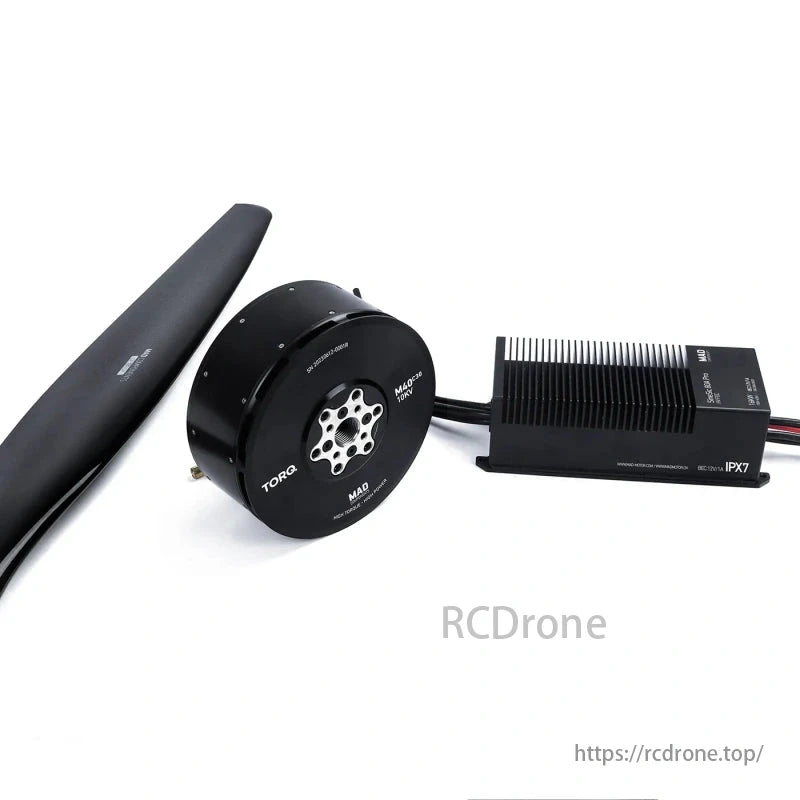

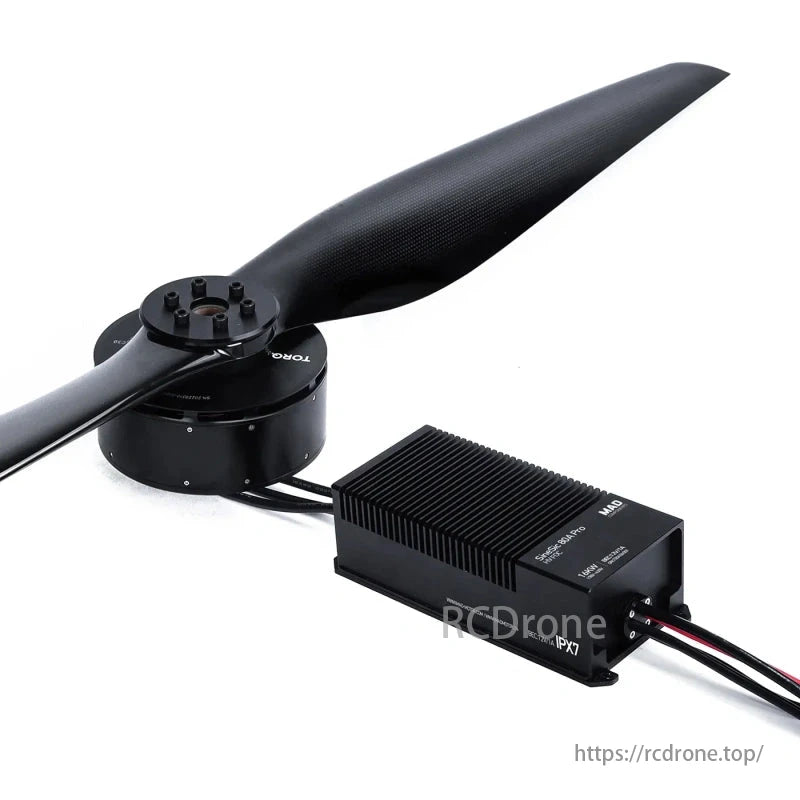

The MAD HB30-54X24 10KV Drone Arm Set is a high-power propulsion system engineered for large VTOL, heavy-lift multirotor drones, and industrial UAVs. It integrates the M40C30 IPE V3.0 drone brushless motor, SineSic Pro 80A ESC, and FLUXER 54X24 propeller, providing 84.2 kg of maximum thrust per rotor with a continuous thrust of 30 kg. Designed for high payload efficiency, this propulsion system ensures optimized power output, durability, and flight stability in demanding applications.
Specifications
Motor Data
| Parameter | Value |
|---|---|
| Motor Model | MAD M40C30 IPE V3.0 |
| KV Rating | 10 KV |
| Nominal Voltage | 354V-400V |
| Motor Size | D:151.4 × 81 mm |
| Internal Resistance | 387 mΩ |
| No Load Current | 1.8A / 50V |
| Maximum Current | 63.4 A |
| Maximum Power | 22,400 W |
| Maximum Thrust | 84.2 kg |
| Recommended Continuous Thrust | 30 kg |
| Shaft Diameter | IN: 25 mm |
| Motor Weight | 3,460 g |
| Stator | Taiwan / Anticorrosive |
| Cable Length | 150 mm (extended enameled wires) |
ESC Data
| Parameter | Value |
|---|---|
| ESC Model | SineSic Pro 80A 16KW (150V~435V) |
| Size (L×W×H) | 197.0 × 88.0 × 59.5 mm |
| Protection Level | IP67 |
| Recommended Battery | 96~100S LiPo |
| Cable Length (Input) | 690 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Output) | 600 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Signal) | 1250 mm (9-Core PVC Flexible Wire) |
| Cable Length (LED Wire) | 155 mm (4-Core PVC Flexible Wire with Waterproof Connector) |
| Weight | 1400 g |
| Continuous Current | 80A (under good cooling) |
| Instant Current | 150A (under good cooling) |
| PWM Input Signal Voltage | 3.3V / 5V |
Propeller Data
| Parameter | Value |
|---|---|
| Propeller Model | FLUXER 54X24 GLOSSY |
| Dimensions | 1371.6 × 609.6 mm |
| Material | High-quality carbon fiber + resin |
| Single Weight | 605 g |
| Type | Fixed |
Key Features
- High-power propulsion system for large-scale VTOL and heavy-lift drones.
- 30 kg continuous thrust per rotor, with 84.2 kg peak thrust for demanding aerial operations.
- 22 kW power output, optimized for high-efficiency drone applications.
- SineSic Pro 80A ESC with IP67-rated waterproofing for enhanced durability.
- Lightweight, high-strength carbon fiber propeller, improving aerodynamic performance.
- Aviation-grade aluminum motor housing, ensuring long-term reliability and heat dissipation.
Applications
- Heavy-lift industrial UAVs
- Cargo and logistics drones
- e-VTOL air mobility
- Long-endurance surveillance UAVs.
Details

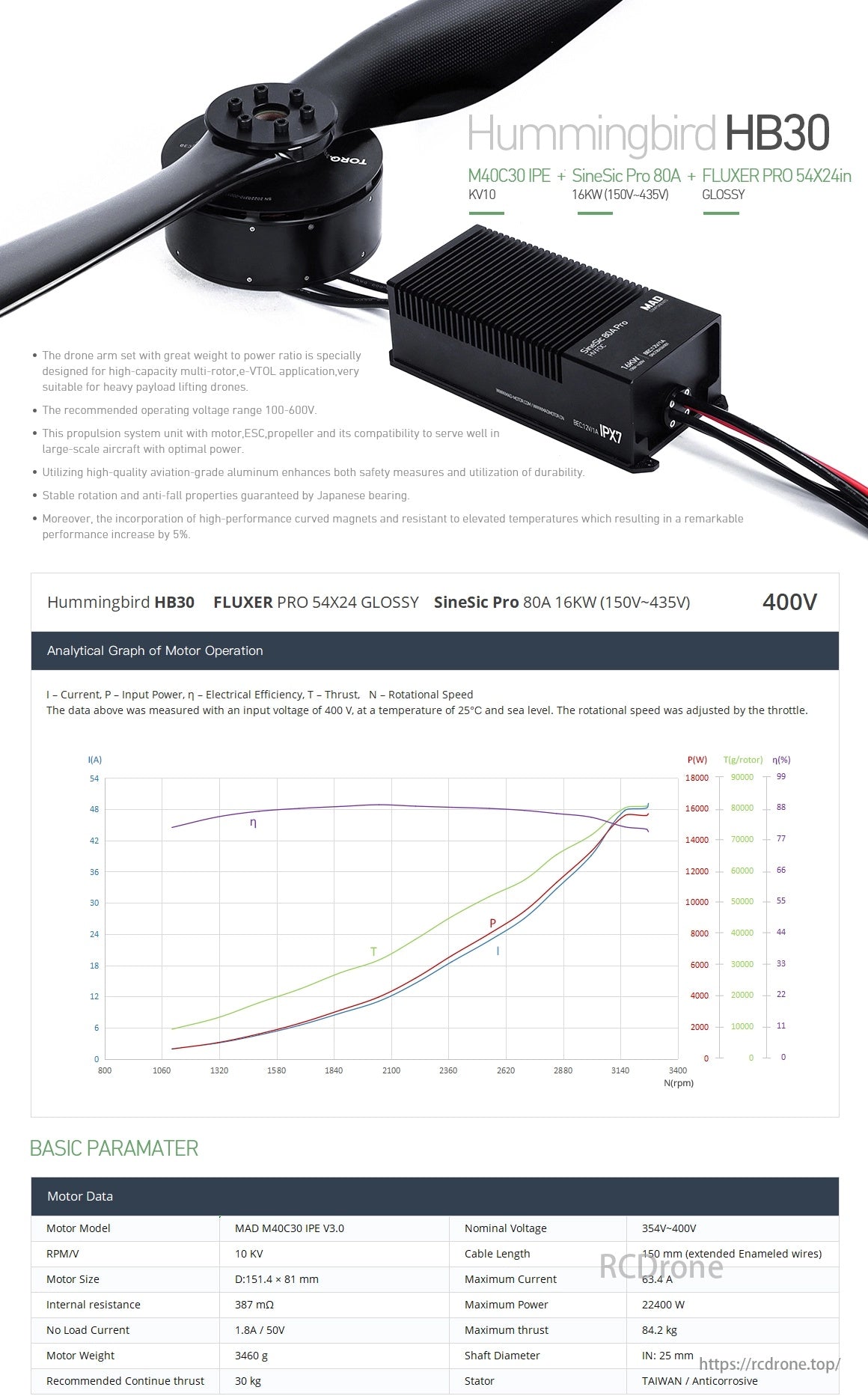

Hummingbird HB30 motor set for heavy payload drones. Operates at 100-600V, with 80A ESC and 54x24 propeller. High-quality aluminum enhances safety and durability. Japanese bearings ensure stable rotation. Curved magnets boost performance by 5%. Graphs show current, power, efficiency, thrust, and speed data.
ESC Data: SineSic Pro 80A, 16KW, 1400g weight. Dimensions: 197x88x59.5mm. Continuous current: 80A. Propellers: FLUXER 54X24 GLOSSY, 605g each. Motor dimensions and ESC dimensions provided. Protection level IP67. Recommended battery: 96-1005 LiPo. Cable lengths specified for input, output, signal, and LED wires.

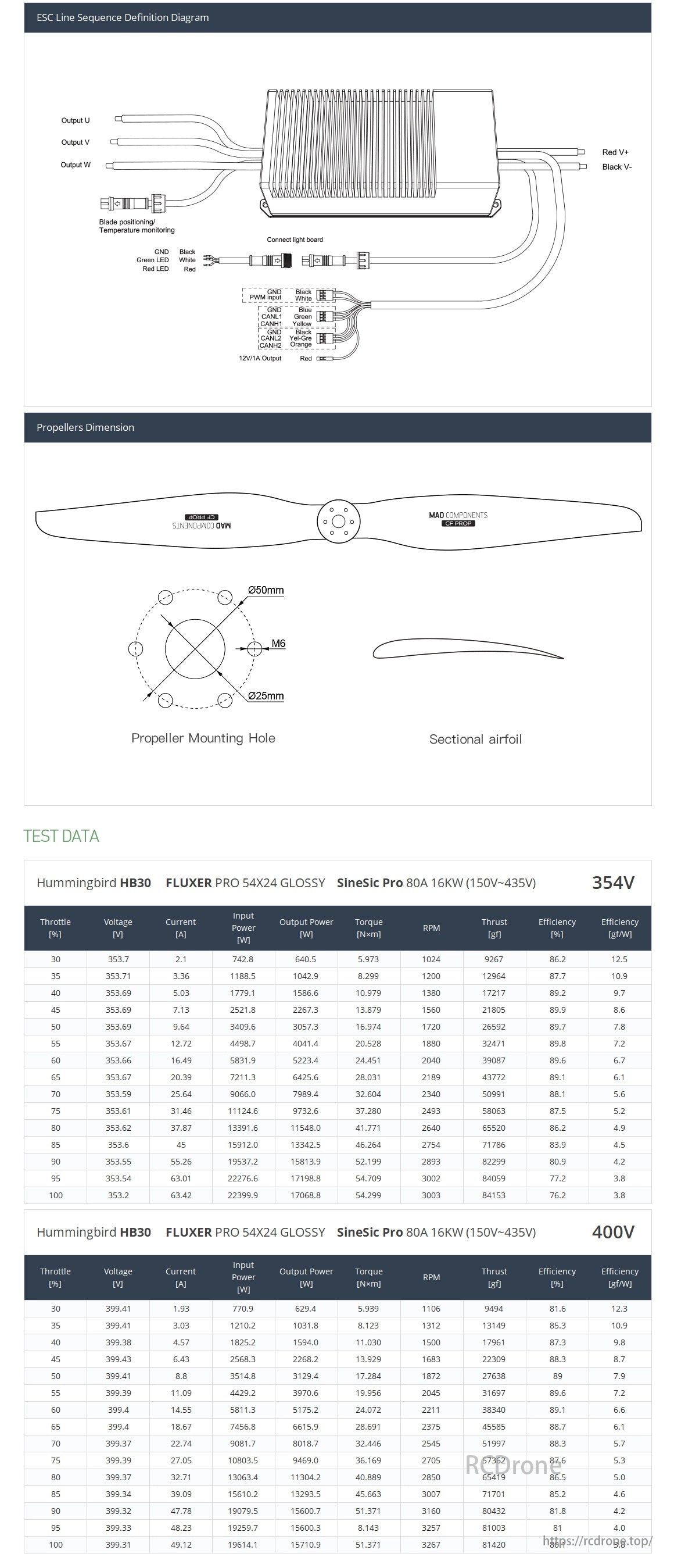

ESC Line Sequence Definition Diagram outlines connections for Output U, V, W, and Red V+. Propellers Dimension details mounting holes and sectional airfoil. Test Data compares performance metrics like voltage, current, power, torque, RPM, thrust, efficiency at various throttle levels for 354V and 400V setups.
