MAD HB30-54X24 35KV Drone Arm Set - 30kg Thrust, 22KW , 200A ESC, 54x24 Prop Multirotor Propulsion for Heavy Lift Large Drone
MAD HB30-54X24 35KV Drone Arm Set - 30kg Thrust, 22KW , 200A ESC, 54x24 Prop Multirotor Propulsion for Heavy Lift Large Drone
MAD
Couldn't load pickup availability
Overview

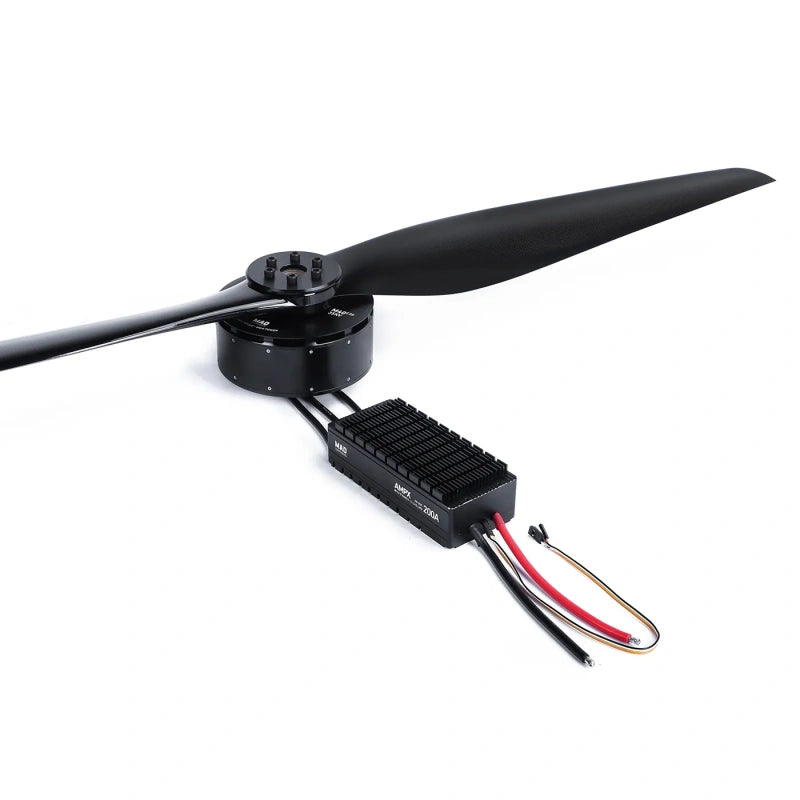

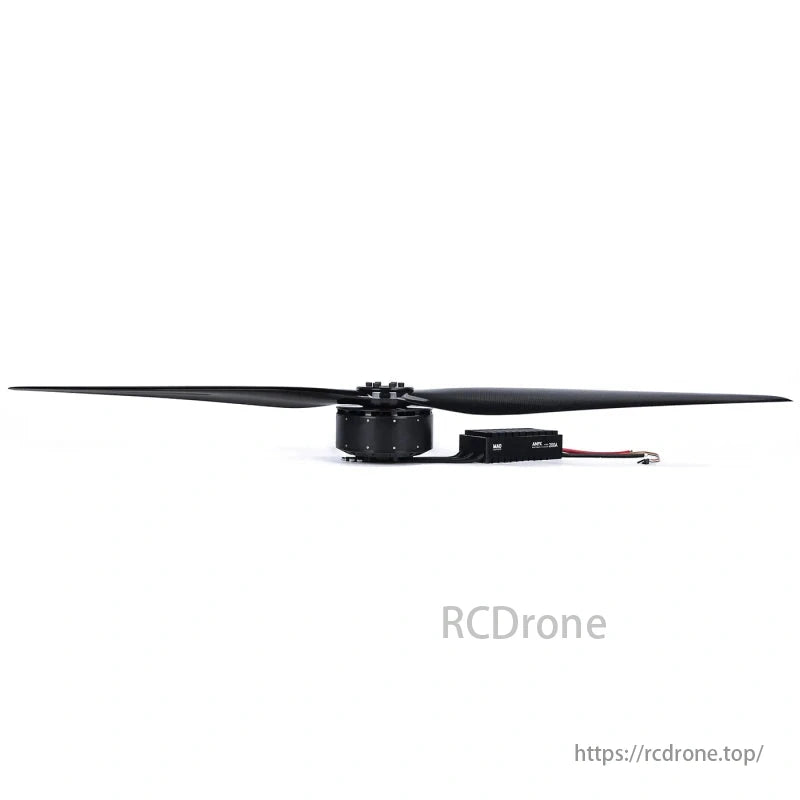

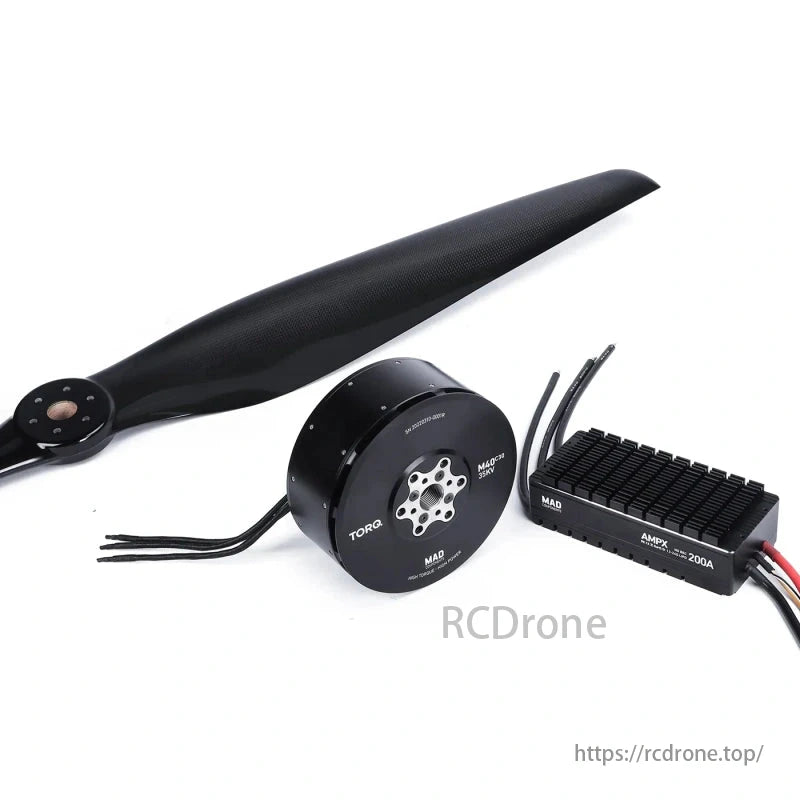

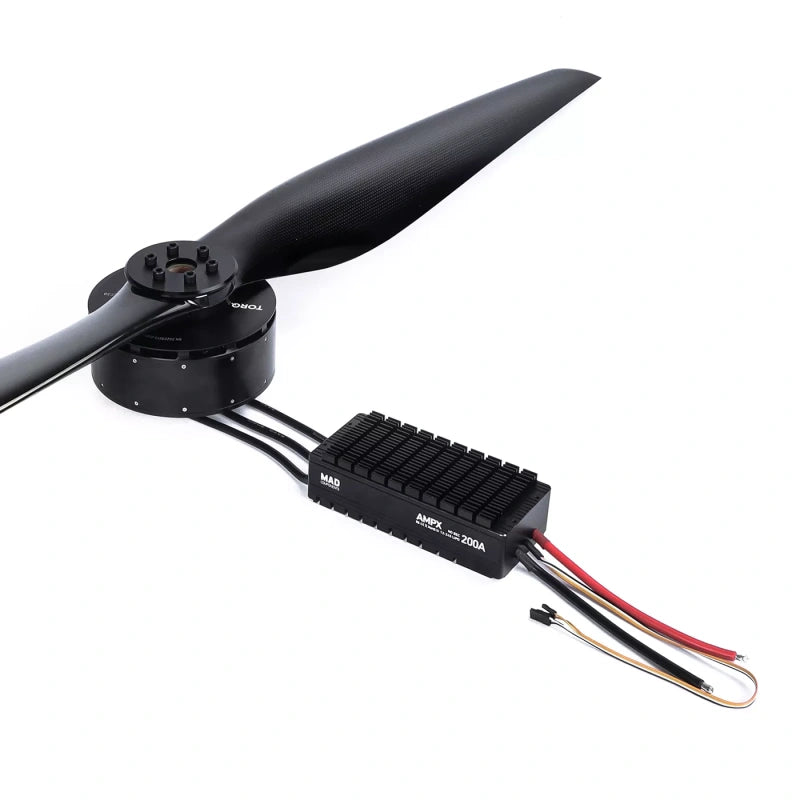

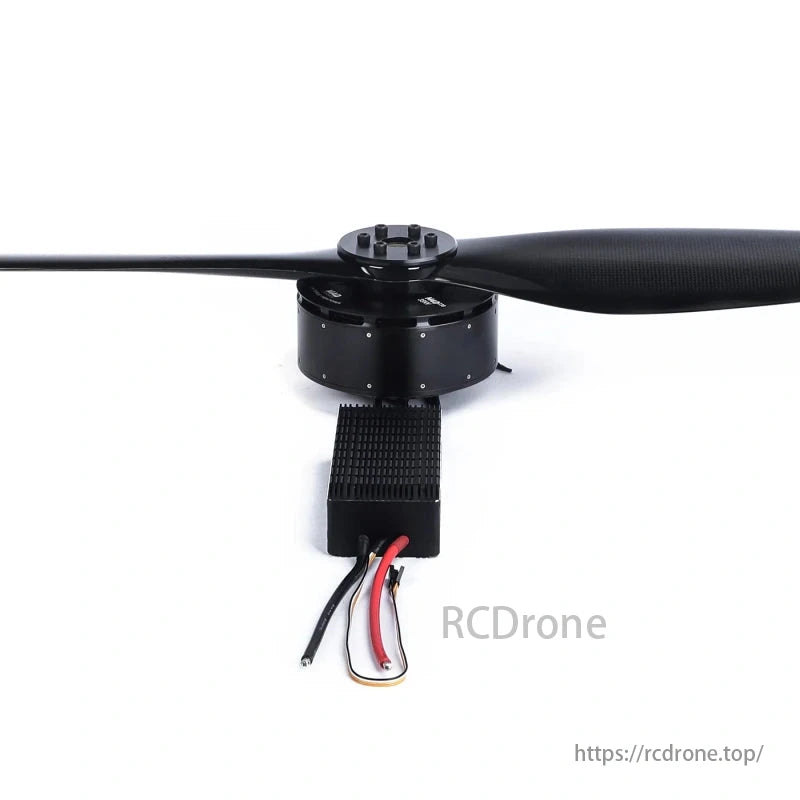

The MAD HB30-54X24 35KV Drone Arm Set is a high-performance propulsion system designed for heavy-lift multi-rotor and e-VTOL drones. This integrated set includes a M40C30 IPE 35KV drone electric motor, AMPX 200A HV ESC, and a 54x24-inch carbon fiber propeller, offering 30kg (66.1 lbs) of continuous thrust per rotor and a maximum power output of 22KW. Engineered for large UAV applications, this system ensures efficient, stable, and high-power operation, making it ideal for delivery drones, flying cars, and urban mobility projects.
Key Features
- High Thrust Output: Provides 30kg of continuous thrust, optimized for heavy-payload UAVs.
- Powerful Motor: M40C30 IPE 35KV motor delivers 22KW peak power (29HP) with high efficiency.
- Advanced ESC: AMPX 200A HV ESC supports 12-24S LiPo batteries, with an IP67 protection rating for harsh environments.
- Large Propeller: FLUXER 54x24-inch carbon fiber + resin propeller enhances durability and aerodynamics.
- Precision Engineering: Uses aviation-grade aluminum and Japanese bearings for superior safety and performance.
- Temperature Resilience: High-performance curved magnets and temperature-resistant materials improve efficiency by 5%.
Technical Specifications
Motor Data
| Specification | Details |
|---|---|
| Model | MAD M40C30 IPE V3.0 |
| KV Rating | 35KV |
| Voltage Range | 100V |
| No Load Current | 3.8A @ 40V |
| Max Power | 22,635W |
| Max Thrust | 79.2kg |
| Recommended Continuous Thrust | 30kg |
| Weight | 3,460g |
| Shaft Diameter | 25mm |
| Internal Resistance | 31.5mΩ |
ESC Data
| Specification | Details |
|---|---|
| Model | MAD AMPX 200A HV |
| Voltage Range | 12-24S LiPo |
| Continuous Current | 200A (under good cooling) |
| Instant Current | 240A |
| Protection Level | IP67 |
| PWM Signal Voltage | 3.3V / 5V (compatible) |
| Size | 161 × 72.2 × 46.8 mm |
| Weight | 580g |
| Operating Temperature | -20°C to 65°C |
Propeller Data
| Specification | Details |
|---|---|
| Model | FLUXER 54X24 GLOSSY |
| Size | 1371.6 × 609.6mm |
| Material | High-quality carbon fiber + resin |
| Type | Fixed |
| Weight | 605g |
Performance Data (100V Input)
| Throttle [%] | Voltage [V] | Current [A] | Input Power [W] | Output Power [W] | Torque [N×m] | RPM | Thrust [gf] | Efficiency [%] | Efficiency [gf/W] |
|---|
| 30 | 98.7 | 8.39 | 828.1 | 656.5 | 6.176 | 1015 | 9449 | 79.3 | 11.4 |
| 35 | 98.59 | 12.2 | 1202.8 | 1003.6 | 8.233 | 1164 | 12365 | 83.4 | 10.3 |
| 40 | 98.58 | 17 | 1675.9 | 1418.1 | 10.337 | 1310 | 15614 | 84.6 | 9.3 |
| 45 | 98.41 | 24.46 | 2407.1 | 2087.5 | 13.442 | 1483 | 20339 | 86.7 | 8.4 |
| 50 | 98.38 | 32.27 | 3174.7 | 2740.5 | 16.194 | 1616 | 24453 | 86.3 | 7.7 |
| 55 | 98.2 | 41.4 | 4065.5 | 3539.1 | 19.213 | 1759 | 29229 | 87.1 | 7.2 |
| 60 | 98.15 | 52.47 | 5149.9 | 4484.8 | 22.399 | 1912 | 33947 | 87.1 | 6.6 |
| 65 | 97.93 | 67.87 | 6646.5 | 5742.6 | 26.685 | 2055 | 39691 | 86.4 | 6.0 |
| 70 | 97.78 | 83.65 | 8179.3 | 6993.8 | 30.468 | 2192 | 45312 | 85.5 | 5.5 |
| 75 | 97.49 | 102.33 | 9976.2 | 8405.8 | 34.569 | 2322 | 51205 | 84.3 | 5.1 |
| 80 | 97.33 | 122.58 | 11930.7 | 9868.2 | 38.589 | 2442 | 57232 | 82.7 | 4.8 |
| 85 | 96.99 | 144.63 | 14027.7 | 11354.1 | 42.436 | 2555 | 62430 | 80.9 | 4.5 |
| 90 | 96.82 | 166.87 | 16156.4 | 12691.1 | 45.492 | 2664 | 67535 | 78.6 | 4.2 |
| 95 | 96.43 | 194.43 | 18748.9 | 14120.9 | 49.070 | 2748 | 72909 | 75.3 | 3.9 |
| 100 | 96.09 | 235.56 | 22635.0 | 15892.6 | 53.400 | 2842 | 79165 | 70.2 | 3.5 |
Applications
- Heavy-lift drones for industrial applications
- e-VTOL aircraft for urban mobility and logistics
- Cargo delivery drones for high-payload transport
- Aerial robotics requiring high-efficiency propulsion
Details
Hummingbird HB30 propulsion system for heavy-lift drones. Includes M40C30 IPE motor, AMPX 200A HV ESC, and FLUXER PRO propeller. Operates at 100-600V, with high efficiency and durability. Graphs show current, power, thrust, and speed performance. Basic parameters include 100V nominal voltage, 35 KV RPM/V, and 79.2 kg maximum thrust.
ESC model MAD AMPX 200A, weighs 580g, with dimensions 161.0x72.2x46.8 mm. Continuous current 200A, instant current 240A. Propellers FLUXER 54X24 GLOSSY, weight 605g. Motor and ESC dimensions provided. Specifications include battery type, temperature range, cable lengths, and material details.
Propellers Dimension details include mounting hole and sectional airfoil. Test data for Hummingbird HB30 with FLUXER PRO 54X24 GLOSSY and AMPX 200A HV (12~24S) at 100V shows throttle, voltage, current, input/output power, torque, RPM, thrust, efficiency, and specific efficiency values across various settings.
