MAD HB60 Series Drone Arm Set - 60KG Thrust M50C60 Motor 80A ESC 64x20 63x22 Inch Prop Multirotor Propulsion System for VTOL / Heavy Lift Industrial Drone
MAD HB60 Series Drone Arm Set - 60KG Thrust M50C60 Motor 80A ESC 64x20 63x22 Inch Prop Multirotor Propulsion System for VTOL / Heavy Lift Industrial Drone
MAD
Couldn't load pickup availability
Overview

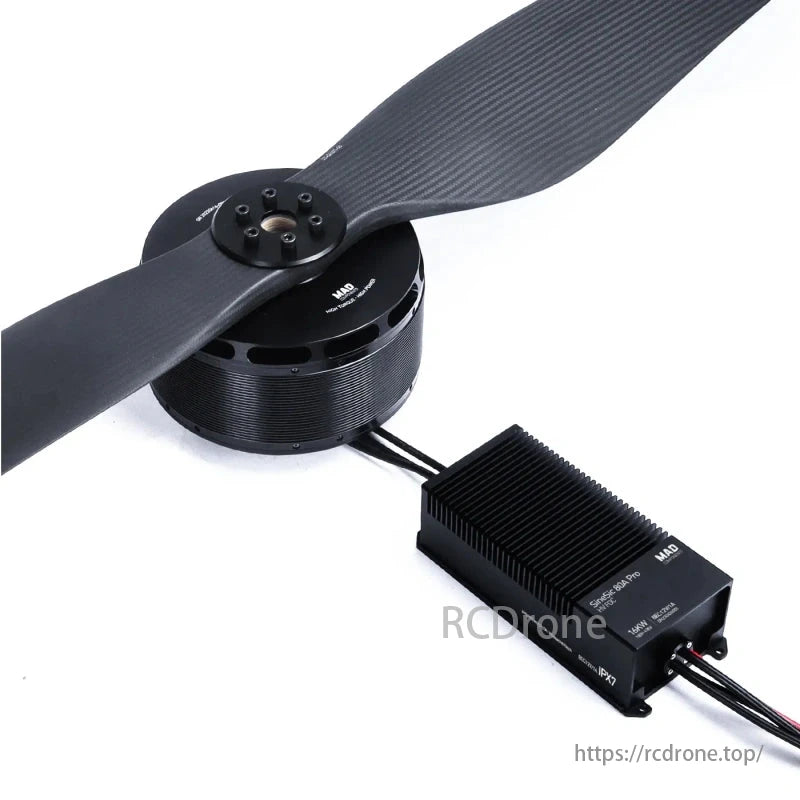

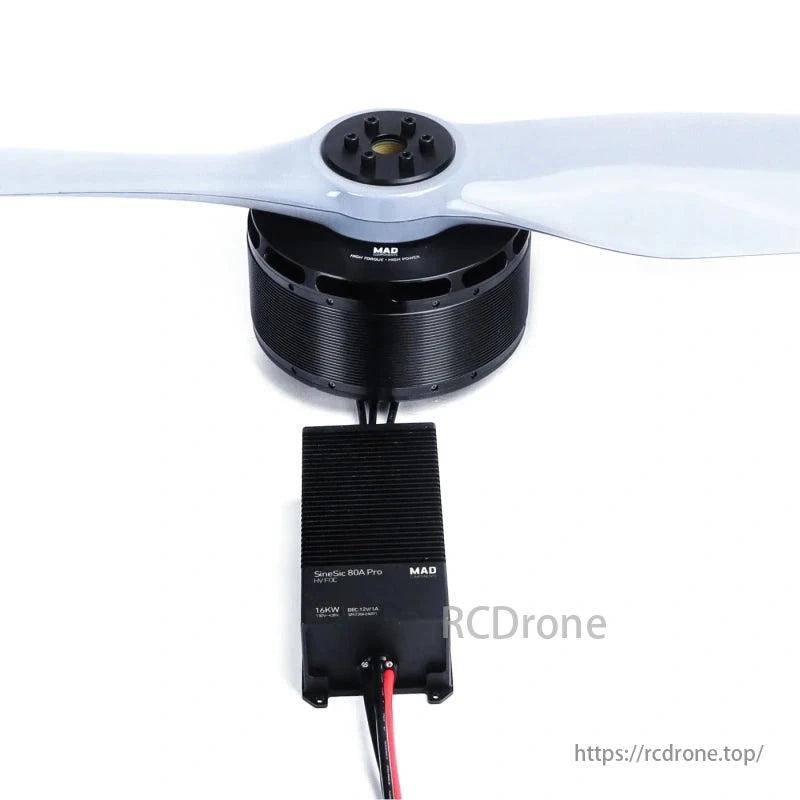

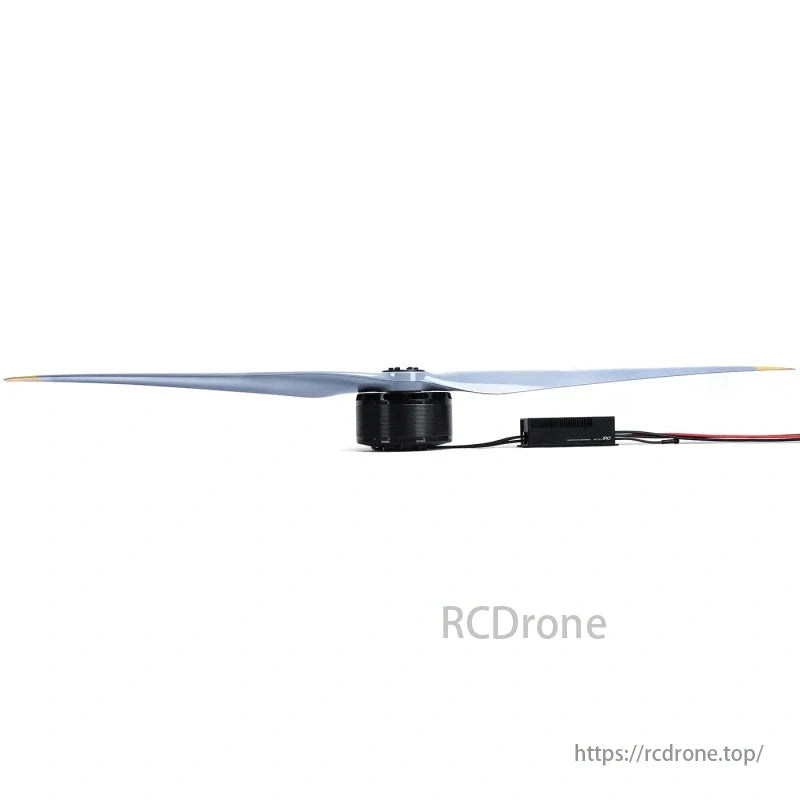

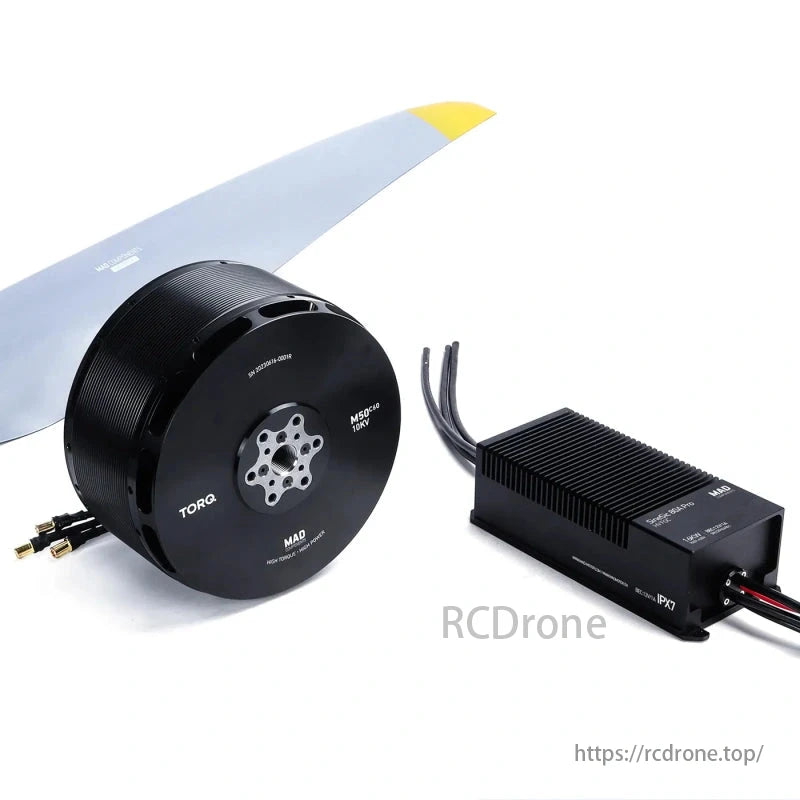

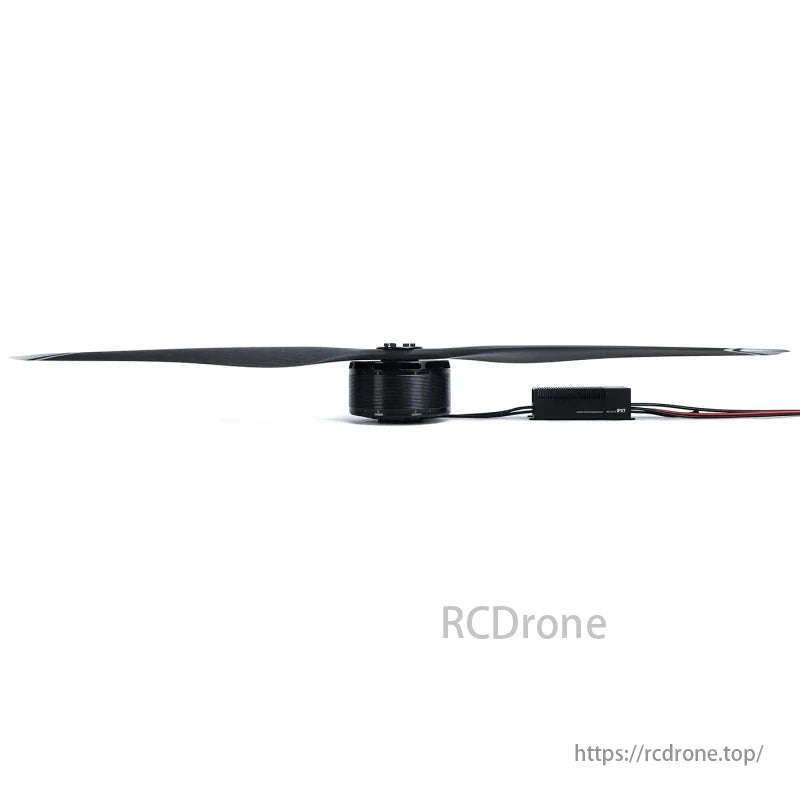

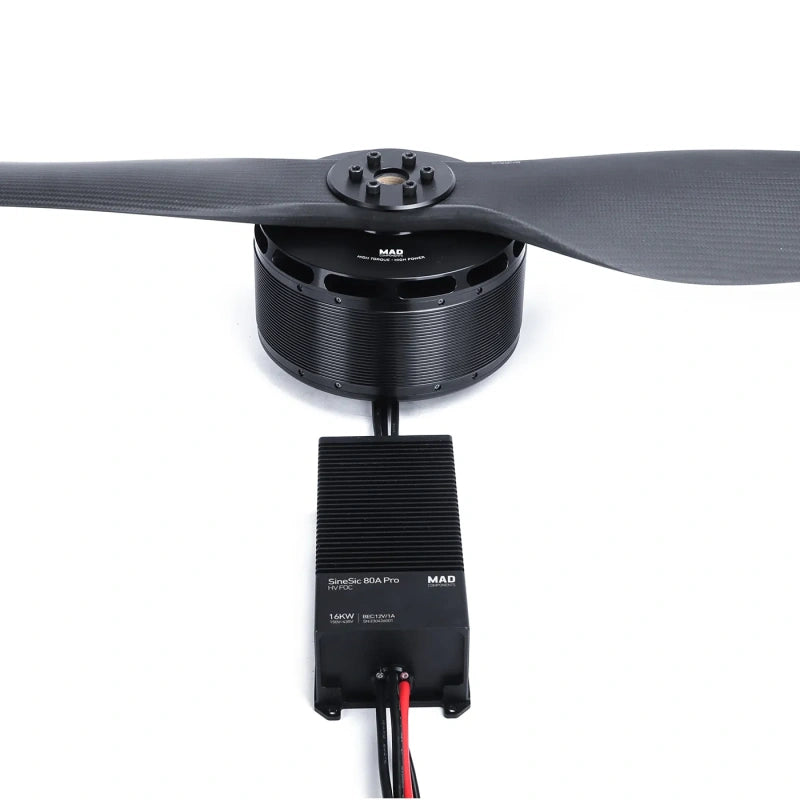

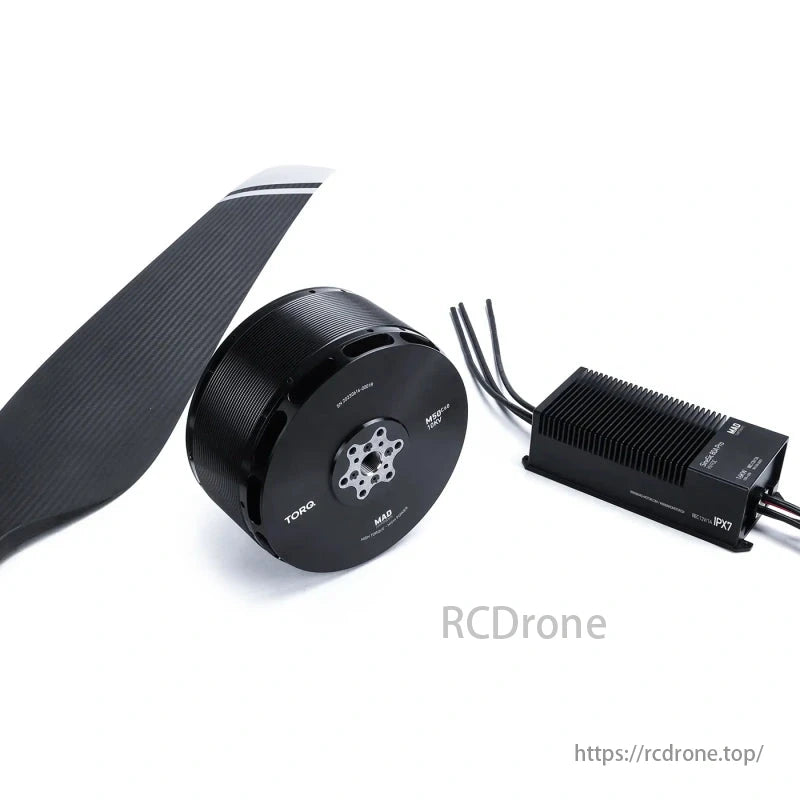

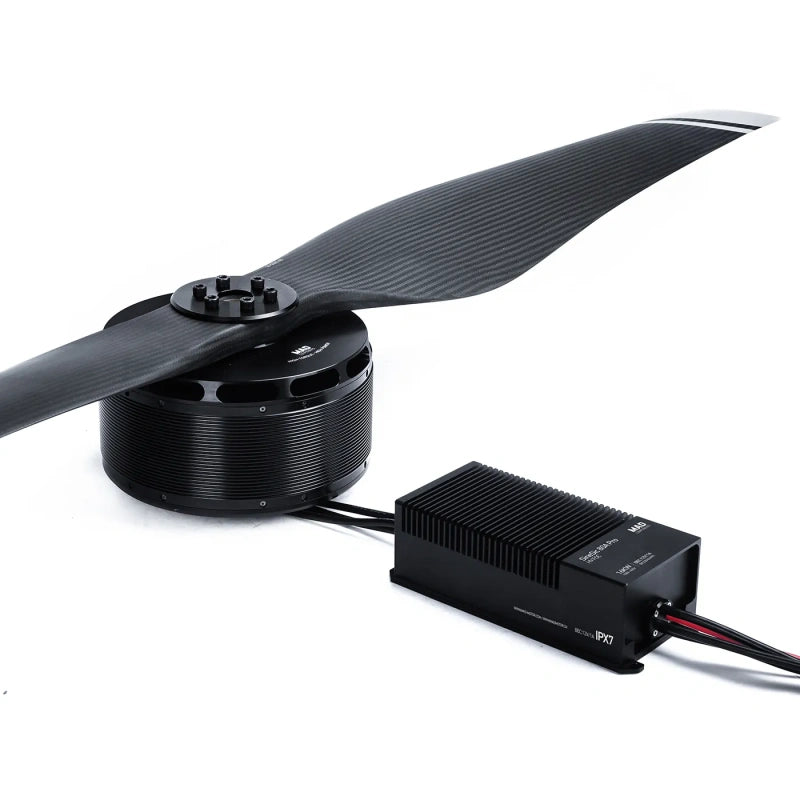

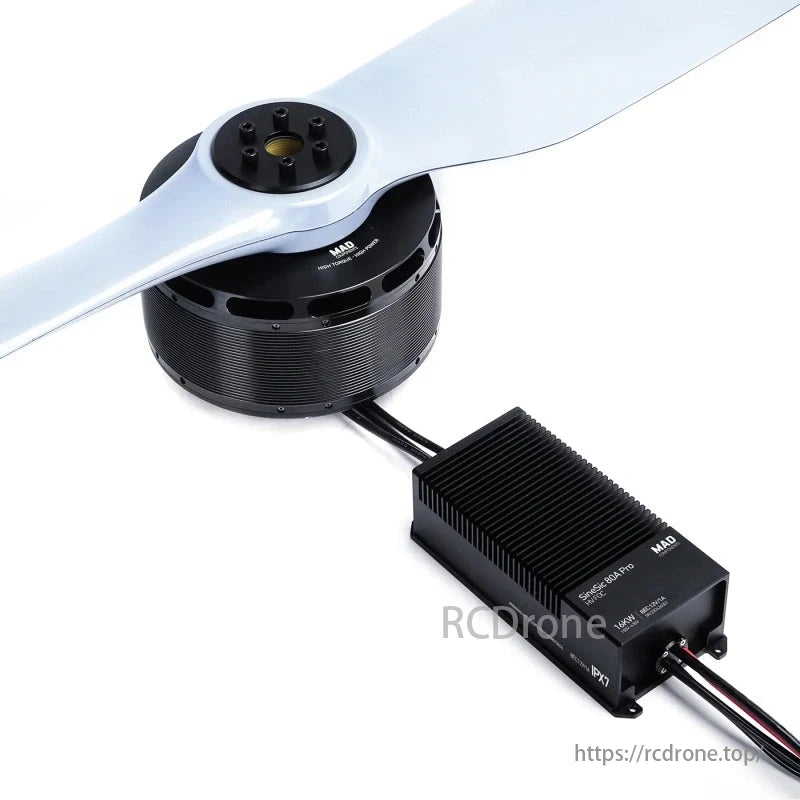

The MAD HB60 Series Drone Arm Set is a high-performance propulsion system designed for VTOL, heavy-lift multirotor drones, and industrial UAV applications. It features the M50C60 IPE motor, SineSic Pro 80A ESC, and two propeller size options: CB2 64x20-inch for enhanced stability and Fluxer 63x22-inch for higher efficiency. This system delivers continuous thrust up to 60 kg with a peak output of 24KW–27KW, making it ideal for payload-heavy operations such as aerial logistics, delivery drones, and urban air mobility.
Technical Specifications
Motor Data (M50C60 IPE V1.0)
| Parameter | Value |
|---|---|
| KV Rating | 10KV |
| Nominal Voltage | 354V-400V |
| Max Power | 24.6KW (64x20) / 27.6KW (63x22) |
| Max Current | 68.3A (64x20) / 70.7A (63x22) |
| Motor Weight | 7200g |
| Recommended Continuous Thrust | 60 kg |
| Peak Thrust | 114.4 kg (64x20) / 122.9 kg (63x22) |
| RPM/V | 10 KV |
| Motor Size | D:196 × 118.5 mm |
| Internal Resistance | 65 mΩ |
| No Load Current | 1.5A / 30V |
| Shaft Diameter | 25 mm |
| Cable Length | 150 mm (extended enameled wires) |
| Stator | Taiwan / Anticorrosive |
ESC Data (SineSic Pro 80A)
| Parameter | Value |
|---|---|
| Power Rating | 16KW (150V-435V) |
| Continuous Current | 80A (under good cooling) |
| Instant Current | 150A |
| Protection Level | IP67 (Waterproof & Dustproof) |
| PWM Input Signal Voltage | 3.3V / 5V |
| Recommended Battery | 96S - 100S LiPo |
| Size (LWH) | 197.0 × 88.0 × 59.5 mm |
| Weight | 1400g |
| Cable Length (Input) | 690 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Output) | 600 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Signal) | 1250 mm (9-Core PVC Flexible Wire) |
| Cable Length (LED Wire) | 155 mm (4-Core PVC Flexible Wire with Waterproof Connector) |
Propeller Options
| Parameter | CB2 64x20-Inch Propeller | Fluxer 63x22-Inch Propeller |
|---|---|---|
| Material | High-quality carbon fiber + resin | High-quality carbon fiber + resin |
| Size | 1625.6 × 508 mm | 1600.2 × 558.8 mm |
| Weight | 885g | 1083g |
| Type | Fixed | Fixed |
Performance Data
- Efficiency up to 89%, ensuring optimal power conversion.
- Torque and RPM provide smooth and stable operation across a wide throttle range.
- Maximum thrust output: 114.4kg (64x20) / 122.9kg (63x22) at 400V.
Applications
- Heavy-lift drones
- VTOL aircraft
- Cargo drones
- Delivery UAVs
- Surveillance and industrial UAVs
Package Includes
- M50C60 IPE Motor
- SineSic Pro 80A ESC
- One 64x20-inch or 63x22-inch Carbon Fiber Propeller
- Required Cables & Connectors
This propulsion system ensures reliable, stable, and powerful performance, making it a suitable choice for heavy-lift and VTOL drone applications.
Details
Hummingbird HB60 propulsion system for heavy payload lifting drones. Designed for high-capacity multi-rotor, eVTOL applications. Operates at 100-600V, with a motor KV of 10 and maximum power of 24637W. Features durable aluminum construction, Japanese bearings, and curved magnets for enhanced performance.
Test data for Hummingbird HB60, FLUXER PRO 63X22 GLOSSY, and SineSic Pro 80A 16KW at 354V and 400V. Tables show throttle percentage, voltage, current, input/output power, torque, RPM, thrust, efficiency, and specific efficiency across various settings. Data highlights performance metrics under different conditions.
