Overview

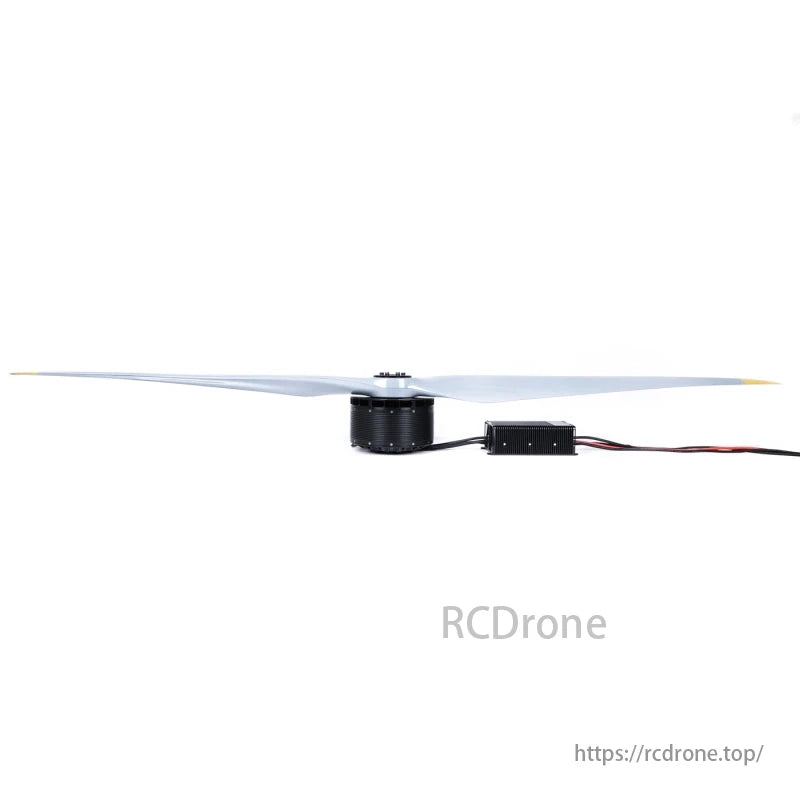

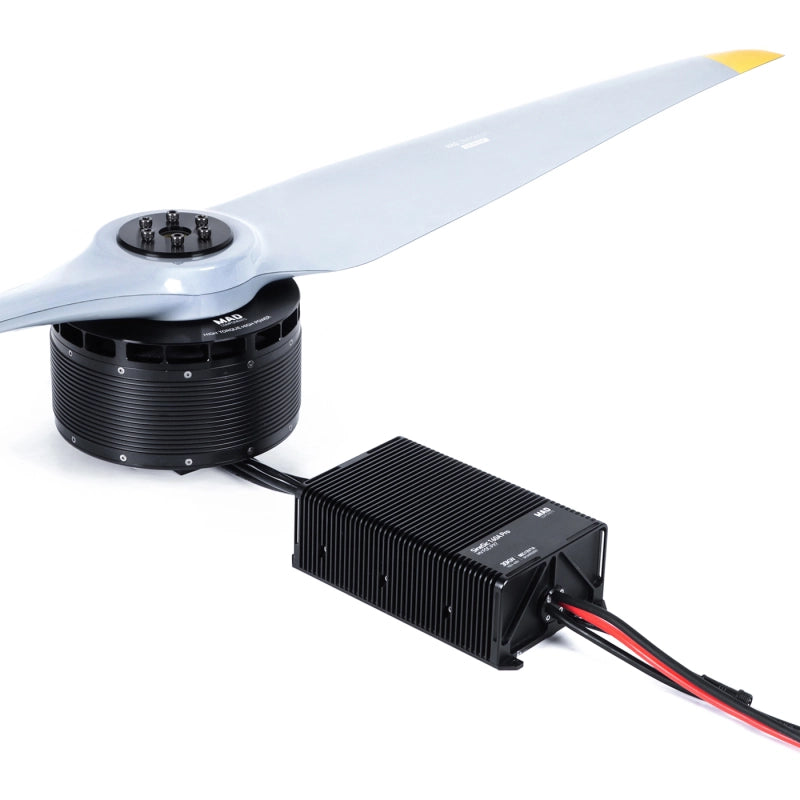

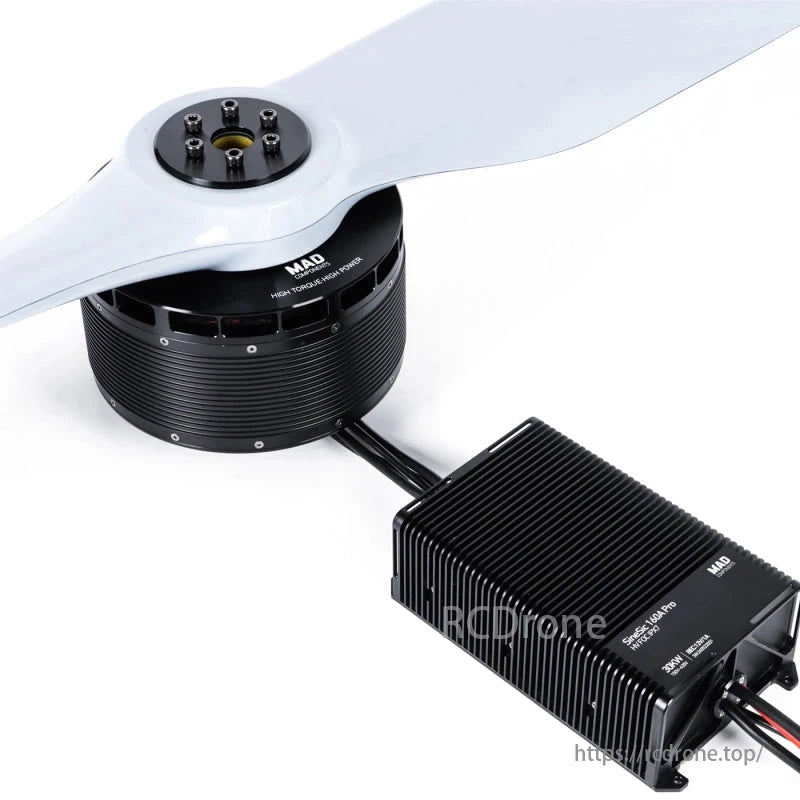

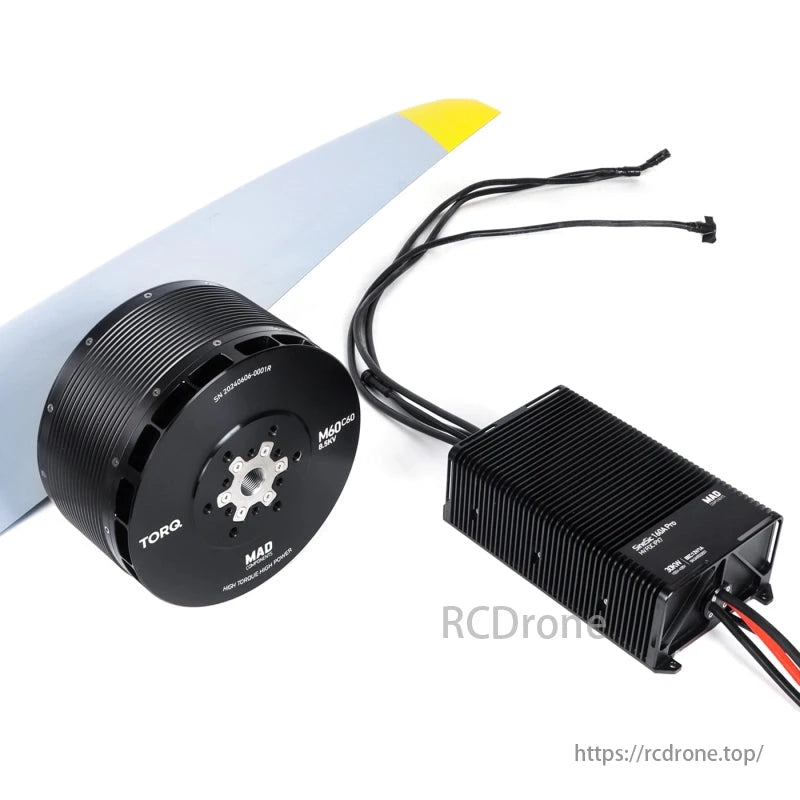

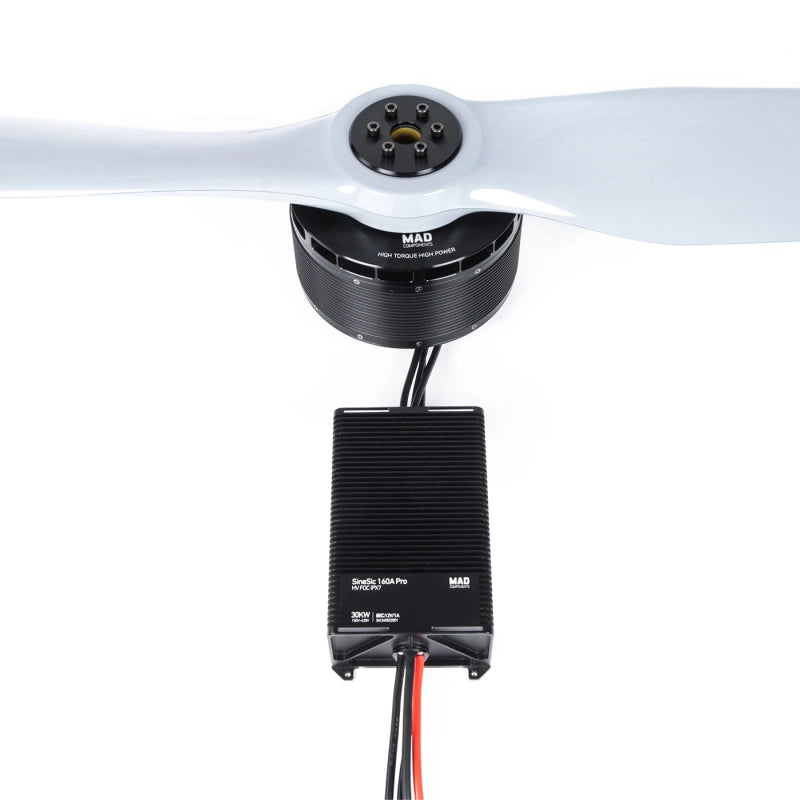

The MAD Hummingbird HB90-72X25 Drone Arm Set is an advanced integrated propulsion system, specially designed for high-capacity multi-rotor and e-VTOL drones. This system includes the MAD M60C60 IPE V1.0 drone motors, SineSic Pro 160A ESC, and FLUXER PRO 72X25 GLOSSY propellers, providing exceptional performance and reliability for heavy-duty applications.
Key Features:
- Motor Model: MAD M60C60 IPE V1.0
- ESC: SineSic Pro 160A 30KW (150V-435V)
- Propellers: FLUXER PRO 72X25 GLOSSY
Specifications
Motor Parameters:
| Parameter | Value |
|---|---|
| KV Rating | 8.5KV |
| Nominal Voltage | 354V-400V |
| Motor Size | D:196.8 x 130 mm |
| Internal Resistance | 40.5 Ω |
| No Load Current | 1.08A @ 49V |
| Maximum Power | 45.7 KW |
| Maximum Thrust | 178 kg |
| Recommended Continuous Thrust | 90 kg |
ESC Parameters:
| Parameter | Value |
|---|---|
| ESC Model | SineSic Pro 160A 30KW (150V-435V) |
| Continuous Current | 160A (under good cooling) |
| Instant Current | 320A (under good cooling) |
| Input Voltage | 96V-100S LiPo |
| Cable Length (Input) | 675 mm (10AWG Silicone Flexible Wire) |
| Cable Length (Output) | 600 mm (10AWG Silicone Flexible Wire) |
| Protection Level | IP67 |
Propeller Parameters:
| Parameter | Value |
|---|---|
| Propeller Model | FLUXER PRO 72X25 GLOSSY |
| Material | High-quality carbon fiber + Resin |
| Dimensions | 1828.8 mm x 635 mm (single propeller) |
| Weight per Propeller | 1720 g |
| Mounting Hole Size | Ø75 mm (M8), Ø50 mm (M6) |
Performance Data:
| Throttle | Voltage [V] | Current [A] | Input Power [W] | Output Power [W] | Torque [N·m] | RPM | Thrust [g] | Efficiency [%] | Efficiency [g/W] |
|---|---|---|---|---|---|---|---|---|---|
| 30% | 355.88 | 12.48 | 4441.1 | 3015.7 | 25.131 | 1146 | 35446 | 67.9 | 8.0 |
| 35% | 356.10 | 16.64 | 5925.5 | 4728.6 | 30.184 | 1321 | 47498 | 79.8 | 8.0 |
| 40% | 355.98 | 23.44 | 8344.2 | 6199.7 | 40.497 | 1462 | 605636 | 74.3 | 7.3 |
| 45% | 355.99 | 29.85 | 10626.3 | 8362.9 | 49.979 | 1598 | 73122 | 78.7 | 6.9 |
| 50% | 355.92 | 36.58 | 13019.6 | 11183.8 | 61.880 | 1726 | 86991 | 85.9 | 6.7 |
| 55% | 355.94 | 43.51 | 15483.4 | 13758.9 | 70.554 | 1838 | 97053 | 87.7 | 6.3 |
| 60% | 355.94 | 53.68 | 19111.2 | 16722.3 | 81.854 | 1951 | 112275 | 87.5 | 5.9 |
| 65% | 355.86 | 70.83 | 25211.2 | 22009.4 | 98.634 | 2113 | 136169 | 87.3 | 5.3 |
| 70% | 355.94 | 70.83 | 25211.2 | 22009.4 | 98.634 | 2113 | 133669 | 87.3 | 5.3 |
| 75% | 355.70 | 80.48 | 26829.2 | 24850.1 | 106.804 | 2222 | 143122 | 86.8 | 5.0 |
Applications:
The Hummingbird HB90-72X25 is perfect for industries that demand heavy-lift, high-performance drones, including:
- Heavy Payload Drones: Ideal for applications requiring high thrust and power for carrying large payloads over long distances.
- Urban Mobility: Efficient for urban delivery drones and aerial logistics.
- Large-Scale Multi-Rotor and e-VTOL Aircraft: Best suited for large UAVs in industrial, commercial, and military applications.
This system is built to endure harsh environments, with aviation-grade aluminum construction and Japanese bearings to ensure maximum durability and stability. The SineSic Pro ESC offers high efficiency, while the motor's advanced cooling system guarantees reliable, continuous operation.
The Hummingbird HB90-72X25 is the ultimate propulsion system for any heavy-duty drone application, combining robust power, precision, and efficiency.
Details
Hummingbird HB90 propulsion system features M60C60 IPE motor, SineSic Pro 160A ESC, and FLUXER PRO 72X25 propeller. Designed for heavy payload lifting drones, it operates at 100-600V with a peak power of 30kW. High-quality aluminum enhances durability, and Japanese bearings ensure stable rotation. Performance increases by 5% due to curved magnets.
ESC Data: SineSic Pro 160A 30KW, 1895g weight, IP67 protection, 160A continuous current. Propellers: FLUXER 72X25 GLOSSY, 1720g each. Motor dimensions: Ø80-M6X6, Ø75-M8X6, Ø50-M6X6. ESC dimensions: 212.5x120.0x68.0 mm. Cable lengths and types specified for input, signal, and output.
ESC Line Sequence Definition Diagram outlines connections for outputs U, V, W, and blade positioning/temperature monitoring. Propellers Dimension details include mounting hole specifications. Test data compares performance metrics like voltage, current, power, torque, RPM, thrust, efficiency at various throttle settings for 354V and 400V configurations.
