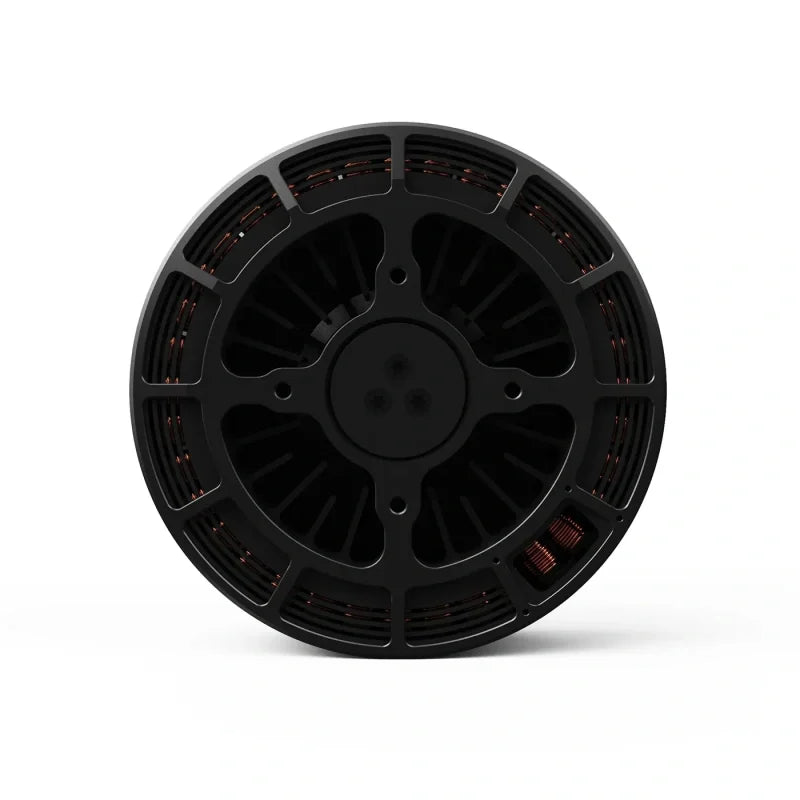

MAD M25 IPE Drone Motor Summary

The MAD M25 IPE V1.0 Drone Motor is a high-performance motor designed for industrial and agricultural drones. It features a robust construction with Japan-sourced anticorrosive stator, capable of withstanding high temperatures (up to 180°C for varnished wire and 150°C for magnets). The motor provides excellent centrifugal heat dissipation and is IP35 rated for protection. It supports a significant power output of 10878W, with a maximum thrust of 39.4 kg and torque of 19.9 Nm. Designed for use with a 12S lipo battery, it is suitable for heavy-lift drones, supporting UAV take-off weights up to 96 kg for octocopters. The motor comes with recommended accessories and is compatible with the MAD AMPX 200A ESC.

MAD M25 IPE Drone Motor Specifications

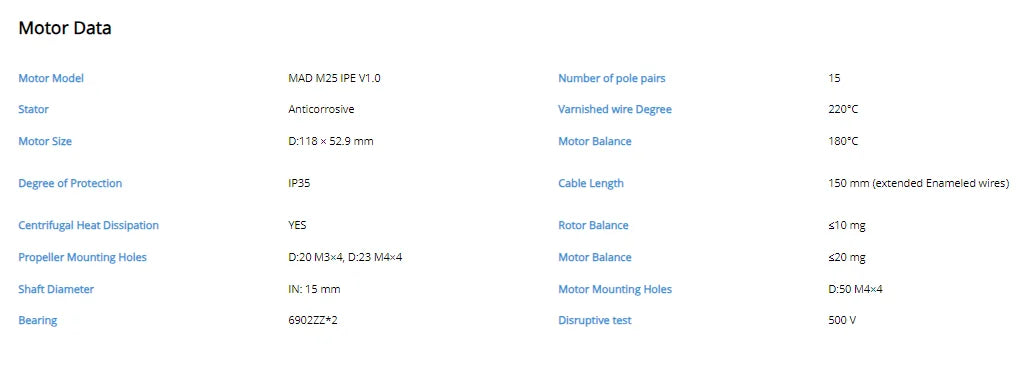

Motor Data

MAD M25 IPE 100KV Specifications

MAD M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying or anything in between where professional industrial grade propulsion systems are required. This type of motor is made with industrial grade components, it is for the long flight time multirotor hexacopter octocopte for the long flight time tethered drone.

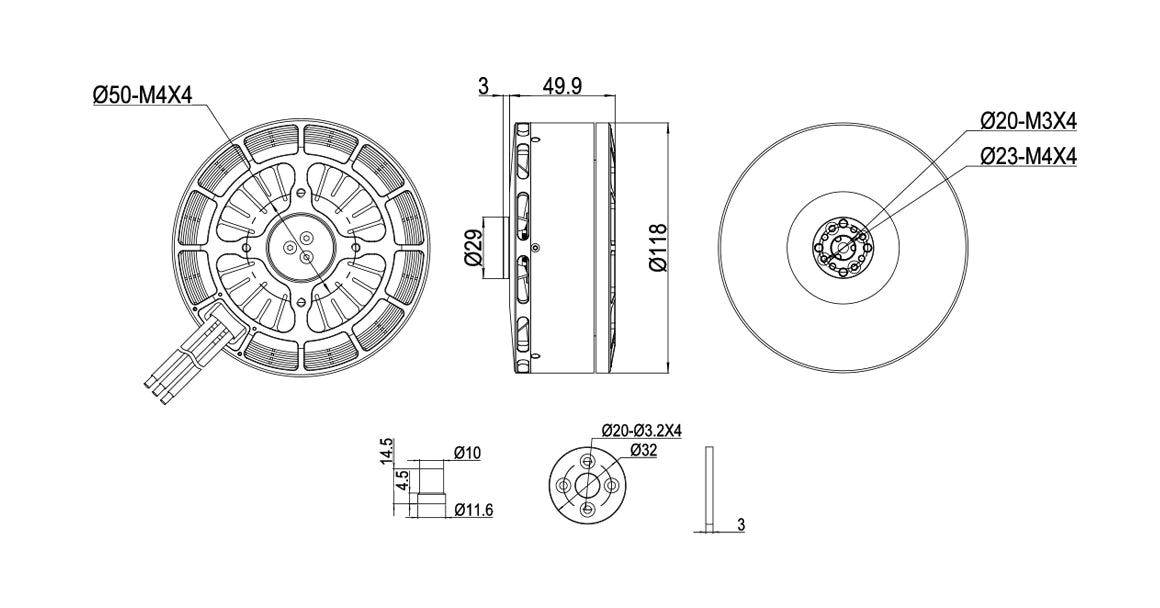

Drawing and mount holes
