MAD M6C08 IPE Drone Motor Overview
The MAD M6C08 EEE V2.0 is a highly efficient and versatile motor designed for various UAV applications, offering multiple KV ratings (130 KV, 180 KV, 260 KV, and 320 KV) to cater to different power and performance needs. Manufactured with high-quality, anticorrosive materials from Taiwan, this motor ensures durability and reliability. It features rain protection and independent centrifugal heat dissipation, making it suitable for diverse environmental conditions.
-
130 KV Version:
- Nominal Voltage: 12S lipo battery
- Maximum Current: 20.1A
- Maximum Power: 980W
- Maximum Thrust: 5.9 kg
-
180 KV Version:
- Nominal Voltage: 12S lipo battery
- Maximum Current: 34A
- Maximum Power: 1485W
- Maximum Thrust: 7.1 kg
-
260 KV Version:
- Nominal Voltage: 6-8S lipo battery
- Maximum Current: 50.7A
- Maximum Power: 1602.2W
- Maximum Thrust: 7.6 kg
-
320 KV Version:
- Nominal Voltage: 6S lipo battery
- Maximum Current: 63.4A
- Maximum Power: 1494.5W
- Maximum Thrust: 6.9 kg
This motor is suitable for a range of UAV types, including quadcopters, hexacopters, and octocopters, with varying take-off weights and single rotor capacities. The MAD M6C08 EEE V2.0 provides a reliable and efficient solution for both commercial and industrial UAV applications, ensuring optimal performance and longevity.
MAD M6C08 IPE Drone Motor Specifications
Motor Data
Parameter | Value |
---|---|
Motor Model | MAD M6C08 EEE V2.0 |
Number of Pole Pairs | 14 |
Stator | TAIWAN / Anticorrosive |
Varnished Wire Degree | 180°C |
Motor Size | D: 72 × 29.4 mm |
Magnet Degree | 150°C |
Degree of Protection | Rain protection |
Cable Length | 60 mm 16# Awg (Black) silicone |
Centrifugal Heat Dissipation | Independent |
Rotor Balance | ≤5 mg |
Propeller Mounting Holes | D: 12 M3×4, D: 18 M3×4, D: 22 M3×4 |
Motor Balance | ≤10 mg |
Shaft Diameter | IN: 6 mm |
Motor Mounting Holes | D: 25 M3×4, D: 32 M4×4 |
Bearing | EZO 696ZZ *2 |
Disruptive Test | 500 V |

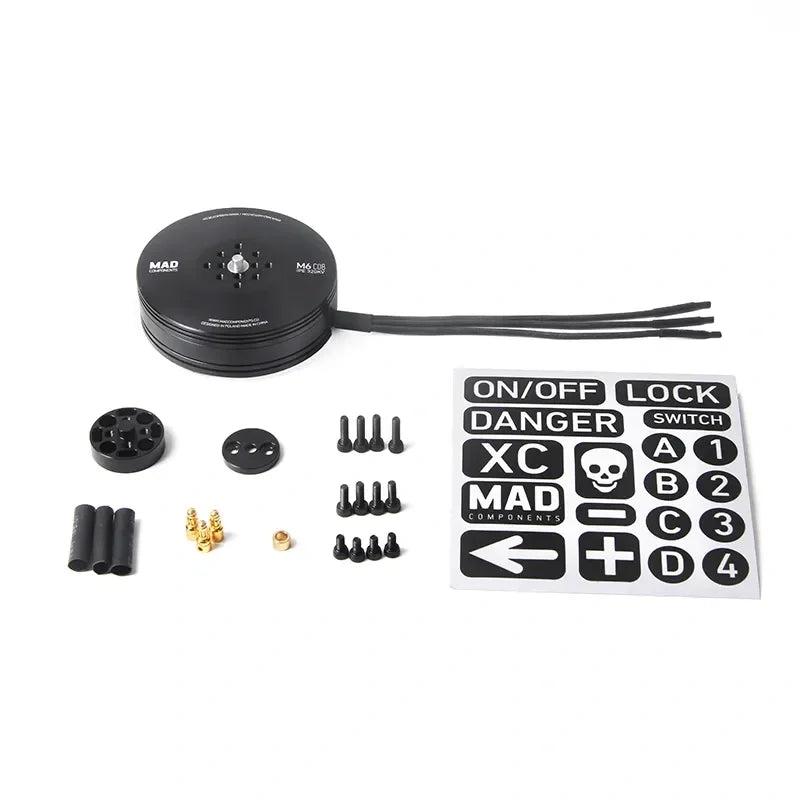

Additional Accessories | M6 Prop Adapter *1, M6 Propeller Plate *1, Ø4-6 Adapter Ring *1, 3.5mm Bullet Connector *3, Heat Shrinkable Tube 3, M38mm 4 Motor Screws, M48mm 4 Motor Screws, M36mm 4 Prop Adapter Fixing Screws, M312mm *2 Propeller Screws, Sticker *1 |
Specifications
Parameter | 130 KV | 180 KV | 260 KV | 320 KV |
---|---|---|---|---|
RPM/V | 130 KV | 180 KV | 260 KV | 320 KV |
Nominal Voltage | 12S lipo battery | 12S lipo battery | 6-8S lipo battery | 6S lipo battery |
No Load Current | 0.38A / 20V | 0.51A / 20V | 1.04A / 20V | 1.37A / 20V |
Internal Resistance | 238mΩ | 119mΩ | 57mΩ | 37mΩ |
Motor Weight | 188 g | 180 g | 185 g | 179 g |
Product Boxed Weight | 358g (110 x 110 x 55 mm) | 350g (110 x 110 x 55 mm) | 355g (110 x 110 x 55 mm) | 349g (110 x 110 x 55 mm) |
Maximum Current | 20.1 A | 34 A | 50.7 A | 63.4 A |
Maximum Power | 980W | 1485W | 1602.2W | 1494.5W |
Maximum Thrust | 5.9 kg | 7.1 kg | 7.6 kg | 6.9 kg |
Maximum Torque | 1.65 Nm | 1.99 Nm | 1.96 Nm | 1.91 Nm |
Recommended ESC | MAD AMPX 40A (5-14S) HV | MAD AMPX 40A (5-14S) HV | MAD AMPX 80A (5-14S) | XROTOR Pro 60A (4-6S) |
Recommended Propellers | 21x6.3, 22x6.6, 22x7.0, 22.1x7.4, 24x7.2 | 20x6.0, 21x6.3, 22x6.6, 22x7.0 | 21x6.3, 22x6.6, 22.1x7.4, 24x7.2 | 21x6.3, 22x6.6, 22.1x7.4, 24x7.2 |
UAV Take-off Weight | 12S~22”/ 7kg--Quadcopter<br>10.5kg--Hexacopter<br>14kg--Octocopter | 12S~22”/ 11kg--Quadcopter<br>16.5kg--Hexacopter<br>22kg--Octocopter | 6S~22”/ 7kg--Quadcopter<br>10.5kg--Hexacopter<br>14kg--Octocopter | 6S~22”/ 9kg--Quadcopter<br>13.5kg--Hexacopter<br>18kg--Octocopter |
Single Rotor Take-off Weight | 2kg ~ 2.5kg | 2kg ~ 3kg | 3kg ~ 4kg | 2.5kg ~ 3.5kg |
Motor Test Benchmarks
![MAD M6C08 IPE Drone Motor, High-efficiency drone motor for quadcopters with brushless outrunner design.](https://rcdrone.top/cdn/shop/files/S2975dfd025c142fca1b48c9603a953e7p.webp?v=1718015685)
![MAD M6C08 IPE Drone Motor, Taiwan-made motor with anticorrosive materials for durability and reliability.](https://rcdrone.top/cdn/shop/files/Sa8f00007f26a4868b7f24a41b96f9f0fB.webp?v=1718015706)
![MAD M6C08 IPE Drone Motor, Motor specs: power, thrust, and current ratings for different versions (130KV, 180KV, 260KV, 320KV)](https://rcdrone.top/cdn/shop/files/Sc9d6fa1692dd41d1916fcfb673c0e2f5T.webp?v=1718015733)
![MAD M6C08 IPE Drone Motor, Rain-protected and self-cooling design makes this device suitable for various environments.](https://rcdrone.top/cdn/shop/files/Sd3d0fe157707431082a0eb376bd8f19cz.webp?v=1718015760)
![MAD M6C08 IPE Drone Motor, Motor specifications: 130 KV, 180 KV, 260 KV, and 320 KV versions for UAVs like quadcopters and hexacopters.](https://rcdrone.top/cdn/shop/files/S27419446c80f4579a3d6d43426585253g.webp?v=1718015786)
![MAD M6C08 IPE Drone Motor Specifications: motor details, performance metrics, and recommendations for ESCs and propellers.](https://rcdrone.top/cdn/shop/files/Sf607bf2a711d40e69840dfc6af147bd8f.webp?v=1718015820)
![MAD M6C08 IPE Drone Motor, Reliable UAV solution for commercial and industrial use, prioritizing efficiency and longevity.](https://rcdrone.top/cdn/shop/files/Sb965ddc07b28493b926e6e074f459bceB.webp?v=1718015853)
![MAD M6C08 IPE Drone Motor, Drone motor for high-efficient quadcopter applications with options of 130, 180, 260, and 320 KV brushless outrunner motors.](https://rcdrone.top/cdn/shop/files/Sdf520924b8a94249ab829c61dc6b70147.webp?v=1718015894)
![MAD M6C08 IPE Drone Motor Specifications: Motor data, dimensions, and performance metrics.](https://rcdrone.top/cdn/shop/files/Sc6568b46c1394cf69f798a9091ea597ad.webp?v=1718015926)
![MAD M6C08 IPE Drone Motor, High-power motor specifications: nominal voltage, current, power, and thrust levels for various KV versions.](https://rcdrone.top/cdn/shop/files/S6c4c7958a63a49ee82c5d7ca9291c5afv.webp?v=1718015952)
![MAD M6C08 IPE Drone Motor, Reliable and efficient UAV solution for commercial and industrial use.](https://rcdrone.top/cdn/shop/files/S5c1213a76737416dbc89a11969c60739r.webp?v=1718015982)
![MAD M6C08 IPE Drone Motor, High-efficiency drone motor for quadcopters, available in 4 KV options (130KV, 180KV, 260KV, and 320KV).](https://rcdrone.top/cdn/shop/files/S940a759437e2444f8eb9ca73e54d3913b.webp?v=1718016035)
![MAD M6C08 IPE Drone Motor, Taiwan-made motor with anti-corrosive materials for durability and reliability.](https://rcdrone.top/cdn/shop/files/S0652d253c0944d448dd0711d9143aad46.webp?v=1718016059)
![MAD M6C08 IPE Drone Motor, Brushless motor specs: voltage, current, power, thrust, suitable for various UAV types.](https://rcdrone.top/cdn/shop/files/Scb0ef144db0540558f17b5dc66a473d0f.webp?v=1718016087)
Product Packaging
![MAD M6C08 IPE Drone Motor, High-efficiency brushless outrunner motor for quadcopters and multi-copters with various KV options.](https://rcdrone.top/cdn/shop/files/H831591a038144bd892f3f0d02024ca15M.webp?v=1718016109)
Company Profile
![MAD M6C08 IPE Drone Motor, High-quality brushless motor designer and manufacturer for multirotor aerial vehicles.](https://rcdrone.top/cdn/shop/files/H7a5b865b01294875b795b0de2d1bda7ch.webp?v=1718016144)
FAQ
![MAD M6C08 IPE Drone Motor, High-efficient drone motor for quadcopters, available in 4 power levels: 130KV, 180KV, 260KV, and 320KV.](https://rcdrone.top/cdn/shop/files/H165df3b5dacf4b73b231bb4bc09b2bc7P_ba15c2e3-10e5-48bc-ae56-87be1feac981.webp?v=1718016184)
Certifications
![MAD M6C08 IPE Drone Motor, Alibaba-issued Verified Supplier Certificate for Jiangxi MAD Motor Components Ltd, verifying quality and operations.](https://rcdrone.top/cdn/shop/files/H07109ca0768942f396b21ee0fa2735e4Z_2493db1f-a8ec-4561-b686-bd35bab81e89.webp?v=1718016243)
Verified Supplier Certificate: Jiangxi MAD Motor Components Ltd, TLVJNHL+@4TFRAA] (http://ilmadcomponentsen.alibaba.com), issued by Alibaba's supplier certification program on November 21st, 2019. This certificate verifies the company's quality management system, human resources, current export situation, and production capacity, among other areas.
![MAD M6C08 IPE Drone Motor, Three KV options: 130, 180, and 260 for efficient quadcopter flight.](http://rcdrone.top/cdn/shop/files/S90ded99f629a440d8c19e984a6591770A.webp?v=1717939560&width=1445)
![MAD M6C08 IPE Drone Motor, High-efficiency drone motor components for quadcopters and multi-copters from Poland.](http://rcdrone.top/cdn/shop/files/Sa004d17a3d3f40198485b1a910e003662.webp?v=1717939560&width=1445)
![MAD M6C08 IPE Drone Motor - 130KV 180KV 260KV 320KV High Efficient Drone Quadcopter Multi-copter Brushless Outrunner](http://rcdrone.top/cdn/shop/files/S0ef0144be0124d929bb93e859846e35eP.webp?v=1717939560&width=1445)
![MAD M6C08 IPE Drone Motor - 130KV 180KV 260KV 320KV High Efficient Drone Quadcopter Multi-copter Brushless Outrunner](http://rcdrone.top/cdn/shop/files/S1b298fc3b03b4d5b85543fefb59bc38fU.webp?v=1717939560&width=1445)
![MAD M6C08 IPE Drone Motor - 130KV 180KV 260KV 320KV High Efficient Drone Quadcopter Multi-copter Brushless Outrunner](http://rcdrone.top/cdn/shop/files/Sc0a215c498e340e69ea987ef5d65b339Z.webp?v=1717939560&width=1445)
