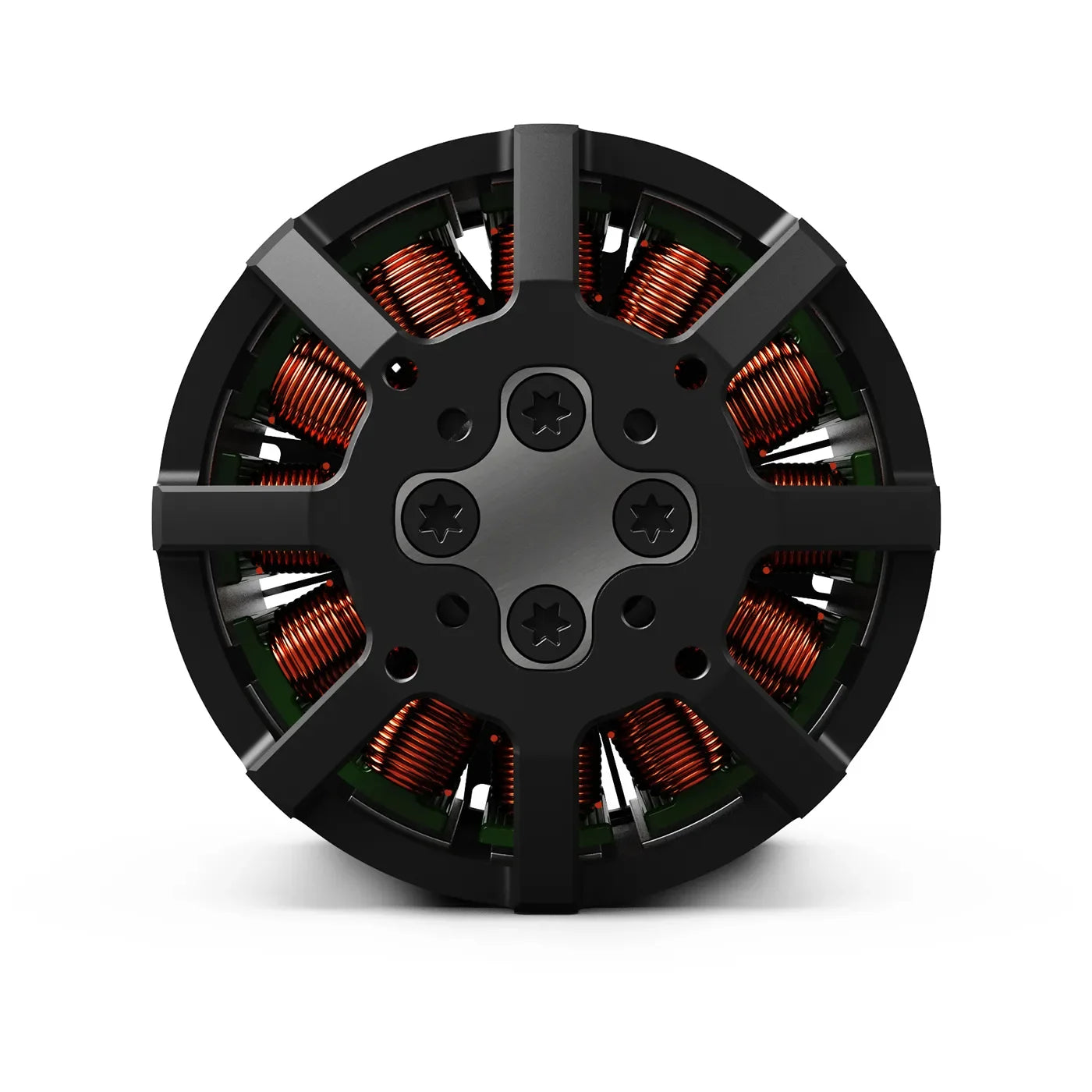

MAD VAX 5330 VTOL Drone Motor - 220KV 260KV 12S 12.8kgf Brushless Motor with Thrust Beaing for RC VTOL Airplane ,XClass Frame-1540

MAD VAX 5330 VTOL Drone Motor - 220KV 260KV 12S 12.8kgf Brushless Motor with Thrust Beaing for RC VTOL Airplane ,XClass Frame-1540

MAD

$217.04 USD
$260.44 USD $217.04 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

27 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

MAD VAX 5330 VTOL Drone Motor Summary

The MAD VAX 5330 VTOL Airplane Drone Motor is a high-performance motor designed for UAV applications. It features a robust design with anti-corrosive stator material and rain protection, making it suitable for various environmental conditions. The motor is available in two KV ratings (220KV and 260KV), each offering different specifications tailored to specific needs.

  • 220KV Motor:

    • Nominal Voltage: 12S lipo battery
    • Maximum Current: 70.8A
    • Maximum Thrust: 11.2 kg
    • Maximum Power: 3263W

  • 260KV Motor:

    • Nominal Voltage: 12S lipo battery
    • Maximum Current: 97A
    • Maximum Thrust: 12.8 kg
    • Maximum Power: 4377W

Both versions are equipped with high-quality bearings, independent centrifugal heat dissipation, and excellent balance. They are designed for heavy-lift drones, supporting take-off weights up to 44 kg for octocopters.

MAD VAX 5330 VTOL Drone Motor Specifications

Motor Data

Parameter Value
Motor Model MAD VAX 5330 EEE V1.0
Number of Pole Pairs 7
Stator TAIWAN / Anticorrosive
Varnished Wire Degree 180°C
Motor Size D: 61.1 × 84 mm
Magnet Degree 150°C
Degree of Protection Rain protection
Cable Length 150 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation Independent
Rotor Balance ≤5 mg
Propeller Mounting Holes D: 31 M3×4, D: 20 M3×4
Motor Balance ≤10 mg
Shaft Diameter IN: 8 mm
Motor Mounting Holes D: 30 M4×4, D: 44 M4×4
Bearing EZO 688ZZ2 / NMB 19801
Disruptive Test 500 V
Additional Accessories Prop Adapter(M8) 1, Propeller Plate 1, 4.0mm Bullet Connector3, Heat Shrinkable Tube3, M412mm 4 Motor Screws, M38mm 4 Prop Adapter Fixing Screws, M8 Nut1, Sticker1

MAD VAX 5330 220KV 260KV Specifications

Parameter 220KV 260KV
RPM/V 220KV 260KV
Nominal Voltage 12S lipo battery 12S lipo battery
No Load Current 1.35A / 30V 1.6A / 20V
Internal Resistance 45mΩ 21mΩ
Motor Weight 570 g 564 g
Product Boxed Weight 750g (110 x 110 x 65 mm) 732g (110 x 110 x 65 mm)
Maximum Current 70.8 A 97 A
Maximum Power 3263W 4377W
Maximum Thrust 11.2 kg 12.8 kg
Maximum Torque 3 Nm 3.5 Nm
Recommended ESC MAD AMPX 80A (5-14S) MAD AMPX 120A (5-14S)
Recommended Propellers 18x12, 19x10, 20x10, 17x8X3 18x12, 19x10, 20x10, 17x8X3
UAV Take-off Weight 12S-20”/ 17kg--Quadcopter<br>25.5kg--Hexacopter<br>34kg--Octocopter 12S-20”/ 22kg--Quadcopter<br>33kg--Hexacopter<br>44kg--Octocopter
Single Rotor Take-off Weight 4kg ~ 5kg 5kg ~ 6kg



MAD VAX 5330 VTOL Drone Motor Details

MAD VAX 5330 VTOL Drone Motor, High-performance drone motor with thrust bearing for VTOL aircraft and X-class frames.MAD VAX 5330 VTOL Drone Motor, High-performance drone motor for UAVs, designed for VTOL (vertical takeoff and landing) aircraft.
