MAD XP10 Drone Arm Set – 22KG Thrust 110KV Brushless Motor (12S–14S) for Heavy-Lift Agricultural & Transport Drones

Overview

The MAD XP10 KV110 is a professional-grade integrated drone arm system designed for ultra-heavy agricultural UAVs and delivery drones. Featuring a maximum thrust of 22 kg per rotor, a robust IPX6 waterproof design, and a fully modular build, the XP10 excels in high-payload scenarios such as 15–20L spraying drones and industrial transport UAVs. Its integration of motor, ESC, propeller allows for rapid deployment, system reliability, and maintenance convenience.

Key Features

• 22 kg Max Thrust: Delivers extreme lifting power with 34×12.8 folding propellers.

• 7–11 kg Recommended Takeoff Load per rotor for optimal performance and efficiency.

• IPX6 Waterproof Protection: Designed for harsh outdoor conditions including wet farmland and dust-heavy environments.

• Modular Arm Design: Integrated layout reduces wiring complexity and improves flight system assembly speed.

• FOC Vector Control: Enables smoother throttle response, lower energy consumption, and precise torque control.

• Built-in Status Recorder: Supports fault logging and operational diagnostics.

• PWM + CAN Communication: Dual-signal support compatible with modern flight controllers.

• High-Intensity LED Light: Integrated night light for visibility during low-light operations.

Technical Specifications

XP10 Arm Assembly

Motor

Propeller

ESC

Performance Test Data (12S Battery, 34×12.8 Propeller)

• Maximum thrust: 22.3 kgf

• Maximum efficiency: 12 gf/W at low throttle (~30%)

Mechanical Dimensions

• Arm tube diameter: 40 mm

• Propeller span: 34 inches (864 mm)

• Mounting base diameter: 64.6 mm

• Arm length (total): 245.2 mm

• Compatible mount hole: 4 × M4 (Ø31 mm)

Recommended Application Scenarios

• Quadcopters: 28–44 kg takeoff weight

• Hexacopters: 42–66 kg takeoff weight

• Agricultural drones: 15L to 20L tank capacity

• Heavy-lift delivery drones: Long-endurance cargo transport UAVs

Product Options

• KV Rating: 110 KV

• Rotation Direction: CW / CCW

• Propeller Option: With or Without 34×12.8 Folding Propeller

Details

MAD XP10 KV110 is an intelligent integrated arm set for agricultural and delivery drones. Features include modular design, FOC vector control, IPX6 protection, PWM + CAN for safer flight, and a status recorder. It supports quadcopter and hexacopter drones with varying take-off weights and mounting capacities.

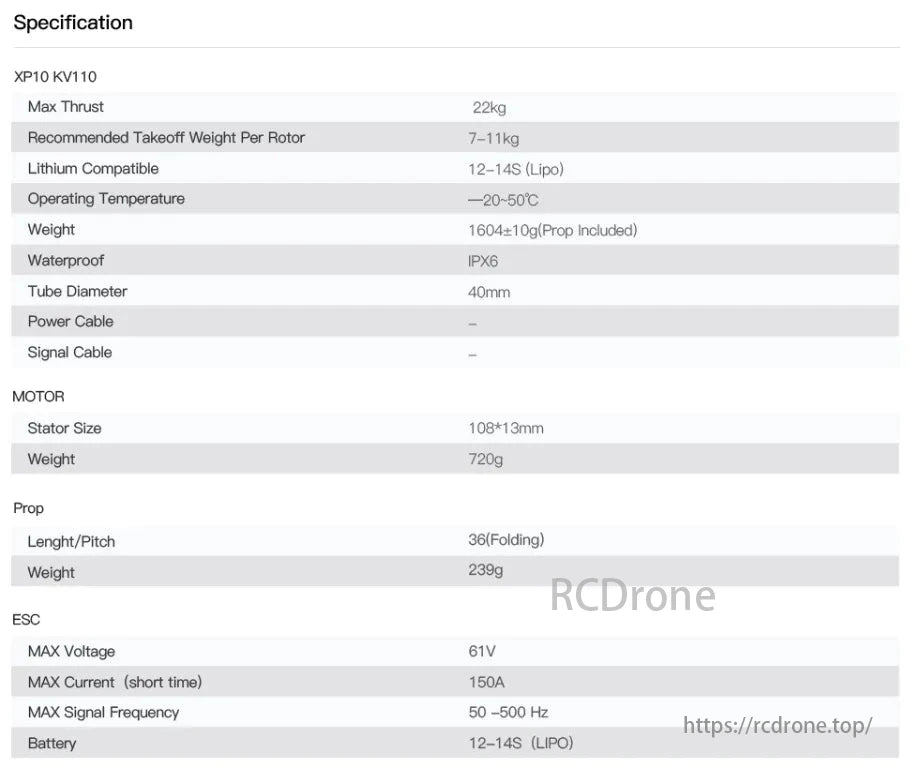

Specification for XP10 KV110: Max thrust 22kg, recommended takeoff weight 7-11kg per rotor. Compatible with 12-14S Lipo batteries. Operating temperature -20 to 50°C. Weight 1604±10g including prop. Waterproof IPX6. Motor stator size 108*13mm, weight 720g. Prop length/pitch 36 (folding), weight 239g. ESC max voltage 61V, current 150A.

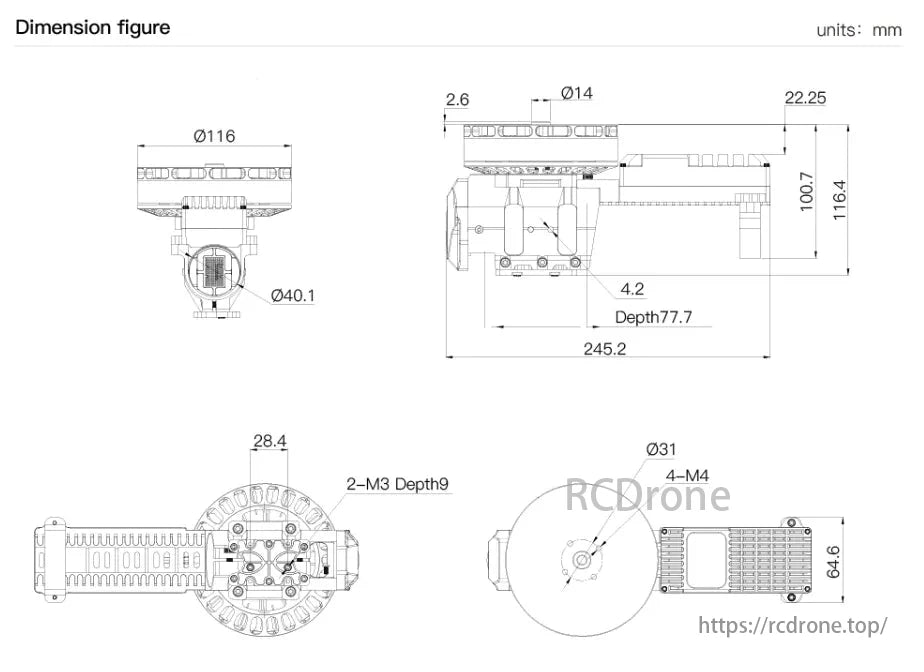

Dimension figure details mechanical part sizes in millimeters, including diameters, depths, and mounting holes.

Test data includes throttle percentage, voltage, current, input power, torque, RPM, thrust, and power efficiency. As throttle increases from 30% to 100%, voltage decreases slightly, while current, input power, torque, RPM, and thrust increase. Power efficiency peaks at 12 gf/W and drops to 5 gf/W.
