MAD XP10S KV100 Drone Arm Set – 26kg Max Thrust Industrial Power System (12S-14S) for Agriculture & Delivery Drones

MAD

$469.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Rotation CW CCW

Propeller Without Propeller With 36x12 Propeller

Quantity

View full details

Overview

The MAD XP10S KV100 Drone Arm Set is a high-performance integrated propulsion system engineered for heavy-lift drones, offering up to 26kg max thrust per rotor, excellent IPX6 waterproof rating, and compatibility with 12–14S LiPo batteries. Built for demanding applications, it ensures stable and efficient operation across wide temperature ranges from –20°C to 50°C, making it ideal for industrial and agricultural UAVs.

Specifications

Parameter	Value
Brand	MAD
Max Thrust	26 kg
Recommended Takeoff Weight	11–13 kg per rotor
Battery Compatibility	12–14S LiPo
Operating Temperature	–20°C to 50°C
System Weight	1806±10g (with propeller)
Waterproof Level	IPX6
Tube Diameter	40 mm

Motor Details

Parameter	Value
Stator Size	108×17 mm
Motor Weight	880 g

Propeller Details

Parameter	Value
Length/Pitch	36-inch Folding
Weight	239 g

ESC (Electronic Speed Controller)

Parameter	Value
Max Voltage	61 V
Max Current (Short)	150 A
Max Signal Frequency	50–500 Hz
Battery Supported	12–14S LiPo

Dimension Overview (Unit: mm)

Arm total length: 245.2 mm
Motor mount diameter: Ø116 mm
Propeller mounting hole: Ø31 mm (4-M4 screws)
Tube interface: Ø40.1 mm
Side mount holes: Ø4.2 mm
Vertical mount holes: 2-M3 (Depth 9 mm)
Heat sink width: 64.6 mm
Component height: 120.4 mm

Performance Test Data (Highlights)

Throttle (%)	Voltage (V)	Current (A)	Thrust (gf)	Power Efficiency (gf/W)
50%	53.73	18.30	8423	460
60%	53.63	28.20	11183	397
70%	53.46	49.80	16168	325
80%	53.32	81.40	21358	262
100%	53.31	103.00	25553	248

This data confirms the XP10S KV100 system's superior thrust and efficiency curve under high-load conditions.

Applications

The XP10S KV100 Drone Arm Set is ideal for:

20L Quadcopter Agriculture Drones
– Supports total take-off weight of 44–52kg
30L Hexacopter Agriculture Drones
– Supports total take-off weight of 66–78kg

Details

MAD XP10S Drone Arm, MAD XP10S KV100 is an intelligent arm set for agricultural and delivery drones, featuring modular design, FOC control, IPX6 protection, PWM + CAN, and supports quad/hexacopters.

MAD XP10S KV100 is an intelligent integrated arm set for agricultural and delivery drones. Features include modular design, FOC vector control, IPX6 protection, PWM + CAN for safer flight, and a status recorder. It supports quadcopter and hexacopter drones with varying take-off weights and mounting capacities.

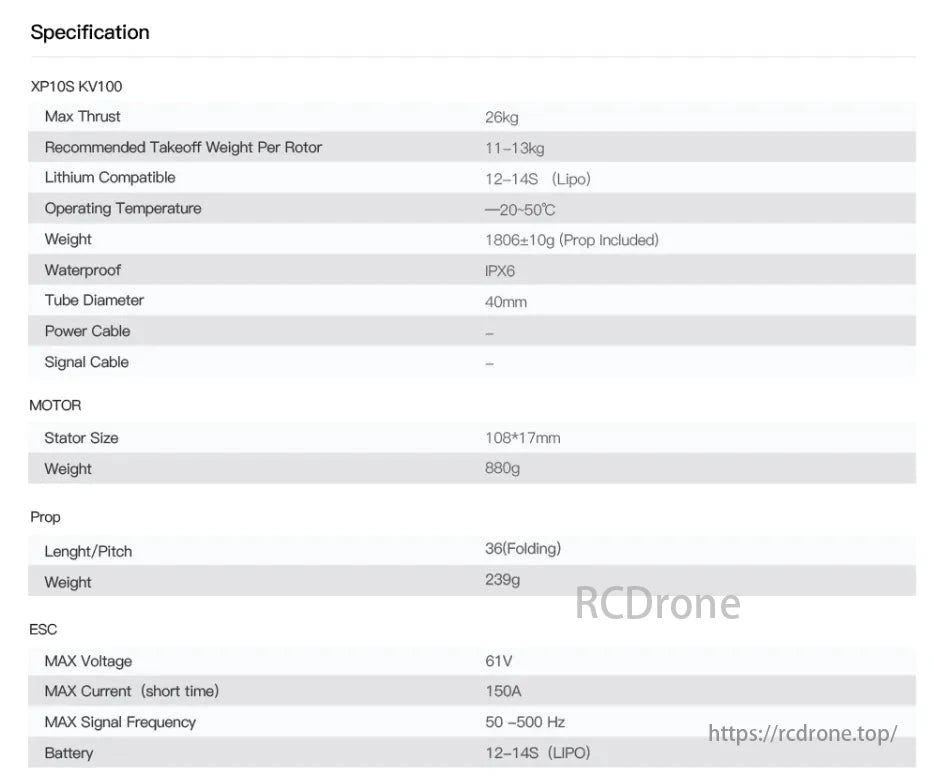

MAD XP10S Drone Arm, XP10S KV100 specs: 26kg thrust, 11-13kg takeoff weight/rotor, 12-14S Lipo, -20 to 50°C, 1806g weight, 36" props, 880g motor, 150A ESC.

Specification details for XP10S KV100 include 26kg max thrust, 11-13kg recommended takeoff weight per rotor, 12-14S Lipo compatibility, -20 to 50°C operating temperature, and 1806±10g weight. Motor weighs 880g with a 108*17mm stator. Prop is 36 inches folding, weighing 239g. ESC supports up to 61V and 150A current.

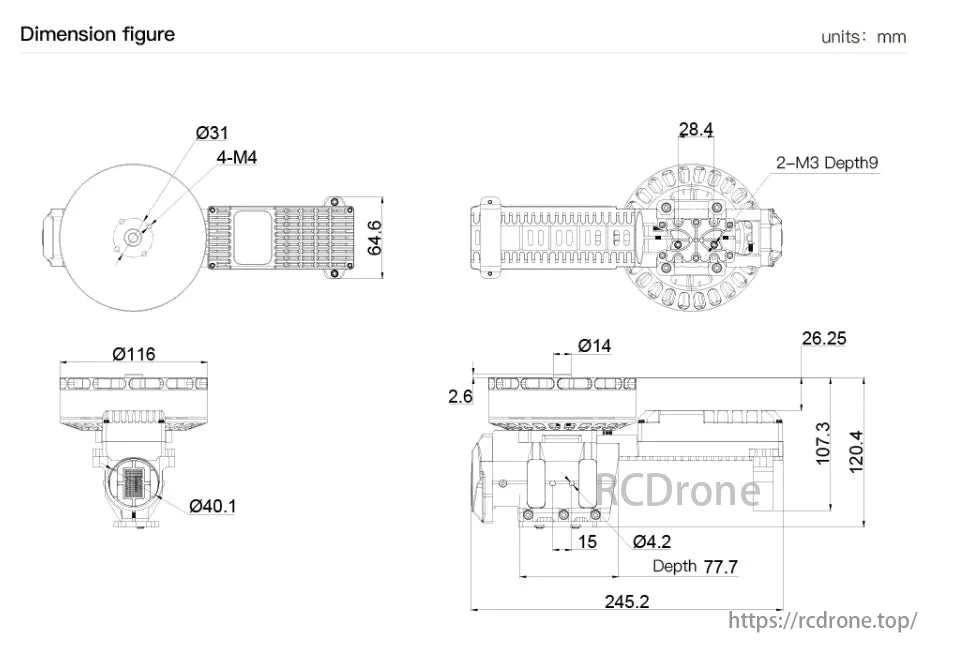

MAD XP10S Drone Arm, The dimension figure in millimeters comprises Ø31, 4-M4, Ø116, Ø40.1, Ø14, Ø4.2, with lengths of 64.6 mm and 245.2 mm included.

Dimension figure in millimeters includes Ø31, 4-M4, Ø116, Ø40.1, Ø14, Ø4.2, and various lengths like 64.6 mm and 245.2 mm.

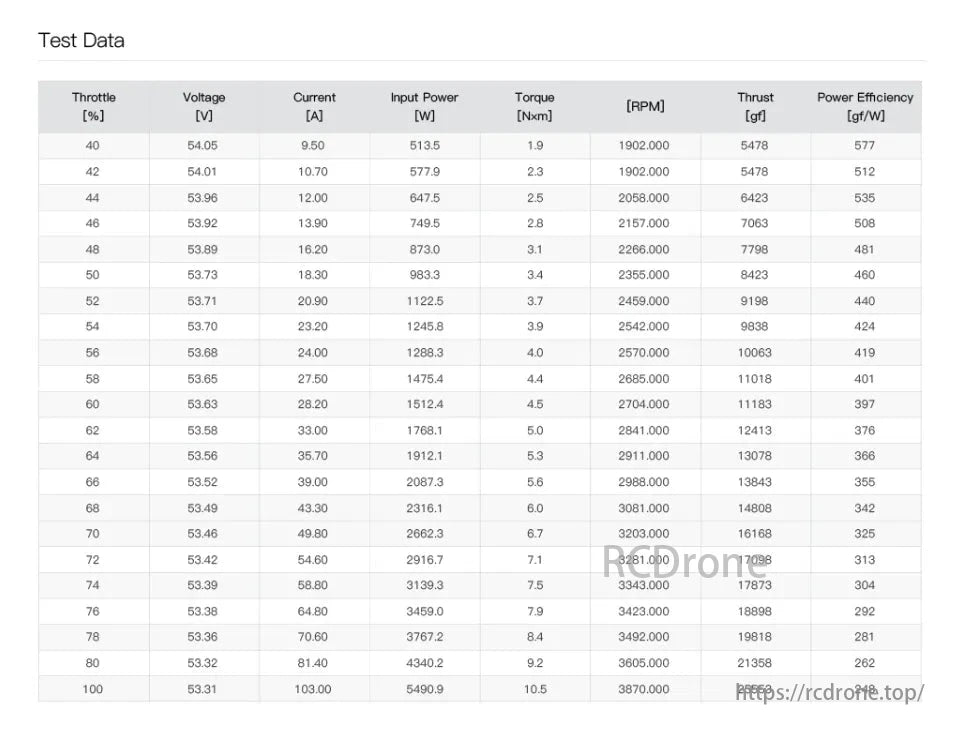

MAD XP10S Drone Arm, Test Data shows that as throttle increases, voltage decreases slightly, but current, power, torque, RPM, and thrust rise significantly; power efficiency peaks at lower throttles.

Test Data summarizes throttle, voltage, current, input power, torque, RPM, thrust, and power efficiency. As throttle increases from 40% to 100%, voltage slightly decreases, while current, input power, torque, RPM, and thrust significantly rise. Power efficiency peaks at lower throttles and declines as throttle increases.
